M-PACT Plus

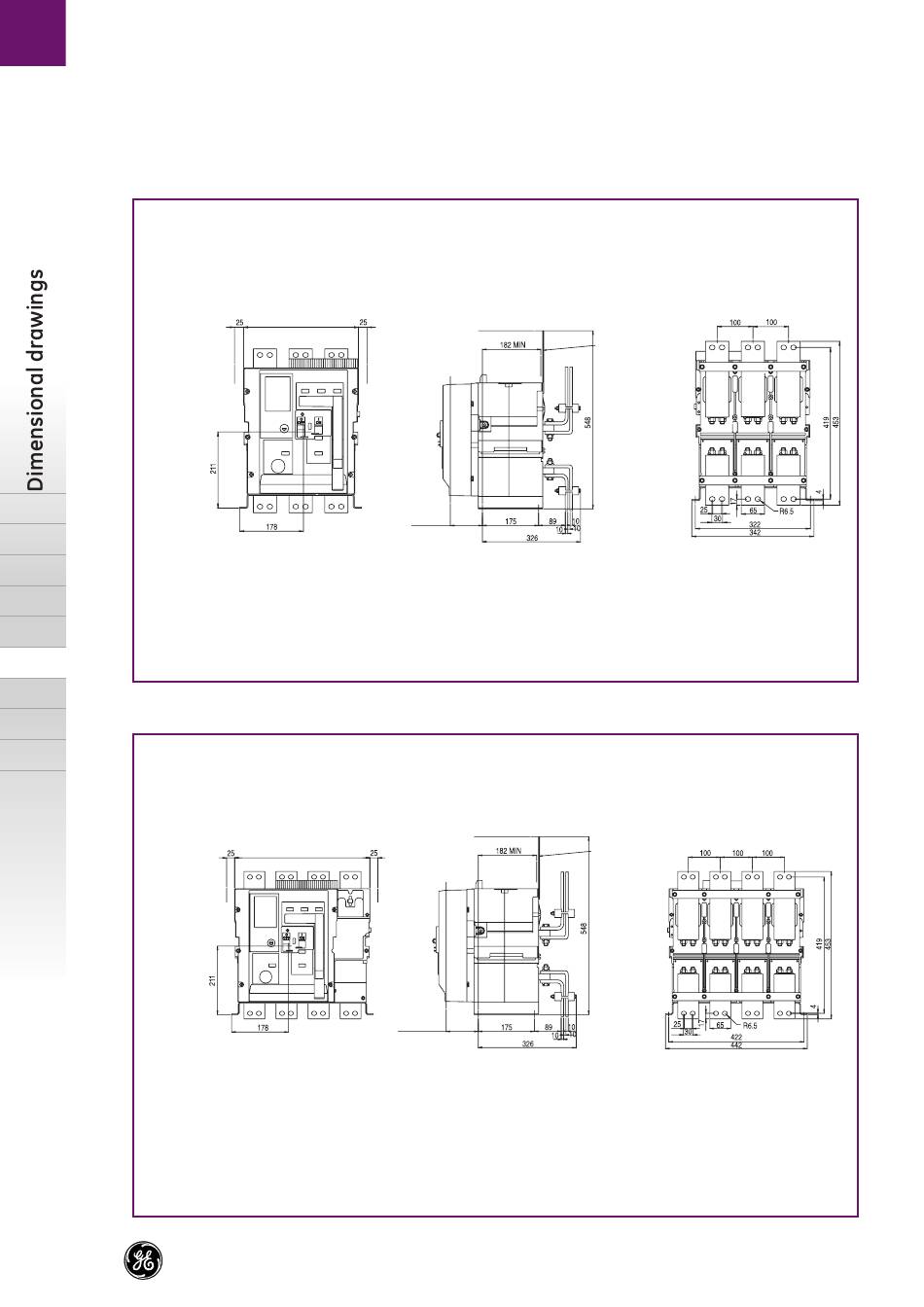

Front access connection
Fixed pattern
Type S, N - 3 pole - Frame size 1, ln = 2000A to 2500A
Center line of
operating panel
A
B
C
Type S, N - 4 pole - Frame size 1, ln = 2000A to 2500A
X
Center line of
operating panel
C.12
Minimum clearance
to breaker side
100 to door
Center line of
operating panel
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Minimum clearance
to breaker side
100 to door
Center line of
operating panel
Copperwork must be supported within 200 mm of breaker
connections-busbars or cables. All connections to be tightened to 50Nm.
Minimum space to earth metal
and for arc chute removal
Insulated metal
or insulated sheet
(customer supplied)
Minimum space to earth metal
and for arc chute removal
Insulated metal
or insulated sheet
(customer supplied)
