M-PACT Plus

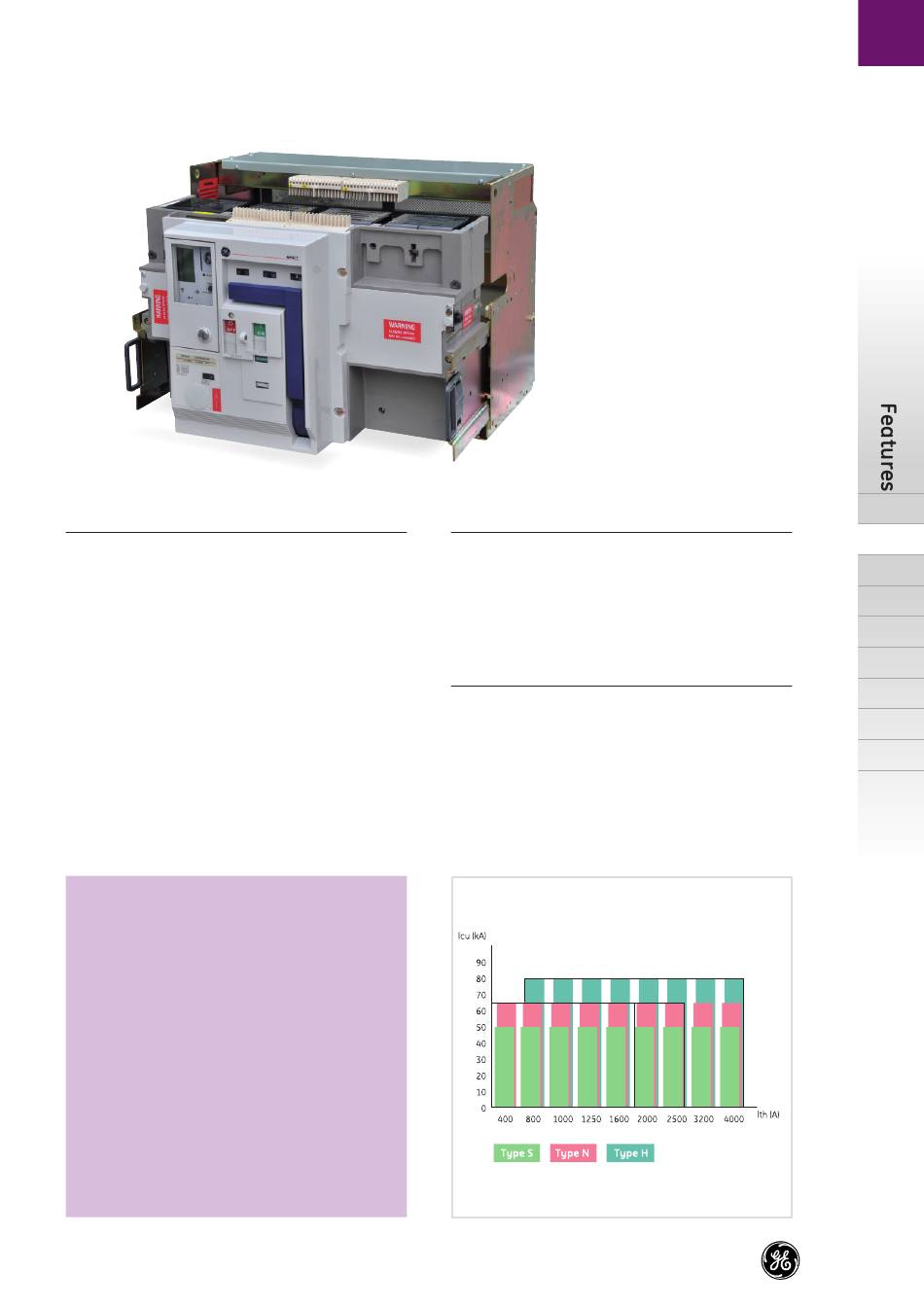

Rated from 400 to 4000A the M-PACT Plus circuit
breaker has been designed to meet the most
stringent demands in fault detection and safe
interruption thereof.
Available in 2 frame sizes:
- frame size 1 ranging from 400 to 2500A
- frame size 2 ranging from 800 to 4000A
The range has been developed to be aesthetically
and technically coordinated with other protective
devices within the GE industrial product ranges.
The breaker range has a common height and depth and
is available in both fi xed pattern and drawout versions
which can be manually or electrically operated.
Designed to offer multiple mains connection options it
also comes with a wide range of easy-to-install
accessories.
✔ 3 performance ranges
S - 50kA (Icu)
N - 65kA (Icu)
H - 80kA (Icu)
Ratings shown at 415V AC
✔ 2 compact frame sizes
Frame size 1 - 400 to 2500A
Frame size 2 - 800 to 4000A
✔ Fixed pattern and withdrawable versions
✔ 3 or 4 pole versions
✔ Front and rear access connections (horizontal/
vertical)
✔ Devices provided with or without protection relay
✔ Manual or electrical operation
✔ Common height and depth dimensions
✔ Built-in safety features e.g. safety shutters
✔ Wide range of protection settings offering full selectivity
✔ Combinations of earth fault protection
✔ Easy-to-install accessories, common to entire range
✔ Simple and effi cient servicing on site
Specifi cation
M-PACT Plus air circuit breakers comply with the following
specifi cations for Low Voltage Switchgear:
IEC 60947-1
IEC 60947-2
IEC 60947-3
Utilisation category B

Approvals

✔ KEMA certifi cation in accordance with IEC 60947-2,
VDE 0660 Part 101 and Part 107
✔ LOVAG certifi cation in accordance with IEC 947-2,
BS EN 60947-2 ASTA, KEMA
✔ CCC certifi cation in accordance with GB14048-2
✔ CCS certifi cation in accordance with China Certifi cation
of shipping
