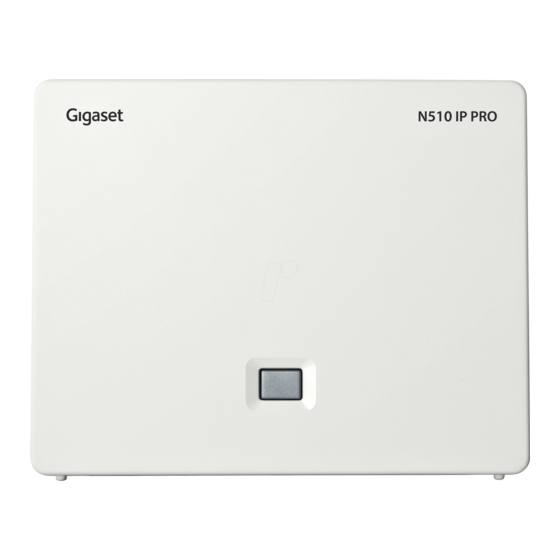

Gigaset N510 IP PRO User Manual
  1. Manuals
  2. Brands
  3. Gigaset Manuals
  4. Telephone
  5. N510 IP PRO
  6. User manual

Gigaset N510 IP PRO User Manual

Hide thumbs Also See for N510 IP PRO:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N510 IP PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigaset N510 IP PRO

Summary of Contents for Gigaset N510 IP PRO

  • Page 3: Safety Precautions

    Please refer to the "Appendix" chapter in the long user guide (see enclosed CD) for the specifica- tions of this Gigaset product. Do not install the base and charger in bathrooms or shower rooms. The base is not splashproof.

  • Page 4: Package Contents

    Gigaset pro: http://gigaset.com/pro Gigaset pro Wiki: http://gigaset.com/pro/wiki Product: http://gigaset.com/pro/GIGASETN510IPPRO If the firmware for your base is updated, the user guide will also be updated and made available for download on the Internet at www.gigaset.com.

  • Page 5: Connection Overview

    PC in LAN (optional) – for advanced configuration of the base Please note You can operate, set up and use all the telephone functions on your base with a Gigaset C59H, C610H, SL78H, SL400H, S79H or S810H handset, for example.

  • Page 6: Connecting The Base

    Connecting the base Please note Your Gigaset N510 IP PRO is supplied with sufficient power via PoE (Power over Ethernet) if the device is connected to an Ethernet switch with PoE functionality (PoE class IEEE802.3af ). In this case, it is not necessary to connect the device to the mains power supply.

  • Page 7: Connecting The Base To The Router (Internet)

    Connecting the base Connecting the base to the router (Internet) §§1§§ Insert a plug from the Ether- net cable supplied (Cat 5 with 2 RJ45 Western modu- lar plugs) into the LAN con- nection socket at the side of the base. §§2§§...

  • Page 8: Connecting The Pc To The Router

    Connecting the base Connecting the PC to the router You can change the settings on the phone's base using a PC connected to your phone via the router. PC system requirements: Ethernet port Web browser, such as Microsoft Internet Explorer version 6.0 or higher, or Mozilla Fire- fox version 1.0.4 or higher DHCP must be activated (e.g.

  • Page 9: Configuring The Voip Connection

    Configuring the VoIP connection Please note Use the PABX VoIP configuration when connecting your Gigaset N510 IP PRO to a Gigaset PRO PABX (e.g., Gigaset T500 PRO or Gigaset T300 PRO) . Your Gigaset N510 IP PRO searches the network for a provisioning file and checks whether VoIP accounts already exist.

  • Page 10: Establishing The Connection To The Web Configurator

    Configuring the VoIP connection Establishing the connection to the Web configurator ¤ Launch the web browser on your PC. ¤ Enter the local IP address for your phone into the address field (e.g., http://192.168.1.4). You can see the IP address on the handset display by briefly pressing the paging/ registration key on the front of the base.

  • Page 11: Registering With The Web Configurator

    Configuring the VoIP connection Registering with the Web configurator ¤ If you want to change the interface lan- guage of the Web configurator, click on list icon. ¤ Select the appropriate language from the list of available languages. The web page is reloaded in the selected language. This may take some time. Please note The Web configurator web pages for the required language are loaded onto the base from the configuration server.

  • Page 12: Entering Voip Data

    Configuring the VoIP connection Entering VoIP data The following web page is displayed: ¤ Select Settings. After the following web page has loaded: ¤ Click on Telephony in the navigation area (to the left of the web page). A list is opened containing all connections that you can assign or configure to your phone.
  • Page 13 Configuring the VoIP connection A web page for configuring the first VoIP connection is displayed. First load the general pro- vider data onto your base. ¤ To do this, click on the Select VoIP Provider button and then on Next> on the following web page.

  • Page 14: Completing Configuration

    You will be able to receive calls via the VoIP connection as soon as a handset has been registered to the base. Please note You can use the full range of base functions with all Gigaset C59H, C610H, SL78H, SL400H, S79H and S810H handsets.

  • Page 15: Assigning The Send/Receive Connections

    Assigning the send/receive connections Assigning the send/receive connections Registering the handset You must register the handset on both the handset (a) and the base (b). a. On the handset ¤ Start the registration procedure on the handset in accordance with the handset's user guide.

  • Page 16: Changing The Assignment Of A Handset Connection

    Assigning the send/receive connections Changing the assignment of a handset connection Assign the VoIP connection (or the corresponding phone number) to a handset as a send and/or receive connection. To do this in the Web configurator: ¤ Click on Number Assignment in the navigation area (to the left of the web page).

  • Page 17: Completing Configuration And Number Assignment

    Click on Log Off (top right-hand side of the web page) to log out of the Web configu- rator. You can configure five additional VoIP connections (VoIP phone numbers) on your Gigaset. The long user guide for your phone (see enclosed CD) contains detailed information on setting up the device, configuring new connections and operating the phone, as well as possible solu- tions to frequently asked questions and common problems.

  • Page 18: Customer Care

    Customer Care Customer Care Questions? For rapid assistance, refer to this user guide or visit www.gigaset.com/pro. The trade outlet where you bought your PABX will be happy to help with further questions relating to your Gigaset Professional PABX. Questions and answers If you have any queries about the use of your telephone, visit our website at www.gigaset.com/uk/service...

  • Page 19: Environmental Management System

    Appendix Environmental management system Gigaset Communications GmbH is certified according to the interna- tional standards EN 14001 and ISO 9001. ISO 14001 (Environment): certified since September 2007 by TüV SÜD Management Service GmbH. ISO 9001 (Quality): certified since 17/02/1994 by TüV SÜD Management Service GmbH.
