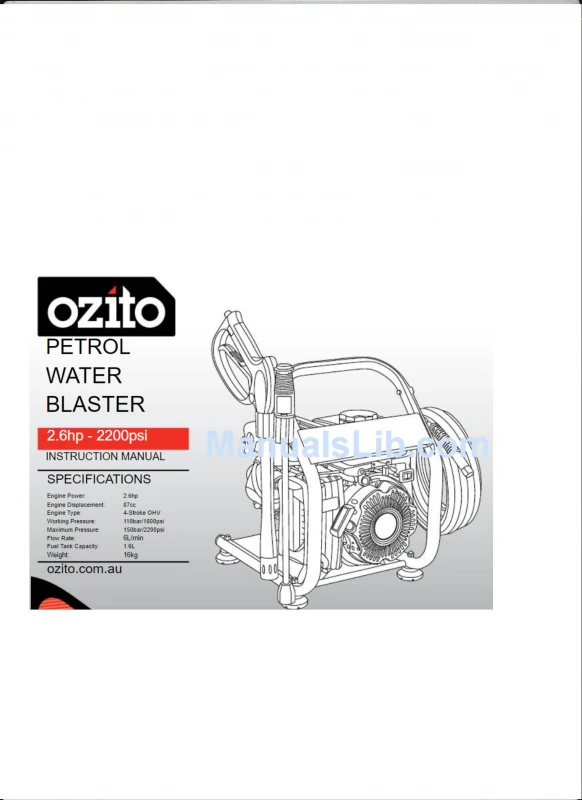

PETROL
WATER
BLASTER
2.6hp - 2200psi
INSTRUCTION MANUAL
SPECIFICATIONS
Engine Power:
2.6hp
Engine Displacement:
87cc
Engine Type:
4-Stroke OHV
Working Pressure:
110bar/1600psi
Maximum Pressure:
150bar/2200psi
Flow Rate:
6L/min
Fuel Tank Capacity:
1.6L
Weight:
16kg
ozito.com.au
1
WHAT'S IN THE BOX
Petrol Water Blaster
8m High Pressure Hose
Gun & Lance
Spark Plug Spanner,
Screwdriver & Cleaning
Needle
PWB-2200
Advertisement
Table of Contents
Related Manuals for Ozito PWB-2200
Summary of Contents for Ozito PWB-2200
-
Page 1: Specifications
8m High Pressure Hose SPECIFICATIONS Engine Power: 2.6hp Gun & Lance Engine Displacement: 87cc Engine Type: 4-Stroke OHV Working Pressure: 110bar/1600psi Maximum Pressure: 150bar/2200psi Flow Rate: 6L/min Fuel Tank Capacity: 1.6L Weight: 16kg ozito.com.au Spark Plug Spanner, Screwdriver & Cleaning Needle PWB-2200... -
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION PORTABLE PETROL WATER BLASTER 1. Gun 6. Fuel Shut Off 1. ASSEMBLY 2. Lance 7. Throttle 3. Choke 8. On/Off Switch 4. Air Filter 9. Fuel Tank 5. Recoil Starter 10. Fuel Cap 1. Attach the spray gun holder using 2 phillips head screws and nuts provided. -
Page 3: Fuel And Oil
2. FUEL & OIL 3. CONNECTIONS Fuel Hose & Gun Assembly WARNING!: PETROL IS VERY FLAMMABLE. AVOID SMOKING OR CAUSING ANY SPARKS OR FLAMES NEAR FUEL. SELECT AN OPEN OUTDOOR AREA FOR FUELLING AND MOVE AT LEAST 3M AWAY FROM THE FUELLING POINT BEFORE STARTING THE MOTOR. -
Page 4: Operation
OPERATION 4. PRE-START PROCEDURE Water Supply 1. Ensure water supply is 4. Run water through connected. your garden hose to remove any foreign matter before attaching to the pump. 2. Ensure water supply is turned on. 5. Attach garden hose to the inlet on the pump. Note: A plastic filter is fitted to the inlet preventing any debris from entering the pump. - Page 5 WITHOUT CIRCULATING WATER THROUGH THE PUMP AS THIS COULD LEAD TO OVERHEATING AND DAMAGE. 7. Set choke to OPEN position. 7. The pump has a pressure relief valve which will release a small amount of water in the event of overheating. PWB-2200...
-
Page 6: Troubleshooting
Damage may occur to painted surfaces if the soap is allowed to dry on the surface. For further information, or any parts not listed here, visit www.ozito.com. • Hold the nozzle far enough away from surface to prevent damage to the au or contact Ozito customer service surface. -
Page 7: Maintenance
MAINTENANCE Recommended Check & Maintenance Chart Every Operation/ After 20 Hours After 50 Hours After 100 Hours Time Item Daily or 1 Month or 3 Months or Yearly Inspect and Tighten All Nuts and Bolts Engine Oil (top up if required and (only required after first check for leaks) 20 hours / 1 month of use) - Page 8 Tool: Portable Petrol Water Blaster SPARE PARTS Model No. PWB-2200 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Description Part No. Water Inlet Connector SPPWB2200-03 High Pressure Gun & Lance SPPWB2200-05 Pick-Up Tube &...
-
Page 9: Safety Instructions
SAFETY INSTRUCTIONS RISK OF EXPLOSION OR FIRE conditions will reduce personal injuries. c) Remove any adjusting key or wrench before turning the tool on. A wrench or a What can happen: key that is left attached to a rotating part of the petrol tool may result in personal injury. •... -
Page 10: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 1212...
