Summary of Contents for dji PHANTOM 3

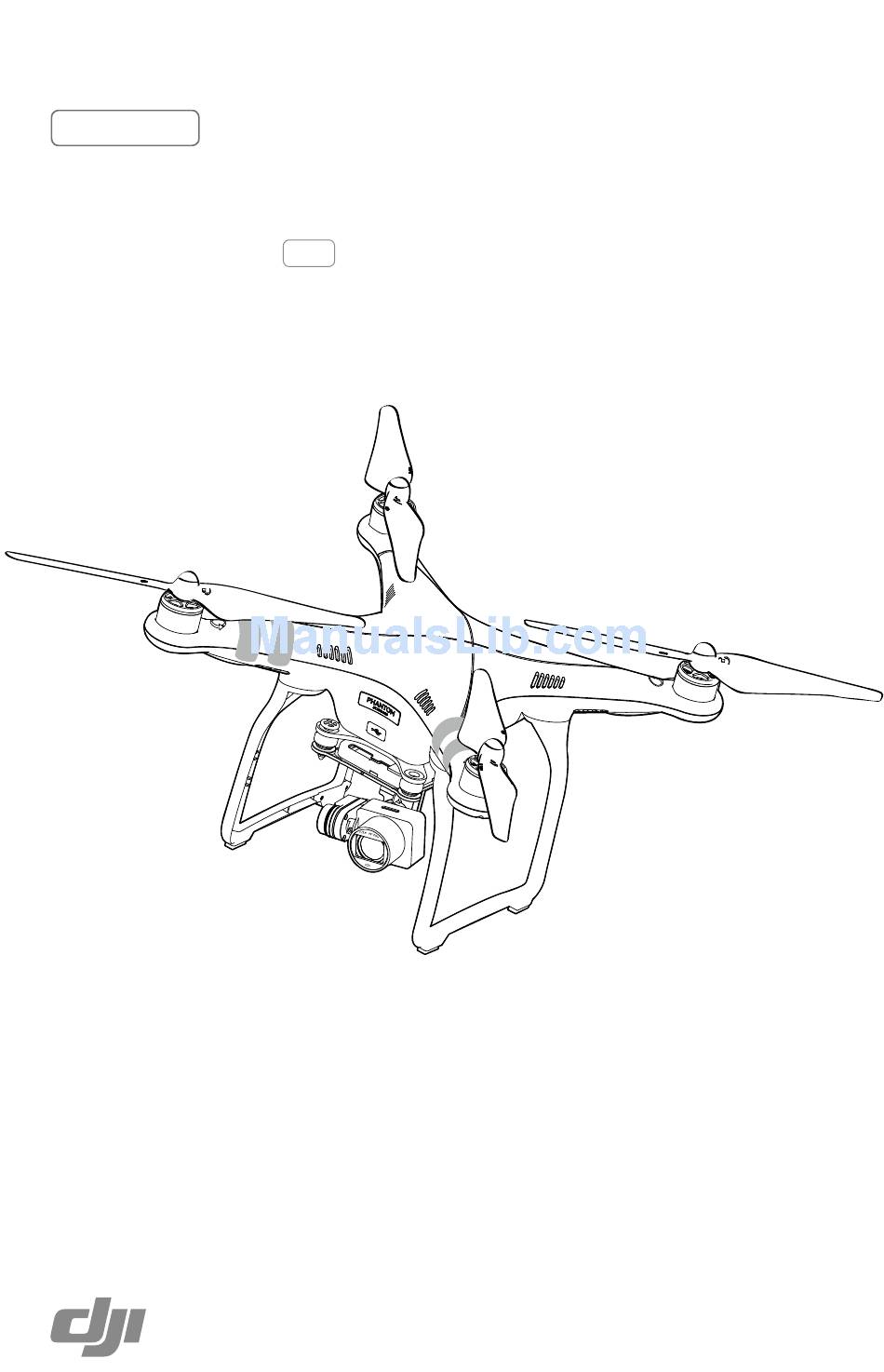

Page 1 PHANTOM 3 STANDARD User Manual V1.0 2015.08...
Page 2: Using This Manual
These tutorials will guide you all the way through unboxing, updating the firmware, and your maiden flight. http://www.dji.com/product/phantom-3-standard/video DJI GO App Download the DJI GO app on the App Store or Google Play, or by scanning the QR code on the right. The DJI GO app supports iOS 8.0 and Android 4.1.2, or later versions. ©...
Page 3: Table Of Contents
Flight Modes LED Indicators Return-to-Home (RTH) Smart RTH Low Battery RTH Failsafe RTH Flight Data Attaching and Detaching the Propellers Intelligent Flight Battery Remote Controller Profile Controls and Operation Camera and Gimbal Camera Gimbal © 2015 DJI. All Rights Reserved.
Page 4 DJI GO App Equipment Library Explore Flight Flying Conditions Flight Limits and No Fly Zones Pre-flight Checklist Calibrating the Compass Auto Takeoff and Landing Starting and Stopping the Motors Flight Test Appendix Specifications Intelligent Orientation Control (IOC) FCC Compliance © 2015 DJI. All Rights Reserved.
Page 6: Introduction
25 minutes of flight time. WiFi Video Downlink: Live HD video is streamed from the camera to the DJI GO app over WiFi as you fly. A WiFi range extender is built into the remote controller.
Page 7: Preparing The Aircraft And Remote Controller
Phantom 3 Standard User Manual Preparing the Aircraft and Remote Controller Removing the Gimbal Clamp Slide the gimbal clamp off the camera. Attaching the Propellers Attach the black propeller nuts onto the motors with black dots and spin them counter-clockwise to secure.
Page 8: Aircraft Diagram
Phantom 3 Standard User Manual Aircraft Diagram [1] Propellers [2] Motors [3] Front LED Indicator [4] Aircraft Micro USB Port [5] Camera Status Indicator [6] Landing Gear [7] Intelligent Flight Battery [8] Gimbal and Camera [10] [9] Antennas [10] Camera Micro SD card slot...
Page 10: Flight Controller
The Front LEDs glow solid red when the aircraft is turned on and help you orientate the aircraft when it is in the air. You can switch off the Front LEDs in the DJI GO app to achieve a better filming result. The Aircraft Status Indicators indicate the status of the flight controller.
Page 11: Return-To-Home (Rth)
Smart RTH in the DJI GO app or toggle the S2 switch on the remote controller back and forth at least twice to initiate Smart RTH. The aircraft will first ascend to the Return-to-Home altitude, then return to the last recorded Home Point if a GPS signal is available.
Page 12: Low Battery Rth
When the Intelligent Flight Battery is depleted to a point that may affect the safe return of the aircraft, the Low Battery Level Warning or Critically Low Battery Warning will appear in the DJI GO app. The thresholds for these warnings are automatically determined based on the aircraft’s current altitude and distance from the Home Point, but you can also set your own fixed thresholds as extra precaution.
Page 13: Failsafe Rth
To export this data, connect the aircraft to the PC through the Micro USB port and launch the DJI GO app to export this data. This data can be later analyzed with the proper software if necessary.
Page 14 Phantom 3 Standard User Manual Attaching the Propellers 1. Remove the warning stickers from the motors before attaching the propellers. 2. Attach the black propeller nuts onto the motors with black dots and spin them counter-clockwise to secure. Attach the silver propeller nuts onto the motors without black dots and spin them clockwise to secure.
Page 15: Intelligent Flight Battery
Phantom 3 Standard User Manual Intelligent Flight Battery The DJI Intelligent Flight Battery has a capacity of 4480 mAh, a voltage of 15.2 V and a smart charge/ discharge functionality. It should only be charged with the official DJI battery charger.
Page 16 Phantom 3 Standard User Manual Using the Battery LED1 LED2 LED3 LED4 Power Button (Built-in LED) Battery Level Indicators Turning On or Turning Off the Battery Press the power button once, again, and hold for 2 seconds. When turning off the battery, the power button may continue to flash for a few seconds if the aircraft is still storing media files to the Micro SD card.
Page 17 40%~50% 30%~40% 20%~30% Below 20% When the battery life reaches 0%, the Intelligent Flight Battery must be replaced. For more information about the battery, launch the DJI GO app and tap in Camera View. © 2015 DJI. All Rights Reserved.
Page 18 Phantom 3 Standard User Manual Charging the Intelligent Flight Battery 1. Connect the battery charger to a suitable power supply (100-240V, 50/60Hz). 2. Open the protection cap on the battery charger and connect it to the Intelligent Flight Battery. If the battery level is above 95%, turn on the battery before charging, otherwise it will not be fully charged.
Page 19 Check the battery level in the DJI GO app. Fast : Fly the Phantom 3 Standard outdoors until there is less than 8% of battery remaining or until the battery can no longer be turned on.
Page 20: Remote Controller
Remote Controller This section describes the features of the remote controller, and includes instructions for controlling the aircraft and the camera. © 2015 DJI. All Rights Reserved.
Page 21: Profile
Remote Controller Profile The Phantom 3 Standard remote controller features a 2.4 GHz WiFi Video Downlink, 5.8 GHz aircraft transmission system, and a built-in battery. It is capable of transmitting signals to the aircraft at up to 0.62 miles (1 km). There is a foldable mobile device holder attached to the remote controller used to mount your smartphone.
Page 22 Phantom 3 Standard User Manual Remote Controller Operation The remote controller is set to Mode 2 by default. Neutral Position: The control stick is released and in the central position. Aircraft Remote Controller Operation Indicates nose direction) Vertical movement of the left stick controls the aircraft’s elevation.
Page 23 Phantom 3 Standard User Manual Toggle the S1 switch back and forth multiple times to regain the control of the aircraft during Failsafe RTH. Toggle the S1 switch back and forth for more than 3 times to calibrate the aircraft's compass.
Page 24 Phantom 3 Standard User Manual Linking the Remote Controller The Phantom 3 Standard is linked to the remote controller by default, and re-linking is only necessary if the remote controller is replaced with a new one. Refer to the figure below to locate the Link Button.
Page 25: Wifi Video Downlink
3. On your mobile device, select 'PHANTOM3_XXXXXX' from the WiFi network list, and enter the default password '12341234'. 4. Launch the DJI GO app and enter Camera View. A video signal from the aircraft's camera indicates that the aircraft has established a connection to the WiFi video downlink successfully.
Page 26: Resetting The Wifi Video Downlink
H.S: 14.2 select a network. Refer to DJI GO App on page 32 for more information on how to change the SSID and password for the WiFi video downlink. Resetting the WiFi Video Downlink Switch on the remote controller, turn the gimbal dial to the far right, and toggle the S2 switch back and forth for at least three times.
Page 28: Camera
Video and Photo Storage The Phantom 3 Standard comes with an 8 GB Micro SD, but also supports Micro SD cards with a capacity of up to 64 GB. It is recommended using a UHS-1 or Class 10 Micro SD card to minimize the delay when reading or writing high resolution image files.
Page 29: Gimbal
Phantom 3 Standard User Manual Camera Status LED The Camera Status LED lights up when the aircraft is turned on and provides information on the working status of the camera. Blinking Pattern Camera Status Blinks green quickly (0.1s on, 0.2s off) System is warming up Blinks green once (0.4s on, 0.5s off)
Page 30 Two gimbal operation modes are available. Switch between the different operation modes on the camera settings page of the DJI GO app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below for details: Follow Mode The pitch angles of the gimbal and the aircraft stay the same.
Page 32: Equipment
DJI GO App The DJI GO app is an essential hub to operate your DJI equipment, share your artwork, explore the community, and manage your DJI account, all at once. These features correspond to the four pages – Equipment, Library, Explore and Me - which are introduced in detail below.
Page 33 Phantom 3 Standard User Manual [1] Flight Mode : The current flight mode is displayed next to this icon. Tap to enter the Main Controller Settings, where you can configure the parameters that affect flight behavior. The aircraft is in Beginner Mode by default, and cannot fly 30 meters (98 feet) above or away from the Home Point.
Page 34 Phantom 3 Standard User Manual Playback : Tap to play back photos and videos on the Micro SD card. Camera Settings : Tap to set the ISO, shutter speed and auto exposure values. [11] Map Shows the current position of the aircraft. Tap the map to switch from Camera View to Map View.
Page 35: Library
Find out about our latest events, featured products and trending Skypixel uploads in the Explore page. If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community.
Page 37: Flying Conditions
In A-Mode, the aircraft cannot exceed altitudes of 400 feet (120 m). Altitude and Radius Limits The pilot can set the altitude and radius limits in the DJI GO app to create a cyliderical geo-fence to bound the aircraft. The tables below show the details of these limits.
Page 38 66 feet (20 m) from the edge of airport and radiating outwards. The flight altitude is limited to 1640 feet (500 m) at R1+1 miles. 4. When the aircraft is within 320 feet (100 m) of a no-fly zone, a warning message will appear in the DJI GO app.
Page 39 3. A Warning Zone is set on the perimeter of the Restricted Area. When the aircraft is within 0.062 miles (100 m) of the no-fly zone (inside the Warning Zone), a warning message will appear in the DJI GO app.
Page 40 Phantom 3 Standard User Manual Strong GPS Signal Flashing Green Aircraft Status Zone Restrictions DJI GO App Warning Indicator Warning: You are in a no-fly zone. Motors will not start. Takeoff prohibited. If the aircraft loses GPS signal No Fly Zone and enters the restricted area Warning: You are in a no-fly zone.
Page 41: Pre-Flight Checklist
Choose an open space to carry out the following procedures: 1. Go to the DJI GO app > Camera View > Aircraft Status Bar (top of the screen). Next to ‘Compass’, tap Calibrate. Alternatively, flip the S1 switch quickly for more than 3 times. The Aircraft Status Indicator will change from flashing yellow to solid yellow when the aircraft is ready for compass calibration.
Page 42: Auto Takeoff And Landing
If the Aircraft Status Indicator flashes red and yellow alternatively, the compass data is abnormal. Move your aircraft to a different location to carry out the calibration. Calibrate the compass after you launch the DJI GO app if you are prompted to do so. When to Calibrate 1.
Page 43: Starting And Stopping The Motors
2. Power on the remote controller and your mobile device, and then the Intelligent Flight Battery. 3. Launch the DJI GO app and enter Camera View. 4. Wait until the Aircraft Status Indicator flashes green. This means the Home Point has been recorded and it is safe to fly.
Page 44 Tips for Shooting Aerials 1. Go through the pre-flight checklist before each flight. 2. Select the desired gimbal operation mode in the DJI GO app. 3. Shoot video when flying in P-Mode whenever possible. 4. Always fly in good weather and avoid rain or strong winds.
Page 46 You may need to adjust the settings of your mobile device. Open the Settings menu, select the Privacy tab, select the Photos tab, and then toggle the switch next to the DJI GO app icon. If the GO app has not been granted access to your albums, the photos and videos cannot be synchronized.
Page 47 Every Intelligent Flight Battery is tested prior to being packaged and shipped. This affects the discharge time of a new battery and is the reason that the discharge time displayed in the DJI GO app is not zero. The battery is safe to use.
Page 48 A compass error may occur when the aircraft is flying close to strong electric magnetic sources (e.g. power lines and radio base stations). The Aircraft Status Indicators will blink red and yellow rapidly when a compass error occurs and the DJI GO app will display one of the following messages: • Compass error, calibration required This warning message indicates the aircraft is receiving abnormal compass readings.
Page 50: Specifications
0° to 40° C WiFi Operating Frequency 2.400 GHz - 2.483 GHz FCC: 1000 m；CE: 500 m Max Transmission Distance (outdoors and unobstructed, aircraft’s altitude at 400 feet/120 m) Transmitter Power (EIRP) FCC: 27 dBm；CE: 20 dBm © 2015 DJI. All Rights Reserved.
Page 51 Phantom 3 Standard User Manual Remote Controller Operating Frequency 5.725 GHz - 5.825 GHz, 922.7 MHz - 927.7 MHz（Japan） FCC: 1000 m; CE: 500 m Max Transmission Distance (outdoors and unobstructed, aircraft’s altitude at 400 feet/120 m) Operating Temperature 0° to 40° C...
Page 52: Intelligent Orientation Control (Ioc)
IOC allows the pilot to lock the orientation of aircraft in different fashions. It has three working modes you can choose from in the DJI GO app. IOC only works in F-Mode, and you must toggle the S1 switch to the F-Mode (lowest position) to activate IOC.
Page 53: Fcc Compliance
Phantom 3 Standard User Manual FCC Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 54 Phantom 3 Standard User Manual IC Radiation Exposure Statement: This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Page 55 The content is subject to change. Download the latest version from http://www.dji.com/product/phantom-3-standard If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © 2015 DJI. All Rights Reserved.
