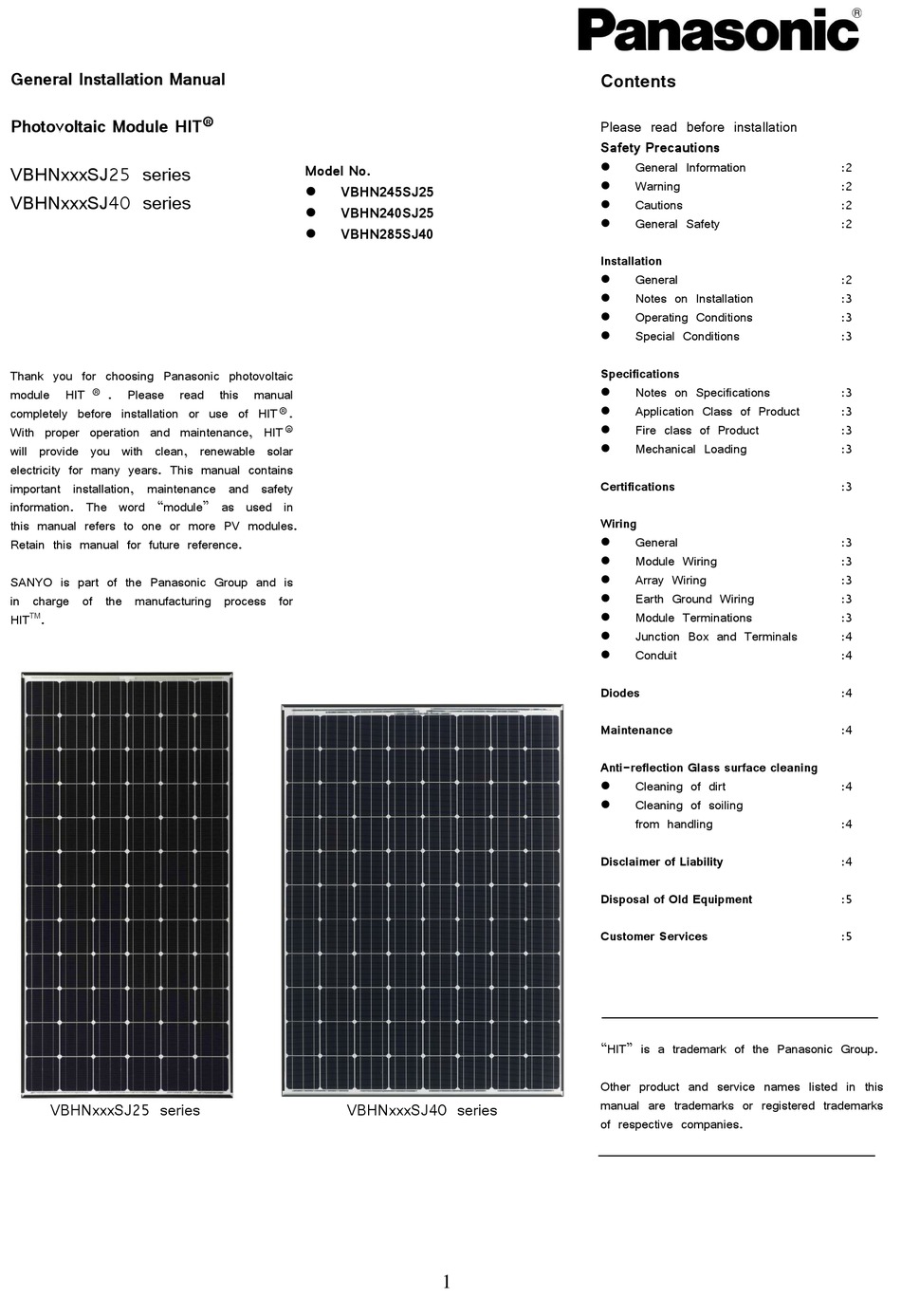

Panasonic VBHN245SJ25 Installation Manual

General Installation Manual
Photovoltaic Module HIT
VBHNxxxSJ25 series
VBHNxxxSJ40 series
Thank you for choosing Panasonic photovoltaic
module HIT . Please
○
R
completely before installation or use of HIT
With proper operation and maintenance, HIT
will provide you with clean, renewable solar
electricity for many years. This manual contains
important installation, maintenance and safety
information. The word "module" as used in
this manual refers to one or more PV modules.
Retain this manual for future reference.
SANYO is part of the Panasonic Group and is
in charge of the manufacturing process for
TM
HIT .
VBHNxxxSJ25 series
○
R
Model No.
VBHN245SJ25

VBHN240SJ25

VBHN285SJ40

read this manual
.
○
R
○
R
VBHNxxxSJ40 series
Contents
Please read before installation
Safety Precautions




Installation




Specifications




Certifications
Wiring







Diodes
Maintenance
Anti-reflection Glass surface cleaning


Disclaimer of Liability
Disposal of Old Equipment
Customer Services
"HIT" is a trademark of the Panasonic Group.
Other product and service names listed in this
manual are trademarks or registered trademarks
of respective companies.
