ATOMIC CLOCK WITH OUTDOOR WIRELESS TEMPERATURE
FEATURES:
ATOMIC CLOCK:
LCD1
display
LCD2
display
Function
keys
•
WWVB Radio controlled time with manual time setting
•
12/24 hour time display
•
Time display: hour, minute, second
•
Alarm setting with snooze function
•
Calendar display
•
Weekday display (4 languages to choose from: English, French, Spanish and German)
•
Time zone setting
•
Daylight savings time ON/OFF option (DST)
•
ºC or ºF temperature display selectable
AND MOON PHASE
MODEL 87700
Instruction Manual
1
®
Hanging holes
Battery cover
Foldable stand
Advertisement
Table of Contents
Related Manuals for SkyScan 87700
Summary of Contents for SkyScan 87700
-
Page 1: Features
® ATOMIC CLOCK WITH OUTDOOR WIRELESS TEMPERATURE AND MOON PHASE MODEL 87700 Instruction Manual FEATURES: ATOMIC CLOCK: Hanging holes LCD1 display LCD2 Battery cover display Function keys Foldable stand • WWVB Radio controlled time with manual time setting • 12/24 hour time display •... -
Page 2: To Install And Replace Batteries In The Atomic Clock
• Indoor temperature display • Outdoor temperature display via 433MHz transmission • Wall mount or freestanding • Current moon phase display OUTDOOR TEMPERATURE TRANSMITTER: • Remote transmission of outdoor temperature to the atomic clock by 433 MHz signals • Wall mounting case Holder TO INSTALL AND REPLACE BATTERIES IN THE ATOMIC CLOCK The atomic clock uses 2 x AA, 1.5V batteries. -
Page 3: Setting Up
SETTING UP: NOTE: Do not set the clock until the outdoor temperature is displayed. Place batteries in the outdoor transmitter first, then into the atomic clock. DO NOT PRESS ANY BUTTONS FOR 10 MINUTES. After 10 minutes both the Indoor and Outdoor areas on your clock should have a temperature showing. -
Page 4: Function Keys
FUNCTION KEYS The atomic clock has four easy to use keys: SET key : To enter into the set mode for the following functions: time zone, DST ON/OFF (daylight saving time), language, hour, minute, year, month, day, weekday, 12/24 hour, ºC or ºF temperature display + key : To toggle between the seconds, temperature or weekday display To change any values in manual set mode... -
Page 5: Manual Settings
New Moon Small Waxing Large Waxing First Quarter Small Waxing Large Waxing Crescent Crescent Gibbous Gibbous ullMoon Large Waning Small Waning Last Quarter Large Waning Small Waning Gibbous Gibbous Crescent Crescent Note: The moon phase visible in the sky is noted by a darkening of the LCD screen. Therfore, a full moon is a complete dark circle. -
Page 6: Time Zone Setting
TIME ZONE SETTING After entering the manual setting mode as described above, the time zone can be set using the number of hours different from Greenwich Mean Time (GMT) range in LCD2. To do this: The time zone (LCD2) will start flashing (Default setting "-5h“). Select the desired time zone by pressing and releasing the + key. -
Page 7: Manual Time Setting
E = Spanish (Espanol) D = German (Deutsch) Set the desired language for the weekday display in LCD 2 by use of the + key. Press and release the SET key to enter the mode “Manual Time Setting”. MANUAL TIME SETTING In case the atomic clock is not able to detect the WWVB-signal (disturbances, transmitting distance, etc.), the time can be manually set. -
Page 8: Date Settings
The year digits will start flashing on LCD2. Select the desired year by use of the + key. Press and release the SET key to switch to the “Month Setting”. MONTH SETTING The month digits on LCD2 will start flashing. Set the desired month by use of the + key. Press and release the SET key to move to the mode “Date Setting”. -
Page 9: Alarm Setting
• If no keys are pressed for at least 15 seconds in setting mode, the atomic clock will automatically switch back to normal display mode. ALARM SETTING To enter into the alarm setting mode: Hold the ALM key for 4 seconds. The hour digits start flashing. Press and release the + key to set the hour. -
Page 10: 433Mhz Reception Check For Outdoor Temperature Transmitter
433MHz RECEPTION CHECK FOR OUTDOOR TEMPERATURE TRANSMITTER The atomic clock will receive the temperature data within 10 minutes. If the temperature data is not received 10 minutes after setting up (the display shows “- - -”), then please check the following points: The distance of the atomic clock or outdoor temperature transmitter should be at least 6 feet away from any interfering sources such as computer monitors or TV sets. -
Page 11: Wwvb Radio Controlled Time
WWVB RADIO CONTROLLED TIME The NIST radio station, WWVB, is located in Ft. Collins, Colorado and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the atomic clock. However, due to the nature of the Earth’s Ionosphere, reception is very limited during daylight hours. -
Page 12: Icon Description
ICON DESCRIPTION: Unsuccessful reception of WWVB Currently searching for the signal. Will work as normal quartz Successful reception of WWVB time signal (tower clock. Will search for the WWVB time WWVB time signal blinking) signal overnight. POSITIONING Before permanently mounting ensure that the atomic clock is able to receive WWVB signals from the desired location. -
Page 13: Wall Mounting
WALL MOUNTING 1) Using a straightedge, horizontally space at 2.36 inches (60 mm) three screw positions on a wall. 2) Install three mounting screws (not included) into a wall within transmission range—leaving approximately 3/16 of an inch (5mm) extended from the wall. 3) Place the atomic clock onto the screws, using the hanging holes on the backside. -
Page 14: Troubleshooting
Screw mounting bracket onto the mounting surface. Ensure that the screws are flush with the bracket. MOUNTING WITH ADHESIVE TAPE With a nonabrasive solution, clean and dry the back of the mounting bracket and the mounting surface to ensure a secure hold. -
Page 15: Specifications
Solution: 1) Remove the batteries of both units for ten minutes, then reinsert them again. Make sure the batteries are new and fresh. See setting 2) Move the atomic clock closer to the transmitter or place the transmitter closer to the atomic clock. Make sure the clock is at a receivable range from the transmitter. -
Page 16: Liability Disclaimer
Outdoor : -21.8ºF to +157.8ºF with 0.2ºF resolution -29.9ºC to +69.9ºC with 0.1ºC resolution ("OF.L“ displayed if outside this range) Temperature checking interval Indoor: every 10 seconds Outdoor: every 5 minutes Transmission distance: maximum 200 feet in open field, depending upon surrounding structures, mounting location and possible interfering sources (see www.skyscaninfo.com for additional information). - Page 17 Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Equity Industries Corp. 5721 Bayside Road Virginia Beach, VA 23455 For Customer Inquiries: Web: www.skyscaninfo.com Email: shelley@eic.hrcoxmail.com Tel: (757) 460-2483 Model 87700 Printed in China 2004...
Need help?
Do you have a question about the 87700 and is the answer not in the manual?
Questions and answers

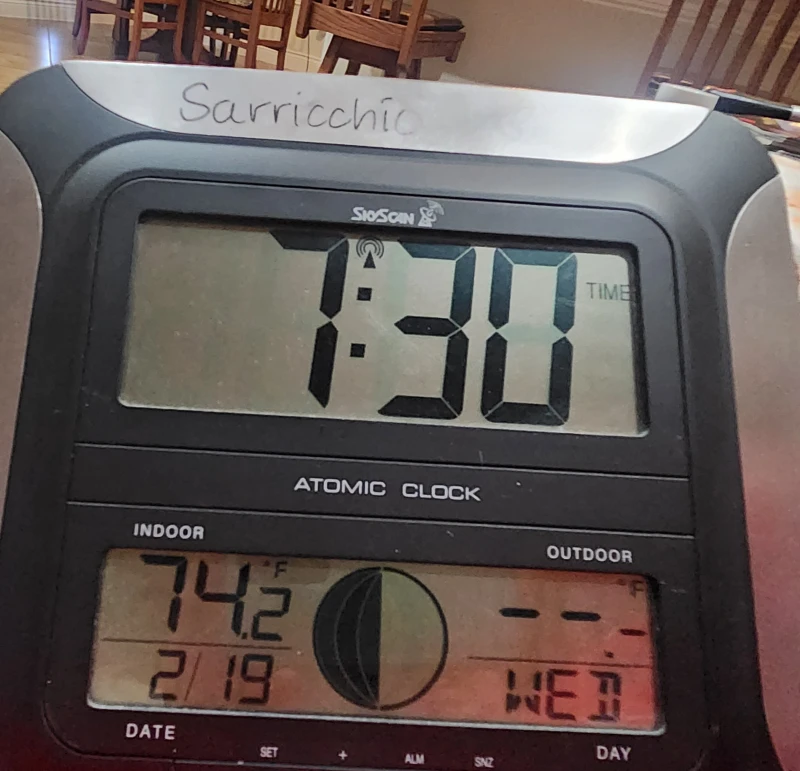

How do I set the time zone one a 87700 clock. The time keeps changing during the day. Instead of 1:29 it shows 7:29
