- Page 1 Professional Contractor INSTALLATION GUIDE 37-7498...
-
Page 2: Easy Steps
3 EASY STEPS Installing Sensi thermostat isn’t that different than installing a non Wi-Fi thermostat. 1. Install on the wall 2. Configure for HVAC system Setup Indoor Exit Next 3. Connect to Wi-Fi Connect Wi-Fi now or homeowner connects later... -
Page 3: For Conventional Systems

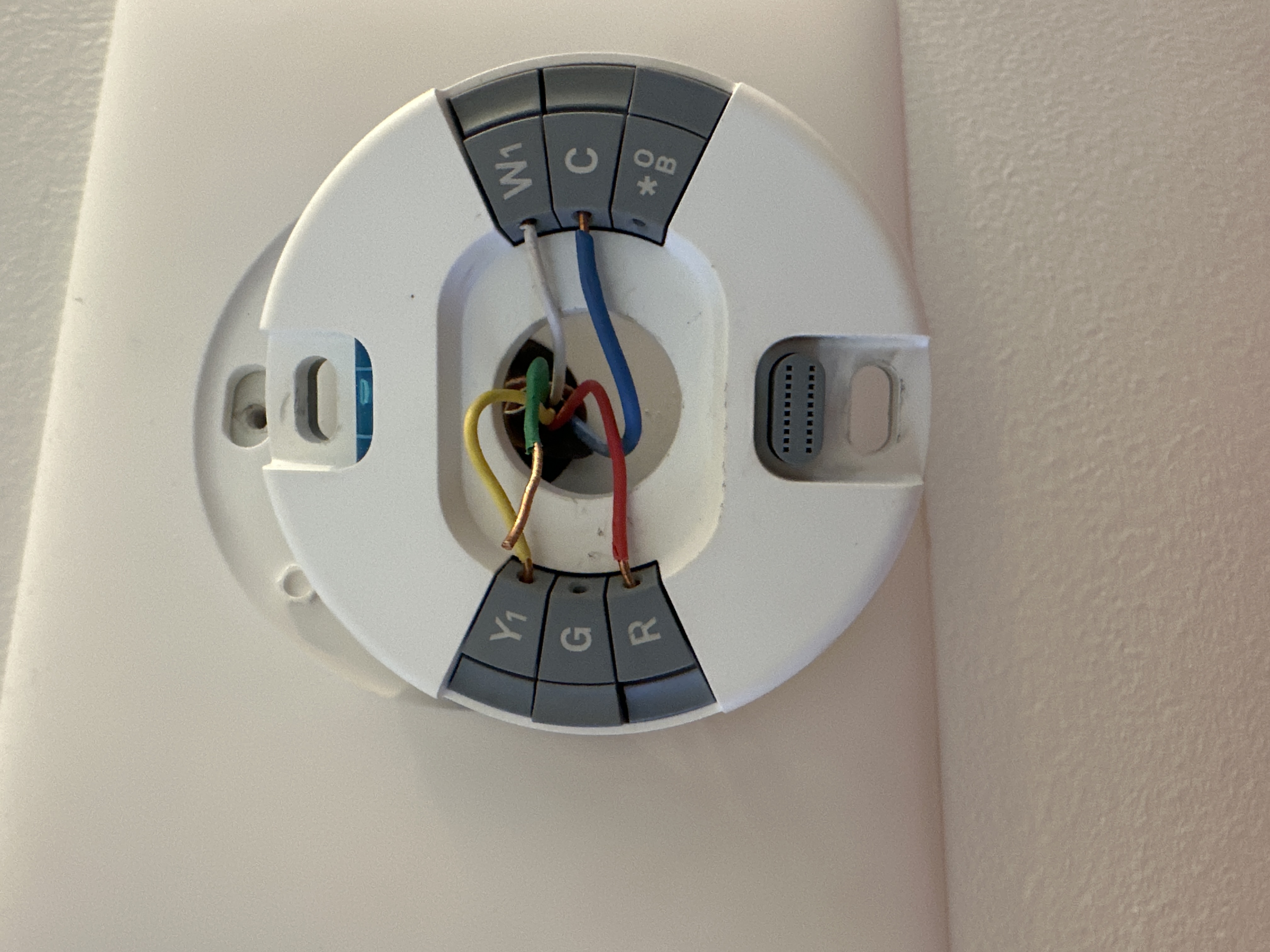

1. INSTALL on the wall For Conventional Systems Terminal Cross Reference Sensi Conventional thermostat... thermostat… Power for cooling RH, R Power for heating C, X, B** Common wire W, W1, W/E 1st stage indoor heat 2nd stage indoor heat Y, Y1... -
Page 4: For Heat Pump Systems
For Heat Pump Systems Terminal Cross Reference Sensi Heat Pump thermostat… thermostat… Power for cooling RH, R Power for heating C, X, B** Common wire W, W1, W/E, 1st stage aux/ Aux/E, E emergency heat W2*** 2nd stage aux/ emergency heat... -
Page 5: For Hvac System Type
2. CONFIGURE for HVAC system For HVAC System Type A. Press Menu to enter configuration menu. Set To Room Temperature Heat Off Cool Auto On On Off B. Press Next until you see “Setup Outdoor” menu item 3. Wireless Setup Connect Exit Next... -
Page 6: Configuration Menu Items Reference
Configuration Menu Items Reference Menu Item Default Options Wireless Setup — Connect Connects Thermostat to Wi-Fi network Fahrenheit or Celsius Outdoor Equipment AC1 - Conventional Configuration Cooling 1 For Cooling or Heat Pumps (Single Stage) AC2 - Conventional Cooling 2 (Two Stage) HP1 - Heat Pump 1 (Single Stage) -
Page 7: Before You Begin
3. CONNECT to Wi-Fi Before You Begin In order to connect to the homeowner’s Wi-Fi, you will need the following: Access to the homeowner’s smartphone. Swipe screen to unlock The homeowner’s Wi-Fi router access information. If the homeowner is not available or does not want to connect at this time, go to the last 2 pages. -
Page 8: Homeowner Do Following
If Homeowner is Available... Have the homeowner do the following: Download Sensi App on their smartphone. Make sure their Wi-Fi router is turned on and the Internet connection is working properly. Open Sensi App and create homeowner Sensi account. - Page 9 On “Add Thermostat” screen, select “Just Connect Wi-Fi”. Follow the steps in the app to establish a Wi-Fi connection. Make sure the connection works by adjusting the temperature from the app screen.
-
Page 10: Technical Support
Technical Support TECHNICAL SUPPORT 888-605-7131 sensicomfort.com The Sensi logo is a trademark of Emerson Electric Co. - Page 11 Dear Homeowner: Your new Sensi thermostat has been successfully installed and can now control your HVAC system. In order to connect the Sensi thermostat to your Wi-Fi router and enable remote access from your smartphone or tablet, follow these simple steps: 1.
-
Page 12: Wi-Fi Connection
Dear Homeowner: Your new Sensi thermostat has been successfully installed and can now control your HVAC system. In order to connect the Sensi thermostat to your Wi-Fi router and enable remote access from your smartphone or tablet, follow these simple steps: 1.
