DOOR KEY
DOOR
CAMERA
OFF
TALK
LPlease read this Installation Guide before installing the unit and save for future reference.
LTo install the sub monitor station, refer to the Operating Instructions.
LPlease confirm the wiring schematic diagram on page 5 when you increase an optional equipment.
VOICE
CHANGER
BRIGHT/
SET
HOLD 3 SEC
(
)
PAGE
VOLUME
Wireless Video Intercom System
Installation Guide
VL-SW102BX
Model No.
Advertisement
Related Manuals for Panasonic VL-SW102BX
Summary of Contents for Panasonic VL-SW102BX
-
Page 1: Installation Guide

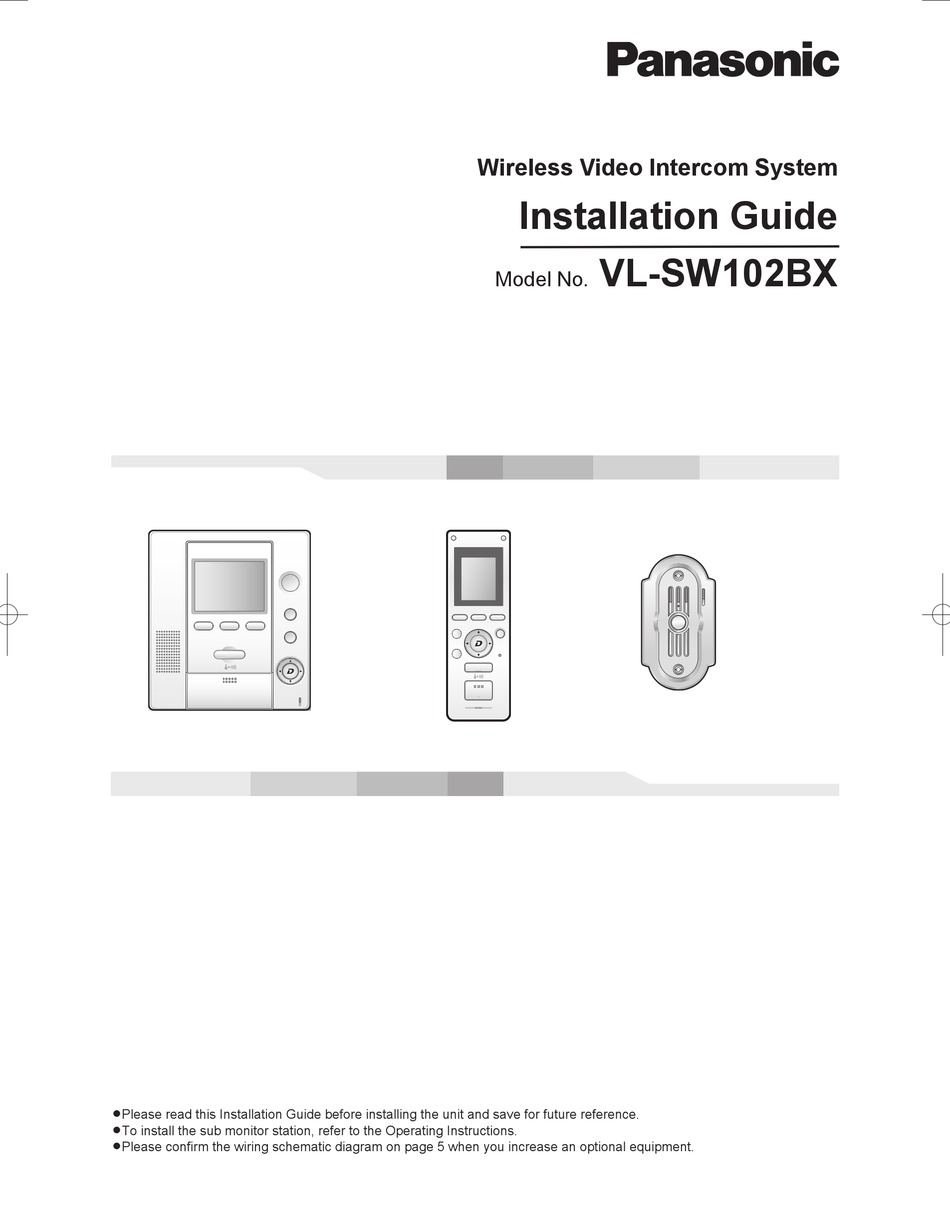

Wireless Video Intercom System Installation Guide VL-SW102BX Model No. VOICE CHANGER BRIGHT/ HOLD 3 SEC DOOR KEY DOOR CAMERA PAGE VOLUME TALK LPlease read this Installation Guide before installing the unit and save for future reference. LTo install the sub monitor station, refer to the Operating Instructions. -
Page 2: Table Of Contents
Table of Contents Included items ....................3 Before installation ....................4 Wiring schematic diagram .................. 5 Installing the door station ................... 6 Installing the main monitor station ..............9... -
Page 3: Included Items
Installation Included items VOICE CHANGER BRIGHT/ HOLD 3 SEC DOOR KEY DOOR CAMERA PAGE VOLUME TALK Item Quantity Notes Main monitor station ------ Mounting bracket Attached to rear of the main monitor station. Wood screws For the main monitor station. (4 mm x 16 mm) Door station ------ Mounting bracket... -
Page 4: Before Installation
Installation Before installation To avoid malfunction or communication disturbances, do not install either the door station or the main monitor station in the following locations: – Places where vibration or any other kind of impact occurs. – Places where echoing is frequent. –... -
Page 5: Wiring Schematic Diagram
Installation Wiring schematic diagram Set up correctly according to the following wiring schematic diagrams and “Wire type and distance”. To change a function setting such as chimes, refer to “Changing the function settings” in the Operating Instructions. Optional equipment (Refer to “Expanding your system with optional units” in the Operating Instructions.) Door station ( Only available for certain countries. -
Page 6: Installing The Door Station
Installation Installing the door station Be sure to install the door station on a flat, vertical wall. Important: L� O n the bottom surface of the door station, there is a hole to allow water to drain. Do not cover it up when installing. Unscrew the Allen screw using the longer end of the Allen wrench and remove the mounting bracket from the rear of the door station. - Page 7 Installation L� I f you want to connect the wires without them passing through a hole in the wall, connect the wires by passing them through the ribs and the wire hole. Wire hole Mount the door station to the mounting bracket. Push the door station down until it is secure.
- Page 8 Installation Attach the bolt cover using the bolt cover wrench. Bolt cover wrench...
-
Page 9: Installing The Main Monitor Station
Installation Installing the main monitor station Note: L� I f a position of installation for the main monitor station is specified, install the mounting bracket to one of the following positions. Position of installation for the main monitor station Install the mounting bracket to the wall securely. Note: L�... - Page 10 Installation Mount the main monitor station to the mounting bracket. 1 Fit into position as shown in the figure. 2 Push the main monitor station down until it is secure. Connect the plug into an AC outlet (220 – 240 V AC). To attach the wires L�...
- Page 11 Installation To connect the plug to the power outlet which is not easily accessible Important: L� I f you want to connect the plug to the power outlet which is in the wall or is not easily accessible, install a main disconnect device near the main monitor station.
- Page 12 1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Copyright: ● This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.
