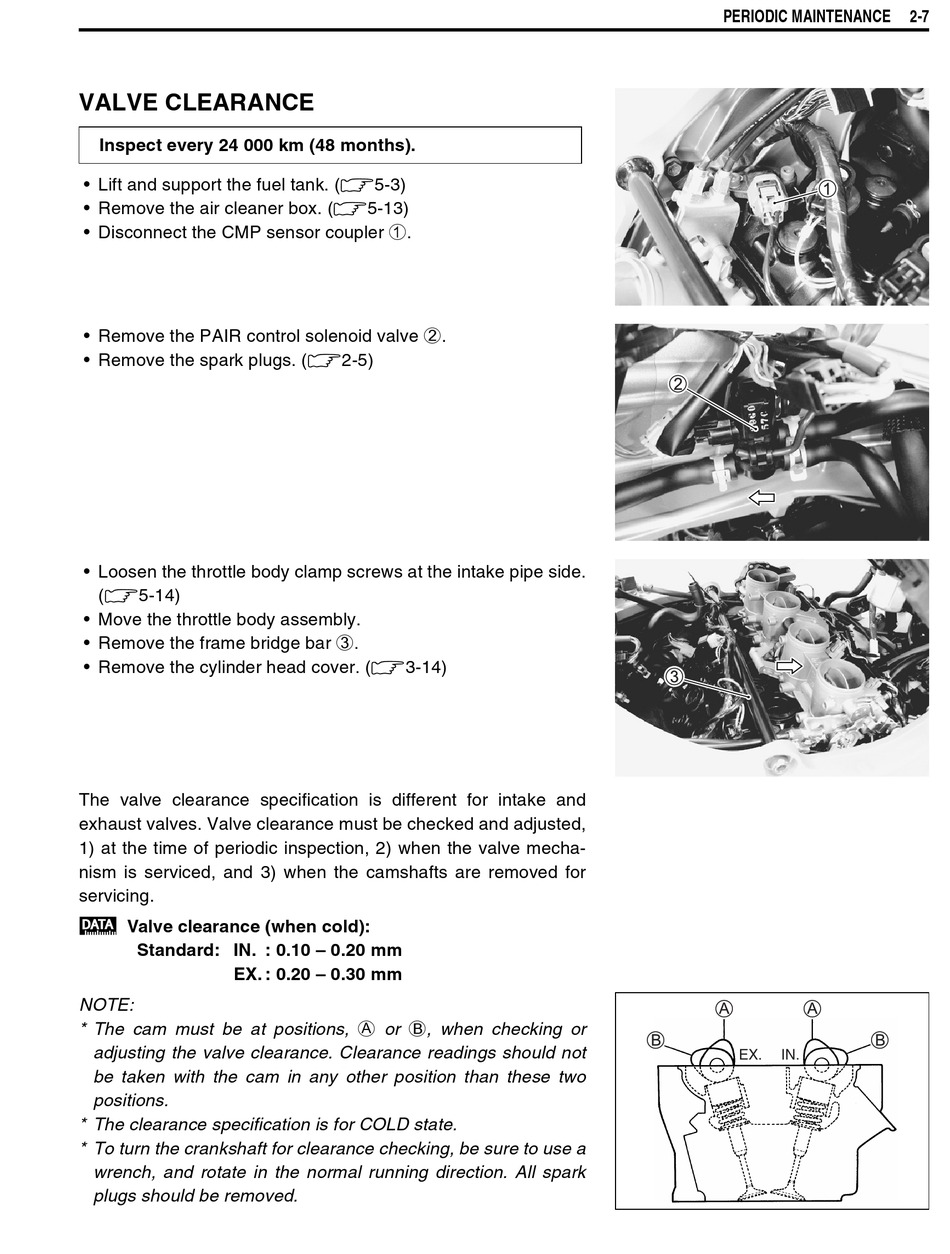

VALVE CLEARANCE

Inspect every 24 000 km (48 months).
• Lift and support the fuel tank. (5-3)
• Remove the air cleaner box. (5-13)
• Disconnect the CMP sensor coupler 1.
• Remove the PAIR control solenoid valve 2.
• Remove the spark plugs. (2-5)
• Loosen the throttle body clamp screws at the intake pipe side.
(5-14)
• Move the throttle body assembly.
• Remove the frame bridge bar 3.
• Remove the cylinder head cover. (3-14)
The valve clearance specification is different for intake and
exhaust valves. Valve clearance must be checked and adjusted,
1) at the time of periodic inspection, 2) when the valve mecha-
nism is serviced, and 3) when the camshafts are removed for
servicing.
 Valve clearance (when cold):
Standard: IN. : 0.10 – 0.20 mm
EX. : 0.20 – 0.30 mm
NOTE:
* The cam must be at positions, A or B , when checking or
adjusting the valve clearance. Clearance readings should not
be taken with the cam in any other position than these two
positions.
* The clearance specification is for COLD state.
* To turn the crankshaft for clearance checking, be sure to use a
wrench, and rotate in the normal running direction. All spark
plugs should be removed.
