CC 9058
Installation and operating manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC 9058 and is the answer not in the manual?

Questions and answers

Related Manuals for BURY CC 9058

Summary of Contents for BURY CC 9058

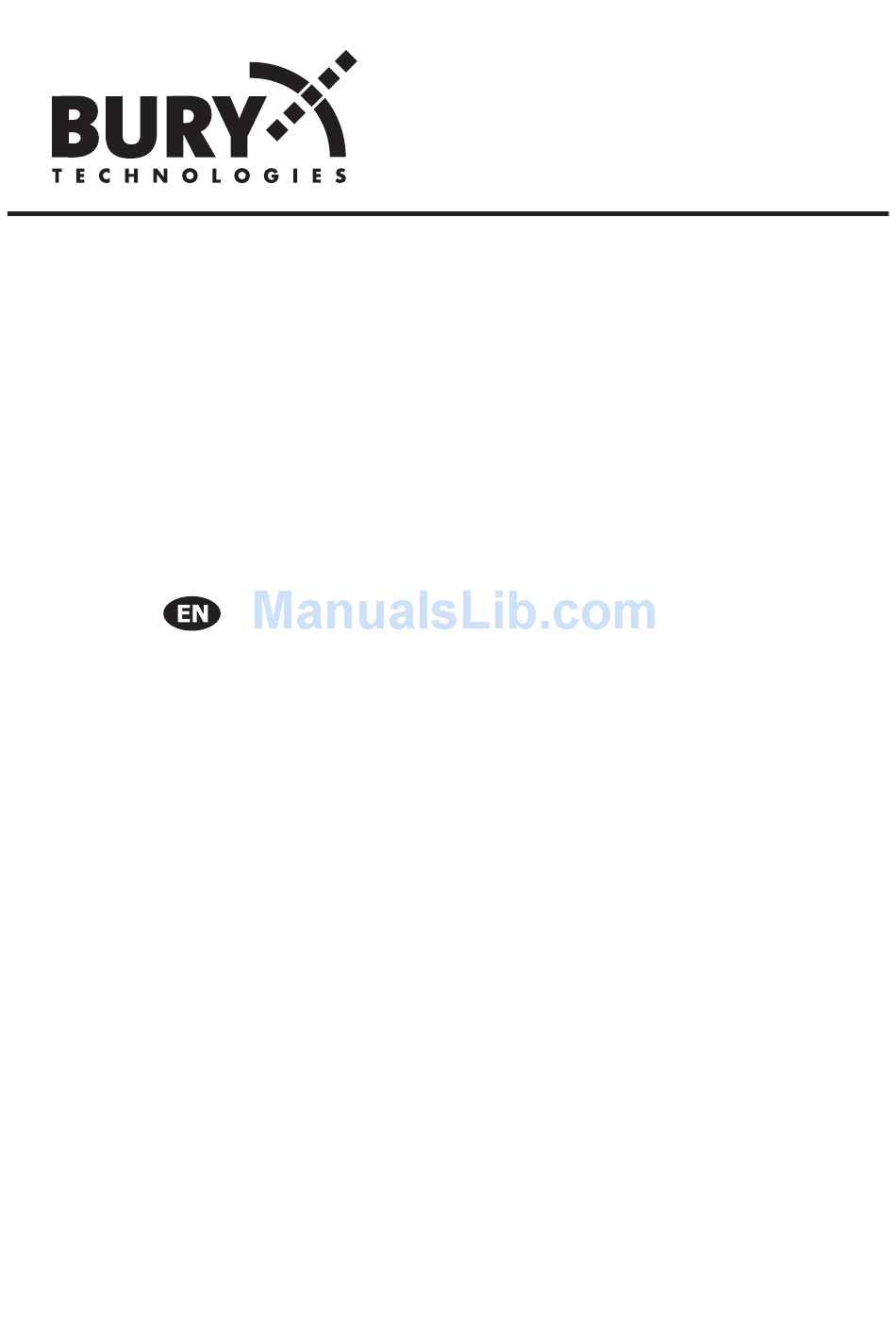

  • Page 1 CC 9058 Installation and operating manual...

  • Page 3: Table Of Contents

    CC 9058 Index Introductory information 1. General 2. Security guidelines Installation of the hands-free car kit 3. Scope of supply 4. Positioning and mounting 5. Connections at electronic box Operating guidelines 6. Using the hands-free car kit for the first time 7.

  • Page 4: Introductory Information

    Congratulations on purchasing a BURY hands-free car kit. You have chosen a high quality product that is extremely easy to use. Please read the operating manual carefully so that you can fully enjoy your BURY hands-free car kit. If you have any further questions concerning installation or operation of your car kit, please contact your dealer.
  • Page 5 Faults Do not commission the device if you detect or assume a defect. In this case, contact a Bury specialised dealer or our hotline. Improper repair efforts can be dangerous for you. Therefore, only skilled personnel may perform inspections.

  • Page 6: Installation Of The Hands-Free Car Kit

    Installation of the hands-free car kit 3. Scope of supply...
  • Page 7 7) Micro USB charging cable 8) Quick user guide Accessories: 9) External loudspeaker 10) Mobile phone and Smartphone-specific charging cable 11) BURY ChargingCradle Universal Note: If certain components are added or omitted you will receive the corresponding information on a separate enclosure.

  • Page 8: Positioning And Mounting

    Installation of the hands-free car kit 4. Positioning and mounting Step 1: First of all, please choose the most convenient position for the attached display on the holder and the installation pad in your vehicle by check- ing different positions in the vehicle. If you would like to use the device during your journey, positioning it in the front area on the driver’s side is advisable.
  • Page 9 Example of installation 1: Example of installation 2:...
  • Page 10 Installation of the hands-free car kit Step 2: Depending on the vehicle type and its equipment (e.g. airbags), it is reasonable to install the microphone either at the A-pillar, at the sun shield or at the roof interior. For details about the equipment features please refer to the vehicle documents.

  • Page 11: Connections At Electronic Box

    1 - CHARGING PORT An extension cable is connected to connection no. 1 (micro USB socket). You can connect a charger or your mobile phone to the other end of the cable. Connection of the BURY ChargingCradle Universal isoptional. 2 - PWR/LSP/LINE OUT The hands-free car kit in the vehicle is connected to the car radio with the ISO cable harness.
  • Page 12 Installation of the hands-free car kit Using the ISO cable harness, you can input music and voice signals (telephone) of different types into the radio or play them back via the radio. If the present radio has a LINE-IN or AUX-IN input at the front side or backside, the four open LINE cables of the ISO cable harness can be connected to them using appropriate adapters (e.g.
  • Page 13 If you want music or voice signals to be fed via the four LINE cables, you must adjust them accord- ingly to the respective type of radio and its connections (PHONE-IN or AUX-IN). Appropriate adapters are available from specialists shops. Step 2: The hands-free car kit supports the radio mute function, if this function is also supported by the radio.
  • Page 14 Installation of the hands-free car kit Connection diagram for ISO cable harness - 12V Power - 12/24V Ignition - Ground - Line-out 1 - Line-out 2 1-Line L + / Phone L + 1-Line R + / Phone R + 2-Line L - / Phone L - 2-Line R - / Phone R - - Micro Molex 24 - ISO - connection to the electronic box (HFCK)
  • Page 15 3 - MICROPHONE This is where you plug in the microphone jack. 4 - LINE-IN AUX-IN socket for music. 5 - MULTIFUNCTION DISPLAY Please plug the 5 pole plug of the monitor connection cable into this jack. 6 - RJ45 - socket for possible system expansions...

  • Page 16: Operating Guidelines

    When you select the desired Language with the call button, the language is loaded. Then link your mobile phone to CC 9058. If a telephone has been linked to CC 9058 the device says: Phone is connected. Then you come to the main menu. In the top line, some symbols may appear both before and after a telephone has been connected.

  • Page 17: Operating With The Touch Screen

    Bluetooth function of your mobile phone and search for Bluetooth devices. In this case, search for a device labelled „CC 9058“.If several devices were identified, please select the HFCK and enter the PIN number „1234“. The Bluetooth connection (pairing) will then be established between your mobile phone and the HFCK.
  • Page 18 If it is not possible to establish a connection, please check and update the software release (firmware) of your mobile phone or of the HFCK. You will find an overview dealing with this subject on the Internet at www.bury.com. Note: In the internet you can find an overview with a large number of mobile telephones which have been tested with this hands-free car kit.

  • Page 19: Menu Navigation

    9. Menu navigation Operating the CC 9058 is done using the touch keys on the device. The function of the keys can differ for each menu item. To open the menu, press the home button. To navigate within the menus use the horizon- tal buttons.
  • Page 20 Operating guidelines Synchronisation You can Load the phone book in this menu. With Upload phone book you can save your phone book on the CC 9058. To delete the phone book again, simply go to Delete phone book. Note: Lots of mobile phones save contact details consecutive- ly.
  • Page 21 When the CC 9058 is switched on, the device connects with the mobile phone which was connected last. The prerequisite for this is that it is located in the vehicle, that the Bluetooth function is activated and the connection identification to the HFCK is not deleted.
  • Page 22 Note: Do not switch off the power supply to the HFCK during the update. We recommend that the update of the FSE be implemented by a BURY specialist dealer. Find your nearest specialist dealer under www.bury.com.

  • Page 23: Accepting, Making, Ending Calls

    10. Accepting, making, ending calls The CC 9058 is operated using the key buttons on the device. The func- tion of the buttons can vary according to the menu item. Note: Please comply with the country-specific laws concerning in-car telephone calls.
  • Page 24 A2DP. Optimum playback quality can only be guaranteed if this is the case. If you press the call button on the CC 9058, the device says: Enter voicetag. Some smartphones may then release a signal sound after...

  • Page 25: Incoming Call

    (for two seconds). The device says: Redial. If you announce a non-saved voicetag then the device says: Voicetag is not available. CC 9058 returns to standby mode. Briefly press down on the end call button to end the voicetag function, the active call or the redialling.

  • Page 26: Playing Music

    Operating guidelines 11. Playing music There are two ways of playing music in case of the CC 9058 hands-free car kit. Through A2DP ( Bluetooth ) After the phone is paired with the hands-free car kit, music can be played via the Bluetooth connection (A2DP).

  • Page 27: Further Information

    In case of general or technical queries, suggestions and comments, please do not hesitate to contact our team at any time. Suggestions and feedback are always welcomed: Administration: Producer: BURY GmbH & Co. KG BURY Spółka z o.o. Robert-Koch-Straße 1-7 ul. Wojska Polskiego 4 D-32584 Löhne...

  • Page 28: Appropriate Use Of This System

    14. Approvals and declaration of conformity Purchase and production as well as service and sales at BURY are subject to tough quality and environ- mental management conditions according to ISO 9001 and ISO 14001. The BURY EasyTouch Pro has the CE approval pursuant to the R&TTE 1999/5/EC regulation...
  • Page 29 EXPRESS WARRANTY AGAINST DEFECTS – AUSTRALIA EFFECTIVE 1st JANUARY, 2012 This product if imported by Point to Point Technology Pty Ltd is warranted in Australia to be free from any defect in material and workmanship, subject to the following terms and conditions. Who provides this warranty: POINT TO POINT TECHNOLOGY PTY LTD 2/2 KEYSBOROUGH CLOSE, KEYSBOROUGH VIC 3173...
