The optional KP500 control unit is a practical tool for controlling the frequency inverter
and setting and displaying the frequency inverter parameters.
The control unit is not absolutely necessary for the operation of the frequency inverter
and can be plugged on when required.
A
J
B
C
D
E
F
G
H
I
56
56

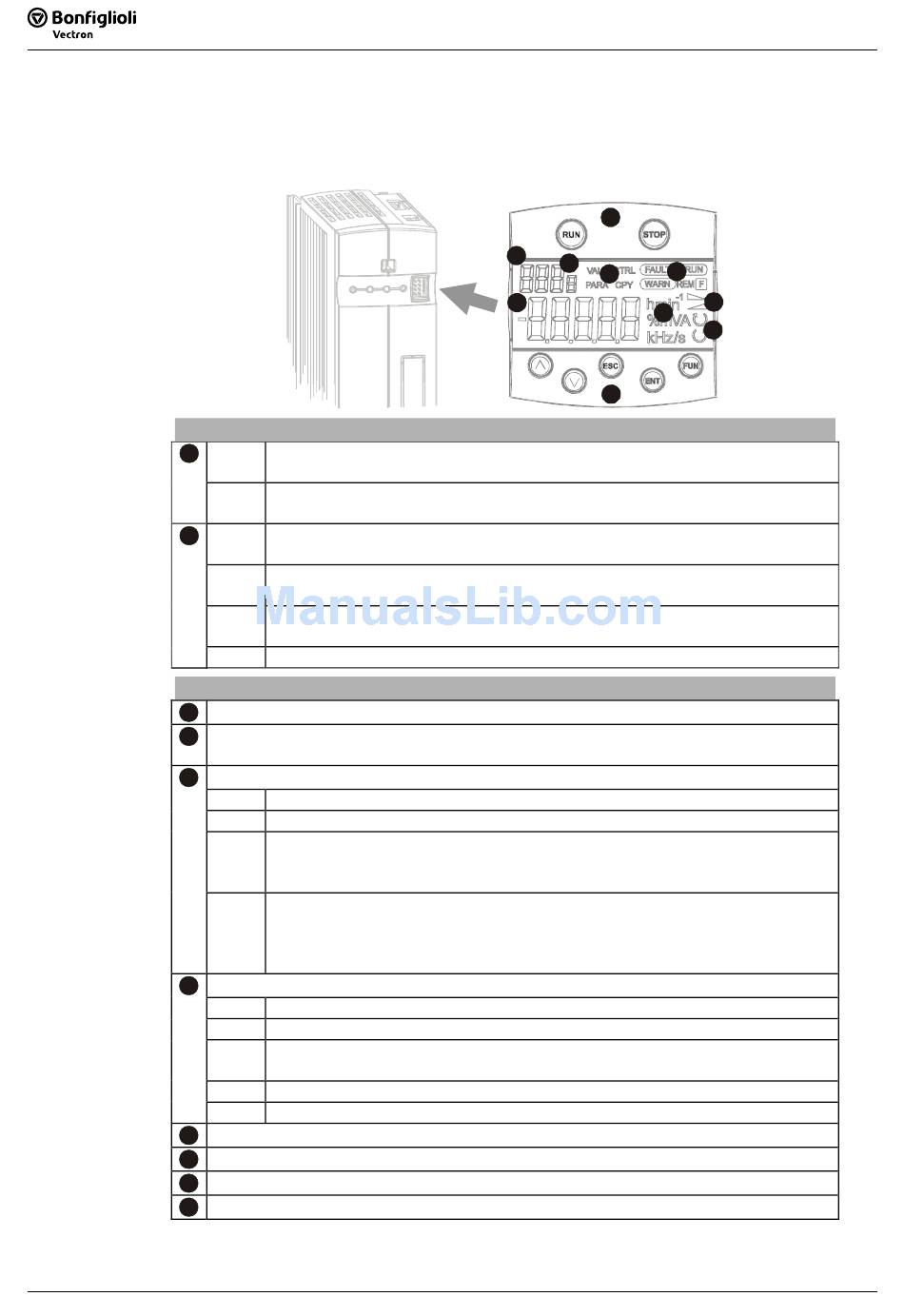

Control Unit KP500

RUN
Used for starting the drive and opening the CTRL menu.
Press the RUN key to open the motor potentiometer function.
STOP
Used for opening the CTRL menu, stopping the drive and acknowledging
faults.
Used for navigating in the menu structure and selecting parameters.
▲ ▼
Used for increasing/decreasing parameter values.
ENT
Accessing parameters or changing the menu within the menu structure.
Confirmation of the selected function or the set parameter.
ESC
Used for aborting parameters or switching back to the previous menu within
the menu structure. Canceling the function or resetting the parameter value.
FUN
Used for switching over the key function, access to special functions.
Three-digit 7-segment display to show the parameter number.
One-digit 7-segment display for display of the active data record, direction of rota-
tion etc.
Display of the selected menu branch:
VAL
Display actual values.
PARA
Select parameters and adjust parameter values.
CTRL
Select a function for adjustment and/or display via the control unit:
SEtUP guided commissioning.
CtrL
motor potentiometer and jog function.
CPY
Copy parameters via the control unit:
ALL
All the parameter values are copied.
Act
Only the active parameter values are copied.
FOr
Control unit memory is formatted and deleted.
Status and operating messages:
WARN Warning about a critical operating behavior.
FAULT Message indicating that the unit was switched off due to a fault.
RUN
Flashing: signals readiness for operation.
Lights up: signals that the unit is operating and the output stage is enabled.
REM
Active remote control via interface connection.
F
Function switch-over with the FUN key.
Five-digit 7-segment display for display of parameter value and sign.
Physical unit of the parameter value displayed.
Active acceleration or deceleration ramp.
Current direction of rotation of the drive.
Operating Instructions ACTIVE
Operating Instructions ACTIVE
A
B
C
D
F
J
Keys
Display
E
H
G
I
06/07
06/07
