Page 1: Service Manual

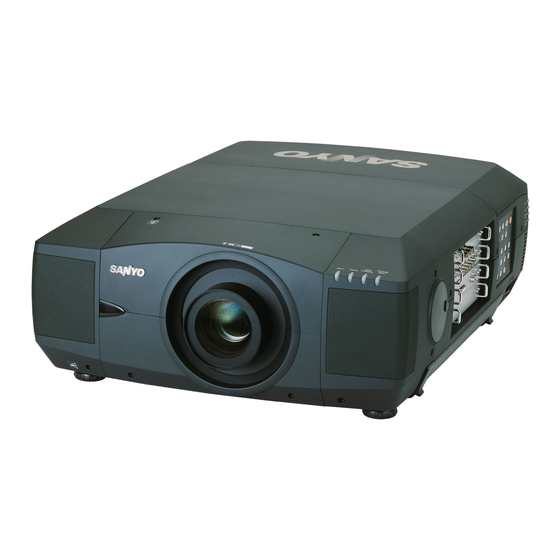

Projector. PRODUCT CODE : 1 122 342 00 PLC-XF46N KF6A U.S.A., Canada 1 122 343 00 PLC-XF46E LF6A Europe, Asia, Africa 1 122 343 02 PLC-XF46E LF6C U.K.
Page 2: Table Of Contents
■ Contents ■ Contents ........................2 ■ Safety Instructions....................3 ■ Specifications ......................4 ■ Circuit Protections ....................5 ■ Lamp Replacement ....................9 ■ Maintenance and Cleaning..................13 ■ Mechanical Disassemblies ..................15 ■ Optical Unit Disassemblies..................39 ■ Optical Parts Location and Direction ..............50 ■ Troubleshooting.....................53 ●...
Page 3: Safety Instructions
■ Safety Instructions SAFETY PRECAUTIONS WARNING: The chassis of this projector is isolated (COLD) from AC line by using the converter transformer. Primary side of the converter and lamp power supply unit circuit is connected to the AC line and it is hot, which hot circuit is identified with the line ( ) in the schematic diagram.
Page 4: Specifications
■ Specifications Projector Type Multi-media Projector Dimensions (W x H x D) 22.9" x 10" x 30.9" (581 mm x 252 mm x 783 mm) Net Weight 80.3 lbs (36.5 kg) LCD Panel System 1.8" TFT Active Matrix type, 3 panels Panel Resolution 1024 x 768 dots Number of Pixels...
Page 5: Circuit Protections
LAMP indicator or READY indicator is not lighting, the fuse may be opened. Check the fuse as following steps. The fuse should be used with the following type; Holder PLC-XF46N Fuse Part No.: 423 033 1804 TYPE 30.0A250V FUSE SOC CORP. KST2 30A Fuse...
Page 6: Lamp Cover Switch
Circuit Protections When both of the WARNING TEMP. and READY Indicators are flashing: When the projector detects an internal problem, it will shut down FRONT INDICATORS automatically and both of the WARNING TEMP. and READY Indicators starts flashing. In this condition, the projector cannot be turned on even if you press LAMP READY the POWER ON-OFF button on the remote control unit or on the side control.
Page 7: Air Filter
Circuit Protections When the WARNING TEMP. Indicator is flashing: The WARNING TEMP. Indicator flashes red to let you know the internal FRONT INDICATORS temperature of the projector exceeds the normal level. If the temperature goes up further, the projector will be turned off automatically and the Ready indicator LAMP READY will go out.
Page 8 Circuit Protections ● Temperature Monitor System ■ To control the driving power of the cooling fans. This projector detects internal temperature and automatically controls operating power of cooling fans. The CPU checks the temperature and atmospheric pressure inside a projector. It checks a temperature using temperature sensor-IC5801and it checks an atmospheric pressure using pressure sensor-IC886.
Page 9: Lamp Replacement
■ Lamp Replacement LAMP MANAGEMENT (before replacement) This Projector is equipped with 4 Projection Lamps to ensure brighter image and those lamps are controlled by Lamp Management Function. Lamp Management Function detects status of all lamps and shows status on screen or on LAMP REPLACE indicator.
Page 10 Lamp Replacement LAMP REPLACEMENT When the life of the projection lamp of this projector FRONT INDICATORS REAR INDICATORS draws to an end, the LAMP REPLACE indicator lights yellow. If this indicator lights yellow, replace the lamp with a new one promptly. The time when the LAMP REPLACE indicator lights LAMP READY...
Page 11: Lamp Replace Counter
Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. ● Model No. of your projector PLC-XF46N / PLC-XF46E ● Replacement Lamp Type No. POA-LMP100 (Service Parts No. 610 327 4928)
Page 12: Lamp Handling Precautions
Lamp Replacement LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. ● Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp.
Page 13: Maintenance And Cleaning
■ Maintenance and Cleaning After long periods of use, dust and other particles will accumulate on the LCD panel, prism, mirror, polarized glass, lens, etc., causing the picture to darken or color to blur. If this occurs, clean the inside of optical unit. Remove dust and other particles using air spray.
Page 14: Air Filter Care And Cleaning
Maintenance and Cleaning AIR FILTER CARE AND CLEANING Air Filter prevents dust from accumulating on surface of Projection Lens and Projection Mirror. Should Air Filter become clogged with dust particles, it will reduce Cooling Fans' effectiveness and may result in internal heat build up and adversely affect life of a projector.
Page 15: Mechanical Disassemblies
■ Mechanical Disassemblies Disassemble should be made following procedures in numerical order. Screws Expression Following steps show the basic procedures, therefore unnecessary step may be (Type ) mm Diameter x Length ignored. T type M Type Tapping screw Machine screw Caution: The parts and screws should be placed exactly the same position as the original, oth- erwise it may cause loss of performance and product safety.
Page 16 Mechanical Disassemblies -2 Cabinet front unit removal. 1. Remove 11 screws and remove the Cabinet front unit. (See Fig.1-2) Cabinet front unit Fig.1-2 -3 Cabinet front top unit disassemblies. 1. Remove 4 screws and remove the Mounting cover lens-A. Cover lens-A 2.
Page 17 Mechanical Disassemblies -5 Speaker boxes and Front LED Board removal. 1. Remove 4 screws-A and remove the Speaker box-A. 2. Remove 4 screws-B and remove the Speaker box-B. 3. Remove 2 screws-C and remove the Front LED Board. (See Fig.1-5) Front LED Board Speaker box-A Speaker box-B...
Page 18 Mechanical Disassemblies -7 Decoration Inlays and R/C-1 Board removal. 1. Remove screw-A and remove the R/C-1 Board. 2. Remove 2 screws-B and remove the DEC Inlay R/C-F. R/C 1 Board 3. Remove 2 screws-C and remove the DEC Inlay-A. DEC Inlay R/C-F (See Fig.1-7) DEC Inlay A Cabinet front...
Page 19 Mechanical Disassemblies -2 Lamp cover and Push Latch-B removal. 1. Remove 2 screws-A and press button to open the Lamp cover. 2. Remove 4 screws-B and remove the Lamp cover. 3. Remove 2 screws-C and remove the Push Latch-B. (See Fig.2-2, 2-2a) Push Latch-B Press Button...
Page 20 Mechanical Disassemblies Main Board removal. 1. Remove 6 screws-A and remove the Main Board. (See Fig.3) Fig.3 -1 Control switch unit and Terminal slots unit removal. 1. Remove the Control switch unit upward. 2. Remove the Terminal slots unit upward. (See Fig.4-1) Fig.4-1 - 20 -...
Page 21 Mechanical Disassemblies -2 Terminal Board units and RS232C Board removal. 1. Remove 8 screws-A and remove the Terminal Board units 1-4. 2. Remove screw-B. 3. Remove 4 screws-C and remove the RS232C Board. 4. Remove screw-D, remove washer and remove Grounding Lead from the RS232C Board. (See Fig.4-2) RS232C Board Washer...
Page 22 Mechanical Disassemblies -4 Control Switch unit disassemblies. 1. Remove 4 screws, remove the Control Button and remove the Control Board. (See Fig.4-4) Control Button Control Board Fig.4-4 Control Panel -5 Terminal Board DVI disassemblies. 1. Remove 2 screws-A, remove screw-B, remove screw-C, and remove the Terminal Board DVI. 2.
Page 23 Mechanical Disassemblies -6 Terminal Board Component disassemblies. 1. Remove 2 screws-A ,remove 2 screws-B, remove screw-C,remove screw-D and remove the Terminal Board Component. 2. Remove 2 screws-E, remove the Holders and remove the Earth BRKT Slot. 3. Remove 4 screws-G and remove the Handles. (See Fig.4-6) Terminal board Component Holder...
Page 24 Mechanical Disassemblies -8 Terminal Board AV disassemblies. 1. Remove 2 screws-A, remove screw-B, remove screw-C,remove screw-D, remove the Heat sink and remove the Terminal Board AV. 2. Remove 2 screws-E, remove the Holders and remove the Earth BRKT Slot. 3. Remove 4 screws-G and remove the Handles. (See Fig.4-8) Heat sink Holder...
Page 25 Mechanical Disassemblies -2 Switch Power Supply(25V) unit removal. 1. Remove 4 screws-A, remove screw-B and remove the Switch power supply(25V) unit. (See Fig.5-2 ) Fig.5-2 -3 Switch Power Supply(25V) unit disassemblies. 1. Remove 2 screws-A and remove the Switch power supply(25V)Board. 2.
Page 26 Mechanical Disassemblies -4 Lamp Ballast Units removal. 1. Remove screws-C, remove washer and remove the grounding lead. (Lamp ballast 3-4 units. See Fig.5-4) Washer Grounding Lead Lamp ballast 3-4 unit Fig.5-4 2. Remove screw-A, remove washer and remove the grounding lead from the Holder. (Lamp ballast 1-2 units.
Page 27 Mechanical Disassemblies -5 Lamp Ballast Units disassemblies. Lamp Ballast Units 1-2 1. Remove 2 screws-A, remove the Fan(FN908) and FAN Guard. 2. Remove Lamp Ballast unit 1 and remove the Spacer. (Unhook the Fixer Clamp and remove the Lamp Ballast unit .) 3.
Page 28 Mechanical Disassemblies -6 PFC Unit 3-4 and Power Unit removal. PFC Unit 3-4 removal. 1. Remove 4 screws-A and remove the PFC 3-4 Unit. 2. Remove 4 screws-B and remove the Fan (FN914). 3. Remove 3 screws-C and remove the Holder FN. 4.
Page 29 Mechanical Disassemblies Power Unit removal. Power Unit removal. 1. Remove 2 screws-A, remove 2 screws-B and remove the Power Unit. 2. Remove 4 screws-C and remove the Power Board. (See Fig.5-7, 5-7a) Current sensor removal and replacement. (Current sensor is used only for PLV-HD2000E.) 1.
Page 30 Mechanical Disassemblies -8 PFC 1-2 Unit and Sub Power Unit removal. PFC 1-2 Unit removal. 1. Remove 4 screws-A and remove the PFC 1-2 Unit. 2. Remove 2 screws-B and remove the Holder FAN. 3. Remove the Fan (FN913). 4. Remove 4 screws-C and remove the PFC 1-2 Board. (See Fig.5-8, 5-8a) Sub Power Unit removal.
Page 31 Mechanical Disassemblies Optical Unit removal. 1. Remove 10 screws-A, remove 4 screws-B and remove the Optical unit. (See Fig.6) Warning; Do not hold the projection lens. It may damage projection lens. Warning! Do not hold the Projection lens Fig.6 -1 Fan(FN906) Unit and Adjustable-feet removal. 1.
Page 32 Mechanical Disassemblies -2 Fan Units removal and disassemblies. Fan(R) Unit removal and Disassemblies. 1. Remove 3 screws-A and remove the Fan(R) Unit. 2. Remove 2 screws-B and remove the Duct-A. 3. Remove 2 screws-C and remove the Fan(FN903). (See Fig. 7-2, 7-2a) Fans(G,B) UNIT removal and Disassemblies.
Page 33 Mechanical Disassemblies Fans(FN909,FN910) and Holders removal. 1. Remove 2 screws-A and remove the Cover -E. 2. Remove 2 screws-B and remove the Fan(FN909). 3. Remove 3 screws-C and remove the Cover -F. 4. Remove 2 screws-D and remove the Fan(FN910). 5.
Page 34 Fig. 8-3a Fig. 8-3 To remove the Fuse. PLC-XF46E PLC-XF46N Turn the fuse holder cover with the slot screw driver. Remove the fuse and the fuse holder cover forward. Remove the fuse and the fuse holder cover upward. Fuse holder...
Page 35 Mechanical Disassemblies Ducts, R/C 2 Board, Filter Unit, NET Board and Panel removal. 1. Remove 2 screws-A and remove the Duct D. 2. Remove 2 screws-B and remove the Duct C. 3. Remove screw-C and remove the R/C 2 Board. 4.
Page 36 Mechanical Disassemblies Rear adjustable feet and Handles removal. 1. Remove the Retaining ring(ER-type) by leaving it against the adjustable foot with slot screwdriver. 2. Turn the adjustable feet and to take from the Cabinet bottom off. (2 places) 3. Remove 20 screws and remove the Handles. (See Fig.9-2, 9-2a) Slot screwdriver Adjustable feet...
Page 37 Mechanical Disassemblies -1 Net Boards(PBS Fan net, Lamp Fan net) removal. 1. Remove 2 screws-A and remove the PBS Fan net Board. 2. Remove 2 screws-B and remove the Lamp Fan net Board. (See Fig.10-1) PBS Fan net Board Lamp Fan net Board Fig.
Page 38 Mechanical Disassemblies -3 Fan(FN915), Ducts, and Temperature switches removal. 1. Remove 2 screws-A and remove the Fan(FN915). 2. Remove 2 screws-B and remove the Duct PBS. 3. Remove 4 screws-D and remove the temperature switches (SW903,SW904,SW905,SW906). (See Fig.10-3) Temperature switch SW906 Temperature switch SW905...
Page 39: Optical Unit Disassemblies
■ Optical Unit Disassemblies Projection lens and Lens shift unit removal. 1. Loosen the screw-D and remove the Safety Clamp. (See Fig. 11-a) 2. Slide the lens lock lever on the projector to "UNLOCK" (UPPER) position and detach the Projection lens with Mount Parts to the Lens shift unit. (See Fig. 11-b) (Refer to Lens replacement and Installation procedures manual) 3.
Page 40: Lcd Panels Removal
Optical Unit Disassemblies Prism/LCD panel unit removal. 1. Remove 4 screws and remove the Prism / LCD panel unit. (Be careful not to damage the Prism / LCD panel unit with the driver.) (See Fig.12-1) Note : Do not touch Prism / LCD panel unit is a precision part.
Page 41 Optical Unit Disassemblies Optical filters and Polarized glasses disassemblies. 1. Remove 3 screws-A and remove the stoppers. 2. Remove the plate. 3. Remove the polarized glasses and Prepolarized glasses upward. (See Fig.12-3) Note: Each polarized glasses use different characteristic polarization glasses. Mark the polarizer units as they are removed from the optical unit so that they may be reassembled in the same location from which they were removed.
Page 42 Optical Unit Disassemblies Integrator lens-in unit removal. 1. Remove 2 screws A and remove the Integrator lens in unit. 2. Remove 4 screws B and remove the 2 Plates. 3. Unhook the holder 4 places and remove the Integrator lens. (Integrator lens is bonded on the Holder.) (See Fig.13-1, 13-1a) Plate Slot part comes this top side...
Page 43 Optical Unit Disassemblies Condenser lens unit removal. 1. Remove 2 screws-A and remove the Condenser lens unit. 2. Remove 4 screws-B, remove the plate and remove the Condenser lens. (See Fig.13-3, 13-3a) Holder Flat surface plane comes this side Plate Condenser-lens unit Condenser lens...
Page 44 Optical Unit Disassemblies Polarized units removal. 1. Remove 6 screws-A and remove the Polarized glass units. (See Fig.13-5) Temperature sensor (PTH901) Green Blue Fig.13-5 Red and Green Polarized Units Blue Polarized unit 2. Remove screw-B, remove the plate(A) and remove 5.
Page 45 Optical Unit Disassemblies Mirrors removal. Remove 5 stoppers and pull the 5 mirrors upward. (See Fig.13-6) Note : Do not touch the mirrors surface directly with hand. Each mirror uses different characteristic optical filter glasses. Mark the mirrors as they are removed from the optical unit so that they may be reassembled in the location and direction from which they were removed.
Page 46 Optical Unit Disassemblies Optical base top removal. 1. Remove 11 screws and remove the Optical base top. Be careful not to damage the optical parts. (See Fig.15) Note: Be careful of the optical base top slowly and remove it. Otherwise optical parts follow together and become cause to damage.
Page 47 Optical Unit Disassemblies Mirror units removal and disassemblies. 1. Remove 4 screws-A and remove the Mirror units. 2. Remove 4 screws-B and remove the Stoppers(C). 3. Remove screw-C and remove the Stopper(E). 4. Remove screw-D and remove the Stopper(D). 5. Remove 2 screws-E and remove the Stoppers(B). 6.
Page 48 Optical Unit Disassemblies Optical Filter units removal and disassemblies. 1. Remove 2 screws-A and remove the Optical filter unit1. 2. Remove screw-E, remove the plate and remove the Optical filter upward. (See Fig.17-2a) 3. Remove 2 screws-B and remove the Optical filter unit2. 4.
Page 49 Optical Unit Disassemblies Optical Filters and Lenses removal. 1. Remove Optical filter(UV/IR), remove the Condenser lens(IN), remove the Condenser lens(OUT), remove the Relay lens(IN), remove the Condenser lens(R-FIL), remove the Condenser lens(UV-FIL), and remove the Condenser lens(G) upward. (See Fig.18) Note : Do not touch optical filters and lenses surface directly with hand.
Page 50: Optical Parts Location And Direction
■ Optical Parts Location and Direction Note: There are 2 types of Optical unit. (Type-R and Type-L) Each Optical unit must combine and use the specific Optical parts. TYPE-R TYPE-L Marking (R or L) Confirm the label of a LCD 127R 129R 130R...
Page 51 Optical Parts Location and Direction KEY No. DESCRIPTION KEY No. DESCRIPTION PRISM ASSEMBLY (PBS) LENS-CONDENSER (IN) DICHROIC MIRROR (Y) LENS-RELAY (OUT) DICHROIC MIRROR (C) LENS-RELAY (IN) POLARIZED GLASS (IN/B) LENS-CONDENSER(G) POLARIZED GLASS (IN/G) LENS-INTEGRATOR POLARIZED GLASS (IN/R) LENS-CONDENSER(UV-FIL) PREPOLARIZED GLASS (IN) LENS-INTEGRATOR(OUT) OPTICAL FILTER 127R...
Page 52 Optical Parts Location and Direction Optical filter(HCP) and Polarized glass Relay lens(OUT) Slit comes Polarized Fig.34 glass side. Marker comes this top side. Prepolarized glass(IN) Spherical surface side Film attached side The marker comes this sur- face side Polarized glass(IN) (Non Spherical surface side) Film attached side Fig.33...
Page 53: Troubleshooting
■ Troubleshooting ● No Picture Check the CG_MOTHER Board. Check the Vcc voltages. S9V / S6V (Always) 9V / 5VB / -5V (Switched) Check the signal lines. DIF SCDT/H/V DIF SCDT/H/V IC9041 BUFFER DIF DE DIF DE <74VCX2374> IC9016 DIF CLK IC9031 BUFFER <74VCX16821>...
Page 54: Timing Chart
Troubleshooting ● No Picture IC8251 IC8251 H_DIF W_HS V_DIF W_VS DE_DIF W_DE DIFCLK W_CLK DATA/ADDRESS BUS SW_DVI BO_DVI BA/GA GO_DVI IC2301 SW_FPGA RO_DVI RA/RB/ PRE-SELECTOR GA/GB/ <XC2S200> BA/BB_IN RA/BB DIGITAL INPUT IC1311 BE_DVI EEPROM CLKO/HO/ DRO/ GE_DVI GRO/GRE/ VO_IP DRE/ GGO/GGE/ SCL/SDA_PW1 GB/RB...
Page 55 Troubleshooting CHECK MAIN BOARD PSIG SIGNAL Check the MAIN Board. TP501 IC501 GAM_RO/RE SAMPLE & HOLD <CXA7005R> TP503 PSIG R-LCD IC1501 PANEL SAMPLE & HOLD <CXA7005R> RGT,PRG,FRP,CLK SOUT DRO/ TP531 DRE/ IC531 DGO/ GAM_GO/GE SAMPLE & HOLD DGE/ RA/RB/ DBO/ <CXA7005R>...
Page 56 Troubleshooting ● No Picture Check the terminal board-DVI. Check the Vcc voltages. (Always) 9V / 5VB / -5V (Switched) Check the test points. IC8071,IC8072,IC8073 DATA DVI BUFFER IC8001 IC8194 IC8193 IC8020 INTERFACE H, V, DE BUS SW EEPROM BUFFER <SII161CT100> SCL/SDA SCL/SDA IC8182...
Page 57 Troubleshooting Check the terminal board-AV. Check the Vcc voltages. (Always) Timing Chart 9V / 5VB / -5V (Switched) Check the test points. INPUT K131 IC1141B IC1181C IC2161B IC2161A IC141C NTSC-Y TP-3142 IC1101 NTSC 3D Y/C TP5101 NTSC-C TP-5181 TP3141 TP-5182 TP-5183 IC1141C IC1181B...
Page 58: No Power
Troubleshooting ● No Power Are the LAMP indicator Is the lamp cover attached cor- (red) and READY indi- rectly? Check that IIC cator (green) light? Bus signals When the lamp cover is removed are correct. If the LAMP and READY or attached not correctly, the pro- indicators are not light, jector cannot be turned on.
Page 59 Troubleshooting ● No Power 7-9 27-28 31-34 23-24 16V_AU K16A ASS'Y MOTOR&AUDIO ASS'Y RS232C K46L FAN_D4 FAN_D3 FAN_D2 FAN_D1 ASS'Y CONTROL ASS'Y LAMP_FANNET PWR-SW K26Z 12VA K66D ASS'Y REAR LED K26U K26T LAMP_1 LAMP_2 LAMP_3 LAMP_4 FAN_C12V FAN_B12V ASS'Y EXH_FANNET K26E FAN_B12V ASS'Y PBS_FANNET...
Page 60 Troubleshooting ● No Power Check the power failure detection tree DETECTION FAILURE AREA LINE NAME D5541 ASS'Y MAIN PF_S9V S9.6V line on Main IC5641 S9.6V D5541 PF_9V 9V line on Main (Audio) D5631 PF_3.3V 3.3V line on Main (I/P, Gamma) Q5630 IC1421 S3.3V...
Page 61 Troubleshooting ● No Power ● Flow chart of projector condition (with AC power supply and Mains SW : ON) (90 sec.) (Lamp : OFF) AC OFF STAND-BY COOLING (Lamp error) <RECOVER> (ON/OFF button) (ON/OFF button or SERIAL) <ACCIDENT> WARNING POWER ON POWER OFF (Lamp : ON) (ON/OFF button)
Page 62: No Audio Output
Troubleshooting ● No Power Check the Unit_ Sub Power. FAN_A24V FAN_B12V FAN_B12V FAN_A24V FAN_C12V K66G K66E K66F K66L FAN-ON/OFF FAN-A ADJ. I/O EXP FAN-A ADJ. CONTROL FAN-A ADJ. FAN-ON/OFF FAN-ON/OFF FAN-B ADJ. FAN_C12V TP7614 FAN-B ADJ. SCL/SDA SCL/SDA FAN-C ADJ. CONTROL I/O EXP PWR-SW...
Page 63: Temperature Abnormality
Troubleshooting ● Temperature Abnormality NOTE : Temperature monitor operation The temperature monitor system is provided to prevents damage of optical components (the LCD panel and polarization film etc.) inside a projector from overheat. Two protection systems are pro- vided. Each system operation as follows : ------ The temperature monitor -1: ----------------------------------- ------ The temperature monitor -2 : ---------------------------------- ■...
Page 64: Power Lens System Abnormality
Troubleshooting ● Power Lens System Abnormality Motor-driven lens system. (Zoom, Focus and lens shift.) LEFT DET. CENTER DET. Horizontal shift function does not exist RIGHT DET. in some particular models. Therefore IC1621, K8N, etc. do not exist in those models. K16A K16H TOP DET.
Page 65: Lamp Abnormality
Troubleshooting ● Lamp Abnormality ■ The Lamp Driving Circuit ( Lamp_3 ) example LAMP COVER THERMAL SWITCHES U20B47200 UNIT_PFC3-4 DC OUTPUT BRIDGE ACTIVE DC380~400V AC INPUT LINE DIODE FILTER K26Z K26U K26T AC108~264V FILTER THERMAL PROTECTOR 12V_FN FANNET_2 ASS'Y P_FAIL H : Abnormality EXH FANNET K56A...
Page 66: Optical Adjustments
■ Optical Adjustments ● Adjustments after Parts Replacement (Optical Parts) ● ❍ : Adjustment necessary : Check necessary Disassembly / Replaced Parts Polarized Optical filter Condenser Relay LCD/ Integrator glass Integrator (HCP) Lens Prism Lens-out lens Lens-in panel Ass’y &PBS R G B R G B Optical Adjustments Contrast adjustment...
Page 67 Optical adjustment WARNING : USE UV RADIATION EYE CAUTION: To prevent suffer of UV radiation, AND SKIN PROTECTION those adjustments must be com- DURING SERVICING pleted within 25 minutes. Adjustment optical components location Integrator lens out Prism PBS adjustment Condenser lens adjustment adjustment Focus of...
Page 68: Before Adjustment
Optical adjustment ■ Before Adjustment 1. Each adjustment requires ball allen wrenches and slot screwdrivers. 2. Set the motorized lens shift to the center position (horizontal and vertical) with Lens Shift Button. Lens shift arrow on screen turns red at center of lens shift. 3.
Page 69 Optical adjustment (1) Focus Adjustment of LCD Panel SCREW-A SCREW-A SLOT-B SCREW-A SCREW-A Prism / LCD Panel Fig.53a assembly Before Adjustment : 1. Turn on a projector. 2. Set the projector to "service mode" and project a green grid pattern on a screen. Adjust green grid pattern to sharp focus by pressing Focus ( ) buttons on the projector or remote control unit.
Page 70 Optical adjustment (2) Integrator-lens-in adjustment-1 Before Adjustment : 1. Remove the flexible cables of LCD panels from the Main board. And turn on the projec- SLOT-B tor. SCREW-A 2. Shift the adjustment position of Integrator- lens-out temporarily until shade appears the right or the left on the screen.
Page 71 Optical adjustment (4) Integrator-lens-out adjustment SCREW-B BOTTOM Before Adjustment : SIDE 1. Remove the flexible cables of LCD panels from SCREW-B the Main board. And turn on the projector. 2. If the shade appears on the left or right of the screen, adjust in the following procedure.
Page 72 Optical adjustment (6) Relay-lens adjustment Before Adjustment : SCREWS-B 1. Remove the flexible cables of LCD panels from SLOT-B the Main board. And turn on the projector. 2. If the shade appears on the screen, adjust in the following procedure. Adjustment : 1.
Page 73 Optical adjustment ■ CONVERGENCE ADJUSTMENT TOOL INSTALLATION AND REMOVAL Note; Before mounting the Adjustment Tool, set adjustment screws of Adjustment Tool in center of the adjustment range. Refer to Screw Setting. (Fig.59b) 1. Loosen 2screws-A of Prism/LCD panel unit. See Fig.60c. CAUTION: When loosening the screws-A, do not touch the other mechanical part or give it shock.
Page 74 Optical adjustment Guide Screw-C (M4 X 6) (included with Adjustment Tool) Convergence Adjustment Tool The figure is an installation figure for the adjustment of the Blue LCD Screw-B panel. Fig. 60d TO REMOVE ADJUSTMENT TOOL After completing the adjustment, remove the Adjustment Tool as follows. 1.
Page 75: Convergence Adjustment
Optical adjustment ■ Convergence adjustment For convergence adjustment, use Green as the reference standard. Align Red and Blue with Green by adjusting the position and angle of the Red and Blue LCD panel. Screws X, Y and Z (Fig.61) are for convergence adjustment.
Page 76 Optical adjustment (8) Prism P.B.S. adjustment Adjustment : SLOT-A 1. Remove the flexible cables of LCD panels from the Main board. And turn on the projector. SCREW-B And input the white raster signal (100% of white raster signal). 2. Loosen 2 screws-B. 3.
Page 77: Electrical Adjustments
■ Electrical Adjustments ● Adjustments after Parts Replacement (Electrical Parts) ● ❍ : Adjustment necessary : Check necessary Disassembly / Replaced Parts Unit_ Unit_ Power Unit_ Unit_ Main Other Sub- Mother Power P.F.C Ballast Board Board Boards Board Power Board (25V) Electrical Adjustments ●...
Page 78: Service Adjustment Menu Operation
Electrical Adjustments ● Service Adjustment Menu Operation Follow the procedures described below for the adjustments with service mode. 1. Turn the projector Power ON. 2. Enter Service adjustment menu. Press and hold the MENU and IMAGE button on the projector simultaneously for more than 3 seconds, or press and hold the MENU button on the remote control unit for more than 20 seconds.
Page 79: Circuit Adjustments
Electrical Adjustments ● Circuit Adjustments CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following adjustments except requiring the readjustments in servicing otherwise it may cause loss of performance and product safety. WARNING : USE UV RADIATION EYE CAUTION: To prevent suffer of UV radiation, AND SKIN PROTECTION...
Page 80 Electrical Adjustments Voltage adjustment AV 3DNR-PLL lock check Equipment Digital voltmeter Equipment Digital voltmeter Input mode Video mode 1 - 1 +6V adjustment Input signal Color bar signal (PAL) VR652 1. Adjust the voltage by using on the power board Picture mode Normal as following.
Page 81 Electrical Adjustments Fan driving voltage adjustment PSIG adjustment Equipment Digital voltmeter Equipment Oscilloscope Input mode Computer mode 1. Enter the service mode. Input signal 16-step gray scale computer signal 2. Change data values of each test points to adjust the fan driving voltage.
Page 82 Electrical Adjustments ⁄1 Gain adjustment [AV] Black level adjustment [PC] Equipment Oscilloscope Equipment Oscilloscope Input mode Video mode Input mode Computer mode Input signal 16-step gray scale signal Input signal 16-step gray scale signal 1. Enter the service mode. 1. Enter the service mode. 2.
Page 83 Electrical Adjustments ⁄3 ⁄6 Panel luminance adjustment (PC) White Balance adjustment [AV] Equipment Luminance meter Lamp mode 4 Lamp mode Lamp mode 4 Lamp mode Input mode Video mode Input mode Computer mode Input signal 50% white composite signal Input signal 100% and 50% white computer signal 1.
Page 84: Service Mode Adjustment Menu
Electrical Adjustments ● Service Mode Adjustment Menu Group-no. Adjustment Item Adjustment Mode Not designated COMPONENT ● 140 - 0 Fans-A driving voltage adjustment ● 140 - 1 Fans-A driving voltage adjustment ● 140 - 2 Fans-C driving voltage adjustment ● 140 - 3 Fans-C driving voltage adjustment ●...
Page 85 Electrical Adjustments Group-no. Adjustment Item Adjustment Mode Not designated COMPONENT ● 1010 - 0 AV video signal adjustment (Green) ● 1010 - 1 AV video signal adjustment (Green) ● 1010 - 2 AV video signal adjustment (Red) ● 1010 - 3 AV video signal adjustment (Red) ●...
Page 86: Service Adjustment Data Table
Electrical Adjustments ● Service Adjustment Data Table CAUTION : These initial values are the reference data written from the CPU ROM to the memory IC when the new memory IC replaced. The adjustment items indicated with “✽” are required to readjust following to the “Electrical adjustments”.
Page 87 Electrical Adjustments Initial Value Group Item Data Item Function Range – SDIB R DAC PSIGB 0 ~ 225 – – SDIA B DAC PSIGA 0 ~ 225 – – SDIB B DAC PSIGB 0 ~ 225 – ✽ – ADC G-GAIN ) G Gain Adjustment 0 ~ 225 –...
Page 88 Electrical Adjustments Initial Value Group Item Data Item Function Range – VSBEG RGB 0 ~ 15 – VSBEG Component 0 ~ 15 – VSBEG Video 0 ~ 15 – VSBEG Else Unused 0 ~ 15 – S 502 – CUSTOM –...
Page 89 Electrical Adjustments Initial Value Group Item Data Item Function Range – Blank Top 0 ~ 255 – – Blank Bottom 0 ~ 255 – S 516 – HDTV 575p – Total Dots 0 ~ 3000 1152 – – Disp Dots 0 ~ 3000 –...
Page 90 Electrical Adjustments Initial Value Group Item Data Item Function Range – Blank Top 0 ~ 255 – – Blank Bottom 0 ~ 255 – S 530 – SD-SDI 575i (Activate with Optional Terminal Board) – ON/OFF 0: OFF, 1: ON –...
Page 91 Electrical Adjustments Initial Value Group Item Data Item Function Range – R_SUB_GAIN 0 ~ 255 – – G_SUB_BRT 0 ~ 8191 4096 – – B_SUB_BRT 0 ~ 8191 4096 – – R_SUB_BRT 0 ~ 8191 4096 – – G_GAM_BRT 0 ~ 8191 4096 –...
Page 92 Electrical Adjustments Initial Value Group Item Data Item Function Range B_PANEL Ghost Timer Read only 0 ~ 32767 – – ✽ B_PANEL Ghost Timer Reset Reset to set data to "10" ) B_panel ghost timer reset 0 ~ 10 – S 973 Panel Vertical Thread Canceller VS_R_RGT...
Page 93 Electrical Adjustments Initial Value Group Item Data Item Function Range – R11_Y_DELAY_YC_MONO_50 Y Delay at Y/C Sep. signal 0 ~ 3 – R04_C_TRAP_ADJ_SECAM Chroma trap f Adj. (0: High, 1: Low) 0 ~ 15 – R04_C_TRAP_ADJ_NTSC443 Chroma trap f Adj. (0: High, 1: Low) 0 ~ 15 –...
Page 94: Waveforms
■ Waveforms VIDEO-IN < TP201(R)> VIDEO-IN < TP211(G)> VIDEO-IN < TP221(B)> PC-IN < TP201(R)> PC-IN < TP211(G)> PC-IN < TP221(B)> VIDEO-IN <TP201> V-SYNC PC_16STEP-IN<TP211> PC_16STEP-OUT<TP531> PC_R-OUT<TP501> PC_G-OUT<TP531> PC_B-OUT<TP561> -94-...
Page 95: Control Port Functions
■ Control Port Functions ● System Control & I/O Port Table (IC801, HD64F7045) Pin No. Name Function Name Function Polarity PA23/WRHH USB RESET USB Reset signal Active L PE14/TIOC4C/DACK0/AH PA22/WRHL PA21/CASHH RS232C_SW RS232C Output select signal always L PE15/TIOC4D/DACK1/IRQOUT POWER SW "L":Power OFF "H":Power ON PC0/A0 ADDRESS0...
Page 96 Control Port Functions Pin No. Name Function Name Function Polarity PD16/D16/IRQ0 PW_PG_SEL PW365 232C Write SW(SH="H",PIXEL="L") PD15/D15 DATA15 Data Bus 15 PD14/D14 DATA14 Data Bus 14 PD13/D13 DATA13 Data Bus 13 PD12/D12 DATA12 Data Bus 12 PD11/D11 DATA11 Data Bus 11 PD10/D10 DATA10 Data Bus 10...
Page 97 Control Port Functions ● I/O Expander (IC1801, M66501) Pin No. Name Function Name Function Polarity SW_DVI DVI Select SW Digital= "L" IP_OUT_SW IP Select SW CG= "H" 5V ±10% READ_CPU Read Select Active "L" WRITE_CPU Write Select Active "L" CS_EXP Chip Select Active "L"...
Page 98 Control Port Functions ● Parallel Bus I/O Expander IC Ref. No Signal Name Function Note PF_5V Power Fail Main Board PF_9V Power Fail PF_S9V Power Fail IC4841 PF_-5V Power Fail PF_16V Power Fail 74ACT541 PF_TH Power Fail Temperature SW and lamp cover SW PF_12VA Power Fail PF_PFC1...
Page 99 Control Port Functions ● IIC Bus I/O Expander and D/A Converter IC Ref. No Signal Name Function Note DACFANSW1 Main Board DACFANSW2 DACFANSW3 IC7801 DACFANSW4 DACFANCONT1 M62399 DACFANCONT2 DACFANCONT3 DACFANCONT4 Slave address setting port_2 (GND) Slave address setting port_1 (GND) Slave address setting port_0 (GND) M-IDA1 Slot 1 Type Detection 1...
Page 100 Control Port Functions ● IIC Bus I/O Expander and D/A Converter IC Ref. No Signal Name Function Note H_SYNC_SW Component Board P_FAIL_5V/9V1 IC2081 MOUSE/CPU_SW M62320 CG_SW Slave address setting port_2 (GND) Slave address setting port_1 (GND) Slave address setting port_0 (GND) NTSC/PAL AV Board CV/YC...
Page 101: Ic Block Diagrams
■ IC Block Diagrams ● AD8183ARU <Selector, IC2071> ● AD9888KS <Analog Flat Panel Interface, IC2201> OUTA CLAMP AD8183/AD8185 IN0A OUTB OUTA DGND CLAMP SELECT OUTB IN1A SEL A/B OUTA CLAMP DISABLE OUTB HSYNC IN2A OUT0 DATACK HSYNC HSOUT VSYNC VSOUT VSYNC SOGOUT OUT1...
Page 102 IC Block Diagrams ● CXA2019AQ <Video Decoder, IC3141> ● CXA2101AQ <Multi-Component Processor, IC4101> -102-...
Page 103 IC Block Diagrams ● CXA2151Q <RGB Matrix, IC2261> ● CXD2064Q <3 Line Y/C Separator, IC2101> -103-...
Page 104 IC Block Diagrams ● ICS1523M <Clock Driver, IC4231> ● LA7217 <Sync Separator, ● ML60851 <USB Interface, IC9801> IC2051, IC8041> -104-...
Page 105 IC Block Diagrams ● LB1641 <Motor Driver, IC1601, IC1611> LB1645N <Motor Driver, IC1621, IC1631> LB1645N LB1641 INPUT ON/OFF CONTROL INPUT S1=ON , OTHER=OFF FORWARD (reverse) DRIVE S2=ON , OTHER=OFF REVERSE (forward) DRIVE S3=ON , OTHER=OFF BRAKING <FF> ● MD1222N <DC-DC Converter, IC8191> V ref V cc V boot...
Page 106 IC Block Diagrams ● PW365 <Scan Converter, IC301> ● Sii169ACT <DVI Interface, IC8001> -106-...
Page 107 IC Block Diagrams ● TA1318N <Sync Separator, Frequency Counter, IC1061> ● TC90A11F <3D Noise Reduction, IC5101> -107-...
Page 108 IC Block Diagrams ● TDA4665T <PAL SECAM Delay, ● TDA8395T <SECAM Decoder, IC3131> IC3121> ● uPD64082GF <3D Y/C Separator, IC1101> -108-...
Page 109: Mechanical And Optical Parts List
■ Mechanical and Optical Parts List Note: Part order must contain Model No., Chassis No., Optical Unit Type-R or L, Part No., and descriptions. Give complete “Chassis No." for parts order or servicing, it is shown on the rating sheet on the cabinet back of the LCD projector.
Page 110 KF6-XF46N00 Mechanical and Optical Parts LF6-XF46E00 S1 x 7 S1 x 3 S1 x 10 Fig.83 26 X 8 S3 X 8 Fig.84 - 110 -...
Page 111 Mechanical and Optical Parts projection lens is optional. Fig.85 51-A 51-C x 3 51-B X3 51-A For horizontal 51-D Fig.86 - 111 -...
Page 112 Mechanical and Optical Parts Fig.89 Fig.90 - 112 -...
Page 113 Mechanical and Optical Parts 130R Green 130-L 130R-6 130L-6 130R-7 130L-7 130-2 130-1 130-4 130-3 Blue 130R-8 130-5 130L-8 130-1 Prism/LCD Panel unit Fig.91 106 (R) 105 (G) 104 (B) 80 (R) 96 (B,G) 80 (R) 96 (B,G) Green 127R,127L(B) 128R,128L(G) 129R,129L(R) Blue...
Page 114 Mechanical and Optical Parts Relay lens unit Condenser lens unit Fig.93 Integrator lens unit PBS/ integrator lens unit Fig.94 - 114 -...
Page 115 Mechanical and Optical Parts Mirrors Fig.95 Fig.96 Lenses - 115 -...
Page 116 Mechanical and Optical Parts Fig.97 MIrrors Optical filters Fig.98 - 116 -...
Page 117 Mechanical and Optical Parts 127R 129R 130R 127L 129L 130L 128R 128L Lamp1 Lamp3 Lamp2 Lamp4 Fig.99 - 117 -...
Page 118 Mechanical and Optical Parts Optical Unit Type-R Optical Unit Type-L NO.130L NO.130R LCD Panel/Prism ass'y (TYPE-L) LCD Panel/Prism ass'y (TYPE-R) 130-3 130-5 130-3 130-5 130-1 130-1 130-1 130-1 (BLUE) (RED) (BLUE) (RED) 130R-8 130R-6 130L-8 130L-6 130-4 130-4 (GREEN) (GREEN) 130R-7 130-2 130L-7...
Page 119 610 272 9238 SPRING COIL-M6MA 645 060 3174 LENS,CONDENSER(OUT) 610 285 1366 SPRING COIL-MJ6A 645 054 1261 LENS,CONDENSER(IN) 645 030 7355 BADGE,SANYO*53.5X12L53.5 645 041 2875 LENS,RELAY(OUT) 645 041 2868 LENS,RELAY(IN) CHASSIS PARTS 645 075 3664 LENS,CONDENSER(G) 645 041 2707 LENS,INTEGRATER...
Page 120 610 284 3040 CUSHION TOP-ML6A 610 289 4103 CUSHION BTM BASE-ML6A 610 289 7234 REINFORCEMENT A-ML6A 645 067 1838 POLY BAG-1800X1300*NC PLC-XF46N(USA) 610 328 9823 CARTON CASE TOP-KF6A PLC-XF46E(EU),(UK) 610 328 9984 CARTON CASE TOP-LF6A ACCESSORIES 610 322 4329 COVER LENS B-MJ6A...
Page 121: Electrical Parts List
■ Electrical Parts List PWB assemblies location Fans location FN920 FN919 FN918 FN909 FN917 FN910 FN904 FN903 FN901 FN913 FN916 FN905 - 121 -...
Page 122 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Product safety should be considered when a component replacement is made in any area of a projector. Components indicated by a mark in this parts list and the circuit diagram show components whose value have special significance to product safety.
Page 123 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description !FN912 645 078 8789 MOTOR,BLW DC 7.08W ASSEMBLIED BOARDS !FN913 645 084 2573 MOTOR,FAN DC 5.64W !FN914 645 084 2511 MOTOR,FAN DC 3.36W 610 322 8198 ASSY,PWB,COMPONENT MT8AD !FN915 645 084 2528...
Page 124 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description Q1068 405 014 4519 TR 2SC2412K T146 R C1051 403 397 8810 NP-ELECT 4.7U M 405 014 4618 TR 2SC2412K T146 S C1052 403 397 8919 NP-ELECT 0.1U M 405 015 8724...
Page 125 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R1021 401 105 0712 MT-GLAZE 100K JA 1/16W R2081 401 105 2815 MT-GLAZE 2.2K JA 1/16W R1025 401 105 0712 MT-GLAZE 100K JA 1/16W R2082 401 105 7919 MT-GLAZE 0.000 ZA 1/16W...
Page 126 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description D1008 407 223 1112 ZENER DIODE 02DZ6.2Y(TPH3 405 147 2215 TR 2SA1037AK-S-T146 D1009 407 223 1112 ZENER DIODE 02DZ6.2Y(TPH3 405 002 0318 TR 2SA1037K T146 R D1011 407 223 1112 ZENER DIODE 02DZ6.2Y(TPH3...
Page 127 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description 405 002 0318 TR 2SA1037K T146 R 405 015 8724 TR 2SC2812-L6-TB 405 002 0417 TR 2SA1037K T146 S 405 015 8922 TR 2SC2812-L7-TB 405 002 6726 TR 2SA1179-M6-TB 405 163 1612 TR 2SC2812N-L6-TB0...
Page 128 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description IC5182 409 461 7314 IC AD8057ARTZ-REEL7 C2116 403 283 6319 CERAMIC 1U Z IC5183 409 461 7314 IC AD8057ARTZ-REEL7 C2117 403 164 0214 CERAMIC 0.1U Z CAPACITOR C2118 401 105 0415...
Page 129 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C3151 403 348 5823 CERAMIC 0.47U K C5124 403 164 0214 CERAMIC 0.1U Z C3152 403 348 5823 CERAMIC 0.47U K C5125 403 164 0214 CERAMIC 0.1U Z C3153...
Page 130 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R1167 401 105 0514 MT-GLAZE 1K JA 1/16W R2118 401 105 5915 MT-GLAZE 560 JA 1/16W R1168 401 105 0514 MT-GLAZE 1K JA 1/16W R2119 401 105 0514 MT-GLAZE 1K JA 1/16W...
Page 131 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R3168 401 105 4314 MT-GLAZE 330K JA 1/16W R5125 401 105 0514 MT-GLAZE 1K JA 1/16W R3169 401 105 0514 MT-GLAZE 1K JA 1/16W R5126 401 105 0613 MT-GLAZE 10K JA 1/16W...
Page 132 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description D4181 407 149 0817 DIODE 1SS355-TE-17 IC7192 409 051 2930 IC TC4053BF(EL) D4182 407 149 0817 DIODE 1SS355-TE-17 IC7221 409 344 1920 IC MN1382-Q-TX D5101 407 216 7629 VARACTOR DI HVU17 IC7231...
Page 133 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R7110 401 105 0712 MT-GLAZE 100K JA 1/16W R7252 401 105 0613 MT-GLAZE 10K JA 1/16W R7112 401 105 7919 MT-GLAZE 0.000 ZA 1/16W R7253 401 105 7919 MT-GLAZE 0.000 ZA 1/16W...
Page 134 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description IC9098 409 461 7829 IC PQ20WZ11 CG MOTHER BOARD IC9099 409 461 7829 IC PQ20WZ11 CAPACITOR 610 322 8839 ASSY,PWB,CGMOTHER MT8AD C9002 403 164 0214 CERAMIC 0.1U Z C9003...
Page 135 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C9083 403 391 5310 ELECT 47U M 6.3V R9065 401 105 0415 MT-GLAZE 100 JA 1/16W C9084 403 164 0214 CERAMIC 0.1U Z R9066 401 105 0613 MT-GLAZE 10K JA 1/16W C9086...
Page 136 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R9176 401 105 0415 MT-GLAZE 100 JA 1/16W R5808 401 105 0415 MT-GLAZE 100 JA 1/16W R9177 401 105 0415 MT-GLAZE 100 JA 1/16W R9183 401 105 0613 MT-GLAZE 10K JA 1/16W...
Page 137 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description D3851 407 223 0511 ZENER DIODE 02DZ12Y(TPH3) Q8101 405 014 4519 TR 2SC2412K T146 R D3852 407 223 0511 ZENER DIODE 02DZ12Y(TPH3) 405 014 4618 TR 2SC2412K T146 S D3853 407 223 0511...
Page 138 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C8032 403 397 9015 NP-ELECT 1.0U M R8003 401 256 1712 MT-GLAZE 33K JA 1/10W C8033 403 398 6518 ELECT 2.2U M R8004 401 256 1712 MT-GLAZE 33K JA 1/10W C8034...
Page 139 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R8104 401 255 6510 MT-GLAZE 100 JA 1/10W 645 028 0696 R-NETWORK 100X4 1/32W R8105 401 255 9511 MT-GLAZE 220K JA 1/10W RB8004 645 029 5782 R-NETWORK 100X4 1/32W R8106 401 255 9511...
Page 140 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description D8125 407 223 0511 ZENER DIODE 02DZ12Y(TPH3) 405 015 8922 TR 2SC2812-L7-TB D8126 407 223 0511 ZENER DIODE 02DZ12Y(TPH3) 405 163 1612 TR 2SC2812N-L6-TB0 D8127 407 223 0511 ZENER DIODE 02DZ12Y(TPH3) Q2302...
Page 141 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description 405 015 8922 TR 2SC2812-L7-TB IC1801 409 605 4612 IC M66501FP-RB0Q 405 163 1612 TR 2SC2812N-L6-TB0 IC1811 409 339 3615 IC 24LC16BT-I/SNG Q5851 405 014 4519 TR 2SC2412K T146 R IC1812 409 428 8425...
Page 142 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description IC7801 409 428 9610 IC M62399FP-DF0Q C1538 403 164 0234 CERAMIC 0.1U Z IC7821 409 461 7829 IC PQ20WZ11 C1539 403 164 0234 CERAMIC 0.1U Z IC7841 409 461 7829 IC PQ20WZ11...
Page 143 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C2237 403 283 6339 CERAMIC 1U Z C2563 403 157 3611 CERAMIC 100P J C2238 403 157 6612 CERAMIC 470P K C2581 403 164 0234 CERAMIC 0.1U Z C2251...
Page 144 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C3423 403 283 6339 CERAMIC 1U Z C432 403 164 0234 CERAMIC 0.1U Z C3424 403 283 6339 CERAMIC 1U Z C434 403 164 0234 CERAMIC 0.1U Z C343...
Page 145 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C4833 403 164 0234 CERAMIC 0.1U Z C6331 403 164 0234 CERAMIC 0.1U Z C4842 403 164 0234 CERAMIC 0.1U Z C6332 403 164 0234 CERAMIC 0.1U Z C4845...
Page 146 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C8221 403 113 3835 CERAMIC 1000P K R1389 401 150 6011 MT-GLAZE 0.000 ZA 1/10W C8222 403 164 0234 CERAMIC 0.1U Z R1391 401 162 2216 MT-GLAZE 10 JA 1/10W C8223...
Page 147 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R1863 401 150 5915 MT-GLAZE 10K JA 1/10W R2356 401 150 5915 MT-GLAZE 10K JA 1/10W R1864 401 150 5915 MT-GLAZE 10K JA 1/10W R2359 401 150 5915 MT-GLAZE 10K JA 1/10W...
Page 148 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R290 401 150 6219 MT-GLAZE 1K JA 1/10W R3410 401 162 3718 MT-GLAZE 4.7K JA 1/10W R291 401 150 6011 MT-GLAZE 0.000 ZA 1/10W R3412 401 150 5915 MT-GLAZE 10K JA 1/10W...
Page 149 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R4216 401 150 5915 MT-GLAZE 10K JA 1/10W R4439 401 150 6011 MT-GLAZE 0.000 ZA 1/10W R4219 401 162 2216 MT-GLAZE 10 JA 1/10W R4441 401 150 6011 MT-GLAZE 0.000 ZA 1/10W...
Page 150 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R4820 401 255 6510 MT-GLAZE 100 JA 1/10W R533 401 162 2216 MT-GLAZE 10 JA 1/10W R4821 401 150 6011 MT-GLAZE 0.000 ZA 1/10W R534 401 162 2216 MT-GLAZE 10 JA 1/10W...
Page 151 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R5883 401 150 6011 MT-GLAZE 0.000 ZA 1/10W R7820 401 162 4111 MT-GLAZE 5.6K JA 1/10W R5884 401 150 6011 MT-GLAZE 0.000 ZA 1/10W R7821 401 150 6011 MT-GLAZE 0.000 ZA 1/10W...
Page 152 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R838 401 255 6510 MT-GLAZE 100 JA 1/10W R9846 401 150 5915 MT-GLAZE 10K JA 1/10W R839 401 162 3718 MT-GLAZE 4.7K JA 1/10W RB1501 645 036 3528 R-NETWORK 0X4 1/32W R840...
Page 153 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description 645 037 4395 R-NETWORK 680X4 1/32W 645 028 0719 R-NETWORK 10KX4 1/32W RB336 645 085 7645 R-NETWORK 680X4 1/32W RB4809 645 036 0978 R-NETWORK 10KX4 1/32W 645 037 4395 R-NETWORK 680X4 1/32W 645 028 0719...
Page 154 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description 645 037 0823 R-NETWORK 22X4 1/32W D5631 407 149 0817 DIODE 1SS355-TE-17 RB7309 645 034 5050 R-NETWORK 22X4 1/32W D5632 407 149 0817 DIODE 1SS355-TE-17 645 037 0823 R-NETWORK 22X4 1/32W D5633...
Page 155 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description C651 403 410 7031 ELECT 2200U M DIODE C652 403 164 0214 CERAMIC 0.1U Z D2661 407 149 0817 DIODE 1SS355-TE-17 C653 403 369 2419 ELECT 2700U M D2663...
Page 156 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description IC1601 409 114 4803 IC LB1641 R6816 401 162 3718 MT-GLAZE 4.7K JA 1/10W IC1611 409 114 4803 IC LB1641 R6817 401 256 5918 MT-GLAZE 2.7K JA 1/10W IC1621 409 085 1900...
Page 157 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R6861 401 255 6510 MT-GLAZE 100 JA 1/10W 405 163 1513 TR 2SA1179N-M6-TB R6862 401 150 6110 MT-GLAZE 2.2K JA 1/10W Q6874 405 134 5925 TR 2SA1037AK-T146-R R6863 401 255 6510...
Page 158 KF6-XF46N00 LF6-XF46E00 Electrical Parts List Key No. Part No. Description Key No. Part No. Description R9634 401 105 0514 MT-GLAZE 1K JA 1/16W LAMP NET BOARD R9635 401 105 0514 MT-GLAZE 1K JA 1/16W R9636 401 211 9913 MT-GLAZE 12K FA 1/16W R9637 401 212 0018 MT-GLAZE...
Page 159 MEMO - 159 -...
Page 160 SANYO Electric Co., Ltd. (PLC-XF46N/E) MAY 2006 BB 400 Printed in Japan...
Page 161 PLC-XF46E LF6-XF46E00 These schematic diagrams and printed wiring board drawings are part of the service manual original for chassis No. KF6-XF46N00, LF6-XF46E00 models PLC-XF46N/46E. File with the service manual No. SM5110783-00. Note: All the information of part numbers and values indicated on these diagrams are at the beginning of production.
Page 162: Parts Description And Reading In Schematic Diagram
Parts description and reading in schematic diagram 1. The parts specification of resistors, capacitors and Resistor Reading coils are expressed in designated code. Please check Example 1/2 D J 10K B the parts description by the following code table. 2. Some of transistors and diodes are indicated in mark Characteristic for the substitution of parts name.
Page 163: Block Diagrams
■ Block Diagrams IC8251 IC8071,IC8072,IC8073 IC8251 DATA DVI BUFFER DIF SCDT/H/V DIF SCDT/H/V H_DIF W_HS INPUT SIGNAL SELECTING STAGE SIGNAL PROCESSING STAGE LCD DRIVING STAGE IC8001 IC9041 V_DIF W_VS IC8194 IC8193 BUFFER DIF DE DIF DE DE_DIF W_DE IC8020 H, V, DE <74VCX2374>...
Page 164: Schematic Diagrams
K46F ■ Schematic Diagrams TP2631 K46F_1 J10AS032N J30B1640G R2631 C2631 1/2GZ0 FAN917 K26F K56A CJ470 DCFAN_1 M10B37700 R2661 J10EA034N K46L_1 C2632 K26F_1 TEMPERATURE SWITCH J10AU035N KK1000 K46F_2 INTAKE FAN 1/10GJ K26T_1 DCFAN_2 K46L_2 1SS355 10KC FN907 D2631 FOR LAMP1 K26F_2 M10B38601 K26T DCFAN_3...
Page 165 V_DIF CLOCK D-RB9 D-RB7 D-RB3 D-GB9 D-GB7 D-GB5 D-GB3 RS232C_TX I2CSDA M-IDC H_DIF D-RB6 D-RB5 D-RB2 D-RB1 D-GB6 D-GB2 D-GB1 D-BB9 D-BB7 D-BB5 D-BB3 D-BB1 RS232C_RTS A-HS M-IDA AUDIO-L D-RB8 D-RB4 D-RB0 D-GB8 D-GB4 D-BB6 D-BB2 D-GB0 D-BB8 D-BB4 D-BB0 A-VS M-IDB AUDIO-R...
Page 166 ASSY,PWB,D-SUB15 TP7107 C7111 C7112 C7106 6.3EM 25KZ0.1GQF TP7106 TP7108 25KZ0.1 3301V K71H C7105 IC7102 6.3EM J11B4210M 3301V AD8057ARTZ C7107 R7123 CD10 K90C_G1 R7124 I-IN R7127 1/16GJ 1/16GJ K90C_G2 TP7101 C7113 R7103 390C CC3CGQ 1/16 C7182 R7126 C7181 C7183 GZ0C CJ56CGQ CJ56CGQ CJ56CGQ K90C_G3...
Page 167 1/16GJ R3131 K3101GND1 R3132 1/16GJ10C C3131 KK0.01 C3125 C3133 16KK0.1 C3132 10KZ1UGQF IC3121 IC3131 R3191 1/16GJ R3106 R3108 TDA8395T/N3 TDA4665T/V5T 100C 1/16GJ R3160 1/16GJ 22KC Q3101 1.2KC R3110 1/16GJ Q3100 1/16GJ Q3160 120KC C3105 SECAM DECORDER 100C PAL SECAM DELAY 25KZ R3130 Q3102...
Page 168 ASSY,PWB DVI ASSY,PWB COMPONENT K10H C1012 C1014 J11B4210M R8095 1/10GJ47C DE_DIF 6.3EM 6.3EM 3301V IC3081 3301V R8096 1/10GJ47C V_DIF K10H_G1 C1013 AD8057ARTZ C1015 R8097 1/10GJ47C H_DIF RB8008 25KZ 25KZ0.1GQF 0.1GQF 3.3V IC8020 K10H_G2 R3083 L8001 C8023 C8022 C8021 1/16GJ RB8007 TC74VCX374FT R3081 L2PF...
Page 169 3.3V D5885 IC2302 SI-3025LSA-TL D5884 C8201 L2301 4EM4701V C2313 L2GM3R3MG D5883 4EM4701V IC8201 IC8211 IC8221 3.3V Vout 2.5V_FIL R2308 R2301 D5882 C2316 1/10GJ 1/10GJ K32A TC74VCX16244FT TC74VCX16244FT TC74VCX16244FT Vout 10KC 10KC 25KZ 0.1GQFZ R2304 PF_2.5V J11B4050G 1/10GJ R7371 3-OE 4-OE 3-OE 4-OE 3-OE...
Page 170 3.3V IC6314 IC6316 C6301 C_DQ[0-31] 6.3EM1003T C_DQ[32-63] C_DQ[0-31] EM638325TS-6 C_DQ[32-63] EM638325TS-6 C_DQ[0] C_DQ[15] C_DQ[32] C_DQ[47] DQ15 DQ15 C6302 VDDQ VSSQ C6321 VDDQ VSSQ 25KZ0.1GQFZ 25KZ0.1GQFZ C_DQ[1] C_DQ[14] C_DQ[33] C_DQ[46] DQ14 DQ14 C_DQ[2] C_DQ[13] C_DQ[34] C_DQ[45] DQ13 DQ13 VSSQ VDDQ C6313 VSSQ VDDQ C6332...
Page 171 TPNMI J30B1640G K301 PWS3.3V R1371 RB301 1/10GJ100C R1JA1034G ICE_RESET NMI_PW R1372 R323 R314 1/10GJ100C CS3_PW R313 R322 CS2_PW R312 R321 R1373 1/10GZ0C IC1311 PWS3.3V R311 R320 24LC16BT-I/SNG FROM:SW_FPGA C1312 R1311 C1371 25KZ0.1GQFZ 1/10GJ1.8KC PWS3.3V K302 R1312 1/10GJ10C R1313 LEAD FREE-->X 1/10GJ1.8KC C1311 4EM4701V...
Page 172 IC3411 MSM56V16160F-8TS-K 3.3V_FPGA C3411 25KZ0.1 C3418 GQFZ 6.3KK10BA 1 VCC ;6.3KK10MB NIOS_DQ[0] 2 DQ0 DQ15 NIOS_DQ[15] NIOS_DQ[1] 3 DQ1 DQ14 NIOS_DQ[14] 4 VSSQ VSSQ DQ13 NIOS_DQ[2] 5 DQ2 NIOS_DQ[13] NIOS_DQ[3] 6 DQ3 DQ12 NIOS_DQ[12] C3412 C3417 25KZ0.1 7 VCCQ VCCQ 25KZ0.1 3.3V_FPGA 1.5V_FPGA...
Page 173 3.3V C2501 R518 L2501 16EM C511 1/10GJ 15.5V L2GA220JG 103W 25KZ 15.5V IC2523 0.1GQFZ C2502 R517 R2507 25KZ Q2502 PQ20WZ11 RCLK 1/10GJ2.2C L503 0.1GQFZ R2504 IMZ4G S16V 3.3V R2502 L2GM3R3MG 1/10GJ22C 1/3GJ470 C512 3.3V R516 25KZ 15.5V Q2501 R2508 0.1GQFZ IMZ4G 1/10GJ R514...
Page 174 J10DS321G 9 10 11 9 10 11 J10EG125G J10QF035G J10QF045G J10QF035G J10EP121G J10QG305G J10EZ051G J10EG085G J10EP031G J10EZ051G R9829 R5881 D5861 R5871 1/10GJ K8D-20 1/8GZ000 2.2KC AUDIO_GND FAN12V GZ000 K8H_AC R5831 R4897 J30B1640G 1/8GZ000 1/8GZ000 R5832 D5881 R5868 1/8GZ000 R5861 C5837 02DZ6.2YG D5871 R9832...
Page 175: Printed Wiring Board Diagrams
■ Printed Wiring Board Diagrams CAUTION This projector is isolated from AC line by using the internal converter transformer. PWB assemblies location Please pay attention to the following notes in servicing 1. Do not touch the part on hot side (primary circuit) or both parts on hot and cold sides (secondary circuit) at the same time.
Page 176 MAIN (side-A) NTH4 NTH1 C2254 C2227 R2213 TE201 L2211 C202 NTH2 NTH3 C2255 FAN NET_3 TE1354 R225 C221 C2238 R223 C5853 C216 R5818 C513 K26A C2524 R5859 R220 TP503 R2206 R2205 D5801 C2229 C2526 R2504 R2202 R5801 IC2521 R221 TP501E TP221 TP221 C227...
Page 177 MAIN (side-B) C2226 C235 IC2251 C2502 L2501 IC2201 Q271 Q221 L503 R295 C229 R5817 IC282 C2501 R2204 C295 R2203 C512 D501 R5855 R292 R2501 R296 L562 R272 R229 C254 R297 Q2501 C2216 IC2541 C1562 C219 IC1561 C244 C285 L502 C2211 Q211 IC281 C2209...
Page 178 DVI (side-A) DVI (side-B) C8171 R8140 C8188 R8135 IC8199 R8136 R8141 R8138 R8139 R8149 R8148 TE8101 R8147 R8146 R8043 R8145 R8041 R8162 C8144 C8052 R8189 R8092 C8152 IC8195 X8152 R8193 C8142 C8143 R8185 R8164 R8154 R8196 IC8141 R8167 R8168 K80H R8195 R8186 R8163...
Page 179 AV (side-A) AV (side-B) C4144 C4119 C4126 C4145 R4102 C4128 R4103 R4187 R4104 C4185 R1132 D4181 R4105 C1123 R4186 C4186 C1122 D4182 R4111 Q4182 C1116 R4188 R4106 C1139 C4132 C4141 C1138 C4133 C4140 R2150 C4134 R2140 C1115 C4181 R1128 R4190 D2140 R1104 R1129...
Page 180 CG-MOTHER (side-A) CG-MOTHER (side-B) C9068 C9091 C9018 BLACK R9107 R9082 R9196 R9105 R9084 R9195 R9102 R9086 R9101 R9097 R9088 R9094 R9091 C9025 C9019 MAIN R9515 R9194 R9093 C9027 R9172 IC9091 K90C K90C IC9096 K32A R9171 MAIN IC9031 C9029 Q9004 IC9006 R9070 D9004 C9032...
Page 181 RS232C (side-A) RS232C (side-B) FANNET_2 (side-A) FANNET_2 (side-B) (EXH FANNET) SUB POWER K66F MAIN K38A K38A K56B PB11 K56B C3851 K26K R2679 D3856 D3852 R2670 K56A LAMP COVER SW TP2671 L3852 D3855 D3851 K26L L3851 K26K R3888 SW902 IC3801 R2683 C3866 R2684 K26Z...
Page 182 CONTROL (side-A) CONTROL (side-B) FRONT LED (side-A) FRONT LED (side-B) PWB,FRONT LED KF6A 1AA4B10C5420C 1AA4B10C5420C R6868 R6867 FRONT LED D6854 A30C5 KF6A R6866 D6854 R6865 R6858 C6802 R6857 R6856 D6803 C6803 R6855 A30C5 D6853 GREEN D6804 D6858 D6857 R6863 D6853 FANNET_3 R6854 D6802...
Page 183 POWER (side-B) POWER (side-A) AC NET PFC1_2 CN1A C604 C604 C607 NOISE FILTER C607 L611 LF901 C654 C654 L611 C626 C651 C653 C626 R601 C651 R601 C653 R621 C652 C650 R606 C625 C650 T621 C655 C625 R608 DZ611 D603 SUB POWER R615 D602 K66A...
Page 184 (1-2) FN913 (1-2) LAMP NET SUB POWER (side-A) PFC_1-2, PFC_3-4 (side-A) (3-4) FN914 K96J (3-4) MAIN FANNET_1 TP7611 TP7614 K26E (1-2) BALLAST1 CJ1A K66E TP7613 (3-4) BALLAST3 CJ1C FANNET_3 K26W FANNET_2 K26K DC25V SWITCHING POWER SUPPLY A902_DC_OUT POWER (1-2) BALLAST2 CJ1B (3-4) BALLAST4...
Page 185 Pin description of diode, transistor and IC Diode Diode K: Cathode A: Anode Transistor/FET Transistor/FET C: Collector D: Drain B: Base G: Gate Index E: Emitter S: Source C1 C2 C1 C2 (GND) RESET (IN) (OUT) Index Index Index Index Index Index Index...
Page 186 Diagrams & Drawings (PLC-XF46N/XF46E)

This manual is also suitable for:

Plc-xf46e

Sanyo PLC-XF46N Service Manual

Quick Links

SERVICE MANUAL

Related Manuals for Sanyo PLC-XF46N

Summary of Contents for Sanyo PLC-XF46N

This manual is also suitable for:

Table of Contents
