Summary of Contents for Sanyo PLC-XF47K

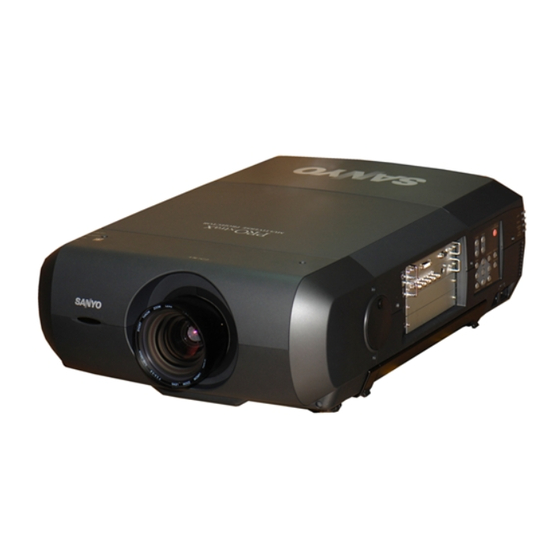

- Page 1 Multimedia Projector PLC-XF47 MODEL PLC-XF47K Projection lens is optional. Owner’s Manual...
-
Page 2: Features And Design
Features and Design This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology. Multilanguage Menu Display Functionally Rich Operation menu is available in 12 languages;... -
Page 3: Table Of Contents
Table of Contents Features and Design....2 Input Selection ....30 Table of Contents . -
Page 4: To The Owner
If you leave the Your SANYO product is designed and projector unclean for a long time, the manufactured with high quality materials... -
Page 5: Safety Instructions
Safety Instructions All the safety and operating instructions should be read This projector should be operated only from the type of before the product is operated. power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized Read all of the instructions given here and retain them for dealer or local power company. -
Page 6: Air Circulation
Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. -
Page 7: Installing The Projector In Proper Directions
Safety Instructions Installing the Projector IMPORTANT! in Proper Directions Filter Maintenance!! Use the projector properly in specified positions. The projector uses a lamp which generates significant Improper positioning may reduce the lamp life and heat. The cooling fans and air vents are provided to result in severe accident or fire hazard. -
Page 8: Moving The Projector
Safety Instructions Moving the Projector For safety, be sure to hold Carrying Handles on both sides by 2 or more people when moving a projector. Moving it improperly may result in damage of cabinet or person's injury. CARRYING Replace lens cap and retract feet to prevent HANDLE damage to lens and cabinet. -
Page 9: Compliance
Compliance Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. -
Page 10: Part Names And Functions
Part Names and Functions Front Infrared Remote Receiver (Front) Lens Cap (Option) Projection Lens (Option) Level and Pitch Adjust Handle Carrying Handle Side Control Main On/Off Switch Power Cord Connector Indicator (Rear) CAUTION Back Hot air is exhausted from the exhaust vent. -
Page 11: Input / Output Terminals And Jacks
Part Names and Functions Input / Output Terminals and Jacks SERIAL PORT IN ANALOG DIGITAL (DVI-D) SERIAL PORT OUT S-VIDEO H/HV VIDEO/Y Pr/Cr Pb/Cb R/C JACK RESET DVI INPUT TERMINAL SERIAL PORT IN TERMINAL Connect computer output (Digital/DVI-D type) to If you control a projector by computer, you must this terminal. -
Page 12: Side Control And Indicators
Part Names and Functions Side Control and Indicators FRONT INDICATORS REAR INDICATORS SIDE CONTROLS Side Controls ZOOM FOCUS ON/STAND-BY LENS SHIFT INPUT 1/2 MENU INPUT 3/4 SELECT AUTO PC ADJ. IMAGE SEL. ZOOM buttons LENS SHIFT button Zoom in and out the images. (p.27) Select the LENS SHIFT function. -
Page 13: Indicators
Part Names and Functions Indicators Front Indicators LAMP LAMP Indicator This indicator is dim when a projector is turned on. And bright when a projector is in stand-by mode. READY (pp.68-69) WARNING TEMP. READY indicator This indicator lights green when a projector is ready to be turned on. -
Page 14: Remote Control
Part Names and Functions Remote Control ON/STAND-BY button Turn the projector on or off. (p.23) AUTO PC button Automatically adjust the computer image to its optimum setting (pp.28, 34). LIGHT button Light the buttons on the remote control for about 10 seconds. -
Page 15: Remote Control Battery Installation
Part Names and Functions Remote Control Battery Installation Open the battery Install new batteries into Replace the compartment lid. the compartment. compartment lid. Two AA size batteries For correct polarity (+ and –), Pull up the lid be sure battery terminals are and remove it. -
Page 16: Remote Control Code
Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control. -
Page 17: Installation
Installation Lens Installation Before setting up a projector, install Projection Lens on a Projector. 1. Before installation, check where a projector is used and prepare a suitable lens. For the specifications of Projection Lens, refer to the manual attached separately or contact sales dealer where you purchased the projector. -
Page 18: Lens Shift Adjustment
Installation Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This function makes the positioning of images easy on the screen.(See page 27) The display position can be shifted upward up to 50% elevation of the display. -
Page 19: Terminals Of Projector
Installation Terminals of Projector This projector applies various input/output terminals and 4 terminal slots for expansion to tune to diversity of signals from computers and video equipment. 4-built-in Terminal Slots enable you to arrange desired combinations of input sources just by changing Terminal Boards. For Terminal Boards, contact sales dealer where you purchased a projector. -
Page 20: Connecting To Computer
Installation Connecting to Computer Cables used for connection • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) ( *One cable is supplied; Other cables are not supplied with this projector.) Desktop type Laptop type Monitor Output Monitor Output Monitor Output... -
Page 21: Connecting To Video Equipment
Installation Connecting to Video Equipment Cables used for connection • Video Cable (BNC x 3, BNC x 1) • SCART-VGA Cable • DVI Cable • S-Video Cable ( Cables are not supplied with the projector.) Component video output equipment. Video Source (example) (such as DVD player or Video Disc Player Video Cassette Recorder... -
Page 22: Connecting The Ac Power Cord
Installation Connecting the AC Power Cord This projector uses nominal input voltages of 200–240 V AC. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station. -
Page 23: Basic Operation
Basic Operation Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet and turn the MAIN ON/OFF Switch to ON. The LAMP indicator lights red and the READY indicator lights green. -
Page 24: Turning Off The Projector
Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Press the ON/STAND-BY button on the side control or on the remote control again to turn off the projector. -
Page 25: How To Operate The On-Screen Menu
Basic Operation How to Operate the On-Screen Menu Side Control The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer MENU button to the respective sections in this manual. MENU LENS SHIFT Press the MENU button on the side control or the POINT buttons SELECT... -
Page 26: Menu Bar
Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 65-67 . For Computer Source Image Adjust Menu Guide Window Used to adjust the computer image. [Contrast/ Brightness/ Show the selected Menu of the On-Screen Menu. Color management/Auto picture control/Color temp./White balance (R/G/B)/Offset (R/G/B)/Sharpness/ Gamma/Reset/ Input Menu... -
Page 27: Operating With Projector Control
Basic Operation Operating with Projector Control Zoom Adjustment Side Control Display “Zoom” on the screen. Use the ZOOM ZOOM buttons buttons to zoom in and out the image. ZOOM FOCUS FOCUS buttons Focus Adjustment Display “Focus” on the screen. Use the FOCUS buttons to adjust focus of the image. -
Page 28: Operating With Remote Control
Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Press the AUTO PC button on the remote control to Remote Control operate the Auto PC Adj. -
Page 29: Keystone Button
Basic Operation Remote Control NO SHOW button Press the NO SHOW button on the remote control to black out the image. To restore to normal, press the NO NO SHOW SHOW button again or press any other button. button IMAGE ADJ. button “No show”... -
Page 30: Input Selection
Input Selection Input Side Control Side Control button operation INPUT 1/2 button INPUT 3/4 button INPUT 1 INPUT 3 LENS SHIFT INPUT 1/2 INPUT 2 INPUT 4 INPUT 1/2 button INPUT 3/4 ELECT INPUT 3/4 button Side Control Operation Press the INPUT 1/2 or INPUT 3/4 button on the side control. -
Page 31: Computer Input Source Selection
Input Selection Computer Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 Board Press the MENU button to display the On-Screen Menu. INPUT MENU Use the Point buttons to move the red frame pointer to the INPUT Menu icon. Input Menu icon Use the Point buttons to move the red arrow pointer... -
Page 32: Video Input Source Selection
Input Selection Video Input Source Selection Menu Operation When Selecting the INPUT 1 with DVI/D-sub 15 Board INPUT MENU When connecting to video equipment, select the type of Video source in the Source Select Menu. Input Menu icon RGB (Scart) When scart video equipment is connected to the INPUT 1 Move the pointer (red arrow) to Input (ANALOG) terminal, select RGB (Scart). -
Page 33: Computer Input
Computer Input Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA, or UXGA (refer to “Compatible Computer Specifications” on pages 70–71). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. -
Page 34: Auto Pc Adjustment
Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Remote Control Direct Operation The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote AUTO PC button control or the AUTO PC ADJ. -
Page 35: Manual Pc Adjustment
Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer. - Page 36 Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All To clear the adjusted data. adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.
-
Page 37: Image Level Selection
Computer Input Image Level Selection Direct Operation Side Control Press the IMAGE SEL. button on the remote control or MENU LENS SHIFT on the side control to select the desired image level. SELECT IMAGE SEL. button Standard AUTO PC ADJ. IMAGE SEL. -
Page 38: Screen Size Adjustment
Computer Input Screen Size Adjustment Select the desired screen size that conforms to the input signal source. Press the MENU button to display the On-Screen Menu. SCREEN MENU Use the Point buttons to move the red frame pointer to the Screen Menu icon. Use the Point buttons to move the red frame pointer Screen Menu icon... - Page 39 Computer Input SCREEN MENU Keystone This function is used to store or reset the keystone correction when the AC power cord is unplugged. Use the Point buttons to switch between each option. Store. . . Keep the keystone correction even when the AC power cord is unplugged.
-
Page 40: Video Input
Video Input Video System Selection Press the MENU button to display the On-Screen Menu. Use the Point buttons to move the red frame pointer to the AV System Menu icon. Use the Point buttons to move the red arrow pointer to the desired system and then press the SELECT button. -
Page 41: Image Level Selection
Video Input Image Level Selection Direct Operation Side Control Press the IMAGE SEL. button on the remote control or MENU LENS SHIFT on the side control to select the desired image level. SELECT IMAGE SEL. Standard button AUTO PC ADJ. IMAGE SEL. -
Page 42: Screen Size Adjustment
Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. SCREEN MENU Use the Point buttons to move the red frame pointer to the Screen Menu icon. Use the Point buttons to move the red frame pointer Screen Menu icon to the desired function and then press the SELECT button. - Page 43 Video Input Keystone SCREEN MENU This function is used to store or reset the keystone correction when the AC power cord is unplugged. Use the Point buttons to switch between each option. Store. . . Keep the keystone correction even when the AC power cord is unplugged.
-
Page 44: Picture Image
Picture Image Image Adjustment Press the MENU button to display the On-Screen Menu. IMAGE ADJUST MENU Use the Point buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point buttons to move the red frame pointer Image Adjust Menu icon to the desired item and then press the SELECT button to display the adjustment dialog box. - Page 45 Picture Image COLOR SELECTION MODE (continued) COLOR SELECTION MODE COLOR M. Level and phase Gamma Return to the COLOR MANAGEMENT POINTER. (If you adjustment palette. adjustment palette. press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.
- Page 46 Picture Image White balance (Red/Green/Blue) Press the Point button to lighten red/green/blue tone; press the Point button to deepen red/green/blue tone (from 0 to 63). Offset (Red/Green/Blue) Press the Point button to lighten red/green/blue tone of the black level of an image; press the Point button to deepen red/ green/blue tone of the black level of an image (from 0 to 63).
-
Page 47: Setting
Setting Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point buttons to move the red frame pointer SETTING MENU (Language) to the Setting Menu icon. Use the Point buttons to move the red frame pointer to the desired item and then press the SELECT button. - Page 48 Setting Logo Logo This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions. Note: • When “On” is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among the following options.
- Page 49 Setting Logo PIN Code Lock Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.
- Page 50 Setting Lamp mode This Projector is equipped with 4 Projection Lamps and the number of using lamps can be switched to 4 lamps or 2 lamps. Using 2 lamps maintains the life of Projection Lamps. To change over Lamp Mode Press the Point buttons to move the red frame pointer to “Lamp mode”...
- Page 51 Setting RC sensor Select a location of the infrared remote receiver of the remote control. See “Remote Control Receivers and Operating Range” on page 15 for details. Both..Activate both the front and back receiver. Front ..Activate only the front receiver. Back..
- Page 52 Setting Security Security Key lock This function locks the side control and remote control buttons to prevent operation by unauthorized persons..Unlocked..Lock the side control buttons. To unlock, use the remote control. Set the red frame .
- Page 53 Setting Enter a PIN code Enter a PIN code Use the Point buttons on the side control or on the remote control to enter a number. Press the Point button to fix the number and move the red frame pointer to the next box. The number changes to “...
- Page 54 Setting Lamp counter This function is used to reset the lamp counter. This icon appears on the screen when the end of lamp life is When the lamp life reaches a recommended lamp replacement approaching. time, the time shown in the dialog box turns red and the Lamp Note: replacement icon appears on the screen, indicating that the end of lamp life is approaching.
-
Page 55: Maintenance And Care
Maintenance and Care Air Filter Care and Cleaning Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. -
Page 56: Lamp Management
Maintenance and Care Lamp Management This Projector is equipped with 4 Projection Lamps to ensure brighter image and those lamps are controlled by the Lamp Management Function. The Lamp Management Function detects the status of all lamps and shows the status on screen or on the LAMP REPLACE indicator. This function also automatically controls the Lamp Mode when any of lamps is out for the end of life or malfunctions. -
Page 57: Lamp Replacement
Maintenance and Care Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP REPLACE indicator should light is depending on the lamp mode. -
Page 58: Resetting The Lamp Counter
ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. Model No. of your projector PLC-XF47/PLC-XF47K Replacement Lamp Type No. POA-LMP109 (Service Parts No. 610 334 6267) -
Page 59: Lamp Handling Precautions
Maintenance and Care LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. -
Page 60: Cleaning The Projection Lens
Maintenance and Care Cleaning the Projection Lens Unplug the AC power cord before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens. -
Page 61: Warning Indicators
Maintenance and Care Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING indicators and the READY indicator to take proper maintenance. The projector is shut down and the WARNING TEMP. Indicators indicator is blinking red. -
Page 62: Appendix
Appendix Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected. - Page 63 Appendix Picture is not bright – Check if “Contrast” or “Brightness” are adjusted properly. (See page 44) enough. – Check if “Image level” is selected properly. (See pages 37 , 41) – Check the Lamp control function. ( See “SETTING” section on page 50) –...
- Page 64 Appendix WARNING: High voltages are used to operate this projector. Do not attempt to open the cabinet. If problems still persist after following all operating instructions, contact the dealer where you purchased the projector or the service center. Specify the model number and explain about the problem. We will advise you how to obtain service.
-
Page 65: Menu Tree
Appendix Menu Tree Computer Input/Video Input Input Input 1 RGB (PC analog) Go to System RGB (Scart) RGB (PC digital) Go to System RGB (AV HDCP) Input 2 Go to System Y, Pb/Cb,Pr/Cr Go to System Video Go to System S-video Go to System Network... - Page 66 Appendix Computer Input System Image Select Mode 1 Standard Mode 2 Real SVGA 1 Image 1 SVGA 2 SVGA 3 Image 10 System displayed in the System Menu varies depending on the input signal. PC Adjust Screen Auto PC adj. Normal Fine sync.
- Page 67 Appendix Computer Input/Video Input Setting Language 12 languages provided. Quit Menu Position/Simple Menu Display On/Countdown Off/Off Background Blue/User/Black User/Default/Off Logo Logo select Capture Yes/No Logo PIN code lock On/Off Logo PIN code change Quit Quit 4-Lamp mode/ 2-Lamp mode Lamp mode Quit Lamp control Auto/Normal/Eco...
-
Page 68: Indicators And Projector Condition
Appendix Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally. Indicators Projector Condition WARNING LAMP LAMP READY TEMP . REPLACE green orange The projector is off. (The main switch is OFF position or the AC power cord is unplugged.) The projector is in stand-by mode. - Page 69 Appendix The projector is detecting abnormal condition. Indicators Projector Condition WARNING LAMP LAMP READY TEMP . REPLACE green orange The temperature inside the projector is elevated close to the abnormally high level. The temperature inside the projector is abnormally high. The projector cannot be turned on.
-
Page 70: Compatible Computer Specifications
Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. PC Adjustment is limited when selecting these modes. ON-SCREEN ON-SCREEN RESOLUTION H-Freq.(kHz) V-Freq.(Hz) RESOLUTION H-Freq.(kHz) V-Freq.(Hz) DISPLAY DISPLAY... - Page 71 Appendix When an input signal is digital from the DVI terminal, refer to the chart below. ON-SCREEN ON-SCREEN RESOLUTION H-Freq.(kHz) V-Freq.(Hz) RESOLUTION H-Freq.(kHz) V-Freq.(Hz) DISPLAY DISPLAY D-VGA 640x480 31.470 59.940 D-SXGA 1 1280x1024 63.980 60.020 D-480p 720x480 31.470 59.880 D-SXGA 2 1280x1024 60.276 58.069...
-
Page 72: Technical Specifications
Appendix Technical Specifications Mechanical Information Projector Type Multi-media Projector Dimensions (W x H x D) 22.87” x 9.902” x 32.11” (581 mm x 251.5 mm x 815.5 mm) (Not including adjustable feet) Net Weight 80.3 lbs (36.5 kg) Feet Adjustment 0˚... -
Page 73: Optional Parts
Appendix The specifications are subject to change without notice. LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels. Each projector has its own characteristics. -
Page 74: Configurations Of Terminals
Appendix Configurations of Terminals ANALOG (Mini D-sub 15 pin) +5V Power Red Input Green Input Ground (Vert. sync.) Blue Input Sense 0 Sense 2 DDC Data Ground (Horiz.sync.) Horiz. sync. Ground (Red) Vert. sync. Ground (Green) DDC Clock Ground (Blue) DIGITAL DVI-D (DVI 24 PIN) T.M.D.S. -
Page 75: Pin Code Number Memo
Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No. Factory default set No: 1 2 3 4* Logo PIN Code Lock No. -
Page 76: Dimensions
Appendix Dimensions Unit: inch (mm) 1.28 (32.5) 17.56 (446) 2.36 (60) 9.9 (251.5) 7.01 (178) 7.01 (178) 22.87 (581) 1.57 (40) 9.90 (251.5) 8.27 (210) 8.27 (210) 20.58 (522.7) -
Page 77: Serial Control Interface
Appendix Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL Baud rate : 9600 / 19200 bps PORT IN on the projector and serial port on the PC. Parity check : none (See p.11) -
Page 78: Status Read Command
Appendix Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below. The projector decodes the command and returns the 'Charactor string' with the format below; Projector Command Function... - Page 79 SANYO Electric Co., Ltd. KE3A...
