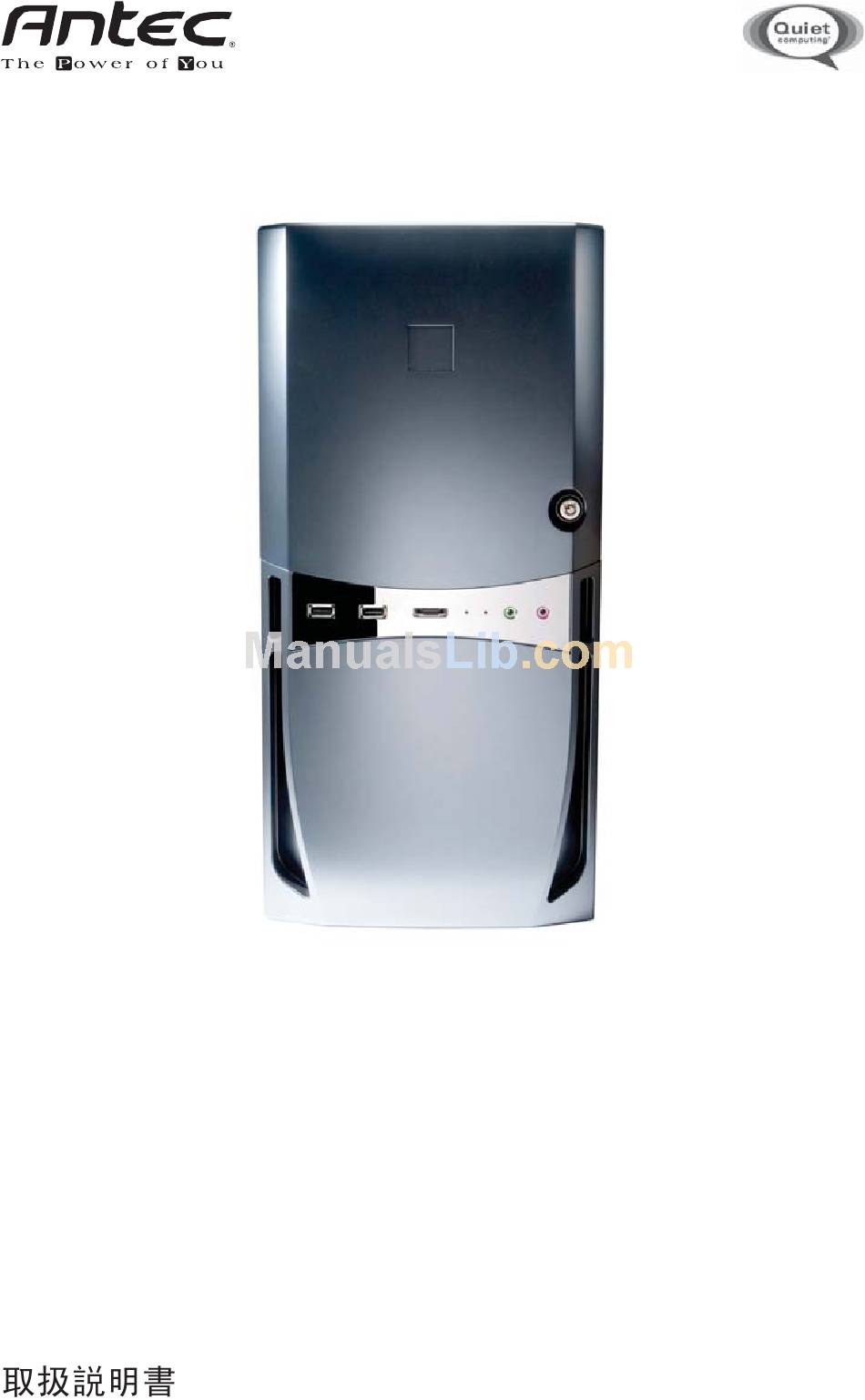

- Page 1 Sonata III 500 User’s Manual Manuel de l’utilisateur Anwenderhandbuch Manuale per l’operatore Manual del usuario...
- Page 2 SONATA III 500 USER’S MANUAL The Sonata III 500 comes with a 500 Watt EarthWatts™ power supply unit (PSU) which is built to be compatible with the ATX12V version 2.2 specification. This PSU features higher energy efficiency which reduces power consumption by up to 25%, saving you money on your electricity bill.
- Page 3 INSTALLING THE MOTHERBOARD This manual does not cover CPU, RAM, or expansion card installation. Please consult your motherboard manual for specific mounting instructions and troubleshooting. Lay the case down, with the open side facing up. The drive cages and power supply should be visible.
- Page 4 CONNECTING THE eSATA PORT This case comes with an eSATA port in the front of the case to connect to your external SATA devices. You will find a SATA connector on a cable attached to the front eSATA port. Connect it to a SATA connector on your motherboard. CONNECTING THE AUDIO PORTS (AC’...
- Page 5 COOLING SYSTEM The Rear Exhaust TriCool™ fan The Sonata III 500 comes with one 120mm TriCool fan preinstalled in the rear. This fan has a three-speed switch that lets you choose between quiet, perfor- mance, or maximum cooling. (See specifications below.) The fan is installed so that the air is blowing out of the case.
- Page 6 Note: We recommend AGAINST using a front fan for maximum quiet computing. If you choose to install a front fan, we recommend you use an Antec TriCool™ 120mm fan and set the speed to LOW.
-
Page 7: Customer Support
1-800-22ANTEC customersupport@antec.com Europe +31 (0) 10 462-2060 europe.techsupport@antec.com www.antec.com © Copyright 2007 Antec, Inc. All rights reserved. All trademarks are the property of their respective owners. Reproduction in whole or in part without written permission is prohibited. Printed in China.
