18

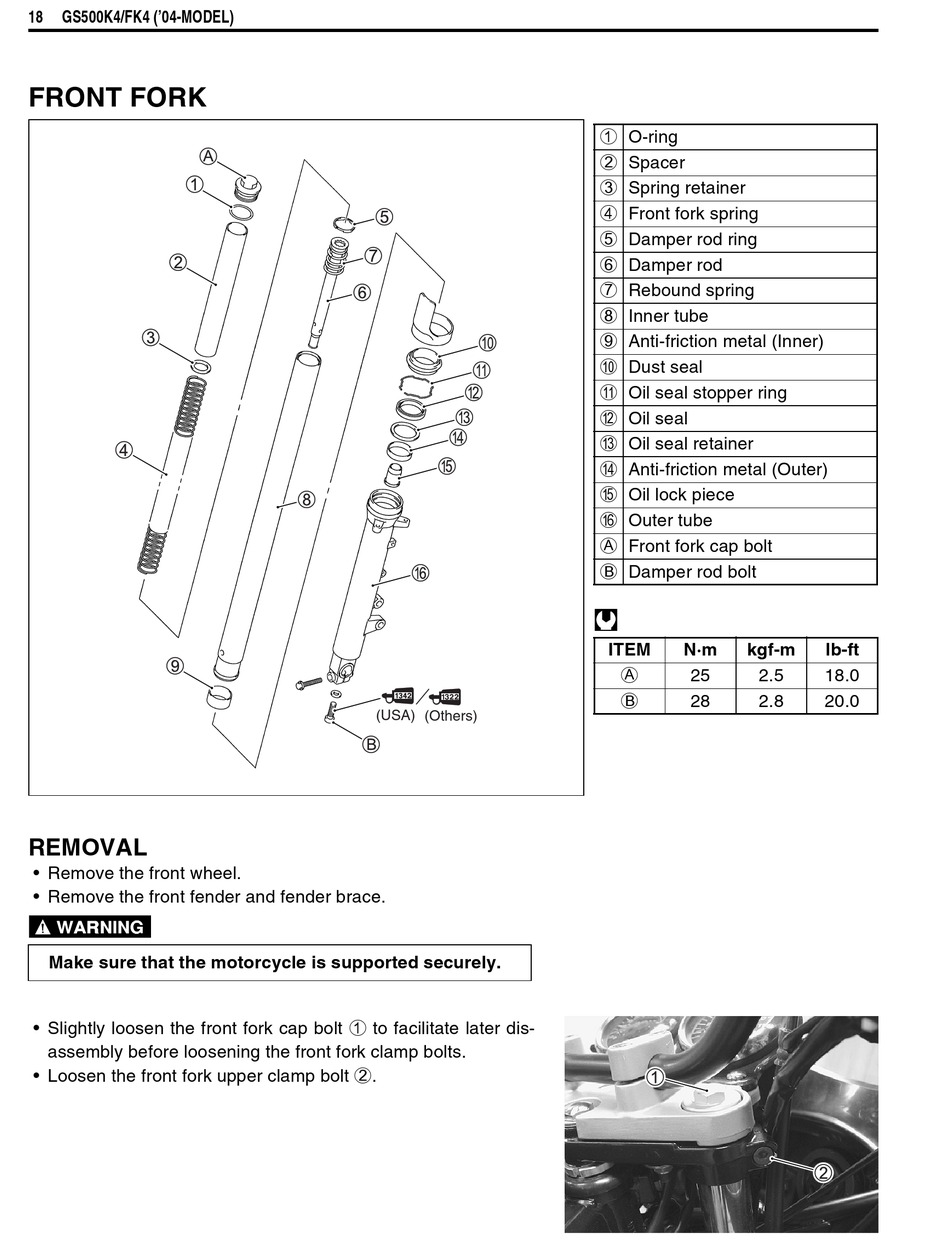

GS500K4/FK4 ('04-MODEL)
FRONT FORK
REMOVAL
• Remove the front wheel.
• Remove the front fender and fender brace.
$
Make sure that the motorcycle is supported securely.
• Slightly loosen the front fork cap bolt 1 to facilitate later dis-
assembly before loosening the front fork clamp bolts.
• Loosen the front fork upper clamp bolt 2.
(USA) (Others)
1 O-ring
2 Spacer
3 Spring retainer
4 Front fork spring
5 Damper rod ring
6 Damper rod
7 Rebound spring
8 Inner tube
9 Anti-friction metal (Inner)
0 Dust seal
A Oil seal stopper ring
B Oil seal
C Oil seal retainer
D Anti-friction metal (Outer)
E Oil lock piece
F Outer tube
A Front fork cap bolt
B Damper rod bolt
#
ITEM
N·m
kgf-m
A
25
2.5
B
28
2.8
lb-ft
18.0
20.0
