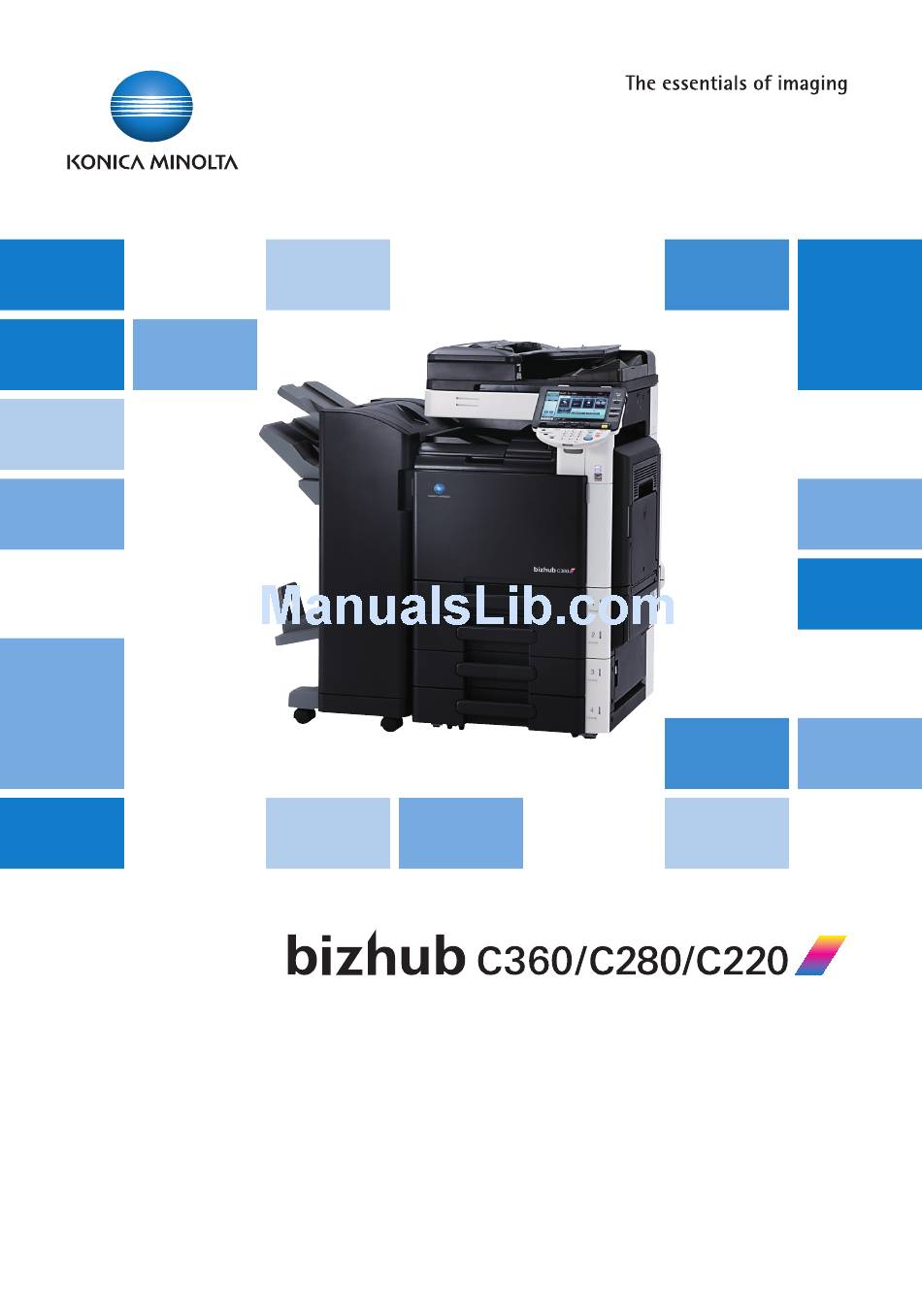

User's Guide
Copy Operations

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bizhub C360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Konica Minolta Bizhub C360

  • Page 1 User’s Guide Copy Operations...
  • Page 3: Table Of Contents

    About Start, Stop, and Interrupt ....................4-5 Start ..............................4-5 Stop..............................4-5 Interrupt.............................. 4-5 Reset ..............................4-5 About Copy, Fax/Scan, and User Box................... 4-6 Copy..............................4-6 Fax/Scan ............................4-6 User Box ............................4-6 Utility/Counter ..........................4-7 bizhub C360/C280/C220 (Version 3) Contents-1...
  • Page 4 [Booklet] ............................5-43 5.4.7 [Erase] .............................. 5-44 [Frame Erase] ........................... 5-44 [Non-Image Area Erase]........................5-45 5.4.8 [Stamp/Composition] ........................5-46 [Date/Time]............................5-46 [Page Number] ..........................5-47 [Stamp]............................. 5-49 [Copy Protect] ..........................5-50 [Copy Guard]............................ 5-51 [Password Copy]..........................5-52 Contents-2 bizhub C360/C280/C220 (Version 3)
  • Page 5 7.1.14 [Skip Job Operation Settings] ......................7-22 7.1.15 [Default Bypass Paper Type Setting] ....................7-23 7.1.16 [Page Number Print Position]......................7-24 7.1.17 [Advanced Preview Setting] ......................7-24 [Administrator/Machine Settings] ....................7-25 [One-Touch/User Box Registration].................... 7-26 bizhub C360/C280/C220 (Version 3) Contents-3...
  • Page 6 Checking consumables status......................8-10 Viewing counters..........................8-11 Checking the total number of pages printed ................... 8-13 Cleaning procedure ........................8-14 Slit Scan Glass..........................8-14 Original Glass, Control Panel, Paper Take-Up Roller ..............8-14 Housing, Original Pad ........................8-15 Contents-4 bizhub C360/C280/C220 (Version 3)
  • Page 7 Specifications 12.1 Paper .............................. 12-3 Paper types and paper capacities ....................12-3 12.2 Machine specifications......................... 12-5 bizhub C360/bizhub C280/bizhub C220..................12-5 Auto Duplex Unit..........................12-7 12.3 Options............................12-8 Reverse Automatic Document Feeder DF-617 ................12-8 Paper Feed Cabinet PC-107......................12-8 Paper Feed Cabinet PC-207......................
  • Page 8 [Red], [Green], and [Blue] ......................... 13-5 13.2 Image quality ..........................13-6 [Contrast], [Copy Density], and [Sharpness] ..................13-6 [Color Balance] (CMYK) ........................13-7 13.3 Glossary ............................13-8 Index 14.1 Index by item ..........................14-3 14.2 Index by button..........................14-7 Contents-6 bizhub C360/C280/C220 (Version 3)
  • Page 9: Introduction

    Introduction...
  • Page 11: Welcome

    • PC-FAX [User's Guide Network Administrator] This manual describes details on setting methods for each function using the network connection. • Network settings • Settings using PageScope Web Connection bizhub C360/C280/C220 (Version 3)
  • Page 12: User's Guide

    Note that basic technical knowledge about the product is required to enable users to perform maintenance work or troubleshooting operations. Limit your maintenance and troubleshooting operations to the areas ex- plained in this manual. Should you experience any problems, please contact your service representative. bizhub C360/C280/C220 (Version 3)
  • Page 13: Conventions Used In This Manual

    % This symbol indicates a supplementary explanation of a pro- The operation proce- cedural instruction. dures are described using illustrations. This symbol indicates transition of the control panel to access a desired menu item. The symbol indicates a desired page. bizhub C360/C280/C220 (Version 3)
  • Page 14: Key Symbols

    X side the length. Original and paper indications w indicates the paper size with the length (X) being longer than the width (Y). v indicates the paper size with the length (X) being shorter than the width (Y). bizhub C360/C280/C220 (Version 3)
  • Page 15: Part Names And Their Functions

    Part names and their functions...
  • Page 17: Options

    Name Description Main unit The original is scanned by the scanner section, and the scanned image is printed by the printer section. Referred to as the "machine", the "main unit", or the "C360/C280/C220" throughout the manual. bizhub C360/C280/C220 (Version 3)
  • Page 18 This unit is an external Image Controller to be in- Image Controller IC-412 v1.1 stalled in bizhub C360 or bizhub C280. Allows you to use this machine as a network-enabled color printer. To install the Image Controller IC-412 v1.1, the Desk...
  • Page 19 Video Interface Kit VI-505 This kit is required for installing the Image Controller IC-412 v1.1 onto bizhub C360 or bizhub C280. Security Kit SC-507 Enables the copy guard or password copy function. This kit is used to prevent unauthorized copying.
  • Page 20: Main Body

    The illustration above shows the main unit with an optional Original Cover OC-509 and Paper Feed Cabinet PC-408. Name Original Pad Control Panel USB Port (Type A) USB2.0/1.1 USB Port (Type A) USB2.0/1.1 (For compact keyboard) Bypass Tray Paper-Empty Indicator Tray Release Button Tray 2 Tray 1 Front Door bizhub C360/C280/C220 (Version 3)
  • Page 21 Name Left Cover Release Lever Left Cover Lateral Guide Original Tray Original Output Tray Sub Power Switch Top Right Door Top Right Door Release Lever Bottom Right Door Bottom Right Door Release Lever Tray 4/Storage Box bizhub C360/C280/C220 (Version 3)
  • Page 22: Outside Of The Main Body (Rear)

    Main Body Name Tray 3 Status Indicator 2.2.2 Outside of the main body (rear) The illustration above shows the main unit with an optional Reverse Automatic Document Feeder DF-617, Paper Feed Cabinet PC-207, and Fax Kit FK-502. bizhub C360/C280/C220 (Version 3)
  • Page 23 Jack for connecting a telephone (TEL PORT2) Telephone Jack 2 (LINE PORT2) Jack for connecting a telephone (TEL PORT1) Telephone Jack 1 (LINE PORT1) USB Port (Type A) USB2.0/1.1 USB Port (Type B) USB2.0/1.1 Network Connector (10Base-T/100Base-TX/1000Base-T) Ozone Filter Power Code bizhub C360/C280/C220 (Version 3)
  • Page 24: Internal Main Unit

    Fusing Unit Top Cover Fusing Unit Cover Lever Fusing Unit Auto Duplex Unit Drum Unit Charger Cleaner Lock Release Tab Printhead Cleaner Waste Toner Box Main Power Switch Total Counter Toner Cartridge Slit Scan Glass Original Scale 2-10 bizhub C360/C280/C220 (Version 3)
  • Page 25: Control Panel

    Main Body Name Jam Removal Dial Slit Glass Cleaner 2.2.4 Control Panel Name Stylus Pen Touch Panel Power Indicator Sub Power Switch Function key Data Indicator Keypad Brightness adjustment dial bizhub C360/C280/C220 (Version 3) 2-11...
  • Page 26: Adjusting The Angle Of The Control Panel

    You can tilt the angle of the Control Panel to one of the three po- sitions. To tilt the Control Panel to the left or right, hold the bottom of the Control Panel, and then tilt the panel to the left or right. 2-12 bizhub C360/C280/C220 (Version 3)
  • Page 27: Touch Panel

    Do not apply excessive pressure on the Touch Panel. Such impact may leave a flaw on the panel, inviting damage to the Touch Panel. When operating in the Touch Panel, never press down on the touch panel with force or with a pointed object such as a mechanical pencil. Basic tab bizhub C360/C280/C220 (Version 3) 2-13...
  • Page 28 Copier setting button (arrow) Color settings Reference To switch the basic settings screen: Press Utility/Counterö[User Settings]ö[Custom Display Settings]ö[Copier Settings]ö[Default Tab]. To configure color selection settings for buttons and tabs: Press Utility/Counterö[User Settings]ö[Custom Display Settings]ö[Color Selection Settings]. 2-14 bizhub C360/C280/C220 (Version 3)
  • Page 29: Option

    Option Option 2.3.1 Finisher FS-527/Saddle Stitcher SD-509/Punch Kit PK-517/Job Separator JS-603 bizhub C360/C280/C220 (Version 3) 2-15...
  • Page 30 Option Name Output Tray 2 Output Tray 1 Front Door Horizontal Transport Unit Cover Stapler Guide Lever [FN3] Jam Removal Dial [FN2] Guide Lever [FN1] Guide Lever [FN4] Staple Holder Punch Scrap Box 2-16 bizhub C360/C280/C220 (Version 3)
  • Page 31: Finisher Fs-529

    Jam Removal Dial [FN6] Handle [FN5] Transport Unit Punch Kit Job Separator Staple Cartridge Handle [FN7] Folding Output Tray 2.3.2 Finisher FS-529 Name Staple Holder Jam Removal Dial Lock Release Lever Output Tray Tray Extension bizhub C360/C280/C220 (Version 3) 2-17...
  • Page 32: Job Separator Js-505

    Option 2.3.3 Job Separator JS-505 Name Jam Removal Dial Assist Lever Output Tray 2 Output Tray 1 Tray Extension 2-18 bizhub C360/C280/C220 (Version 3)
  • Page 33: Using This Machine

    Using this machine...
  • Page 35: Turning On Or Off The Machine

    If you turn it off, a paper jam may occur. Do not connect or disconnect the USB cable of the compact keyboard while this machine is turned on. Do not also connect another medium to the USB port for the compact keyboard. bizhub C360/C280/C220 (Version 3)
  • Page 36 To turn the power off, press the Sub Power Switch, then the Main Power Switch. Reference To change the default settings for Copy: Press the Utility/Counter key ö [User Settings] ö [Copier Settings] ö [Default Copy Settings]. bizhub C360/C280/C220 (Version 3)
  • Page 37: Basic Copy Operations

    % If the original is loaded in any orientation other than with the top of the original toward the back of the machine, be sure to select the original orientation. Slide the adjustable Lateral Guide against the edges of the original. bizhub C360/C280/C220 (Version 3)
  • Page 38: Placing The Original On The Original Glass

    Original Scale. % When Non-Image Area Erase is selected, the original can be placed anywhere on the Original Glass. Close the ADF or Original Cover. bizhub C360/C280/C220 (Version 3)
  • Page 39: Basic Copy Operations

    % If an original with a password embedded by the password copy function is scanned, the copy op- eration starts after you enter the password. % If multiple originals with different passwords are scanned at the same time, you will need to enter a password for each original. bizhub C360/C280/C220 (Version 3)
  • Page 40: Copy Operations Using Multiple Functions

    This section describes copy operations using combination of functions. Load the original. Press [Original Setting]. % For details on [Original Setting], refer to page 5-16. Press [Basic] ö [Duplex/Combine]. % For details on [Duplex/Combine], refer to page 5-9. bizhub C360/C280/C220 (Version 3)
  • Page 41 % For details on [Auto Rotate OFF], refer to page 5-15. Press [Application] and then configure settings for respective functions. % For details on the [Application], refer to page 5-22. Press [Basic] ö [Finishing]. % For details on [Finishing] or [Fold/Bind], refer to page 5-12. bizhub C360/C280/C220 (Version 3)
  • Page 42: Functions That Cannot Be Combined

    Some settings cannot be combined with each other. If they are combined improperly, the settings will be giv- en priorities in either of the two ways described below. The setting configured last is given priority. (The setting specified first is canceled.) The setting configured first is given priority. (A warning message appears.) 3-10 bizhub C360/C280/C220 (Version 3)
  • Page 43: Control Panel Keys

    Control Panel Keys...
  • Page 45: Control Panel And Functions

    Power Save key again. Mode Memory Allows you to register (store) the desired p. 4-8 copy/fax/scan settings as a program or to recall a registered program. Switches to the Utility screen or the Meter Count p. 4-7 Utility/Counter screen. bizhub C360/C280/C220 (Version 3)
  • Page 46 Copy Press this key to enter Copy mode. (The machine is p. 4-6 in Copy mode in default.) While the machine is in Copy mode, the indicator on the Copy key lights up in green. bizhub C360/C280/C220 (Version 3)
  • Page 47: About Start, Stop, And Interrupt

    The copy settings return to those specified before the interrupting copying job. Reset Press this key to reset all settings (except programmed settings) entered using the Control Panel and Touch Panel. Press the Reset key. The basic settings screen appears. bizhub C360/C280/C220 (Version 3)
  • Page 48: About Copy, Fax/Scan, And User Box

    For details on the fax/scan function, refer to the [User's Guide Network Scan/Fax/Network Fax Opera- tions]. User Box Press this key to enter User Box mode. For details on User Box functions, refer to the [User's Guide Box Operations]. bizhub C360/C280/C220 (Version 3)
  • Page 49: Utility/Counter

    [Function Version]: Allows you to check the function version of the currently installed firmware. [IPv4 Address]: Allows you to check the currently specified IPv4 address. [IPv6 Address]: Allows you to check the currently specified IPv6 address. bizhub C360/C280/C220 (Version 3)
  • Page 50: Mode Memory

    Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Copy Program Lock Settings]. To delete a program: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Delete Saved Copy Program]. bizhub C360/C280/C220 (Version 3)
  • Page 51: Access

    The users, who belong to the suspended account, cannot also log in to this machine. If authentication is performed with PageScope Authentication Manager, check with your server ad- ministrator for information on the login procedure. Press the Access key. Screen for user authentication bizhub C360/C280/C220 (Version 3)
  • Page 52 • After entering numbers from the keypad, press [Password] to enter alphabets and sym- bols in succession. [Login] Displays the basic settings screen, enabling you to use this machine. 4-10 bizhub C360/C280/C220 (Version 3)
  • Page 53: Using The Machine During Non-Scheduled Hours

    Using the keypad, enter the length of time to elapse before the machine enters Sleep mode again. Press [OK]. The basic settings screen appears. Reference To configure Weekly Timer: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Weekly Timer Settings]. bizhub C360/C280/C220 (Version 3) 4-11...
  • Page 54: Power Save

    The machine returns from Low Power mode when any other key on the Control Panel or the Touch Panel surface is pressed. Reference To enable Low Power mode: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Power Save Settings]. 4-12 bizhub C360/C280/C220 (Version 3)
  • Page 55: Accessibility

    ([+]) again. • To cancel the Touch Panel adjustment process, press the Stop or Re- set key. • If the touch panel cannot be adjusted, contact your service represent- ative. bizhub C360/C280/C220 (Version 3) 4-13...
  • Page 56 [Severe Caution Sound]: A sound produced when the door or cover is opened or when an error occurs that requires action by a service rep- resentative [Default Enlarge Display For details, refer to the [User's Guide Enlarge Display Operations]. Settings] 4-14 bizhub C360/C280/C220 (Version 3)
  • Page 57: Enlarge Display

    For details on the Enlarge Display screen, refer to the [User's Guide Enlarge Display Operations]. Press the Enlarge Display key to return to normal display. If PageScope Authentication Manager is used for authentication, the login screen cannot be switched to the enlarged display mode. Press the Enlarge Display key. bizhub C360/C280/C220 (Version 3) 4-15...
  • Page 58: Guidance

    Check descriptions by selecting a Guidance menu grouped by useful func- tion. [Name and Function of Check the description of the main unit and its options. Parts] [Service/Admin. Informa- Check the [Admin. Name], [Extension No.], and [E-Mail]. tion] 4-16 bizhub C360/C280/C220 (Version 3)
  • Page 59 Check procedures for replacing the Toner Cartridge, Drum Unit, or place/Processing Proce- Waste Toner Box, adding staples, or disposing punch-hole scraps by dure] viewing animations. Press the target button, and then press [Start Guid- ance]. bizhub C360/C280/C220 (Version 3) 4-17...
  • Page 60: C (Clear)

    C (Clear) 4.10 4.10 C (Clear) Clears a value (such as the number of copies, a zoom ratio and size) entered using the keypad. Press C (Clear). The value is deleted. Enter the correct value. 4-18 bizhub C360/C280/C220 (Version 3)
  • Page 61: Proof Copy

    Stored job registration is performed when the System Auto Reset function is activated or one minute after (if System Auto Reset is set to [OFF]). Press the Proof Copy key to repeat proof copy. Press [Print]. The number of copies yet to be printed is registered as a copy job. bizhub C360/C280/C220 (Version 3) 4-19...
  • Page 62: Using A Preview Image To Check The Copy Result (Advanced Preview)

    Pressing [Rotate Pages] displays the Scanned Page List. Select the page to be rotated. Up to six scanned pages can be displayed. Press [ ] or [ to change the selection. 4-20 bizhub C360/C280/C220 (Version 3)
  • Page 63 Switch between the [View Status] and [View Pages] tab in the Preview screen. Use [View Pages] to enable [Page Rotation] or [Change Setting], and stop scanning on [View Status]. Press the Start key. Select this menu to start printing. bizhub C360/C280/C220 (Version 3) 4-21...
  • Page 64 Proof Copy 4.11 4-22 bizhub C360/C280/C220 (Version 3)
  • Page 65: Copy Function

    Copy Function...
  • Page 67 Configure the application settings for making copies. p. 5-22 Left panel [Job List] Check jobs currently being performed p. 5-63 and jobs waiting to be performed. [Check Job] Check the current settings and the result p. 5-65 of the settings. bizhub C360/C280/C220 (Version 3)
  • Page 68: Basic]

    Touch Panel. This item is not displayed when two shortcut keys are configured. − [Shortcut Key] Allows you to arrange shortcut keys for the frequently used Appli- cation functions on the Basic screen. bizhub C360/C280/C220 (Version 3)
  • Page 69: Color]

    (apparent color densities) and the gradation levels into density differences of the single color. [Average Density] Copies the original by only converting the grada- tion levels into density differences of the single color, regardless of the color differences in the original. bizhub C360/C280/C220 (Version 3)
  • Page 70: Paper]

    Specify a paper size to use the bypass tray as a paper tray dedicated to the paper size. [Custom Size] (only for [Bypass Tray]): Enter the paper size. [Wide Paper]: Select a paper size larger than the original. bizhub C360/C280/C220 (Version 3)
  • Page 71: Configuring A Custom Size

    [Basic] ö [Paper] ö [Bypass Tray] ö [Change Tray Settings] ö [Wide Paper]. Settings [Wide Paper] Select the size of the paper to be loaded. [Change Size] [X]/[Y] Enter the length [X] and width [Y] of the paper. [Preset Paper Sizes] Enables [12e18 w] to be selected. bizhub C360/C280/C220 (Version 3)
  • Page 72: Zoom]

    [User Preset Zoom] Select a registered copy zoom value. To change the registered zoom val- ues, use [Set Zoom]. Reference To set image rotation: Press the Utility/Counter key ö [User Settings] ö [Copier Settings] ö [Enlargement Rotation]. bizhub C360/C280/C220 (Version 3)
  • Page 73: Duplex/Combine]

    Using the [Duplex/Combine] function, you can save paper sheets for copying. Press [Basic] ö [Duplex/Combine]. Settings [1-Sided > 1-Sided] [2-Sided > 1-Sided] [1-Sided > 2-Sided] [2-Sided > 2-Sided] bizhub C360/C280/C220 (Version 3)
  • Page 74 Without setting [Original Direction], the resulting copy may not be what you intended. [No] Disables combined copy. [2in1] Copies images on two original pages on one sheet of paper. Portrait original pages Landscape original pages 5-10 bizhub C360/C280/C220 (Version 3)
  • Page 75 Copies images of four original pages on one sheet of paper. <Horizontal> <Vertical> [8in1] Copies images of eight original pages on one sheet of paper. <Horizontal> <Vertical> [Horizontal] Specify the combine order of the original (Num- bering Direction setting). [Vertical] bizhub C360/C280/C220 (Version 3) 5-11...
  • Page 76: Finishing]

    When multi-page originals are copied for multiple sets, copies can be fed out sorted by set of copies. [Group] When multi-page originals are copied for multiple sets, copies can be fed out sorted by pages. 5-12 bizhub C360/C280/C220 (Version 3)
  • Page 77 Staple or punching positions are set on the upper or left-side end. • Be sure to load the original so that its top side is placed in the back. • If desired, press [Original Direction], and then select the original direction. bizhub C360/C280/C220 (Version 3) 5-13...
  • Page 78: Separate Scan]

    After all original pages have been scanned, press [Finish]. Press the Start key. Reference To set the Separate Scan output method: Press the Utility/Counter key ö [User Settings] ö [Copier Settings] ö [Separate Scan Output Method]. 5-14 bizhub C360/C280/C220 (Version 3)
  • Page 79: Auto Rotate Off]

    Select this setting to copy the original according to the paper orientation without rotating the image. For some paper sizes or zoom values, part of the image may be cut off. Press [Basic] ö [Auto Rotate OFF]. bizhub C360/C280/C220 (Version 3) 5-15...
  • Page 80: Original Setting]

    ADF or placed on the Original Glass. [Despeckle] Reduces the influence of a dirt of the Slit Scan Glass upon a copy output when loading an original in the ADF. 5-16 bizhub C360/C280/C220 (Version 3)
  • Page 81: Copying Mixed Originals

    5-1/2 e 8-1/2 v (A5 v) − − − − − − 5-1/2 e 8-1/2w (A5 w) − − − − (B5 v) − − (B5 w) Possible to combine − Not possible to combine bizhub C360/C280/C220 (Version 3) 5-17...
  • Page 82: Copying Z-Folded Originals

    Unfold folded originals before loading them into the ADF. If the original is copied without being unfolded, a paper jam may occur. Load the original into the ADF. Press [Original Setting]. Press [Z-Folded Original]. % To cancel the setting, press [Z-Folded Original] again to dese- lect it. 5-18 bizhub C360/C280/C220 (Version 3)
  • Page 83: Quality/Density]

    [Quality/Density] [Quality/Density] Select the setting for the image type of the original to better adjust the copy quality/density. Press [Quality/Density]. bizhub C360/C280/C220 (Version 3) 5-19...
  • Page 84 For [Background Removal], normally [Bleed Removal] is selected. However, when copying an original with colored background, select [Paper Discolor- ation Adj] to make adjustment for background removal for copying. 5-20 bizhub C360/C280/C220 (Version 3)
  • Page 85 To emphasize the background image, press [Lighter Text] to adjust the set- ting toward -. [Text Enhancement] can be configured when an item other than [Photo] is selected. [Glossy] Makes copies with a glossy finish. bizhub C360/C280/C220 (Version 3) 5-21...
  • Page 86: Application]

    Copies the contents of the front and back sides of a card-size orig- p. 5-60 inal, for example, insurance card, driver's license, or business card, on one sheet. [Save in User Box] Saves the scanned original data in a User Box. p. 5-61 5-22 bizhub C360/C280/C220 (Version 3)
  • Page 87: Sheet/Cover/Chapter Insert]

    Settings [Interleave Paper] Select the paper tray loaded with paper with a transparency interleaf. [Transparency] Indicates the paper size of the loaded transparency. Reference Setting Black for Color Settings: Press [Basic] ö [Color] ö [Black]. bizhub C360/C280/C220 (Version 3) 5-23...
  • Page 88: [Cover Sheet]

    Add paper for the back cover sheet to the last page of the copy. [Paper] Select the paper tray loaded with the paper for the front/back cover page or blank cover pages. Reference To configure the 2-sided copy mode: Press [Basic] ö [Duplex/Combine]. 5-24 bizhub C360/C280/C220 (Version 3)
  • Page 89: [Insert Sheet]

    Inserts the specified paper as the fourth page of the copy. For 2-sided copy: Leaves the back side of the second page of the copy blank, and inserts the specified paper for the third page of the copy. REPORT REPORT REPORT bizhub C360/C280/C220 (Version 3) 5-25...
  • Page 90: [Insert Image]

    [P---] Specify the position to insert the page scanned through the Original Glass. [Sort] Sorts specified pages in the ascending order. Press the Start key. Place the original to be inserted on the Original Glass. 5-26 bizhub C360/C280/C220 (Version 3)
  • Page 91: [Chapters]

    Enable the Chapters function to set [1-Sided > 2-Sided]. For a 2-sided original, select [2-Sided > 2-Sid- ed]. Make sure that the paper loaded for the first page of the chapter and for text copies have the same size and orientation. bizhub C360/C280/C220 (Version 3) 5-27...
  • Page 92: [Program Jobs]

    REPORT REPORT REPORT Up to 100 types of originals can be scanned. When configuring a program job, the [Group] setting cannot be selected in the Finishing screen. In- stead, select [Sort]. 5-28 bizhub C360/C280/C220 (Version 3)
  • Page 93 Load the next original and press [Change Setting]. Select the desired copy settings, and then press the Start key. % Repeat Steps 3 to 5 until all originals have been scanned. After all original pages have been scanned, press [Finish]. Press [Yes]. bizhub C360/C280/C220 (Version 3) 5-29...
  • Page 94: Edit Color]

    If a background color is selected, colors are reversed relative to the selected base color and the color of the images. Press [Application] ö [Edit Color] ö [Neg./Pos. Reverse]. % To cancel the Neg./Pos. Reverse function, press [Neg./Pos. Reverse] again. 5-30 bizhub C360/C280/C220 (Version 3)
  • Page 95: [Mirror Image]

    Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. [Custom Size] Enter the original size. [Photo Size] Select the photo size. bizhub C360/C280/C220 (Version 3) 5-31...
  • Page 96: [Background Color]

    [Application] [Background Color] Color the blank area of the original with a specified background color. Press [Application] ö [Edit Color] ö [Background Color]. Settings [Select Color] Select a background color. 5-32 bizhub C360/C280/C220 (Version 3)
  • Page 97: [Color Adjust]

    (C), and black (K) for full-color copies. Full-color copy reproduces colors of the original by mixing toners of four colors: yellow, magenta, cyan, and black. By changing the amount of each of the four toners, adjust the tints in the copy. bizhub C360/C280/C220 (Version 3) 5-33...
  • Page 98 [Application] Configure respective functions. % Press [Sample Copy] to see how it will appear with the currently specified color quality adjustment settings. 5-34 bizhub C360/C280/C220 (Version 3)
  • Page 99: Book Copy/Repeat]

    [Front and Back Cover] Copies the front cover, separate copies of each page in the page spreads and the back cover in the original page order. bizhub C360/C280/C220 (Version 3) 5-35...
  • Page 100 [Center Erase] Erases projection of the dark shadow at the center of the book. [Binding Position] Select the binding position of the original. To indicate it, select [Separation], [Front Cover], and [Front and Back Cover]. 5-36 bizhub C360/C280/C220 (Version 3)
  • Page 101: [Image Repeat]

    [Repeat Interval Settings] can be configured only for [2 Repeat]. [Repeat Interval Set- Specify the clearance between copied images. tings] bizhub C360/C280/C220 (Version 3) 5-37...
  • Page 102: [Poster Mode]

    Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. [Custom Size] Enter the original size. [Photo Size] Select the photo size. 5-38 bizhub C360/C280/C220 (Version 3)
  • Page 103: [Booklet Original]

    % To use the ADF, load the pages with the side that includes the first page on top. Press [Application] ö [Book Copy/Repeat] ö [Booklet Original]. Press the Start key. After all original pages have been scanned, press [Finish] and the Start key. bizhub C360/C280/C220 (Version 3) 5-39...
  • Page 104: Page Margin]

    If the positions of the staples or punched holes are different from the binding position, the positions of the staples or punched holes are given priority. If part of the image is lost when copied with the specified binding margin settings, reduce the zoom and perform copying. Press [Application] ö [Page Margin]. 5-40 bizhub C360/C280/C220 (Version 3)
  • Page 105: Image Adjust]

    To set the zoom: Press [Basic] ö [Zoom]. 5.4.5 [Image Adjust] If the paper is larger than the original, you can enlarge the original and copy it into the center of the paper. [Full Size] [Center Zoom] [Centering] bizhub C360/C280/C220 (Version 3) 5-41...
  • Page 106 Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. [Custom Size] Enter the original size. [Photo Size] Select the photo size. 5-42 bizhub C360/C280/C220 (Version 3)
  • Page 107: Booklet]

    Feeds out a copied sheet by folding it in two. [No] This setting feeds out a copied sheet without Center Staple & Fold or Half- Fold. [Paper] Select the paper tray loaded with the desired paper. bizhub C360/C280/C220 (Version 3) 5-43...
  • Page 108: Erase]

    Press [+] or [-] to set the erasing width between 1/16 inch (0.1 mm) and 2 inches (50.0 mm). The erasing width can also be entered using the keypad. [None] Sets the erasing width to 0 inches (0 mm). 5-44 bizhub C360/C280/C220 (Version 3)
  • Page 109: [Non-Image Area Erase]

    The original image may be defected at its top or end. Press [Application] ö [Erase] ö [Non-Image Area Erase]. Reference To set Erase Operation: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Erase Adjustment]. bizhub C360/C280/C220 (Version 3) 5-45...
  • Page 110: Stamp/Composition]

    The date/time stamp cannot be printed on blank pages inserted using the Cover Sheet, Insert Sheet and Chapters functions. Change the setting for printing on blank pages in Administrator Settings to en- able blank page printing. The date/time as of scanning the original is stamped on the paper. 5-46 bizhub C360/C280/C220 (Version 3)
  • Page 111: Page Number]

    Page numbers cannot be printed on blank pages inserted using the Cover Sheet, Insert Sheet and Chapters functions. Change the setting for printing on blank pages in Administrator Settings to enable blank page printing. bizhub C360/C280/C220 (Version 3) 5-47...
  • Page 112 Set the text color, size and type. Reference To configure the settings for the Cover Sheet, Insert Sheet and Chapters functions: Press [Application] ö [Sheet/Cover/Chapter Insert]. To configure the settings for the Chapters function: Press [Application] ö [Sheet/Cover/Chapter Insert] ö [Chapters]. 5-48 bizhub C360/C280/C220 (Version 3)
  • Page 113: [Stamp]

    Adjust horizontal and vertical positions to be be- tween 1/16 inch (0.1 mm) and 1-15/16 inch (50.0 mm). Reference To enable printing on blank pages: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C360/C280/C220 (Version 3) 5-49...
  • Page 114: [Copy Protect]

    Prints the distribution control number. Number] Specify the distribution control number using a val- ue between 1 and 99999999. [Detail Settings] Configure the settings for [Text/Background Color], [Density], [Copy Protect Pattern], [Text Size], [Pattern Overwrite], and [Background Pattern]. 5-50 bizhub C360/C280/C220 (Version 3)
  • Page 115: [Copy Guard]

    [Preset Stamp], [Date/Time], and [Other] can be selected together. In [Preset Stamp], multiple copy guards cannot be selected. A copy guard cannot be printed on a colored paper, envelope, or transparency film. Press [Application] ö [Stamp/Composition] ö [Copy Security] ö [Copy Guard]. bizhub C360/C280/C220 (Version 3) 5-51...
  • Page 116: [Password Copy]

    If a password is detected on copies with Zoom, 2 Color, Grayscale, Color Adjust, Colored Paper, En- velope, or Transparency specified, the currently processed copy job will be erased. If multiple originals with different passwords are scanned, you will need to enter a password for each original. 5-52 bizhub C360/C280/C220 (Version 3)
  • Page 117: [Stamp Repeat]

    The selected stamps appear in the order they are placed, and can be used in combination for up to eight text lines. Use PageScope Web Connection or Copy Protection Utility to register a registered stamp. Multiple registered stamps or preset stamps cannot be selected. bizhub C360/C280/C220 (Version 3) 5-53...
  • Page 118 Stamp Repeat text to be deleted. Reference To delete a registered stamp: Press the Utility/Counter key ö [Administrator Settings] ö [Security Settings] ö [Stamp Settings] ö [De- lete Registered Stamp]. 5-54 bizhub C360/C280/C220 (Version 3)
  • Page 119: [Header/Footer]

    Select the [Text Color], [Text Size] and [Text Type]. [Reset] Reset the settings to the initial contents. Reference To register a header/footer: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Stamp Settings] ö [Head- er/Footer Settings]. bizhub C360/C280/C220 (Version 3) 5-55...
  • Page 120: [Watermark]

    Select a watermark from the eight types available. The watermark selected is printed over the original image. [Text Color] Select the watermark color from [Black], [Magenta] and [Cyan]. The watermark is printed in the selected color. 5-56 bizhub C360/C280/C220 (Version 3)
  • Page 121: [Overlay]

    Use the keypad to enter the density of an overlay image. (using a value be- tween 20 to 100%) [Color] Select the color of overlay image from [Full Color], [Black], [Red], [Blue], [Green], [Yellow], [Cyan], or [Magenta]. bizhub C360/C280/C220 (Version 3) 5-57...
  • Page 122: [Registered Overlay]

    This function enables storing of an image from the scanned original as a registered overlay on the hard disk for later use in copying another original. It is useful to register frequently used overlay images. Press [Application] ö [Stamp/Composition] ö [Registered Overlay]. 5-58 bizhub C360/C280/C220 (Version 3)
  • Page 123 Select the photo size. Reference To prohibit changing the overlay registration: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Restrict Access to Job Settings] ö [Change Registered Overlay]. bizhub C360/C280/C220 (Version 3) 5-59...
  • Page 124: Card Shot]

    You can copy a card with the full size or enlarge an image to fit paper. Reference To specify the default of Card Copy: Press the Utility/Counter key ö [Administrator Settings] ö [Copier Settings] ö [Card Shot Settings]. 5-60 bizhub C360/C280/C220 (Version 3)
  • Page 125: Save In User Box]

    [Save & Print] [Yes]: Select to copy the scanned original and save it in the specified User Box. [No]: Select to save the data of the scanned original in the specified User Box. bizhub C360/C280/C220 (Version 3) 5-61...
  • Page 126: Left Panel Display

    Press the Utility/Counter key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Hide Personal Information]. To delete all job logs: Press the Utility/Counter key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Ini- tialize] ö [Job History]. 5-62 bizhub C360/C280/C220 (Version 3)
  • Page 127: Job List]

    Opens the screen for checking fax reception jobs. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations]. [Save] Opens the screen for saving jobs. For details, refer to the [User's Guide Box Operations]. bizhub C360/C280/C220 (Version 3) 5-63...
  • Page 128 Displays only jobs that were completed nor- mally. [All Jobs] Displays all jobs. [Detail] Check the status, results, error details, user name, queued time, completed time, number of original pages and number of copies for jobs in the Job History list. 5-64 bizhub C360/C280/C220 (Version 3)
  • Page 129: Check Job]

    From the Check Job Settings screens, the current copy settings can be checked and changed if desired. Press [Check Job] ö [Check Details]. Check the copy settings. To change the copy settings, press the relevant button. After checking the settings, press [Close]. bizhub C360/C280/C220 (Version 3) 5-65...
  • Page 130 Left panel display 5-66 bizhub C360/C280/C220 (Version 3)
  • Page 131: User Settings]

    [User Settings]...
  • Page 133 [Register Authentication In- Register or delete the biometric authentication information or IC card au- formation] thentication information of the current login user. [Cellular Phone/PDA Set- Configure settings to print data from a cellular phone or PDA. ting] bizhub C360/C280/C220 (Version 3)
  • Page 134: System Settings]

    Auto Color setting is selected. [Power Save Settings] Refer to page 7-4. Appears when user access is permitted under [Administrator Settings]. [Output Settings] Refer to page 7-5. [AE Level Adjustment] Refer to page 7-10. bizhub C360/C280/C220 (Version 3)
  • Page 135 [Auto Paper Select for [Prohibit Copy] Small Original] [Blank Page Print Settings] [Do Not Print] [Page Number Print Posi- [Left & Right Bind: All the Same Top & Bottom Bind: All the Same] tion] [Select Keyboard] [Local Keyboard] bizhub C360/C280/C220 (Version 3)
  • Page 136 [System Settings] Reference To enable Auto Paper: Press [Basic] ö [Paper] ö [Auto]. To enable Auto Color: Press [Basic] ö [Color] ö [Auto Color]. To configure Background Removal to Auto: Press [Quality/Density] ö [Background Removal] ö [Auto]. bizhub C360/C280/C220 (Version 3)
  • Page 137: Custom Display Settings]

    [FAX Active Screen] This setting is for the fax and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations]. [Color Selection Settings] Select the color used for indicating that the button is selected. bizhub C360/C280/C220 (Version 3)
  • Page 138 [Shortcut Key 1]/[Shortcut [OFF] Key 2] (User Box Settings) [Copy Operating Screen] [No] [Color Selection Settings] [Green] [Left Panel Display Default] [Job List] [Job Display Setting] [List Display] [Uppercase and Lower- [Differentiate] case Letters] [Search Option Screen] [OFF] bizhub C360/C280/C220 (Version 3)
  • Page 139: Copier Settings]

    [Auto Zoom (Platen)] Appears when user access is permitted under [Administrator Settings]. For details, refer to page 7-40. [Auto Zoom (ADF)] [Specify Default Tray when APS Off] [Select Tray for Insert Sheet] bizhub C360/C280/C220 (Version 3)
  • Page 140 [Tray 2] Sheet] [Half-Fold Specification] [Multiple Sheets] [Print Jobs During Copy [Accept] Operation] [Automatic Image Rotation] [When Auto Paper/Auto Zoom is set] [Finishing Program] [ON] [Card Shot Settings] - [Layout]: [Top/Bottom] - [Zoom]: [Full Size] 6-10 bizhub C360/C280/C220 (Version 3)
  • Page 141: Scan/Fax Settings]

    [Scan/Fax Settings] [Scan/Fax Settings] This setting is for the network scan, fax, and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations]. bizhub C360/C280/C220 (Version 3) 6-11...
  • Page 142: Printer Settings]

    [Printer Settings] [Printer Settings] This setting is for the printer operations. For details, refer to the [User's Guide Print Operations]. 6-12 bizhub C360/C280/C220 (Version 3)
  • Page 143: Change Password]

    Press the Utility/Counter key ö [User Settings] ö [Change Password]. Enter the previous password, and then press [OK]. Enter a new password. Press [Password Confirmation], and enter the password again. Press [OK]. The new password is registered. bizhub C360/C280/C220 (Version 3) 6-13...
  • Page 144: Change E-Mail Address]

    Appears when user access is permitted under [Administrator Settings]. For details, refer to page 7-47. Press the Utility/Counter key ö [User Settings] ö [Change E-Mail Address]. Press [E-Mail Address]. Change the E-mail address. Press [OK]. 6-14 bizhub C360/C280/C220 (Version 3)
  • Page 145: Change Icon]

    Change the icon specified as registered user information. When logged in as a registered user, you can change the icon. Press the Utility/Counter key ö [User Settings] ö [Change Icon]. Select the icon and press [OK]. bizhub C360/C280/C220 (Version 3) 6-15...
  • Page 146: Register Authentication Information]

    Registration] ö [Allow]. Log in as a registered user. Press the Utility/Counter key ö [User Settings] ö [Register Authentication Information]. Press [Edit]. % To delete authentication information, press [Delete]. For biometric authentication For IC card authentication 6-16 bizhub C360/C280/C220 (Version 3)
  • Page 147 % If your finger vein patterns have been authenticated in the authentication test, press [New]. If au- thentication has failed, retry scanning the finger. For IC card authentication, place your IC card on the authentication unit, and press [OK]. Press [Close]. bizhub C360/C280/C220 (Version 3) 6-17...
  • Page 148: Cellular Phone/Pda Setting]

    [Cellular Phone/PDA Setting] 6.10 6.10 [Cellular Phone/PDA Setting] Configure settings to print data in a cellular phone or PDA through this machine. For details, refer to the [Us- er's Guide Box Operations] or [User's Guide Print Operations]. 6-18 bizhub C360/C280/C220 (Version 3)
  • Page 149: Administrator Settings]

    [Administrator Settings]...
  • Page 151 Configure settings to restrict the functions of this machine for processing secret data. [License Settings] Enable an optional i-Option function. [OpenAPI Authentication Configure settings to prevent our deprecated OpenAPI connection appli- Management Setting] cation from being registered in this machine. bizhub C360/C280/C220 (Version 3)
  • Page 152: System Settings]

    Low Power Mode Settings has elapsed. [Immediately] Enters the power save mode in a short time. Factory default [Low Power Mode Set- 15 min. tings] [Sleep Mode Settings] 20 min. [Power Save Key] [Low Power] [Enter Power Save Mode] [Immediately] bizhub C360/C280/C220 (Version 3)
  • Page 153: Output Settings]

    [Copy]: [Tray 2] • [Print]: [Tray 2] • [Print Reports]: [Tray 1] • [Fax]: [Tray 1] [Tray 1] is displayed if the Job Separator JS-603 is installed in the Finisher FS-527. [Shift Output Each Job] [Yes] bizhub C360/C280/C220 (Version 3)
  • Page 154: Date/Time Settings]

    [Daylight Saving Time] Configure daylight saving time settings. This function is available when this machine is connected to the network where UTC (Coordinate Uni- versal Time) is specified. For details, refer to the [User's Guide Network Administrator]. bizhub C360/C280/C220 (Version 3)
  • Page 155: Weekly Timer Settings]

    Cancels the selected input value. [Date Settings] Configure the days when timer operation is activated individually. To can- cel the setting, press the same day again. [Daily Setting] Configure the days of the week when the timer operation is activated. bizhub C360/C280/C220 (Version 3)
  • Page 156: Restrict User Access]

    Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Restrict User Ac- cess]. Settings [Copy Program Lock Set- Configure the registered copy programs that are prevented from being tings] changed or deleted. [Delete Saved Copy Pro- Delete the registered copy programs. gram] bizhub C360/C280/C220 (Version 3)
  • Page 157 [Allow] [Delete Other User Jobs] [Restrict] [Registering and Changing [Allow] Addresses] [Changing Zoom Ratio] [Allow] [Change the "From" Ad- [Login User Address] dress] [Change Registered Over- [Allow] lay] [Biometric/IC Card Info. [Restrict] Registration] [Restrict Broadcasting] [OFF] bizhub C360/C280/C220 (Version 3)
  • Page 158: Expert Adjustment]

    Create a sample in advance, and then adjust them while checking the sample. [Center Staple Position] p. 7-14 [Half-Fold Position] p. 7-15 [Punch Horizontal Position Ad- p. 7-15 justment] [Punch Regist Loop Size Adjust- p. 7-16 ment] [Paper Alignment Plate Settings] p. 7-16 7-10 bizhub C360/C280/C220 (Version 3)
  • Page 159 Select an alert display format and contamination detection level. [Feed Cleaning Settings] Configure whether to remove a dirt on the Slit Scan Glass each time one sheet of paper passes through the ADF when scanning an original using the ADF. bizhub C360/C280/C220 (Version 3) 7-11...
  • Page 160 0.0 mm ment] [Color Registration Adjust] 0 dot [Prior Detection Setting] [Yes] [Warning Display]: [TYPE2] [Detection level]: [Std.] [Feed Cleaning Settings] [Clean] [Non-Image Area Erase [Erase Operation]: [Specify] Operation Settings] [Erase Method]: [Rectangular] [Original Density]: [1] 7-12 bizhub C360/C280/C220 (Version 3)
  • Page 161: [Leading Edge Adjustment]

    (b) is 3.0 mm (±0.5 mm). % Press [+] or [-] to adjust the width. Press the Start key to print a test pattern. Press [OK]. b: 3.0 mm ± 0.5 mm bizhub C360/C280/C220 (Version 3) 7-13...
  • Page 162: [Media Adjustment]

    Press [OK]. Create a sample, and check the print result. Reference To adjust the half-fold position: Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Fin- isher Adjustment] ö [Half-Fold Position]. 7-14 bizhub C360/C280/C220 (Version 3)
  • Page 163: [Half-Fold Position]

    Select the type of paper of which the horizontal punched hole position is adjusted. Press [+] or [-] to adjust the punched hole position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C360/C280/C220 (Version 3) 7-15...
  • Page 164: [Punch Regist Loop Size Adjustment]

    Load the paper into the Bypass Tray. % The loadable paper size is 11 e 17 w, 8-1/2 e 11 v, A3 w, or A4 v. Press the Start key. A test pattern is printed. 7-16 bizhub C360/C280/C220 (Version 3)
  • Page 165: [Gradation Adjustment]

    Wait at least 10 seconds, and then turn it on again. Press the Utility/Counter key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Gradation Adjustment]. Press the Start key. The image stabilization operation starts. The correction items on the Touch Panel become enabled. bizhub C360/C280/C220 (Version 3) 7-17...
  • Page 166: List/Counter]

    Every time the counter is changed, the count is reset to 0. [Counter Clear] Resets the count to 0. [Paper Size] Select the paper size of the counter. [Paper Type] Select the paper type of the counter. 7-18 bizhub C360/C280/C220 (Version 3)
  • Page 167: Reset Settings]

    ADF. [Next Job] Configure whether to reset the following settings when the next job is selected. • [Staple Setting] • [Original Set/Bind Direction] • [Reset Data After Job] The destination of data is always reset. bizhub C360/C280/C220 (Version 3) 7-19...
  • Page 168: User Box Settings]

    Specify whether to detect a size of 8-1/2 e 14 or a foolscap size. Detection] (Metric area on- [Foolscap Size Setting] Select the size that you want to use when the paper size is close to 13 inch- 7-20 bizhub C360/C280/C220 (Version 3)
  • Page 169: Stamp Settings]

    Change the selected header or footer. [Fax TX Settings] This setting is for the fax and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Op- erations]. Factory default [Fax TX Settings] [Cancel] bizhub C360/C280/C220 (Version 3) 7-21...
  • Page 170: Blank Page Print Settings]

    Configure whether to skip a job in the fax mode. [Other than Fax] Configure whether to skip a job in a mode other than the fax mode. Factory default [Skip Job Operation Set- [Fax]: [Yes] tings] [Other than Fax]: [Yes] 7-22 bizhub C360/C280/C220 (Version 3)
  • Page 171: Default Bypass Paper Type Setting]

    Settings Configure whether to specify the initial setting for paper type for the bypass tray. When you specified this, select a paper type. Factory default [Default Bypass Paper [Yes] Type Setting] [Paper Type]: [Plain Paper] bizhub C360/C280/C220 (Version 3) 7-23...
  • Page 172: Page Number Print Position]

    [Left & Right Bind: All the Same Top & Bottom Bind: All the Same] tion] 7.1.17 [Advanced Preview Setting] Configure settings to fax or scan a document. For details, refer to the [User's Guide Network Scan/Fax/Net- work Fax Operations]. 7-24 bizhub C360/C280/C220 (Version 3)
  • Page 173: Administrator/Machine Settings]

    The E-mail address can be used for Internet fax. Factory default [Device Name] The default abbreviation is input for the product name. If necessary, it can be changed freely. bizhub C360/C280/C220 (Version 3) 7-25...
  • Page 174: One-Touch/User Box Registration]

    [One-Touch/User Box Registration] [One-Touch/User Box Registration] This setting is for the User Box, network scan, fax, and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations] and [User's Guide Box Operations]. 7-26 bizhub C360/C280/C220 (Version 3)
  • Page 175: User Authentication/Account Track]

    Before registering a user, select an authentication method. If all management data is cleared after the authentication method was selected, the histories of the registered users, print, send, receive, and save jobs are deleted. Press the Utility/Counter key ö [Administrator Settings] ö [User Authentication/Account Track] ö [General Settings]. bizhub C360/C280/C220 (Version 3) 7-27...
  • Page 176 [Ticket Hold Time Setting] Enter a time to hold the Kerberos authentication tickets. This item is avail- able when the external server authentication settings are configured and [Server Type] is set to [Active Directory]. 7-28 bizhub C360/C280/C220 (Version 3)
  • Page 177 [Ticket Hold Time Setting] 60 min. Reference To configure external server settings: Press the Utility/Counter key ö [Administrator Settings] ö [User Authentication/Account Track] ö [External Server Settings]. For details on enhanced security settings, contact your service representative. bizhub C360/C280/C220 (Version 3) 7-29...
  • Page 178: User Authentication Settings]

    When using this machine while the ID & print function is disabled, the user can select [Access] to log in to this machine without specifying the operation to be carried out after authentication. 7-30 bizhub C360/C280/C220 (Version 3)
  • Page 179 [Manual Destination Input] (If [Allow] is select- ed, specify either to allow Manual Destination Input or manage the destination manually.) • [Limited Color Print] (Public user only) • [Biometric/IC Card Info. Registration] • [Cellular Phone/PDA] bizhub C360/C280/C220 (Version 3) 7-31...
  • Page 180 [Pause] [Continue Job] [Icon] Reference To specify the maximum number of registrations for the user: Press the Utility/Counter key ö [Administrator Settings] ö [User Authentication/Account Track] ö [General Settings] ö [Number of User Counters Assigned]. 7-32 bizhub C360/C280/C220 (Version 3)
  • Page 181: Account Track Settings]

    Configure the number of copies that can be output by a member of the account. • [Individual Allowance] Configure the number of black copies and color copies that can be output by a member of the account. bizhub C360/C280/C220 (Version 3) 7-33...
  • Page 182 [Total Allowance]: [No Limit] Reference To specify the maximum number of registrations for the account: Press the Utility/Counter key ö [Administrator Settings] ö [User Authentication/Account Track] ö [General Settings] ö [Number of User Counters Assigned]. 7-34 bizhub C360/C280/C220 (Version 3)
  • Page 183: Print Without Authentication]

    Select Print (1-Sided) or Print (2-Sided). [Print Item] Configure whether to print all data or printing data only. Factory default [Print Counter List] • [Paper Tray]: Tray 1 • [Simplex/Duplex]: [1-Sided] • [Print Item]: [All Data] bizhub C360/C280/C220 (Version 3) 7-35...
  • Page 184: External Server Settings]

    For details on configuring external server settings, refer to the [User's Guide Network Administrator]. 7.4.7 [Limiting Access to Destinations] This setting is for the network scan, fax, and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations] and [User's Guide Network Administrator]. 7-36 bizhub C360/C280/C220 (Version 3)
  • Page 185: Authentication Device Settings]

    [1-to-1 authentication] allows the user to log in by entering the user name and placing his or her finger on the authen- tication unit. [Logoff Settings] Configure whether to log out when scanning of the original finishes. bizhub C360/C280/C220 (Version 3) 7-37...
  • Page 186: User/Account Common Setting]

    Fax Operations] and [User's Guide Network Administrator]. 7.4.11 [Scan to Authorized Folder Settings] This setting is for the network scan, fax, and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations] and [User's Guide Network Administrator]. 7-38 bizhub C360/C280/C220 (Version 3)
  • Page 187: Network Settings]

    [Network Settings] [Network Settings] This setting is for the network operations. For details, refer to the [User's Guide Network Administrator]. bizhub C360/C280/C220 (Version 3) 7-39...
  • Page 188: Copier Settings]

    [Store Original Size] Change and register the pre-specified original size or [Original Name]. Factory default [Auto Zoom (Platen)] [OFF] [Auto Zoom (ADF)] [ON] [Specify Default Tray when [Tray Before APS ON] APS Off] 7-40 bizhub C360/C280/C220 (Version 3)
  • Page 189 [Copier Settings] Factory default [Select Tray for Insert [Tray 2] Sheet] [Print Jobs During Copy [Accept] Operation] [Automatic Image Rotation] [When Auto Paper/Auto Zoom is set] [Card Shot Settings] - [Layout]: [Top/Bottom] - [Zoom]: [Full Size] bizhub C360/C280/C220 (Version 3) 7-41...
  • Page 190: Printer Settings]

    [Printer Settings] [Printer Settings] This setting is for the print operations. For details, refer to the [User's Guide Print Operations]. 7-42 bizhub C360/C280/C220 (Version 3)
  • Page 191: Fax Settings]

    [Fax Settings] [Fax Settings] This setting is for the fax and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations]. bizhub C360/C280/C220 (Version 3) 7-43...
  • Page 192: System Connection]

    [Login Name] and [Password]. • When user authentication is performed or when acquiring the device information with the PageScope Authentica- tion Manager, set the Authentication setting of the OpenAPI Setting screen of the machine to [OFF]. 7-44 bizhub C360/C280/C220 (Version 3)
  • Page 193 [Invalid] [Expiration Date] [Confirm] [Key Usage] [Do Not Confirm] [Chain] [Do Not Confirm] [Expiration Date Confirma- [Do Not Confirm] tion] [CN] [Do Not Confirm] [Authentication] [OFF] [Prefix/Suffix Automatic [OFF] Setting] [Cellular Phone/PDA Set- [Restrict] ting] bizhub C360/C280/C220 (Version 3) 7-45...
  • Page 194: Security Settings]

    Press the Utility/Counter key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Pass- word Rules]. 7.10.2 [User Box Administrator Setting] Configure settings for the User Box operations. For details, refer to the [User's Guide Box Operations]. 7-46 bizhub C360/C280/C220 (Version 3)
  • Page 195: Administrator Security Levels]

    [Blank Page Print Settings] • [Change E-Mail Address] • [Print Jobs During Copy Operation] [Prohibit] Does not allow the user to change the settings allowed in Level 1 and Level Factory default [Administrator Security [Prohibit] Levels] bizhub C360/C280/C220 (Version 3) 7-47...
  • Page 196: Security Details]

    """, "+", and "space" is restricted. • A password that consists of a repetition of the same character cannot be specified. • The same password as one before being changed cannot be regis- tered. 7-48 bizhub C360/C280/C220 (Version 3)
  • Page 197 [Display Activity Log] This setting is for the fax and network fax operations. For details, refer to the [User's Guide Network Scan/Fax/Network Fax Operations]. [Initialize] Initializes Job History, Network Settings, Copy Program, or Store Address. bizhub C360/C280/C220 (Version 3) 7-49...
  • Page 198 [Job Log Settings] [No] [Restrict Fax TX] [OFF] [Hide Personal Information] [OFF] [Hide Personal Information [ON] (MIB)] [Display Activity Log] [ON] [Job History Thumbnail [OFF] Display] [Secure Print Only] [No] [Copy Guard] [No] [Password Copy] [No] 7-50 bizhub C360/C280/C220 (Version 3)
  • Page 199: Enhanced Security Mode]

    These items must be configured by your service • [Management Function Choice] representative. For details, contact your service • [CE Password] representative. • [CE Authentication] • [HDD] All the settings above must be configured by your service representative. bizhub C360/C280/C220 (Version 3) 7-51...
  • Page 200: Settings To Forcibly Changed

    Only the list is displayed before the password au- thentication is performed. [Network] in PageScope Web Connection / [E- [Automatically Obtain Certificates] is set to [OFF]. mail Setting] / [S/MIME] [E-Mail Text Encrypt. Method] is set to [3DES]. 7-52 bizhub C360/C280/C220 (Version 3)
  • Page 201: Hdd Settings]

    Different screens appear depending on the current settings. 7.10.6 [HDD Settings] This setting is for the hard disk operations. For details, refer to the [User's Guide Box Operations]. bizhub C360/C280/C220 (Version 3) 7-53...
  • Page 202: Function Management Settings]

    User Boxes • Using PageScope Scan Direct to retrieve documents in User Boxes • Box operations using PageScope Web Con- nection (The User Box tab does not appear.) Factory default [Network Function Usage [ON] Settings] 7-54 bizhub C360/C280/C220 (Version 3)
  • Page 203: Stamp Settings]

    [Sending]: [Do Not Apply] Reference To configure copy protect and stamp repeat settings: Press [Application] ö [Stamp/Composition]. 7.10.9 [Driver Password Encryption Setting] This setting is for the print operations. For details, refer to the [User's Guide Print Operations]. bizhub C360/C280/C220 (Version 3) 7-55...
  • Page 204: License Settings]

    Enter the function code and license code obtained from the license man- agement server (LMS). Reference You can confirm the enabled functions in [List of Enabled Functions] when the optional i-Option LK-101, i-Option LK-102, or i-Option LK-105 function is enabled. 7-56 bizhub C360/C280/C220 (Version 3)
  • Page 205: Openapi Authentication Management Setting]

    7.12 [OpenAPI Authentication Management Setting] 7.12 [OpenAPI Authentication Management Setting] Configure settings to prevent our deprecated OpenAPI connection application from being registered in this machine. For details, contact your service representative. bizhub C360/C280/C220 (Version 3) 7-57...
  • Page 206 [OpenAPI Authentication Management Setting] 7.12 7-58 bizhub C360/C280/C220 (Version 3)
  • Page 207: Maintenance

    Maintenance...
  • Page 209: Paper

    Paper storage Store paper in a cool, dark location with little humidity. If the paper becomes damp, a paper jam may occur. Store the paper flat, not on its edge. Curled paper may cause a paper jam. bizhub C360/C280/C220 (Version 3)
  • Page 210: Loading Paper

    % If special paper is loaded, the paper type must be specified. % Load letterhead paper so that the side to be printed on faces down. Close Tray 1. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C360/C280/C220 (Version 3)
  • Page 211: Loading Paper In Lct

    % Load letterhead paper so that the side to be printed on faces down. Load paper into the left side of the LCT tray so that the side to be printed (the side facing up when the package was unwrapped) faces up. bizhub C360/C280/C220 (Version 3)
  • Page 212: Loading Paper Into The Bypass Tray

    4 e 6 (A6) size, check the size of postcards to be used, and then specify the size on the Custom Size screen before using them. % When loading Transparency: Load them in the v orientation, as shown in the illustration. bizhub C360/C280/C220 (Version 3)
  • Page 213 % OHP transparencies can be printed only in black. Before selecting OHP transparencies, select [Black] in the Color tab. % If you select [4 e 6w] ([A6 Cardw]), the paper type is automatically set to [Thick 3]. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C360/C280/C220 (Version 3)
  • Page 214: Consumables

    Replace them according to the guidance contained in your maintenance agree- ment. Do not replace any color other than the one indicated in the message in the touch panel. For the Toner Cartridge, the machine stops operating after the message appears. Toner Cartridge bizhub C360/C280/C220 (Version 3)
  • Page 215 Replacement by user Replacement by service representative If a Toner Cartridge other than for black or the Drum Unit is empty, printing can continue using black. Press [Continue], and then select the job to be printed. bizhub C360/C280/C220 (Version 3)
  • Page 216: Checking Consumables Status

    In the Check Consumable Life screen, you can check the status (usage level) of consumables. Press the Utility/Counter key. Press [Check Consumable Life]. % To print the list of usage levels, press [Print List], then [Start] or the Start key. 8-10 bizhub C360/C280/C220 (Version 3)
  • Page 217: Viewing Counters

    % To display the Coverage Rate screen, press [Coverage Rate]. <Meter Count> Item Description Total The cumulative total number of pages printed Black The total number of pages printed in black Color The total number of pages printed in color bizhub C360/C280/C220 (Version 3) 8-11...
  • Page 218 PC Total The total number of pages The total number of pages printed printed according to the on large-sized paper according to print instructions received the print instructions received from the PC from the PC 8-12 bizhub C360/C280/C220 (Version 3)
  • Page 219: Checking The Total Number Of Pages Printed

    • When printed in 2-Sided mode, two pages are counted as one print. Checking the total number of pages printed Pressing Total Counter displays the total number of pages printed to date. 1. Total counter bizhub C360/C280/C220 (Version 3) 8-13...
  • Page 220: Cleaning Procedure

    % Wipe off stains from the back side to the front side along the guide. Original Glass, Control Panel, Paper Take-Up Roller NOTICE Do not press the Control Panelhard, or the keys and Touch Panel may be damaged. Wipe the surface using a soft, dry cloth. 8-14 bizhub C360/C280/C220 (Version 3)
  • Page 221: Housing, Original Pad

    Cleaning procedure Housing, Original Pad NOTICE Never use solvents, such as benzene or thinner, to clean the Original Pad. Wipe the surface using a soft cloth moistened with a mild household detergent. bizhub C360/C280/C220 (Version 3) 8-15...
  • Page 222 Cleaning procedure 8-16 bizhub C360/C280/C220 (Version 3)
  • Page 223: Troubleshooting

    Troubleshooting...
  • Page 225: When A Problem Is Detected (Call A Service Representative)

    Problems that cannot be corrected by the user Write down the malfunction code in the Service Call screen. Turn off the Sub Power Switch. Turn off the Main Power Switch. bizhub C360/C280/C220 (Version 3)
  • Page 226 When a problem is detected (call a service representative) Unplug the machine. Contact your service representative and inform them of the written down malfunction code. bizhub C360/C280/C220 (Version 3)
  • Page 227: Troubleshooting Table

    In the Back- ground Removal screen, select a lighter background density. (p. 5-19) Is the Electrostatic Charger Use the Charger Cleaner to Wire dirty? clean the Electrostatic Charger Wire. (p. 9-13) bizhub C360/C280/C220 (Version 3)
  • Page 228 Is the original one that does not Check that the original is one meet the specifications? that can be loaded into the ADF. (p. 12-8) Is the original correctly loaded? Position the original correctly. (p. 3-5) bizhub C360/C280/C220 (Version 3)
  • Page 229 1 inch (25 mm)), a correct image will not be able to be ob- tained, and scanning may not finish. Try "stretching your fin- ger", "placing your finger deep- ly", or "placing your finger shallowly" on the scanning sec- tion. bizhub C360/C280/C220 (Version 3)
  • Page 230 Use the same USB port as the one used when installing the driver. bizhub C360/C280/C220 (Version 3)
  • Page 231: Main Messages And Their Remedies

    Or contact your service representative. [An invalid drum unit is installed. The correct Drum Unit is not set. Reinstall each consumable and Set the correct drum unit, and replaceable part. Or contact your shut all doors.] service representative. bizhub C360/C280/C220 (Version 3)
  • Page 232 Turn off the Main Power Switch, specified number of times. and then wait at least 10 sec- onds before turning it on again. 9-10 bizhub C360/C280/C220 (Version 3)
  • Page 233 Wait boards may be connected.] at least 10 seconds, and then turn on the main power of this machine. bizhub C360/C280/C220 (Version 3) 9-11...
  • Page 234: Icons That Appear In The Touch-Panel Screen

    USB connection is not enabled. Indicates that the job is in the waiting-for-redial status because, for exam- ple, the recipient's line is busy when sending with the G3 Fax or IP Address Fax function. 9-12 bizhub C360/C280/C220 (Version 3)
  • Page 235: If Print Quality Is Deteriorated

    Slowly pull out the Charger Cleaner as far as possible. Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Securely insert the Charger Cleaner, and then close the Front Door. bizhub C360/C280/C220 (Version 3) 9-13...
  • Page 236: Cleaning The Printhead

    Slowly pull out the Printhead Cleaner toward until it stops. Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Securely insert the Printhead Cleaner, and install the Waste Toner Box. Close the Front Door. 9-14 bizhub C360/C280/C220 (Version 3)
  • Page 237: Authentication Unit (Biometric Type)

    Authentication unit (biometric type)
  • Page 239: Using An Authentication Unit (Biometric Type)

    During a retry after authentication failed One short blip sound /two short blip sounds Authentication completed Two short blip sounds Authentication failed one short blip and one long beep sounds One long beep sound Scanning canceled bizhub C360/C280/C220 (Version 3) 10-3...
  • Page 240 The registered user, who is authenticated with the finger vein pattern, can log in to this machine or execute a print job. This section explains how to configure the required settings in this machine, register users, and log in with authentication. 10-4 bizhub C360/C280/C220 (Version 3)
  • Page 241: Configuring This Machine

    Use the Control Panel of this machine to display the Administrator Settings screen. Press [User Au- thentication/Account Track], then [General Settings]. Set [User Authentication] to [ON (MFP)], and then press [OK]. Press [Yes], and then [OK]. Press [Authentication Device Settings]. Press [General Settings]. Press [Bio Authentication]. bizhub C360/C280/C220 (Version 3) 10-5...
  • Page 242 For details on how to log in to this machine, refer to page 10-19. Press [OK] twice. Press [Logoff Settings]. Specify whether to log out the user when scanning the original has finished after the user logged in with the authentication unit. Press [OK]. Press [Close] twice. 10-6 bizhub C360/C280/C220 (Version 3)
  • Page 243: Registering A User

    Track], and then [User Authentication Settings]. NOTICE [User Authentication Settings] is disabled when User Authentication is set to [OFF] in General Settings. Press [User Registration]. Select a desired registration number, and then press [Edit]. Press [Register Auth. Info.]. bizhub C360/C280/C220 (Version 3) 10-7...
  • Page 244: Registering A User Using Data Administrator

    (USB-Driver) of the authentication unit, and then install Data Administrator Bio Plugin. NOTICE Before setup, install Data Administrator V4.0 or later in your computer. For the Data Administrator operat- ing environment and installation procedure, refer to the Data Administrator User's Guide. 10-8 bizhub C360/C280/C220 (Version 3)
  • Page 245: Checking The Version Of The Installed Data Administrator

    Connect the authentication unit to the USB port of your computer. The [Found New Hardware] dialog box appears. Select [Locate and install driver software (recommended)]. Insert the application DVD-ROM provided with the authentication unit into the DVD-ROM drive of the computer. bizhub C360/C280/C220 (Version 3) 10-9...
  • Page 246 Check that the driver's search location is the application DVD-ROM, and then click [Next]. % When the driver's search location is not the application DVD-ROM, click [Browse]. Select the Bio- Driver (USB-Driver) folder on the DVD-ROM, and then click [OK]. 10-10 bizhub C360/C280/C220 (Version 3)
  • Page 247 Install Data Administrator Bio Plugin. Open the DA_Bio_Plugin folder on the application DVD-ROM, and then click setup.exe. Select a language, and then click [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. bizhub C360/C280/C220 (Version 3) 10-11...
  • Page 248 Using an authentication unit (biometric type) 10.1 Click [Next]. Select [I accept the terms in the license agreement], and then click [Next]. Click [Install]. 10-12 bizhub C360/C280/C220 (Version 3)
  • Page 249: User Registration

    USB power supply, resulting in an operation failure. To use the USB hub, be sure to connect the self-power USB hub that supplies 500 mA or more. Restart the procedure 5 or more seconds after connecting the authentication unit. bizhub C360/C280/C220 (Version 3) 10-13...
  • Page 250 The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User's Guide. In Select Function, select [Authentication Settings] - [User authentication settings], and then click [Add]. 10-14 bizhub C360/C280/C220 (Version 3)
  • Page 251 Select the desired template, and then click [OK]. The User Registration window appears. Enter the user name and password, select the [AU-101] or [AU-102] tab, and then click [Register Auth. Info]. % Enter the E-mail address and other information as required. bizhub C360/C280/C220 (Version 3) 10-15...
  • Page 252 % If the authentication test has failed, place your finger on the authentication unit again, and click [Au- thentication Test]. % If the authentication has failed, click [Reset] to repeat the scanning process. Authentication Unit (biometric type) AU-101 Authentication Unit (biometric type) AU-102 Click [Registration]. 10-16 bizhub C360/C280/C220 (Version 3)
  • Page 253 Using an authentication unit (biometric type) Click [OK]. % Repeat steps 5 to 10 to register all users. Click [Export to the device]. % Select the user name and click [Edit] to change the registered data. bizhub C360/C280/C220 (Version 3) 10-17...
  • Page 254 10 or more seconds has elapsed. Not doing so may result in an operation failure. When connecting or disconnecting the USB cable, hold the plug. Otherwise, the machine may be dam- aged or a failure may occur. 10-18 bizhub C360/C280/C220 (Version 3)
  • Page 255: Logging In To This Machine

    Press [ID & PW] to [Login] by entering the [User Name] and the [Password], without using the authenti- cation unit. When [1-to-many authentication] has been specified Place your finger on the authentication unit. Authentication Unit (biometric type) AU-101 Authentication Unit (biometric type) AU-102 The basic settings screen appears. bizhub C360/C280/C220 (Version 3) 10-19...
  • Page 256: When [1-To-1 Authentication] Has Been Specified

    When [1-to-1 authentication] has been specified Select [User Name], and enter the user name. Place your finger on the authentication unit. Authentication Unit (biometric type) AU-101 Authentication Unit (biometric type) AU-102 The basic settings screen appears. 10-20 bizhub C360/C280/C220 (Version 3)
  • Page 257: Authentication Unit (Ic Card Type)

    Authentication unit (IC card type)
  • Page 259: Using Authentication Unit (Ic Card Type)

    7-27. To combine account track settings with user authentication settings, set Synchro- nize User Authentication & Account Track to [Synchronize]. Use the Control Panel of this machine to display the Administrator Settings screen. Press [User Au- thentication/Account Track], then [General Settings]. bizhub C360/C280/C220 (Version 3) 11-3...
  • Page 260 [Card Authentication]: Allows the user to log in by simply placing the IC card. [Card Authentication + Password]: Allows the user to log in by placing the IC card and entering the password. For details on how to log in to this machine, refer to page 11-16. 11-4 bizhub C360/C280/C220 (Version 3)
  • Page 261: Registering A User

    Use the Control Panel of this machine to display the Administrator Settings screen. Press [User Au- thentication/Account Track], and then [User Authentication Settings]. Press [User Registration]. Select a desired registration number, and then press [Edit]. bizhub C360/C280/C220 (Version 3) 11-5...
  • Page 262 Place the IC card on the authentication unit, and press [OK]. When message [Registration complete.] appears, press [Close] twice. Enter the user name and password. Configure function permission settings as required. Press [OK]. Press [Close]. 11-6 bizhub C360/C280/C220 (Version 3)
  • Page 263: Registering A User Using Data Administrator

    If Data Administrator V3.x is installed, it is removed when V4.x is installed. Click [Plug-in version]. In [Plug-in information list], confirm the plugin version of Data Administrator. % This software is available if the plugin version is "4.x". bizhub C360/C280/C220 (Version 3) 11-7...
  • Page 264: Setup

    The [Found New Hardware] dialog box appears. Select [Locate and install driver software (recommended)]. Insert the application DVD-ROM provided with the authentication unit into the DVD-ROM drive of the computer. Click the [Browse my computer for driver software (advanced)]. 11-8 bizhub C360/C280/C220 (Version 3)
  • Page 265 Check that the driver's search location is the application DVD-ROM, and then click [Next]. % When the driver's search location is not the application DVD-ROM, click [Browse]. Select the IC Card Driver (USB-Driver) folder in the DVD-ROM, and click [OK]. % Installation starts. bizhub C360/C280/C220 (Version 3) 11-9...
  • Page 266 Install Data Administrator IC Card Plugin. Open the IC_Card_Plugin folder on the application DVD-ROM, and then click setup.exe. Select a language, and then click [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. Click [Next]. 11-10 bizhub C360/C280/C220 (Version 3)
  • Page 267 Using authentication unit (IC card type) Select [I accept the terms in the license agreement], and then click [Next]. Click [Install]. Click [Finish]. Installation of the Data Administrator IC Card Plugin is completed, which completes the setup. bizhub C360/C280/C220 (Version 3) 11-11...
  • Page 268: User Registration

    Restart the procedure 5 or more seconds after connecting the authentication unit. Data Administrator starts, and device information of this machine is imported. The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User's Guide. 11-12 bizhub C360/C280/C220 (Version 3)
  • Page 269 11.1 Using authentication unit (IC card type) In Select Function, select [Authentication Settings] - [User authentication settings], and then click [Add]. Select the desired template, and then click [OK]. The User Registration window appears. bizhub C360/C280/C220 (Version 3) 11-13...
  • Page 270 Place the IC card on the authentication unit, and click [Start reading]. % If necessary, click [Card ID Input] to register the card ID. Click [OK]. % Repeat steps 5 to 9 to register all users. 11-14 bizhub C360/C280/C220 (Version 3)
  • Page 271 % Data Administrator provides the batch copy function that batch-configures the registered user data in multiple machines with the authentication unit enabled. The registered user data is configured in this machine. Click [OK]. Disconnect the authentication unit from the USB port of the computer. bizhub C360/C280/C220 (Version 3) 11-15...
  • Page 272: Logging In To This Machine

    Press [ID & PW] to [Login] by entering the [User Name] and the [Password], without using the authenti- cation unit. When [Card Authentication] is enabled Place the IC card on the Working Table WT-507 or Working Table WT-506. The basic settings screen appears. 11-16 bizhub C360/C280/C220 (Version 3)
  • Page 273: When [Card Authentication + Password] Is Enabled

    When [Card Authentication + Password] is enabled Place the IC card on the Working Table WT-507 or Working Table WT-506. Press [Password], and enter the password. Press [Login] or the Access key. The basic settings screen appears. bizhub C360/C280/C220 (Version 3) 11-17...
  • Page 274 Using authentication unit (IC card type) 11.1 11-18 bizhub C360/C280/C220 (Version 3)
  • Page 275: Specifications

    Specifications...
  • Page 277: Paper

    Paper where company names, preset text, and others are already printed. Colored paper. Paper that is registered as one of frequently used paper types. For paper weight and media adjustment settings, contact your service representative. bizhub C360/C280/C220 (Version 3) 12-3...
  • Page 278 When you select Plain Paper, Thick 1, Thick 2, Thick 3, or Thick 4 for the Bypass Tray, you can select Duplex 2nd Side. Select Duplex 2nd Side when you load paper where something is printed on one side. 12-4 bizhub C360/C280/C220 (Version 3)
  • Page 279: Machine Specifications

    12.2 Machine specifications 12.2 Machine specifications bizhub C360/bizhub C280/bizhub C220 Specifications Type Scanner, printer, desktop, or stand-alone Document holder Stationary (mirror scanning) Photo conductor Light source White rare-gas fluorescent Copy system Laser electrostatic copying Developing system Dry 2-component HMT developing system...
  • Page 280 AC 120 V, 12 A, 60 Hz (AC 220 V to 240 V, 8.0 A, 50/60 Hz) Max. power consumption 1500 W Size Width 25-5/16 (643 mm) Depth 27-3/4 (705 mm), 33-3/8 (842 mm Height 30-5/16 (770 mm) Size including the panel 12-6 bizhub C360/C280/C220 (Version 3)
  • Page 281: Auto Duplex Unit

    There are six types of foolcaps: 8-1/2e13-1/2 w, 220 mme330 mmw, 8-1/2e13 w, 8-1/4e13 w, 8-1/8e13-1/4 w, and 8e13 w. Any one of these sizes is selectable. For details, contact your service representative. Power supply Supply from machine bizhub C360/C280/C220 (Version 3) 12-7...
  • Page 282: Options

    Supply from machine Max. power consumption 15 W or less Size Width 23-5/8 (600 mm) Depth 27-3/4 (705 mm) Height 11-3/4 (299 mm) Weight Approx. 52-15/16 lb (24 kg) Unit configuration Paper tray, 1 level 12-8 bizhub C360/C280/C220 (Version 3)
  • Page 283: Paper Feed Cabinet Pc-207

    Plain paper: 2500 sheets, Thick 1/Thick 2/Thick 3: 1000 sheets Power supply Supply from machine Max. power consumption 45 W or less Size Width 23-5/8 (600 mm) Depth 27-5/8 (702 mm) Height 11-3/4 (299 mm) Weight Approx. 61-3/4 (28 kg) bizhub C360/C280/C220 (Version 3) 12-9...
  • Page 284: Finisher Fs-527

    31 to 40 sheets: 25 copies 41 to 50 sheets: 20 copies Paper loading height: 14-3/4 (375 mm) (8-1/2 e 11 w, A4 w or less) / 7-3/8 (187.5 mm) (8-1/2 e 14 w, B4 w or more) 12-10 bizhub C360/C280/C220 (Version 3)
  • Page 285 Height 40-3/8 (1025 mm), 42-13/16 (1087 mm Size when the tray is pulled out Weight Approx. 92-9/16 lb (42 kg) Consumables Staple SK-602 For EH-590 (Product No. 505 manufactured by MAX) (5000 staples included) e 1 unit bizhub C360/C280/C220 (Version 3) 12-11...
  • Page 286: Saddle Stitcher Sd-509

    11 e 17 w to 8-1/2 e 11 v holes A3 w to A4 v, B5 v holes Power supply Supplied from Finisher FS-527. Size Width 2-5/16 (58 mm) Depth 18-1/2 (470 mm) Height 5-5/16 (135 mm) Weight Approx. 3-15/16 lb (1.8 kg) 12-12 bizhub C360/C280/C220 (Version 3)
  • Page 287: Separator Js-603

    300 g/m ), Transparency, En- velope, Label sheet, or Letterhead: 10 sheets Paper loading height: 7/8 (22 mm) Size Width 6-1/2 (165 mm) Depth 15-5/16 (389 mm) Height 2-1/2 (63 mm) Weight Approx. 2-3/16 (1 kg) bizhub C360/C280/C220 (Version 3) 12-13...
  • Page 288: Finisher Fs-529

    Depth 22-3/16 (564 mm) Height 5-13/16 (147 mm) Size when the tray is pulled out Weight Approx. 26-7/16 (12 kg) Consumables Staple SK-602 For EH-590 (Product No. 505 manufactured by MAX) (5000 staples includ- ed) e 1 unit 12-14 bizhub C360/C280/C220 (Version 3)
  • Page 289: Authentication Unit (Biometric Type) Au-101

    50 °F to 95 °F (10 °C to 35 °C) operation) Humidity 10% to 80% (No dew condensation) System conditions (during Ambient temperature 14 °F to 140 °F (-10 °C to 60 °C) non-operation) Humidity 10% to 80% (No dew condensation) bizhub C360/C280/C220 (Version 3) 12-15...
  • Page 290: Authentication Unit (Biometric Type) Au-102

    TCP/IP Application Microsoft Internet Explorer 6.0 (SP1) or later Microsoft .NET Framework (SP1) or later Interface USB 1.1 or later Supported Operating Systems Windows 2000 Professional (SP4) Windows XP Professional Edition (SP2) Windows Vista Business/Enterprise 12-16 bizhub C360/C280/C220 (Version 3)
  • Page 291: Authentication Unit (Ic Card Type) Au-201

    TCP/IP Application Microsoft Internet Explorer 6.0 (SP1) or later Microsoft .NET Framework (SP1) or later Interface USB 1.1 or later Supported Operating Systems Windows 2000 Professional (SP4) Windows XP Professional Edition (SP2) Windows Vista Business/Enterprise bizhub C360/C280/C220 (Version 3) 12-17...
  • Page 292 Options 12.3 12-18 bizhub C360/C280/C220 (Version 3)
  • Page 293: Appendix

    Appendix...
  • Page 295: Colors

    "saturation", as opposed to "brightness". As opposed to hue and brightness, "saturation" is the charac- teristic that indicates the degree of vividness. bizhub C360/C280/C220 (Version 3) 13-3...
  • Page 296 Colors 13.1 Brightness Saturation 13-4 bizhub C360/C280/C220 (Version 3)
  • Page 297: [Red], [Green], And [Blue]

    13.1 Colors [Red], [Green], and [Blue] This machine allows you to adjust red, green, and blue in 19 levels. Green Blue bizhub C360/C280/C220 (Version 3) 13-5...
  • Page 298: Image Quality

    You can finely adjust the shading of an image. [Sharpness]: You can adjust the amount of contours in text and images. You can adjust the contrast and copy density in 19 levels and the sharpness in 7 levels. Contrast Copy Density Sharpness 13-6 bizhub C360/C280/C220 (Version 3)
  • Page 299: [Color Balance] (Cmyk)

    Full-color copy reproduces colors of the original by mixing toners of four colors: yellow, magenta, cyan, and black. By changing the amount of each of the four toners, adjust the tints in the copy. You can adjust the color balance in 19 levels. Yellow Green Magenta Cyan Blue Black bizhub C360/C280/C220 (Version 3) 13-7...
  • Page 300: Glossary

    [Cover Sheet] Function that attaches a sheet in the specified paper tray as a cover page. [Density] Function that adjusts the density of the print image in nine levels. 13-8 bizhub C360/C280/C220 (Version 3)
  • Page 301 That adjusts the degree of vividness of the colors in the image. [Save in User Box] Function that temporarily saves the job on the hard disk so that it can be recalled later and used again. bizhub C360/C280/C220 (Version 3) 13-9...
  • Page 302 Function that allows you to configure the reproduction quality of the text when copying originals consisting of text that overlaps images such as illustrations or graphs (text with a background). [Zoom] Function that changes the zoom ratio of the copy. 13-10 bizhub C360/C280/C220 (Version 3)
  • Page 303: Index

    Index...
  • Page 305: Index By Item

    Eject assist lever 5-60 Card copy 9-13 Electrostatic charger wire Cellular phone/PDA setting 6-18 Enhanced security mode 7-51 7-13 Centering 4-15 Enlarge display 7-13 Centering (duplex 2nd side) Erasing 5-44 6-14 Changing e-mail addresses 5-44 Erasing frames bizhub C360/C280/C220 (Version 3) 14-3...
  • Page 306 2-10 5-16 Original setting Jack for connecting a telephone (TEL PORT1) Original tray Jack for connecting a telephone (TEL PORT2) Output settings 2-11 2-16 2-17 2-18 2-17 Jam removal dial Output tray Job list 2-13 14-4 bizhub C360/C280/C220 (Version 3)
  • Page 307 Tray 1 Reset Tray 2 7-19 Reset settings Tray 3 Restricting user accesses Tray 4 12-8 2-17 2-18 Reverse automatic document feeder Tray extension Tray release button Troubleshooting Troubleshooting table 5-15 Turning off automatic rotation bizhub C360/C280/C220 (Version 3) 14-5...
  • Page 308 7-27 User box User box administrator setting 7-46 7-20 User box settings User settings Utility/counter Video interface kit Waste toner box 2-10 5-56 Watermark Weekly timer setting Wide paper Working table Z-folded original 5-18 Zoom 14-6 bizhub C360/C280/C220 (Version 3)
  • Page 309: Index By Button

    Consumables Replace/Processing Procedure 4-17 Back (Blank) 5-24 5-33 Contrast 5-24 Back (Copy) Copied Paper 5-20 5-32 Background Color 7-40 Copier Settings 5-20 Background Removal 5-25 Copy Banner Printing 5-33 Copy Density Basic 5-51 7-50 Copy Guard bizhub C360/C280/C220 (Version 3) 14-7...
  • Page 310 Image Stabilization Only External Server Settings 7-36 Image Stabilization Setting 7-11 5-64 Increase Priority FAX Active Screen Initialize 7-49 7-43 7-25 Fax Settings Input Machine Address 7-21 5-26 Fax TX Settings Insert Image 5-25 Fax/Scan Insert Paper 14-8 bizhub C360/C280/C220 (Version 3)
  • Page 311 Neg./Pos. Reverse 6-10 7-40 Print Jobs During Copy Operation 7-54 Network Function Usage Settings Print Lists Network Settings 7-39 5-47 5-48 5-49 Print Position No Matching Paper in Tray Setting Print without Authentication 7-35 None 5-44 bizhub C360/C280/C220 (Version 3) 14-9...
  • Page 312 Scan/Fax Settings Time Settings 4-16 Search by Operation Time Zone Search Option Settings 5-44 7-50 Secure Print Only Touch Panel Adjustment 4-13 7-48 Security Details 5-23 Transparency 7-46 Security Settings Tray 1 5-32 Select Color 14-10 bizhub C360/C280/C220 (Version 3)
  • Page 313 Weekly Timer ON/OFF Settings Weekly Timer Settings 7-28 7-29 When # of Jobs Reach Maximum When AMS Direction is Incorrect Wide Paper With Margin 5-37 5-37 Without Margin 5-16 Z-Folded Original Zoom 4-20 5-38 5-60 bizhub C360/C280/C220 (Version 3) 14-11...
  • Page 314 Index by button 14.2 14-12 bizhub C360/C280/C220 (Version 3)

This manual is also suitable for:

Bizhub c280Bizhub c220

Table of Contents

Save PDF
