Enhancing Your System - Sharp DK-A10 User Manual

DK-A10

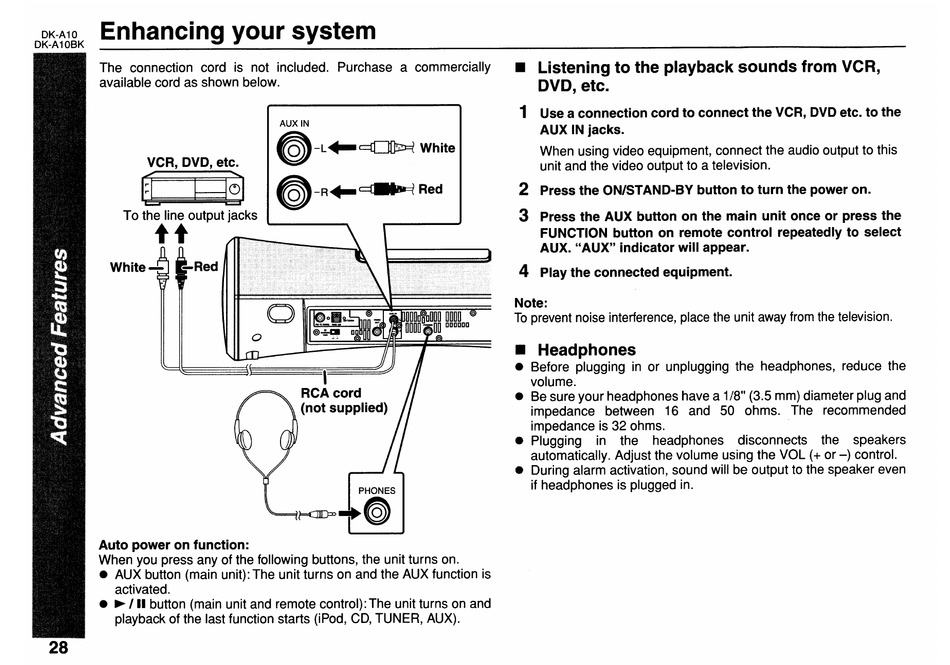

Enhancing your system
DK-A10BK
The connection cord is not included. Purchase a commercially
available cord as shown below.
Auto power on function:
When you press any of the following buttons, the unit turns on .
• AUX button (main unit): The unit turns on and the AUX function is
activated .
•
~
/11 button (main unit and remote control): The unit turns on and
playback of the last function starts (iPod, CD, TUNER, AUX).
• Listening to the playback sounds from VCR,
DVD, etc.
1
Use a connection cord to connect the VCR, DVD etc. to the
AUX IN jacks.
When using video equipment, connect the audio output to this
unit and the video output to a television.
2
Press the ON/STAND-BY button to turn the power on.
3
Press the AUX button on the main unit once or press the
FUNCTION button on remote control repeatedly to select
AUX. "AUX" indicator will appear.
4
Play the connected equipment.
• Headphones
• Before plugging in or unplugging the headphones, reduce the
volume.
• Be sure your headphones have a 1/8" (3.5 mm) diameter plug and
impedance between 16 and 50 ohms. The recommended
impedance is 32 ohms.
• Plugging in the headphones disconnects the speakers
automatically. Adjust the volume using the VOL (+ or -) control.
• During alarm activation, sound will be output to the speaker even
if headphones is plugged in.
Note:
To prevent noise interference, place the unit away from the television.
AUXIN
~-L"'c::!OlJ'z>=/
White
~-R"~Red
VCR, DVD, etc.
~
To the line output jacks
t t
White- -Red
28
