DK-A10

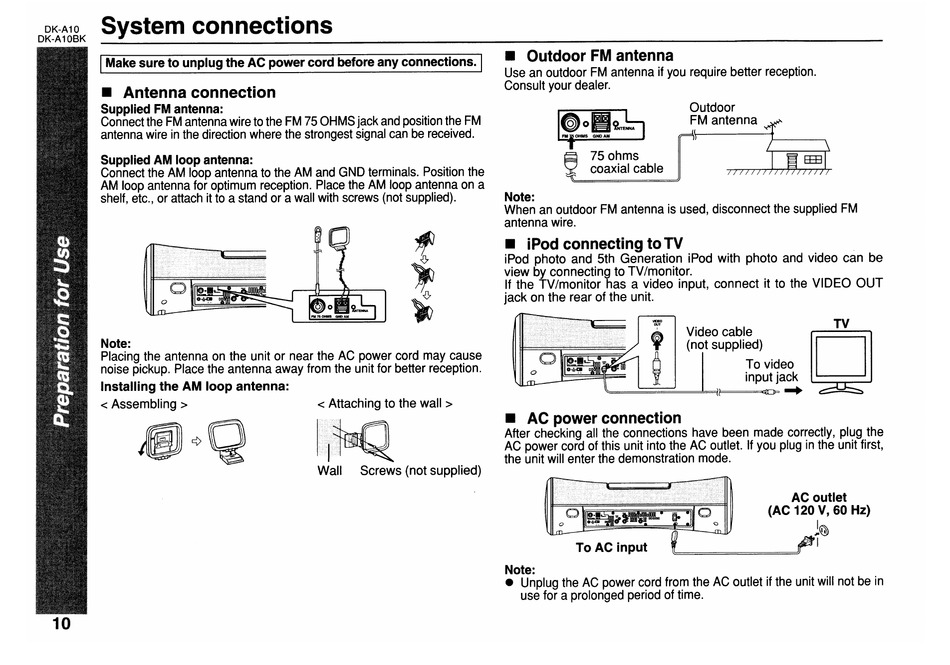

System connections
DK-A10BK
TV
[0
AC outlet
(AC 120 V, 60 Hz)
Video cable
(not supplied)
To video
input jack
~========!==I/=====:OCJP
- .
• Outdoor FM antenna
Use an outdoor FM antenna if you require better reception.
Consult your dealer.
~
75 ohms
'J(
coaxial cable
Note:
When an outdoor FM antenna is used, disconnect the supplied FM
antenna wire.
• iPod connecting to TV
iPod photo and 5th Generation iPod with photo and video can be
view by connecting to TV/monitor.
If the TV/monitor has a video input, connect it to the VIDEO OUT
jack on the rear of the unit.
• AC
power connection
After checking all the connections have been made correctly, plug the
AC power cord of this unit into the AC outlet. If you plug in the unit first,
the unit will enter the demonstration mode.
Note:
• Unplug the AC power cord from the AC outlet if the unit will not be in
use for a prolonged period of time.
Wall Screws (not supplied)
Note:
Placing the antenna on the unit or near the AC power cord may cause
noise pickup. Place the antenna away from the unit for better reception.
Installing the AM loop antenna:
< Assembling> < Attaching to the wall >
I
Make sure to unplug the AC power cord before any connections.
I
• Antenna connection
Supplied FM antenna:
Connect the FM antenna wire to the FM 75 OHMS jack and position the FM
antenna wire in the direction where the strongest signal can be received.
Supplied AM loop antenna:
Connect the AM loop antenna to the AM and GND terminals. Position the
AM loop antenna for optimum reception. Place the AM loop antenna on a
shelf, etc., or attach it to a stand or a wall with screws (not supplied).
10
