AccuLine 40-6525 Instruction Manual

Self-leveling rotary laser level
Hide thumbs
Table of Contents

Advertisement

Quick Links

™

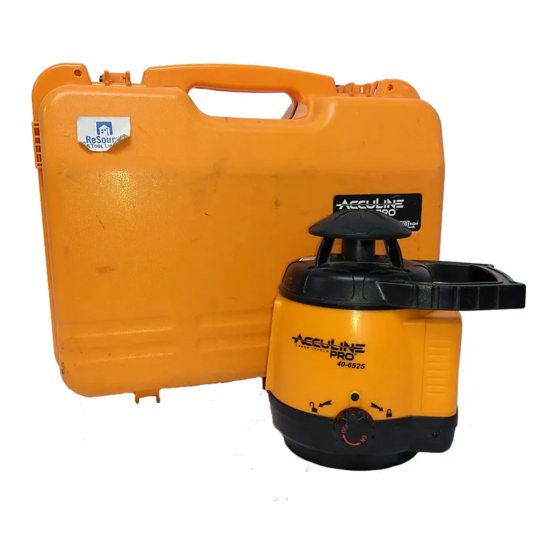

Self-Leveling Rotary Laser Level
Model Nos. 40-6525 and 40-6530
Instruction Manual
Congratulations on your choice of this Self-Leveling Rotary Laser
Level. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2007 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6525 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuLine 40-6525

Summary of Contents for AccuLine 40-6525

  • Page 1 ™ Self-Leveling Rotary Laser Level Model Nos. 40-6525 and 40-6530 Instruction Manual Congratulations on your choice of this Self-Leveling Rotary Laser Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    12. Product Warranty 5. Location of Parts/Components 13. Product Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents For Model No. 40-6525 Description Qty. Self-Leveling Rotary Laser Level “C” Alkaline Batteries “C” Alkaline Battery Holder Vertical Mounting Adapter...

  • Page 3: Features And Functions

    2. Features and Functions • Magnetic dampening compensation system. • Laser sounds alarm when outside its self-leveling range or the compensator is not locked when the laser is placed inside its case. • Projects a horizontal rotating plane. • Projects a vertical rotating plane with a 90º split beam. •...
  • Page 4 • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. WARNING! The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.

  • Page 5: Location/Content Of Warning Labels

    4. Location/Content of Warning Labels ©2007 Johnson Level & Tool...

  • Page 6: Location Of Parts/Components

    5. Location of Part/Components 90º Beam Output Window Control Panel Rotating Laser Output Widow Handle Vertical Lock/Unlock Vial Symbol Transportation Locking Knob Battery Box DC 6V Power Jack Hole for (40-6530 Only) Vertical Mount Adjusting Knob ©2007 Johnson Level & Tool...

  • Page 7: Operating Instructions

    1. Loosen the set-bolt and take the battery box apart from the unit, as shown in fig. a. 2. Put in four “C” batteries (included with 40-6525 only) according to the polarity illustrated in the battery box, and snap the battery box back into place, as shown in fig.
  • Page 8 • Used (discharged) batteries are hazardous waste and should be disposed of properly. Instrument Usage 1. Put in Ni-MH battery pack (40-6530) or alkaline batteries (40-6525), or connect with 6V DC power (40-6530 only) through power jack. 2. Place the instrument on platform or tripod, connect the tripod to the laser using the 5/8"...

  • Page 9: Using The Product

    7. Using the Product Operating Panel Scan Indicator Power Indicator Light Light Scan Mode On/Off Button Button Down/Clockwise Up/Counterclockwise Button Button 1. On/Off Button • Pressing the button will turn the unit on / off after the transportation lock has been turned to unlock in the horizontal mode. 2.
  • Page 10 5. Up-Counterclockwise/Down-Clockwise button In rotation mode • Press up to increase rotation speed • Press down to decrease rotation speed In scan mode • Press down to make the scan line rotate clockwise • Press up to make the scan line rotate counter-clockwise Usage for vertical application IMPORTANT: Keep “Locking Knob”...
  • Page 11 Detector Usage (included in Model No. 40-6530 only) 1. Technical Specifications Detecting accuracy Fine ±0.039" (±1mm) Coarse ±0.098" (±2.5mm) Turn-off time 5 minutes Operating voltage DC9V Size 6-3/4" x 3" x 1" (0.266 x 0.118 x 0.029mm) Weight 0.55 Ibs (0.249 Kg) Dust and rain resistant Backlit Screen Double sides display...
  • Page 12 (b) Display 1. Power symbol 2. Low battery symbol 3. Coarse/Fine detection symbol 4. Horn symbol 5. Detecting position symbol 3. Operation Guide (a) Installation of battery • Open the battery-box cap • Put the 9V battery into the battery-box. Please note the polarity. Then close the battery-box cap.
  • Page 13 (c) Using the detector bracket 1. clamp bolt 2. quick release button 3. detector/bracket attachment screw (d) Detection 1. Coarse detection • Aim the receiving window at the rotating laser instrument. Loosen the clamp bolt and move the detector up and down to receive the laser signals transmitted by the rotating laser.
  • Page 14 2. Fine detection 1. power symbol 2. fine detection symbol • Press the coarse/fine detection button. The detector is ready for fine detection. • Move the instrument up and down like the coarse detection procedure. • When the instrument displays as shown in the figure, it is level with the laser beam.

  • Page 15: Accuracy Self-Check

    8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. 50’ X-Direction Accuracy Self-Check 1. For clarity, we define the direction of handle as X-direction, and another direction as Y-direction 2.
  • Page 16 6. Turn the instrument by 90° and place it on the platform, with the operating panel facing you. Perform Y-direction self-check with the same method as X-direction self-check, and mark point C and point D by turns. 7. If point C and point D are within 1/16” at 50’, the accuracy is within tolerance.

  • Page 17: Technical Specifications

    Up to 2000 ft. (600m) diameter with detector (40-6530) Self-Leveling Range ±3.5° Scanning Mode (degrees) 0, 30, 60 Power Supply 4 “C” alkaline batteries (40-6525) Rechargeable battery pack, or 6V adapter (40-6530) Battery Life Approx. battery life 20 hours continuous use (rechargeable batteries only) Approx.

  • Page 18: Application Demonstrations

    10. Application Demonstrations Ceiling Installation Wall or Footing Construction Squaring and leveling Baseboard Installation Fence Installation Cement Floor Installation Window Installation Anti-static Flooring Installation ©2007 Johnson Level & Tool...

  • Page 19: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our...

  • Page 20: Product Registration

    Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center. Proof of purchase is required. NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use.

  • Page 21: Accessories

    14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.

This manual is also suitable for:

40-6530
