AB3819 M3x5 CSK S/S (12 places -
faders - marked here with '+')
AJ5558 X-FADE
ADJUST KNOB
*
*
+
*
AJ5325 FILTER / CUE
BTN (11 places)
AJ3488 PUSH BUTTON
SQUARE RED 5MM
AB8172 POT NUT BK (30 places -
under knobs)
AB3820 M3x8 CSK S/S (10 places - front
panel - marked here with '*')

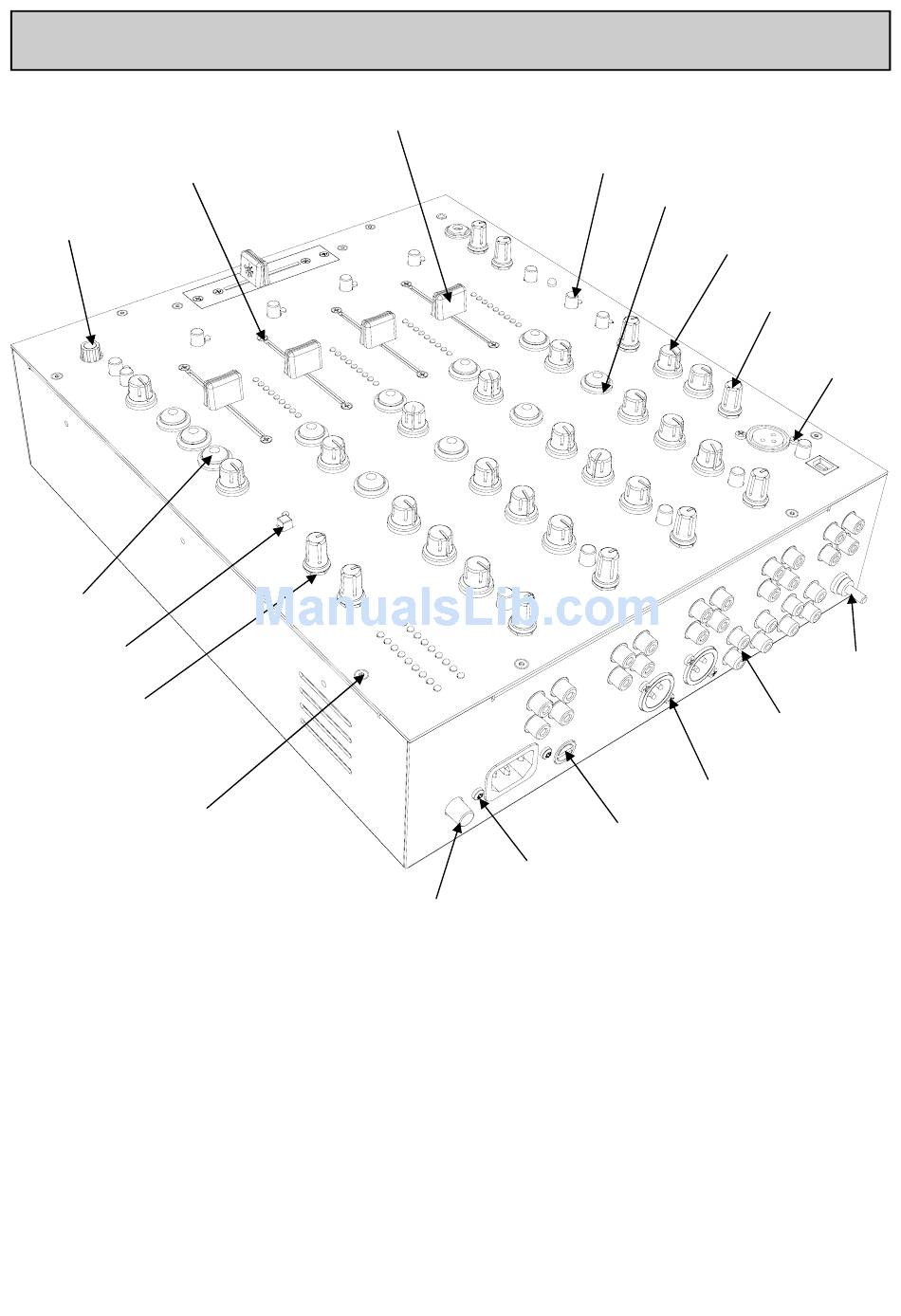

The diagram above shows all of the replacement parts that can be ordered from your local
technical support, or direct from Allen & Heath, for the Xone:42. When ordering please
quote the part number(s) of the required parts - this makes life easier for us!
Note: Key for front panel screws
Screws marked with '*' on the above diagram are the M3x8 stainless steel countersunk type,
which require a T10 'Torx' screwdriver. Screws marked with '+' are the shorter M3x5
stainless steel countersunk fader screws, which require a medium size cross-point screwdriver.
See the previous page for information on replacing the crossfader, and for replacement cross-
fader assembly numbers.
Allen & Heath

USER-REPLACEABLE PARTS

AJ5320 XONE FADER KNOB (5 places - faders)
*
+
+
+
+
+
+
+
+
*
AJ2887 PUSH BUTTON BK (PSU)
* *
+
+
+
*
AB0076 M3x10 PAN BK (2 places - IEC plug)
27
AJ4251 PUSH BUTTON
ROUND BK 8MM (14 places)
AJ5324 LIGHT PIPE (11 places)
AJ7304 XONE EQ KNOB
(SML) (20 places)
PLASTITE (9 places - RCAs)
AB2810 4x5/16 PAN BK (4 places - XLRs)
AL3534 FUSE 500mA
AJ7305 XONE GAIN
KNOB (LGE) (10 places)
AB2810 4x5/16 PAN
BK (2 places - XLR)
*
*
AB8106 CHASSIS
GROUND POST
AB2771 4x5/16 PAN BK
