- Page 1 USER GUIDE Publication AP7080 Allen & Heath XONE:1D User Guide...
-
Page 2: Warranty
Limited One Year Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating. -
Page 3: Packed Items

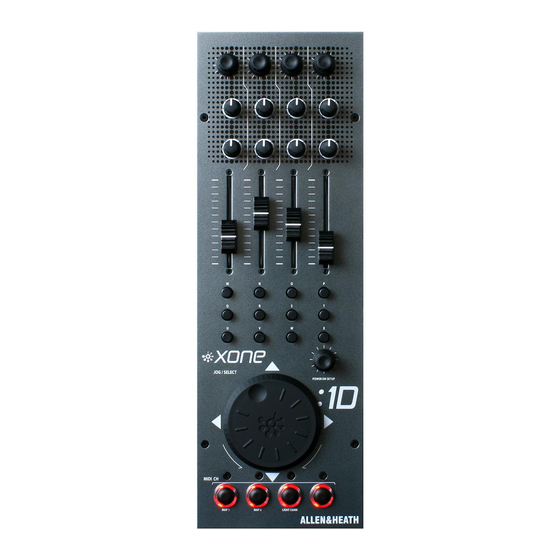

PACKED ITEMS Xone:1D Quick-Start Guide and Warranty. Type A-B USB Lead To connect the Xone:1D to your computer. Xone:1D MIDI Controller Allen & Heath XONE:1D User Guide... -
Page 4: Table Of Contents
CONTENTS Congratulations on purchasing the Allen & Heath Xone:1D MIDI Controller. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the controls and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our technical support team. -
Page 5: Midi Controls
MIDI CONTROLS Rotary Encoders Turning an encoder produces MIDI CC (continuous controller) messages with a unique controller number two’s compliment binary encoding (Map2) or Note on messages (Map1) - see diagram overleaf. These encoders feature a built in momentary push switch. Pressing down on the encoder knob activates the switch and sends a “note on”... -
Page 6: Midi Control Section
MIDI CONTROL SECTION MAP 1 CC33 CC34 CC32 CC35 MAP 2 CC11 CC13 CC15 MIDI Map Two control mappings are available, Map2 is the default CC10 CC12 CC14 for most applications. Map1 differs only in the messages generated by the top row of rotary encoders and the four illuminated switches. -
Page 7: Rear Panel Connectors
REAR PANEL CONNECTORS SERIAL No: MIDI THRU TO PC SERIAL NUMBER The serial number of your Xone:1D USB Connector Socket for connecting the Xone:1D to the PC/Mac MIDI In Socket 5-pin DIN style socket for connecting other MIDI devices through the Xone:1D. The messages from the other device(s) are merged with the MIDI from the Xone:1D controls before being sent to the PC via USB. -
Page 8: Windows Driver Installation
WINDOWS DRIVER INSTALLATION The Allen & Heath Xone:1D is fully compliant with Windows XP and will plug and play. The Xone:1D will be recognised as a USB Audio Device in XP and will be labelled as such in Sys- tem Manager and in the setup of any DAW software. Installation of the drivers will label the Xone:1D as a “Xone MIDI Device”... - Page 9 WINDOWS DRIVER INSTALLATION Now plug the Xone:1D to a USB port on your PC. NOTE: The drivers will map to the USB socket used in the installation. To ensure that your Xone:1D works on all USB ports repeat the driver installation for each port. Once the Xone:1D has been plugged in the installation will initialise it.
-
Page 10: Windows Daw Setup
WINDOWS SOFTWARE SETUP Setting up the Xone:1D with Ableton In the Preferences window of Ableton select the MIDI / Sync tab. Turn on the Track, Sync and Remote for both the Input and Output of the Xone MIDI De- vice. Setting up the Xone:1D with Traktor3 In the Preferences window of Traktor select Hotkey and MIDI Setup then... -
Page 11: Mac Installation
MAC INSTALLATION Plug the Xone:1D into a USB port on your Mac and follow: Macintosh HD -> Applications -> Utilities -> Audio MIDI Setup -> MIDI Devices The Xone:1D is shown as a Xone MIDI Device as above. Allen & Heath XONE:1D User Guide... -
Page 12: Mac Daw Setup
MAC SOFTWARE SETUP Setting up the Xone:1D with Ableton In the Preferences window of Ableton select the MIDI / Sync tab. Turn on the Track, Sync and Re- mote for both the Input and Output of the Xone MIDI Device. Setting up the Xone:1D with Traktor3 In the Preferences window of Traktor select Hotkey and MIDI Setup then... -
Page 13: Midi Channel Number And Map
MIDI CHANNEL NUMBER AND MAP MIDI Channel Number The MIDI channel number will default to channel 16, but can be CC36 changed to any channel between 1 and 16. A# -2 CC37 To change the MIDI channel number and MIDI map: Connect the USB cable to the PC/Mac but not the Xone:1D Hold down the switch on the encoder shown in the diagram JOG SELECT... -
Page 14: Midi Channel Number And Map
MIDI CHANNEL NUMBER AND MAP Changing the MIDI Map Once the MIDI channel number has been stored the illuminated switch to the far right of the unit will flash indicating that the MIDI map may now be selected. Pressing the first illuminated switch will set the MIDI Map to Map 1 (for use with NI Traktor).
