NOTE: If the P700m controller is in mezzanine 1, route the battery cable back over the card
and under the DIMM latches, doubling back towards slot 3, sliding the cable under the inner
mezzanine post for slot 3.
8. Replace the battery mounting bracket.
9. If the battery mounting bracket and BBWC were previously installed:
a. Replace the battery mounting bracket
b. Position the battery with the print side down and push the end of the battery cable that
is plugged into the battery down under the battery mounting bracket's C-hook.
c. Route the cable so its battery end is on the side of the hook that is away from slot 3.
d. Push the other end of the battery down between the two restraining clips.
10. Replace any mezzanine cards that you had to remove from mezzanine slot 2
cards" (page 123)).
NOTE: If the P700m controller is installed in mezzanine slot 3, tuck the cable between the
battery mounting bracket and slot 3.

Replacing the battery mounting bracket

1. power off the server blade and remove it from the server blade enclosure
server blade for servicing").
2. Remove the access panel
3. Remove the DIMM baffle
4. Temporarily remove any mezzanine card installed in slot 2

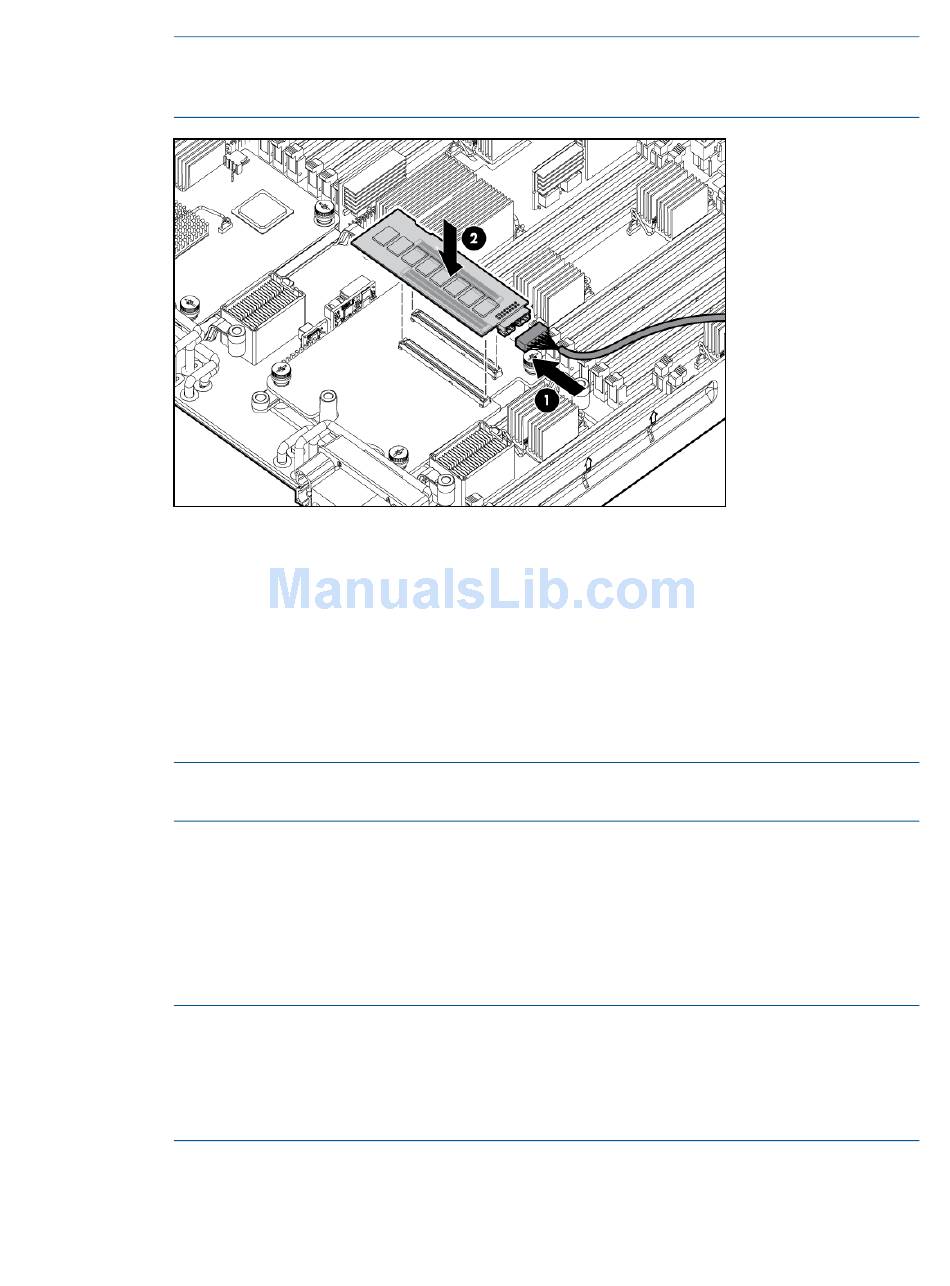

NOTE: If you will be installing the BBWC battery, be sure that the cache module is installed
and the battery cable is plugged into the cache module
module").
NOTE: If you are not installing the p700m into slot 1, slot 1 must contain either another
mezzanine card or mezzanine card blank.
5. Clip the mounting bracket onto the mezzanine card or mezzanine card blank.
("Replacing the battery mounting
("Access panel" (page
("DIMM baffle" (page
113)).
115))
("Mezzanine cards" (page
("Replacing the 512MB cache
Installing internal components
bracket").
("Mezzanine
("Preparing the
123)).
