Model No. 831.24855.0
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
TREADMILL EXERCISER
Sears, Roebuck and Co., Hoffman Estates, IL 60179
User's Manual
Advertisement
Table of Contents
Related Manuals for ProForm XP TRAINER 580
Summary of Contents for ProForm XP TRAINER 580
- Page 1 TREADMILL EXERCISER Model No. 831.24855.0 Serial No. User’s Manual Write the serial number in the space above for reference. Serial Number Decal • Assembly • Operation • Maintenance • Part List and Drawing CAUTION Read all precautions and instruc- tions in this manual before using this equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. .2 IMPORTANT PRECAUTIONS . -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. Sears as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 20. Never leave the treadmill unattended while it 24. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. the power cord, and switch the reset/off cir- DANGER: cuit breaker to the off position when the Always unplug the power treadmill is not in use.
-
Page 5: Before You Begin
And when you’re not exercising, the ber decal are shown on the front cover of this manual. unique XP TRAINER 580 treadmill can be folded up, requiring less than half the floor space of other tread- Before reading further, please review the drawing mills. -
Page 6: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 7 1. Make sure that the power cord is unplugged. Hole With the help of a second person, carefully tip the treadmill onto its left side. Partially fold the Frame (51) so that the treadmill is more stable; do not fully fold the Frame yet. Cut the shipping tie securing the Upright Wire (79) to the Base (87).
- Page 8 4. Hold a Bolt Spacer (81) inside the lower end of the Right Upright (80). Insert a 3/8" x 4" Bolt (9) with a 3/8" Star Washer (12) into the Right Upright and the Bolt Spacer. Repeat this step with a second Bolt Spacer (81), 3/8" x 4" Bolt (9), and 3/8"...
- Page 9 6. Hold a Bolt Spacer (81) inside the lower end of the Left Upright (75). Insert a 3/8" x 4" Bolt (9) with a 3/8" Star Washer (12) into the Left Upright and the Bolt Spacer. Repeat this step with a second Bolt Spacer (81), 3/8" x 4" Bolt (9), and 3/8"...
- Page 10 9. Attach the Left Handrail (107) and the Right Handrail (104) with six 5/16" x 1" Bolts (6) and four 5/16" Star Washers (13) as shown. Do not fully tighten the Bolts yet. Slide the Handrail Caps (105) away from the Uprights (75, 80).
- Page 11 11. Attach the Crossbar (106) to the Left and Right Handrails (107, 104) with two 1/4" x 3/4" Bolts (10) with two 1/4" Star Washers (14) into the Crossbar. Start both Bolts but do not tighten them yet. 12. Have a second person hold the console assem- Console Assembly bly near the Right Handrail (104) and Left Handrail (not shown).
- Page 12 14. Attach the console assembly to the Left and Console Right Handrails (107, 104) and the Crossbar Assembly (106) with four #8 x 3/4" Screws (1) and four #8 x 1/2" Screws (2). Start all eight Screws before tightening them. Tighten the six 5/16"...
- Page 13 16. Raise the Frame (51) to the position shown. Have a second person hold the Frame until this step is completed. Orient the Storage Latch (48) so that the large barrel and the Latch Knob (49) are oriented as shown. Attach the upper end of the Storage Latch (48) to the bracket on the Frame (51) with a 3/8"...
-
Page 14: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with high- performance lubricant. - Page 15 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 16. To use the man- ual mode, see page 16. To use a preset workout, The treadmill console offers an impressive array of see page 18. To use the information mode, see features designed to make your workouts more effec- page 19.
-
Page 16: To Turn On The Power
HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power. If you do not See HOW TO TURN ON THE POWER at the left. - Page 17 4. Change the incline of the treadmill as desired. Speed display—This display shows the speed To change the incline of of the walking belt. the treadmill, press the Incline increase and de- crease buttons or one of the numbered incline To reset the displays, press the Stop button, re- buttons.
- Page 18 HOW TO USE A PRESET WORKOUT segment, a series of Current Segment tones will sound and the 1. Insert the key into the console. next segment of the pro- file will begin to flash. If a See HOW TO TURN ON THE POWER on page 16. different speed or incline setting is programmed for 2.
- Page 19 THE INFORMATION MODE HOW TO USE THE STEREO SOUND SYSTEM The console features an information mode that keeps To play music or audio books through the console’s track of the total number of hours that the treadmill has stereo speakers, you must connect your MP3 player, been used and the total distance that the walking belt CD player, or other personal audio player to the con- has moved.
-
Page 20: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord. -
Page 21: To Lower Treadmill For Use
HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. It may be neces- sary to push the frame forward as you pull the knob to the left. -
Page 22: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, see the back cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 23 Remove the three #8 x 3/4" Screws (1) and care- fully pivot the Motor Hood (60) off. Locate the Reed Switch (71) and the Magnet (45) on the left side of the Pulley (46). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and 1/8 in.
- Page 24 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 25: Exercise Guidelines
EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy. -
Page 26: Part List
PART LIST—Model No. 831.24855.0 R0508A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description #8 x 3/4" Screw Frame #8 x 1/2" Screw Left Rear Foot #8 x 1/2"... -
Page 27: Ordering Replacement Parts
Key No. Qty. Description Key No. Qty. Description Key Plate #8 x 1 1/2" Screw Console Clamp – 8" Blue Wire, M/F Right Tray – 10" Blue Wire, 2F Right Handrail – 12" Red Wire, M/F Handrail Cap – 10" Black Wire, M/F Crossbar –... -
Page 28: Exploded Drawing
EXPLODED DRAWING A—Model No. 831.24855.0 R0508A... - Page 29 EXPLODED DRAWING B—Model No. 831.24855.0 R0508A...
- Page 30 EXPLODED DRAWING C—Model No. 831.24855.0 R0508A...
- Page 31 EXPLODED DRAWING D—Model No. 831.24855.0 R0508A...
-
Page 32: 90 Day Full Warranty
Get it fixed, at your home or ours! Your Home For repair—in your home—of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
Need help?
Do you have a question about the XP TRAINER 580 and is the answer not in the manual?
Questions and answers

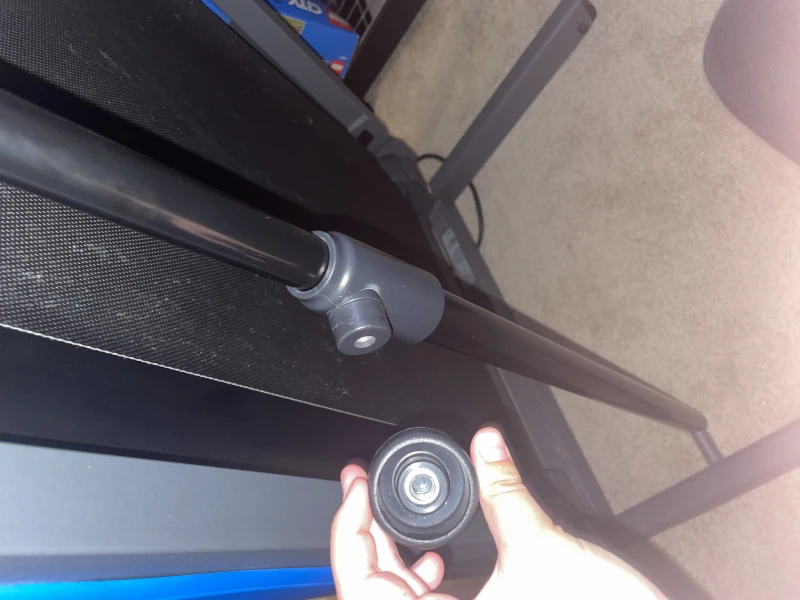

How to safely move treadmill
To safely move a ProForm XP Trainer 580 treadmill:
1. Ensure the treadmill is turned off and unplugged.
2. Exercise extreme caution while moving the treadmill to avoid injury.
3. Avoid attempting to move the treadmill over uneven surfaces.
4. Place one foot against a wheel and carefully lower the treadmill until it is resting in the storage position.
5. Make sure the storage latch is securely holding the frame in place before moving it.
You must be able to safely lift 45 lbs. (20 kg) to move the treadmill.
This answer is automatically generated
Donc i have to grease or put oil soumettre? Merci
Yes, the ProForm XP Trainer 580 treadmill requires periodic greasing with special silicone oils. The amount and frequency of greasing depend on factors like usage, location, and type of grease used.
This answer is automatically generated
Est ce que je dois graisser ou mettre de l'huile à quelque part?
Belt squeaks when in use, how can I fix it?
The manual does not explicitly mention fixing a squeaking belt. However, since the underside of the walking belt is coated with high-performance lubricant, a squeaking belt may indicate the need for lubrication. You can try applying a treadmill lubricant under the walking belt. Additionally, ensure the belt is properly tightened using the provided instructions for adjusting the idler roller bolts. If the issue persists, consult the back cover of the manual for further troubleshooting.
This answer is automatically generated
Power and lights all turn on but the treadmill itself doesn't move when we press GO or any of the other commands. Tried turning the Reset button off and then back on but it made no difference.
If the ProForm XP Trainer 580 treadmill powers on but does not move when the GO button is pressed, try the following solutions:
1. Check the Key – Ensure the key is properly inserted into the console.
2. Reset the Circuit Breaker – If the reset/off circuit breaker has tripped, wait for five minutes and press the switch back in.
3. Power Cord Connection – Make sure the power cord is plugged in. If it is, unplug it, wait for five minutes, and then plug it back in.
4. Reinsert the Key – Remove the key from the console and insert it again.
If the treadmill still does not run, refer to the manual for further troubleshooting.
This answer is automatically generated
The carpet is moving to the left. How do you adjust it back to the right side?
Where is the carpet tension located
