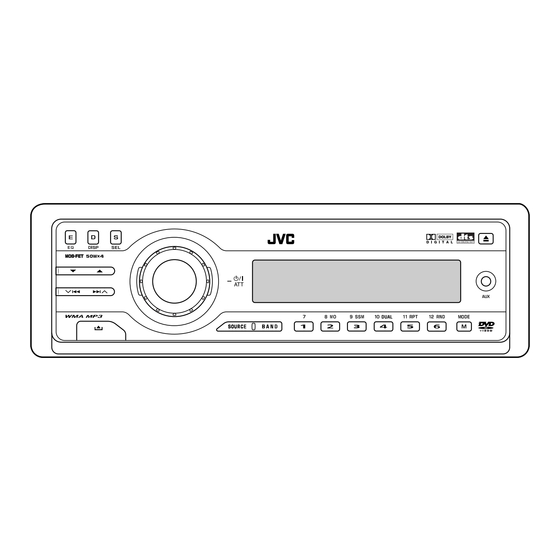

JVC KD-DV6206 Instructions Manual
Dvd/cd receiver
Hide thumbs
Also See for KD-DV6206:
- Installation & connection manual (6 pages) ,
- Installation and connection manual (4 pages)
Related Manuals for JVC KD-DV6206
Summary of Contents for JVC KD-DV6206
- Page 1 DVD/CD RECEIVER KD-DV6206/KD-DV6205 For canceling the display demonstration, see page 11. For installation and connections, refer to the separate manual. INSTRUCTIONS GET0383-004A...
-
Page 2: How To Reset Your Unit
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. - Page 3 WARNINGS: This product incorporates copyright protection technology that is protected • DO NOT install any unit in locations by U.S. patents and other intellectual where; property rights. Use of this copyright – it may obstruct the steering wheel and protection technology must be authorized gearshift lever operations, as this may by Macrovision, and is intended for home result in a traffic accident.
-
Page 4: How To Read This Manual
How to read this manual How to use the M MODE button • Some related tips and notes are explained in If you press M MODE, the unit goes into “More about this unit” (see pages 44 – 47). functions mode, then the number buttons and 5/∞... -
Page 5: Table Of Contents
Contents Other disc operations ..... 29 How to reset your unit ......How to forcibly eject a disc ....Basic operations ........29 How to read this manual ......Changing the display information ..30 How to use the M MODE button ... Selecting the playback modes .... -
Page 6: Introduction - Playable Discs
Introduction — Playable discs Discs you can play Caution for DualDisc playback You can play back the following discs (12 cm The Non-DVD side of a “DualDisc” does not and 8 cm) on this unit: comply with the “Compact Disc Digital Audio” •... -
Page 7: Control Panel
Control panel Parts identification Display window 1 5 (up) / ∞ (down) buttons Display window • Function as Play / Stop buttons for DVD a Disc information indicators— and VCDs. TAG (ID3 Tag), (folder), (track/file) 2 E EQ (equalizer) button s Main display 3 D DISP (display) button d Source display / Volume level indicator... -
Page 8: Remote Controller
• To prevent the battery from over-heating, 1 Monitor control buttons cracking, or starting a fire: • Used for a JVC monitor—KV-MR9010 – Do not recharge, short, disassemble, or KV-MH6510. heat the battery, or dispose of it in a fire. - Page 9 4 BAND button t RETURN button* y Special function buttons • Selects the FM/AM bands. 5 TOP M (menu) button* • DVD: Selects audio language ( • Shows the DVD and VCD* disc menu. subtitles ( ), angle ( 6 DUAL button •...
-
Page 10: Getting Started
Select “CD-CH” when using an Apple Adjust the sound as you want. iPod ® or a JVC D. player (see page 36). (See pages 33 and 34.) You cannot select some sources if they are not ready or not connected. -
Page 11: Canceling The Display Demonstrations
Canceling the display Setting the clock demonstrations If no operations are done for about 20 seconds, display demonstration starts. [Initial: DEMO ON]—see page 35. Set the hour and minute. 1 Select “CLOCK H” (hour), then adjust the hour. 2 Select “CLOCK M” (minute), then adjust the minute. -
Page 12: Radio Operations
Radio operations Listening to the radio To tune in to a station manually In step ! on the left column... Ÿ Selected band appears. 2 Select a desired station frequency. Lights up when receiving an FM stereo broadcast with sufficient signal strength. Start searching for a station. -
Page 13: Storing Stations In Memory
When an FM stereo broadcast is hard to Storing stations in memory receive You can preset six stations for each band. FM station automatic presetting — SSM (Strong-station Sequential Memory) Select the FM band (FM1 – FM3) Lights up when monaural mode is activated. you want to store into. -
Page 14: Listening To A Preset Station
Manual presetting Listening to a preset station Ex.: Storing FM station of 92.5 MHz into preset number 1 of the FM1 band. Select the preset station (1 – 6) you want. When using the remote controller..Preset number flashes for a while. To check the current clock time while listening to an FM or AM station * If no title is assigned to a station, “NO... -
Page 15: Disc Operations
Disc operations Playing a disc in the unit The disc type is automatically detected, and Before performing any operations, make playback starts automatically (for DVD: sure the following..automatic start depends on its internal program). • To watch the playback pictures, select the an appropriate video system (NTSC or PAL) to If the current disc is an audio CD, CD Text, match it to the connected monitor. - Page 16 • When inserting a DVD disc: • When inserting a VCD: Total title number Total playing time Total track number of the inserted disc of the inserted disc Elapsed playing time Elapsed playing time Current chapter number • When inserting an MP3/WMA disc: •...
-
Page 17: Basic Operations
Basic operations Operations Display indication and/or next operation To stop play temporarily “PAUSE” illuminates on the display. A still picture appears. A Frame by frame playback B Slow motion playback • No sound comes out during Slow Motion Playback. • When playing a VCD, Reverse Slow Motion Playback is prohibited. - Page 18 To go to the next or previous To locate a particular title/chapter/ chapters/tracks track directly • For DVD: During play or pause • For DVD: During play or pause—select a chapter. During stop—select a title. To the following • For VCD: While PBC (see page 20) is not chapters/tracks.
-
Page 19: Dvd/Vcd Special Functions
DVD/VCD special functions For VCD: Selecting subtitles You can select the audio channel to play. (This is convenient when playing a You can select the language of the subtitle Karaoke VCD.) to be shown on the monitor. • You can set the initial subtitle language using the setup menu (see page 27). -
Page 20: Disc Menu Operations
Canceling the PBC playback Disc menu operations Menu-driven playback is possible while playing back a DVD with menu-driven features or a VCD with the PBC (PlayBack Control). 2 Select a track to start normal playback using the number buttons (see page 9). While playing a DVD To resume the PBC function A title list or disc menu will appear on the... -
Page 21: On-Screen Disc Operations
On-Screen disc operations 1 Disc type About the On-Screen Bar 2 • Audio signal format type and channel (for You can check the disc information and use DVD and DTS audio CD) some functions through the on-screen bar. • PBC (only for VCD) •... -
Page 22: Basic On-Screen Bar Operations
To erase the on-screen bar Basic on-screen bar operations Display the on-screen bar. • For DVD/VCD: • The selectable options for Repeat/Intro/ Random plays: (twice) Repeat play • For other discs: DVD: CHAP TITLE T02-C03 TOTAL 1:25:58 DVD -V TIME TITLE CHAP REPEAT... - Page 23 To search for a particular point by playing Intro play INTRO time VCD (while PBC is not in use): 1 Select (Canceled) INTRO 2 Enter the elapsed playing time of the current title or of the disc. MP3/WMA: INTRO TRACK INTRO FOLDER (Canceled) CD Text/audio CD:...
-
Page 24: Basic Control Screen Operations
To select a folder or track Basic control screen operations 1 Select “Folder” column or “Track” column on the control screen. You can search for and play the desired items through the control screen. • The control screen automatically appears on the monitor when you insert a disc. -
Page 25: List Screen Operations
For MP3/WMA: List screen operations While stop..You can display the folder list/track list before Display the folder list. starting play. On this list, you can confirm the Each time you press the button, contents and start playing a disc. the list screen comes on and goes off. -
Page 26: Dvd Setup Menu
DVD setup menu You can store the initial disc playback status. • While playing, no change can be made on the setup menu. Basic setting procedure While stop... Select an option. Ex.: When selecting the “AUDIO” menu To set other items on the same menu Select an item you want to set up. - Page 27 LANGUAGE menu Item Contents MENU LANGUAGE Select the initial disc menu language. AUDIO LANGUAGE Select the initial audio language. SUBTITLE Select the initial subtitle language or erase the subtitle (OFF). ON SCREEN LANGUAGE Select the language for the Setup menu and some indications shown on the monitor.
- Page 28 AUDIO menu Item Contents DIGITAL AUDIO OUTPUT Select the signal format to be emitted through the DIGITAL OUT (Optical) terminal on the rear. For details, see page 47. • PCM ONLY : Select this when connecting an amplifier or a decoder incompatible with Dolby Digital, DTS, MPEG Audio, or connecting to a recording device.
-
Page 29: Other Disc Operations
Other disc operations To go to the next or previous folders In this section, you can learn how to use the buttons on the control panel in order to operate the DVD/CD player. Basic operations To next folders. To previous folders. To stop playback To locate a particular title/chapter/ folder/track directly... -
Page 30: Changing The Display Information
To go to a chapter/track quickly Prohibiting disc ejection You can lock a disc in the loading slot. • For DVD: During play or pause. • For VCD: While PBC (see page 20) is not in use. • For MP3/WMA: Select a track within the same folder. -
Page 31: Selecting The Playback Modes
Selecting the playback modes You can use only one of the following playback modes at a time. Select your desired playback mode. Mode Plays repeatedly Repeat play CHP RPT* : The current chapter. • RPT lights up. • For DVD: During play or pause. TIT RPT* The current title. -
Page 32: Dual Zone Operations
Dual Zone operations Operate the DVD/CD player using Listening with headphones the remote controller by referring to the monitor screen. By connecting headphones to the 2nd AUDIO OUT plug on the rear, you can listen to the playback sound through the To cancel Dual Zone operations, repeat step 1. -
Page 33: Sound Adjustments
Sound adjustments Selecting preset sound modes You can select a preset sound mode suitable to Indication pattern for each sound mode: the music genre. Ex.: When “ROCK” is selected Repeat steps to adjust the Storing your own sound other frequency bands. adjustments Store the adjustments in the You can adjust the sound modes and store your... -
Page 34: Adjusting The Sound
Indication To do: Range Adjusting the sound FAD* Adjust the front (fader) and rear speaker (Rear only) You can adjust the sound characteristics to your balance. preference. (Front only) Adjust the left (balance) and right speaker (Left only) balance. (Right only) LOUD Boost low and LOUD ON... -
Page 35: General Settings - Psm
General settings — PSM Adjust the PSM item selected. Basic procedure You can change PSM (Preferred Setting Mode) items listed in the table that follows. Repeat steps to adjust the other PSM items if necessary. Select a PSM item. Finish the procedure. Ex.: When you select “DIMMER”... - Page 36 Indications Selectable settings, [reference page] SCROLL* ONCE : [Initial]; Scrolls the track information once. Scroll AUTO : Repeats scrolling (5-second interval in between). : Cancels. • Even if “SCROLL” is set to “OFF,” you can scroll the display by pressing D DISP for more than one second. WOOFER : Frequencies lower than 80 Hz are sent to the Subwoofer cutoff...
-
Page 37: Title Assignment
Title assignment 2 Move to the next (or previous) You can assign titles to station frequencies and CDs (both in this unit and in the CD changer). character position. Maximum number of Sources characters FM/AM tuner Up to 8 characters (up to 3 Repeat steps 1 and 2 until you 30 station frequencies) finish entering the title. -
Page 38: Cd Changer Operations
CD changer operations Playing discs in the CD changer About the CD changer It is recommended to use the JVC MP3- compatible CD changer with your unit. • You can also connect MP3-incompatible CD changers. However, these units are not compatible with MP3 discs. - Page 39 To fast-forward or reverse the track • When the current disc is an MP3 disc: Current disc number Fast-forwards. Reverses. Folder name To go to the next or previous tracks Current folder number To the following tracks. Disc information appears automatically (see page 40).
-
Page 40: Changing The Display Information
While playing an MP3 disc • When “TAG DISP” is set to “TAG ON” (see page 36) First time you press 5 or ∞ button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. -
Page 41: Selecting The Playback Modes
Selecting the playback modes You can use only one of the following playback modes at a time. Select your desired playback mode. Mode Plays repeatedly Repeat play TRK RPT: The current track. • RPT lights up. FLDR RPT*: All tracks of the current folder. •... -
Page 42: External Component Operations
External component operations Playing an external component You can connect an external component to... Ÿ • CD changer jack on the rear using: Turn on the connected component – Interface adapter for iPod ® —KS-PD100 and start playing the source. (not supplied) for controlling iPod. -
Page 43: Maintenance
Maintenance How to clean the connectors To keep discs clean Frequent detachment will deteriorate the A dirty disc may not play correctly. connectors. If a disc does become dirty, wipe To minimize this possibility, periodically wipe it with a soft cloth in a straight line the connectors with a cotton swab or cloth from center to edge. -
Page 44: More About This Unit
More about this unit Basic operations Playing a DVD-R/-RW, +R/+RW or CD-R/-RW Turning on the power • Use only “finalized” discs. • By pressing SOURCE on the unit, you can • This unit can play back only the files of the also turn on the power. - Page 45 Playing an MP3/WMA disc • This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO • This unit can play back MP3/WMA files format. with the extension code <.mp3> or <.wma> – MP3 files encoded in an inappropriate (regardless of the letter case—upper/lower).
- Page 46 General settings—PSM Title assignment • If you change the “AMP GAIN” setting from • If you try to assign titles to more than 30 “HIGH PWR” to “LOW PWR” while the stations or 30 CDs, “NAMEFULL” flashes volume level is set higher than “VOL 30,” the on the display.
- Page 47 About sounds reproduced through the On-screen guide icons rear terminals During play, the following guide icons may appear for a while on the monitor. • Through the analog terminals (Speaker out/LINE OUT/2nd AUDIO OUT): : Appears at the beginning of a scene 2-channel signal is emitted.
-
Page 48: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms Causes Remedies • Sound cannot be heard The volume level is set to Adjust it to the optimum from the speakers. the minimum level. - Page 49 Symptoms Causes Remedies • Sound and picture are You are driving on rough Stop playback while driving sometimes interrupted or roads. on rough roads. distorted. Disc is scratched. Change the disc. Connections are incorrect. Check the cords and connections. • No playback picture Parking brake wire is not See Installation/Connection (DVD, VCD) appears on...
- Page 50 Symptoms Causes Remedies • A longer readout time is Readout time varies due to Do not use too many required. the complexity of the folder/ hierarchies and folders. file configuration. • Tracks cannot be played Playback order is determined back as you have intended when the files are recorded.
-
Page 51: Specifications
Specifications AUDIO AMPLIFIER SECTION DVD/CD PLAYER SECTION Maximum Power Output: Signal Detection System: Non-contact optical Front: 50 W per channel pickup (semiconductor laser) Rear: 50 W per channel Number of Channels: 2 channels (stereo) Continuous Power Output (RMS): Frequency Response: Front: 19 W per channel into 4 Ω, 40 Hz DVD, fs=48 kHz/96 kHz: 16 Hz to 22 000 Hz to 20 000 Hz at no more than 0.8%... - Page 52 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit © 2006 Victor Company of Japan, Limited 0306DTSMDTJEIN...
- Page 53 • Be sure to ground this unit to the car’s chassis again after installation. Notes: • Replace the fuse with one of the specified rating. If the fuse blows frequently, consult your JVC car audio dealer. Washer (ø5) Crimp connector •...
-
Page 54: Installation (In-Dash Mounting)
INSTALLATION (IN-DASH MOUNTING) The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits. • If you are not sure how to install this unit correctly, have it installed by a qualified technician. -
Page 55: Electrical Connections
ELECTRICAL CONNECTIONS Typical connections Before connecting: Check the wiring in the vehicle carefully. Incorrect connection may cause serious damage to this unit. The leads of the power cord and those of the connector from the car body may be different in color. Connect the colored leads of the power cord in the order specified in the illustration below. - Page 56 Required connections for DVD playback Video cord (not supplied) RCA Pin plugs Stereo mini plug When using JVC’s KV-MR9010 and KS-HP2, Rear side connect using a conversioncable of this type (not supplied). Headphones (not supplied) Digital optical cable (not supplied) DIGITAL OUT See “About sounds reproduced...
