Schlage CO-100 User Manual
Core series offline locks
Hide thumbs
Also See for CO-100:
- User manual (12 pages) ,
- Installation instructions manual (8 pages) ,
- Installation instructions manual (8 pages)
Related Manuals for Schlage CO-100
Summary of Contents for Schlage CO-100

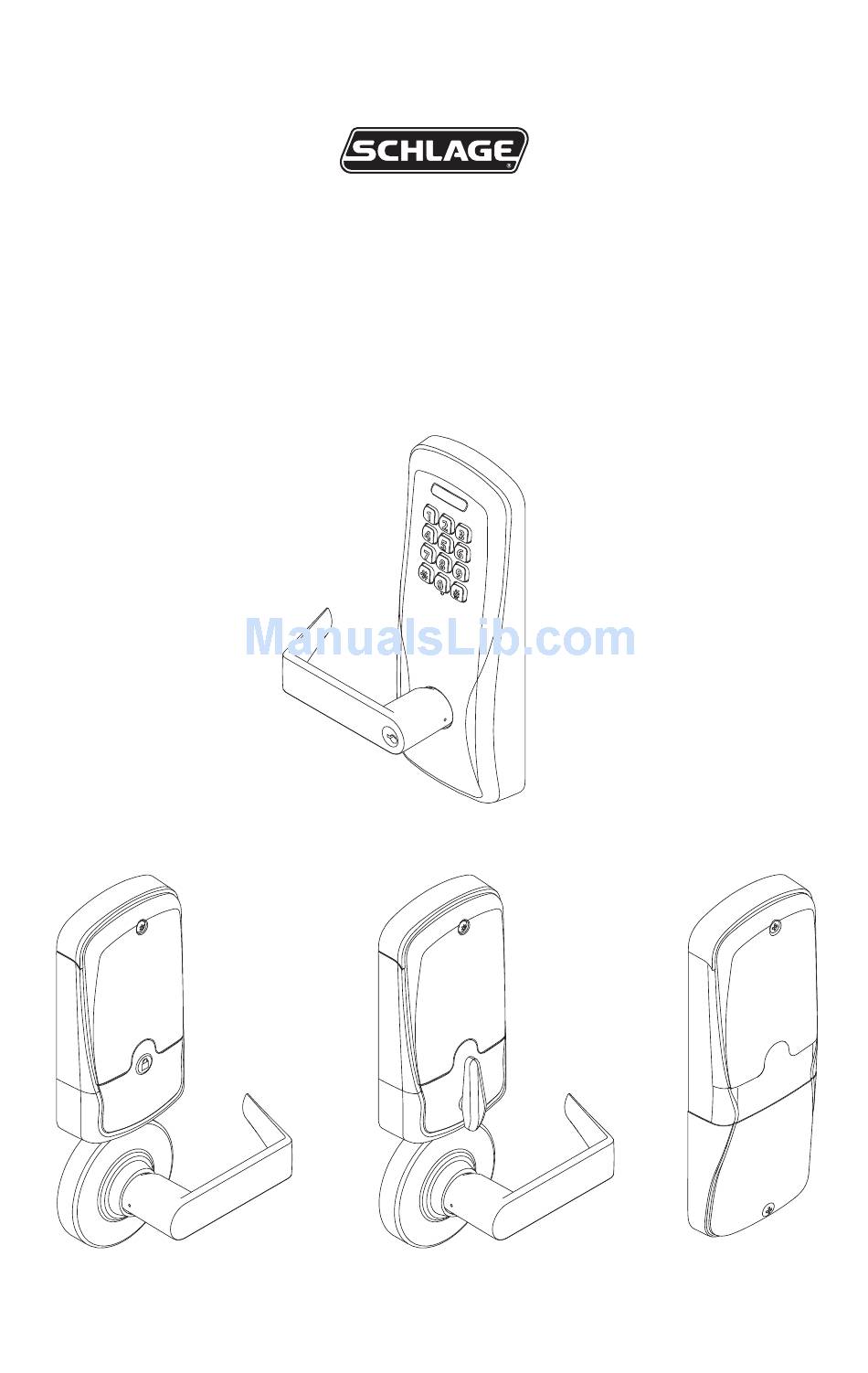

- Page 1 P516-270 CO-100 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR CORE SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.
-
Page 2: Table Of Contents
CO-100 Offl ine Lock User Guide CONTENTS Overview ............................3 Getting Started ..........................4 Construction Access Mode ......................4 Manual Lock Programming ......................5 Credential Types ........................5 Programming Legend ........................ 5 Manual Programming Commands ..................... 6 Using the Lock ..........................7 Error Codes ........................... -
Page 3: Overview
CO-100 Offl ine Lock User Guide OVERVIEW The Schlage CO-100 is an off-line electronic lock in the CO-Series product line. • Two factory-confi gured functions are available: 1) Classroom/Storeroom, and 2) Offi ce. • The lock is powered by four (4) AA batteries. See Batteries on page 9 for more information. -
Page 4: Getting Started
• To test, enter the default PIN (13579 and “ # ”). the lock has already been programmed. • The Schlage button will blink and the lock will unlock. If the new PIN is not known, or to put the lock back into construction access •... -
Page 5: Manual Lock Programming
CO-100 Offl ine Lock User Guide MANUAL LOCK PROGRAMMING Left LED Right LED Credential Types Credential Type Function Description Default PIN Used to program the lock – does not Programming Five-digit code 97531 and unlock the lock Normal Use Unlocks the lock... -
Page 6: Manual Programming Commands
Commands are confi rmed by fi ve alternating green blinks of the Schlage button. The right LED on the Schlage button will blink green to indicate an incorrect entry. To interpret blink patterns, refer to Error Codes on page 7. -
Page 7: Using The Lock
If the PIN credential is entered incorrectly, press “ to start over. ” ERROR CODES All error codes are indicated on the Schlage button by a solid red LED and a blinking green LED. The number of green blinks indicates the error code. Number of Error Code Description Green Blinks Computer programming error (not complete). -
Page 8: Resetting To Factory Defaults
If the Schlage button is not pressed 3 times within 10 seconds, two beeps and two red blinks indicate timeout. 8. Replace the top inside cover. To test, enter 13579 and “#”. The Schlage button will blink and the lock will unlock. -
Page 9: Batteries
CO-100 Offl ine Lock User Guide BATTERIES Installing or Replacing Batteries 1. Remove the battery cover. 2. Remove the Battery Bracket. 3. Install the new batteries. Observe polarity. (Install only new AA Alkaline batteries.) 4. Install the Battery Bracket. 5. Connect the batteries. -
Page 10: Led Reference
CO-100 Offl ine Lock User Guide LED REFERENCE Schlage Button Condition Lights Access denied 2 red blinks Factory default reset One-second solid green with one-second beep Low battery indicator, AA batteries 9 left red blinks Momentary unsecured access 1 green blink, then one red blink on relock... - Page 11 CO-100 Offl ine Lock User Guide...
- Page 12 © 2010 Ingersoll-Rand Company P516-270 ENG online Rev. 08/10-b...
