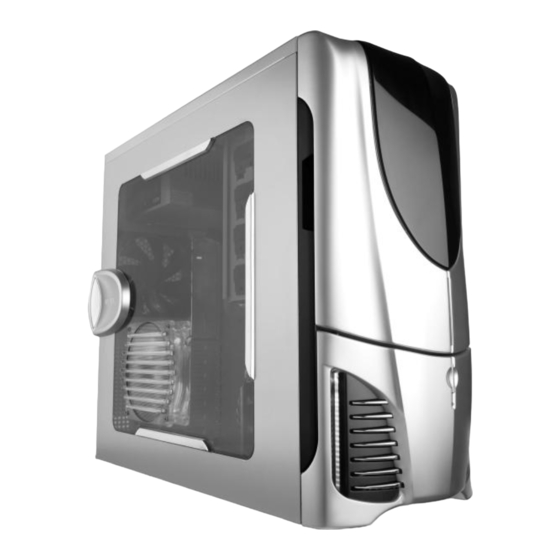

- Page 1 APOLLO User’s manual...
- Page 3 Dear Valued Customers, Thank you for purchasing our product. With the booming of the gaming market and computer cases, NZXT would like to differentiate ourselves from other case companies by continuously providing innovative next generation cases. With every product, we hope to break more boundaries and limits.
- Page 4 Apollo Specifications FEATURES: Steel built chassis Efficient and quiet cooling through two included 120mm fans Screwless design Support for Firewire, USB 2.0 and front audio ports Compatible with 5.25” LCD devices, allows viewing through Smoked acrylic Durable, front panel hinges built using aluminum die cast...
-
Page 5: Before Beginning
Motherboard Installation The Apollo supports the following motherboard: ATX, BABY AT, MINI ATX, and MICRO ATX. The Index for the standoff holes are as follows. ( Imprinted on the motherboard tray are serial numbers that... -
Page 6: Led, Power And Reset Installation
The HDD LED located on the front panel should flash red when there is activity in the hard drive. (Orange/White, +/-) 4. The NZXT Apollo power LED has two connections, one four pin Molex connector and a two pin P LED connection. - Page 7 Front Audio Ground AGND L-OUT Front Left Channel Audio Signal Line out_L R-OUT Front Right Channel Audio Signal Line out_R BLINE Line L-RET Rear Left Channel Audio Signal out_L BLINE Line R-RET Rear Right Channel Audio Signal out_R NZXT. 5...
- Page 8 ASUS© Motherboard Pin Assignment 5.25” Screwless Drive Bay Installation 1. The NZXT Apollo comes with a lock on screw less drive cage design so you can easily pull out and replace drives. For the 5.25” devices, match the screw hole of your drive with the drive bay holder and make sure the device is where you want it.
-
Page 9: Hard Drive Installation
5. After installation, the user may use screws to secure the device. Hard Drive Installation The Apollo allows space for four internal 3.5” Devices such as hard drives. Three of the four drives run on screwless slides. Please follow the instructions below: 1. - Page 10 Front 12CM Fan Installation The Apollo allows one 120mm to be installed at the front of the case, in order to install the fan, please follow these instructions. 1. Remove the front panel by pulling from the opening at the bottom of the case.
-
Page 11: Support And Service
You may inquire about replacement parts at rma@nzxt.com. Thank you again for purchasing an NZXT case. If you have any more comments or questions. Please visit our website or send us an email.
