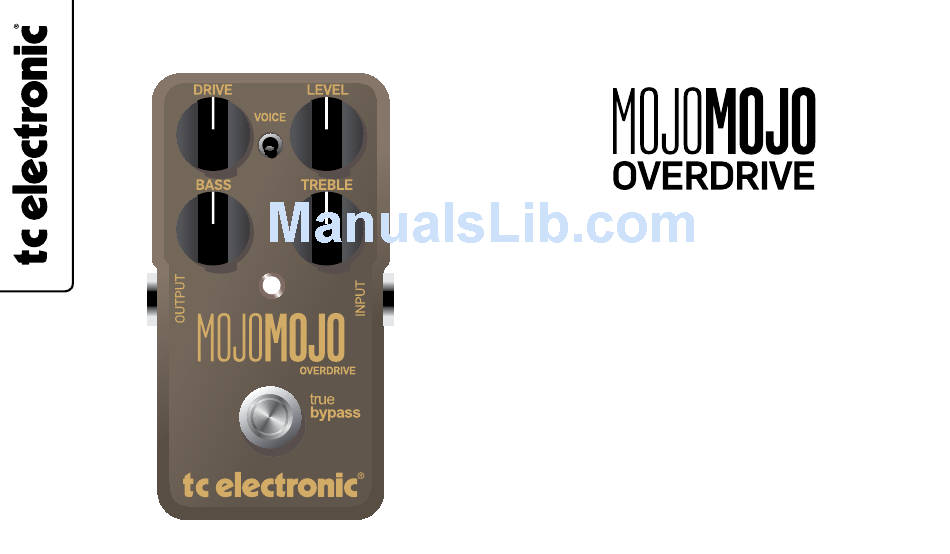

- Page 1 USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions Warning! • To reduce the risk of fire or electrical shock, do not 1 Read these instructions. expose this equipment to dripping or splashing and ensure 2 Keep these instructions. that no objects filled with liquids, such as vases, are 3 Heed all warnings. placed on the equipment. 4 Follow all instructions. - Page 3 These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses and can radiate radio frequency energy and – if not installed and used in accordance with the instructions – may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 4: (En) Introduction
(EN) Introduction Congratulations! You have just bought an Overdrive pedal that will breathe life, magic and that certain something into your sound and make your playing stand out. Guitarists everywhere are always looking for that little extra push over the cliff, a touch of magic to their tone that gives just that bit more bite, body and tone. - Page 5 1 - Effect on/off (true bypass) 2 - 1/4 inch mono jack input 3 - 1/4 inch mono jack output 4 - Bass control 5 - Treble control 6 - Drive control 7 - Level control 8 - Voice selector 9 - Power in (9 VDC)
- Page 6 Connecting Input jack - 1/4 inch mono jack input If you run the pedal on battery, we recommend removing the input jack to preserve battery power when you don’t play. Output jack - 1/4 inch mono jack output for connecting to another pedal or directly into an amp or mixer.
-
Page 7: Bass & Treble
The controls BASS & TREBLE Bass/treble controls. Add bass for more punch or roll off a bit for a tighter sound on big cabinets. Add treble to cut through a dense mix or reduce to aim for a softer tone. DRIVE Controls the amount of overdrive. At lower settings, Drive acts as boost and fattens up your tone. At the other end of the scale you will get a smooth singing characteristics. LEVEL Sets the overall level. Voice Type selector Two Voice types are available. With the switch in “up” position, the frequency response is true to the input signal. With the switch in “down” position, the low-end frequencies are naturally boosted. This is excellent where the guitar is allowed to take up a great portion of the sonic spectrum. E.g. for rhythm guitar in a trio. - Page 8 Changing battery – Unscrew the thumb-screw on the back of the pedal and detach the back-plate. Unmount the old battery and attach the new battery to the battery clip making sure the polarity is correct. Then remount the back-plate. To save battery life, remove the input jack when you don’t play. Batteries must never be heated, taken apart or thrown into fire or water. Only rechargeable batteries can be recharged.
- Page 9 (EN) Technical Specifications Sounds Unique overdrive circuit with classic tube-amp characteristics: high headroom, low compression and huge bottom-end. Touch sensitive – control tone and overdrive level by pick attack and your guitars volume knob. Works equally great as a standalone drive, stacked with other pedals or an overdriven amp. Two-band active EQ with separate bass and treble controls. Voice switch for bass response control Size & Weight 72 mm x 122 mm x 50 mm - 300 g (excl. battery) Battery 16mA current draw Non-stop playing Carbon: 6.5 hours, Alkaline: 25 hours.
- Page 10 TC Electronic, Sindalsvej 34, DK-8240 Risskov info@tcelectronic.com...
