reVersing caMera

1
2
operation
When reversing (and up to approxi-
mately 5 seconds after shifting to an-
other gear), a view of the surroundings
to the rear of the vehicle is displayed on
the instrument panel accompanied by

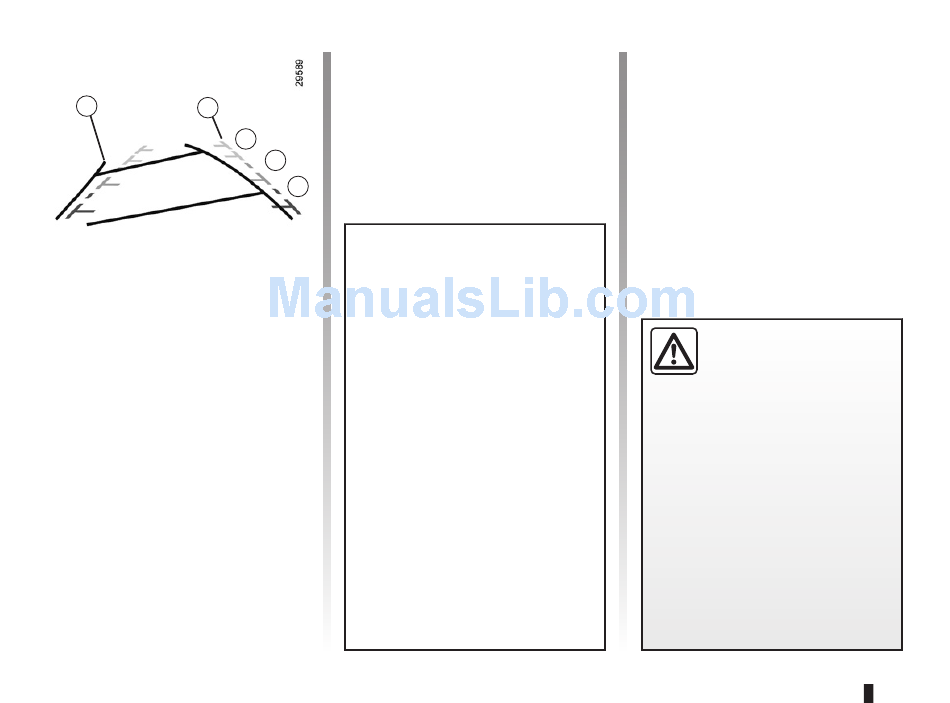

two clearance gauges 1 and 2 (mobile
and fixed) .
note: make sure that the reversing
camera is not obscured (by dirt, mud,
snow, etc .) .
Mobile clearance gauge 1
This is shown in blue on the naviga-
tion screen . It indicates the vehicle tra-
jectory according to the position of the
steering wheel .
40
Fixed clearance gauge 2
The fixed clearance gauge comprises
coloured markers A, B and C indicating
the distance behind the vehicle:
– A (red) approximately 50 centime-
c
tres from the vehicle;
B – B (yellow) approximately 1 metre
from the vehicle;
a
– C (green) approximately 2 to
3 metres from the vehicle;
The screen shows a reverse image .
The frames are a representation
projected onto flat ground; this in-
formation must not be taken into
account when superimposed on a
vertical object or an object on the
ground .
Objects which appear on the edge
of the screen may be deformed .
In very bright light (snow, vehicle in
sunshine etc .), the camera vision
may be adversely affected .
When the tailgate is open or not
closed properly, the message "Boot
open" is displayed on the instrument
panel (risk of incorrect information
on-screen)
While your system is being updated,
the reversing camera will be tempo-
rarily unavailable .
This gauge remains fixed and indicates
the vehicle trajectory if the wheels are
in line with the vehicle .
This system is initially used with the aid
of the gauges (mobile for the trajectory
and fixed for the distance), then when
the red zone is reached, use the rep-
resentation of the bumper to stop ac-
curately .
This function is an additional
aid . It cannot, therefore,
under any circumstances
replace the vigilance or the
responsibility of the driver .
The driver should always pay atten-
tion to sudden incidents during driv-
ing: always ensure that there are no
moving obstacles (such as a child,
animal, pram, bicycle, etc .) or small,
narrow objects such as stones or
posts in your path when manoeu-
vring .
