QuickSpecs

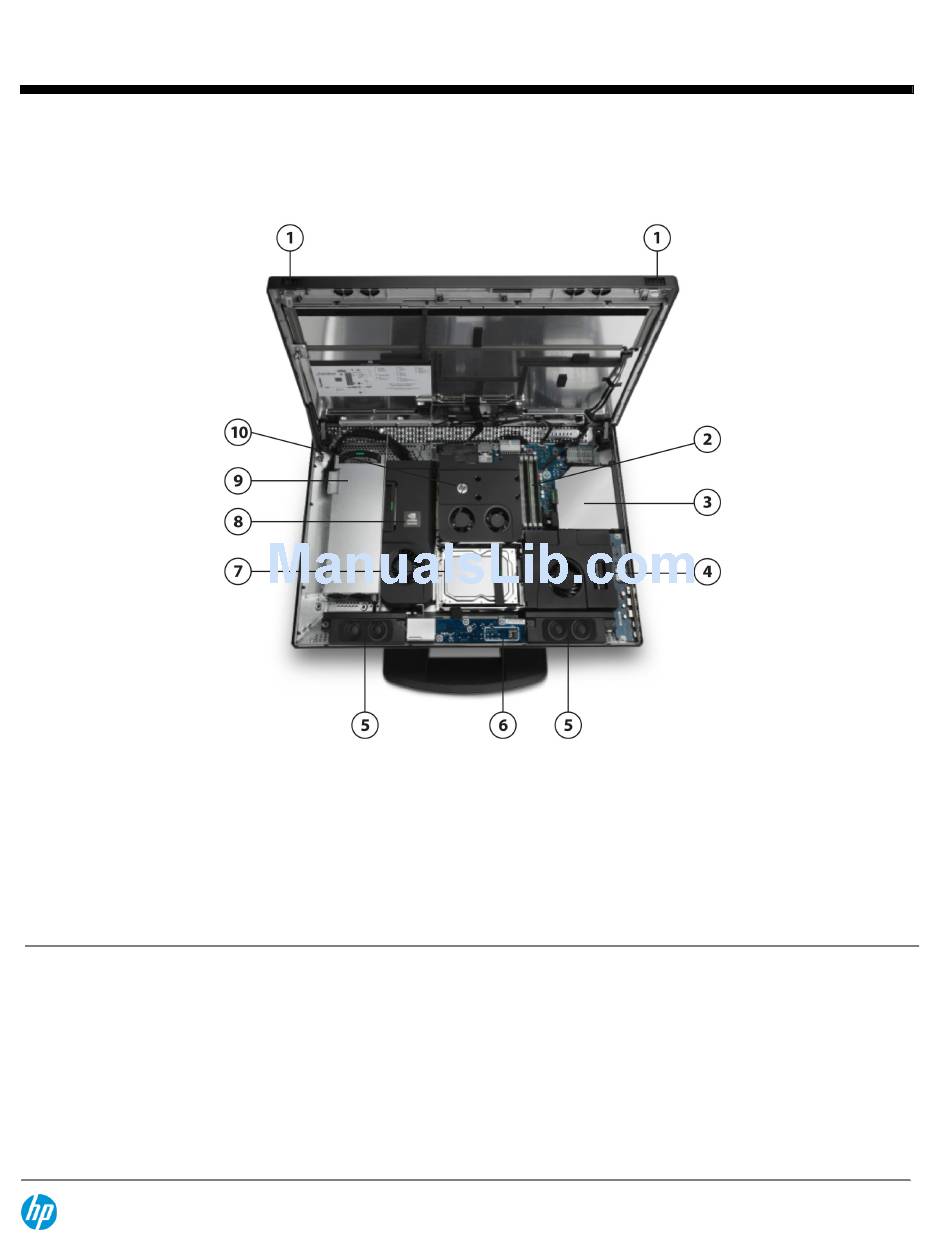

Overview
1. Latches
2. Memory Slots
3. Optical Drive Bay
4. System Blower
5. Front facing speakers
DA - 14263 North America — Version 21 — October 4, 2013
6.
Internal USB 2.0 Port
7.
Hard Drive Bay
8.
MXM graphics
9.
Power supply
10. CPU cooler
HP Z1 Workstation
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Z1

Summary of Contents for HP Z1

  • Page 1 QuickSpecs HP Z1 Workstation Overview 1. Latches Internal USB 2.0 Port 2. Memory Slots Hard Drive Bay 3. Optical Drive Bay MXM graphics 4. System Blower Power supply 5. Front facing speakers 10. CPU cooler DA - 14263 North America — Version 21 — October 4, 2013...
  • Page 2 QuickSpecs HP Z1 Workstation Overview 1. Power Button 5. 4-in-1 Media Card Reader 2. System Activity LED 6. Firewire 1394a 3. Optical Drive Eject Button 7. USB 3.0 (2 ports) 4. Slot load Optical Drive 8. Audio In/Out DA - 14263 North America — Version 21 — October 4, 2013...

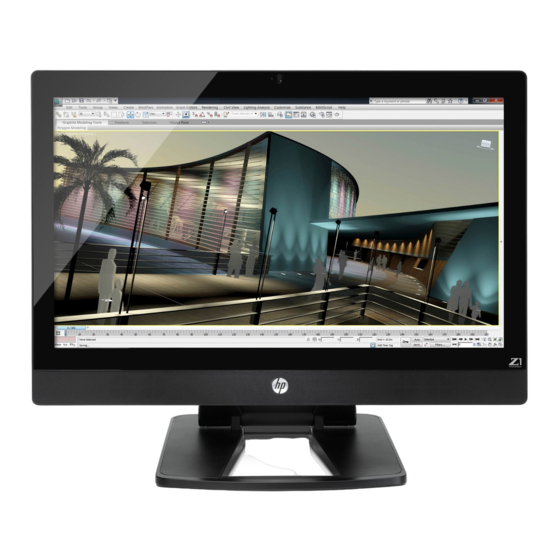

  • Page 3 QuickSpecs HP Z1 Workstation Overview 1. Digital Microphone array 4. Stand 2. HD Webcam 5. 27” LED backlit IPS Display 3. Front Facing Speakers DA - 14263 North America — Version 21 — October 4, 2013 Page 3...
  • Page 4 (RHEL) 5 Workstation, RHEL 6 Workstation, and 64-bit SUSE Linux Enterprise Desktop (SLED) 11. See http://www.hp.com/go/linux for details. NOTE 3: RHEL Desktop is not available as a preinstall from HP. RHEL Desktop is only available as a one- year paper license drop-in-the-box. DA - 14263 North America — Version 21 — October 4, 2013...
  • Page 5 QuickSpecs HP Z1 Workstation Overview NOTE 4: For detailed OS/hardware support information for Linux, see: http://www.hp.com/support/linux_hardware_matrix. Available Processors Clock Intel® Turbo Memory Featuring Hyper- Intel® HD Cache Name Cores Speed Boost Speed Intel® vPro™ Threading Graphics (MB) (GHz) Technology (MHz) Tech-nology Intel®...
  • Page 6 Default Color Temperature: 6500 K Convertibility The Z1 can either be placed on the desktop in the traditional display method or mounted on a wall with the industry standard VESA mount. The VESA mount on the Z1 uses a 100x100 VESA mount pattern.
  • Page 7 QuickSpecs HP Z1 Workstation Overview Chassis Dimensions Standard display orientation WITH stand: 584.2mm x 660.4mm x 419.1mm (23in. x 26in. x 16.5in.); (HxWxD) Standard display orientation WITHOUT stand: 457.2mm x 660.4mm x 81.28mm (18in. x 26in. x 3.2in.) Service/Shipping orientation: 116mm x 660mm x 510mm Weight Exact weights depend upon configuration;...

  • Page 8: Supported Components

    HP ZR2740w 27-inch LED Backlit IPS Monitor HP ZR2440w 24-inch LED Backlit IPS Monitor HP Z Display Z24i 24-inch IPS LED Backlit Monitor HP Z Display Z23i 23-inch IPS LED Backlit Monitor HP Z Display Z22i 21.5-inch IPS LED Backlit Monitor...
  • Page 9 Kit Part Support Configured Number Notes SATA (Serial ATA) Hard Drives for HP Workstations 250GB SATA 7200 rpm 6Gb/s 3.5" HDD 500GB SATA 7200 rpm 6Gb/s 3.5" HDD 1TB SATA 7200 rpm 6Gb/s 3.5" HDD 300GB SATA 10K rpm SFF HDD...
  • Page 10 Option Kit Part Support Notes Number DDR3-1600 ECC Unbuffered DIMMs - CTO HP 32GB (4x8GB) DDR3-1600 ECC RAM HP 16GB (2x8GB) DDR3-1600 ECC RAM HP 16GB (4x4GB) DDR3-1600 ECC RAM HP 8GB (2x4GB) DDR3-1600 ECC RAM HP 8GB (4x2GB) DDR3-1600 ECC RAM...
  • Page 11 QuickSpecs HP Z1 Workstation Supported Components memory. Only unbuffered DDR3 DIMMs are supported. DDR3-1600 ECC Unbuffered DIMMs - AMO HP 8GB (1x8GB) DDR3-1600 ECC RAM A2Z50AA HP 4GB (1x4GB) DDR3-1600 ECC RAM A2Z48AA HP 2GB (1x2GB) DDR3-1600 ECC RAM A2Z47AA...
  • Page 12 BV411AA Input Devices Option Kit Factory Part Support Configured Option Kit Number Notes HP USB Standard Keyboard HP USB 2-Button Optical Scroll Mouse HP Wireless Keyboard and Mouse Other Hardware Option Kit Factory Part Support Configured Option Kit Number Notes...
  • Page 13 NOTE 2: For detailed OS/hardware support information for Linux, see: http://www.hp.com/support/linux_hardware_matrix. NOTE 3: This second OS must be ordered with the HP Linux Installer Kit as the first OS. DA - 14263 North America — Version 21 — October 4, 2013...

  • Page 14: System Board

    SATA Integrated Serial ATA interfaces (2x 6Gb/s SATA, 1x 3Gb/s SATA). Interfaces NOTE: the Z1 supports a maximum of two SATA SFF/SSD drives only. RAID 0 and 1 supported. (Factory integrated RAID is Microsoft Windows only). Integrated RAID NOTE: Requires identical hard drives (speeds, capacity,...
  • Page 15 (2) 40x20 mm variable speed ENERGY STAR Qualified (Configuration dependent) 80 PLUS® Compliant Yes, 90% Efficient The Z1 400W power supply efficiency report can be found at this link: http://www.plugloadsolutions.com/psu_reports/HEWLETT%20PACKARD_650503- 001_ECOS%202720.1_400W_Report.pdf FEMP Standby Power Compliant @115V ErP LOT6 Compliant @ 230V (<0.5 W in S5 - Power Off)
  • Page 16 QuickSpecs HP Z1 Workstation System Technical Specifications System Configuration Example Configuration #1 Processor Info 1xIntel Core i3-2120 Memory Info 2x2GB DDR3 1600 nECC (UDIMM) Graphics Info 1xNVIDIA Q500M Disks/Optical/Floppy 1x250GB SATA/1x16X DVD-ROM SATA Power Supply 400W 90% Custom PSU Other...
  • Page 17 QuickSpecs HP Z1 Workstation System Technical Specifications Off (S5) 3.38 3.00 3.96 3.62 3.34 2.97 Zero Power Mode (EuP) Example Configuration #3 Processor Info 1xIntel Xeon E5-1280 Memory Info 4x8GB DDR3 1600 (UDIMM) Graphics Info 1xNVIDIA Q4000M Disks/Optical/Floppy 2x600GB SATA 10K SFF/1x16X DVD+-RW SuperMulti SATA...
  • Page 18 QuickSpecs HP Z1 Workstation System Technical Specifications System Configuration Processor Info Intel i3-2120 2-core 3.3 GHz (Entry level) Memory Info 2 x 2 GB DDR3 1333 MHz Graphics Info NVIDIA Q1000M MXM Disks/Optical/Floppy 1 x 500 GB 7200 RPM SATA / DVD R/RW dual layer LightScribe...
  • Page 19 QuickSpecs HP Z1 Workstation System Technical Specifications Environmental Temperature Operating: 40° to 95° F (5° to 35° C) Non-operating: -40° to 140° F (-40° to 60° C) Requirements Humidity Operating: 8% to 85% RH, non-condensing Non-operating: 8% to 90% RH, non-condensing...
  • Page 20 System Blower Yes, 110 mm blower HP Advanced System HP Vision Diagnostics utility must be booted from USB or CD, and enables you to perform testing and to view critical computer hardware and software configuration information from various sources. Diagnostics Offline...
  • Page 21 QuickSpecs HP Z1 Workstation System Technical Specifications Trusted Platform Module Chip with optional ProtectTools Software Integrated Chassis Yes, One on top-rear of system Handles Power Supply Tool-less miniPCIe Card Retention Flash ROM Diagnostic Power Switch LED on board Clear Password Jumper...
  • Page 22 QuickSpecs HP Z1 Workstation System Technical Specifications Remote ROM Flash Provides secure, fail-safe ROM image management from a central network console. ACPI (Advanced Allows the system to enter and resume from low power modes (sleep states). Enables an operating system to control system power consumption based on the dynamic workload.

  • Page 23: Hewlett-Packard

    HP sales office. and Recycling Products returned to HP will be recycled, recovered or disposed of in a responsible manner. This product is greater than 90% recyclable by weight when properly disposed of at end of life.

  • Page 24: Additional Information

    ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html Additional Information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Plastic parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.

  • Page 25: Warranty

    HP Care Pack Services extend service contracts beyond the standard warranties. Service starts from date of hardware purchase. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at http://www.hp.com/hps/carepack.
  • Page 26 HP 8GB (4x2GB) DDR3-1600 ECC RAM A2H32AV HP 16GB (4x4GB) DDR3-1600 ECC RAM Optical and Removable Product # Offering Storage A2H18AV HP 8X DVD RW SuperMulti Slot Load Drive Input Devices Product # Offering A2H09AV HP USB Standard Keyboard A2H10AV HP USB Optical Scroll Mouse...
  • Page 27 QuickSpecs HP Z1 Workstation Technical Specifications - Processors Processors Intel® Xeon® processor E3-1280v2, Quad-Core, 8 MB cache, 3.6 GHz, up to 4.0 GHz with Intel Turbo Boost Technology Intel® Xeon® processor E3-1245v2, Quad-Core, 8 MB cache, 3.4 GHz, up to 3.8 GHz with Intel Turbo Boost Technology Intel®...

  • Page 28: Technical Specifications - Hard Drives

    QuickSpecs HP Z1 Workstation Technical Specifications - Hard Drives SATA (Serial ATA) Hard 500GB SATA 10K rpm SFF Capacity 500GB Drives for HP Height 0.6 in; 1.53 cm Workstations Width Media Diameter 2.5 in; 6.36 cm Physical Size 2.75 in; 6.99 cm...
  • Page 29 QuickSpecs HP Z1 Workstation Technical Specifications - Hard Drives Seek Time (typical reads, Single Track 2 ms includes controller Average 11 ms overhead, including Full Stroke 21 ms settling) Rotational Speed 7,200 rpm Logical Blocks 488,397,168 Operating Temperature 41° to 131° F (5° to 55° C)
  • Page 30 QuickSpecs HP Z1 Workstation Technical Specifications - Hard Drives 6Gb/s 3.5" HDD Height 1 in; 2.54 cm Width Media Diameter 3.5 in; 8.9 cm Physical Size 4.0 in; 10.17 cm Interface Serial ATA (6.0Gb/s), NCQ enabled Synchronous Transfer Up to 6.0 Gb/s...
  • Page 31 Rotational Speed 10,000 rpm Logical Blocks 1,172,123,568 Operating Temperature 41° to 131° F (5° to 55° C) HP Solid State Drives for HP 256GB SATA 6Gb/s SSD Capacity 256GB Workstations Height 0.28 in; 0.7 cm Interface SATA 6Gb/s Synchronous Transfer...

  • Page 32: Technical Specifications - Graphics

    QuickSpecs HP Z1 Workstation Technical Specifications - Graphics Integrated Intel HD Form Factor Integrated Graphics Media Graphics Controller Intel Integrated Graphics Media Accelerator HD Accelerators Memory Unified Memory Architecture (UMA) frame buffer. Graphics memory is shared with system memory. Size selectable between 64 MB to 512 MB via BIOS setting.
  • Page 33 Available Graphics Windows 7 32-bit and 64-bit SUSE Linux Enterprise Desktop 11 Drivers HP Linux Installer Kit www.hp.com/go/support for HP supported NVIDIA graphics drivers Power Consumption <35W NVIDA Quadro 1000M 2GB Form Factor MXM v3.0 Type A (82mm x 70mm)
  • Page 34 Windows 8 32-bit and 64-bit Windows 7 32-bit and 64-bit Drivers SUSE Linux Enterprise Desktop 11 HP Linux Installer Kit www.hp.com/go/support for HP supported NVIDIA graphics drivers Power Consumption DA - 14263 North America — Version 21 — October 4, 2013 Page 34...
  • Page 35 Windows 8 32-bit and 64-bit Windows 7 32-bit and 64-bit Drivers SUSE Linux Enterprise Desktop 11 HP Linux Installer Kit www.hp.com/go/support for HP supported NVIDIA graphics drivers Power Consumption 100W DA - 14263 North America — Version 21 — October 4, 2013 Page 35...

  • Page 36: Technical Specifications - Optical And Removable Storage

    QuickSpecs HP Z1 Workstation Technical Specifications - Optical and Removable Storage HP Slot Load DVD+/-RW Description Slim-Line, Slot-load Drive Mounting Orientation Either horizontal or vertical Interface Type SATA Dimensions (WxHxD) 12.7 x 1.2 x 12.9 cm (5 x 0.5 x 5 in)
  • Page 37 QuickSpecs HP Z1 Workstation Technical Specifications - Optical and Removable Storage Load Interface Type SATA Dimensions (WxHxD) 12.7 x 1.2 x 12.9 cm (5 x 0.5 x 5 in) Disc Formats BD-ROM BD-R BD-RE DVD-RAM DVD+R DVD+RW DVD+R DL DVD-R DL...
  • Page 38 SUSE Linux Enterprise Desktop 10 & 11 * No driver is required for this device. Native support is provided by the operating system. Kit Contents HP Blue Laser RW Drive, Roxio Easy Media Creator software, Intervideo WinDVD Software, installation guide. Disclaimer...

  • Page 39: Technical Specifications - Networking And Communications
