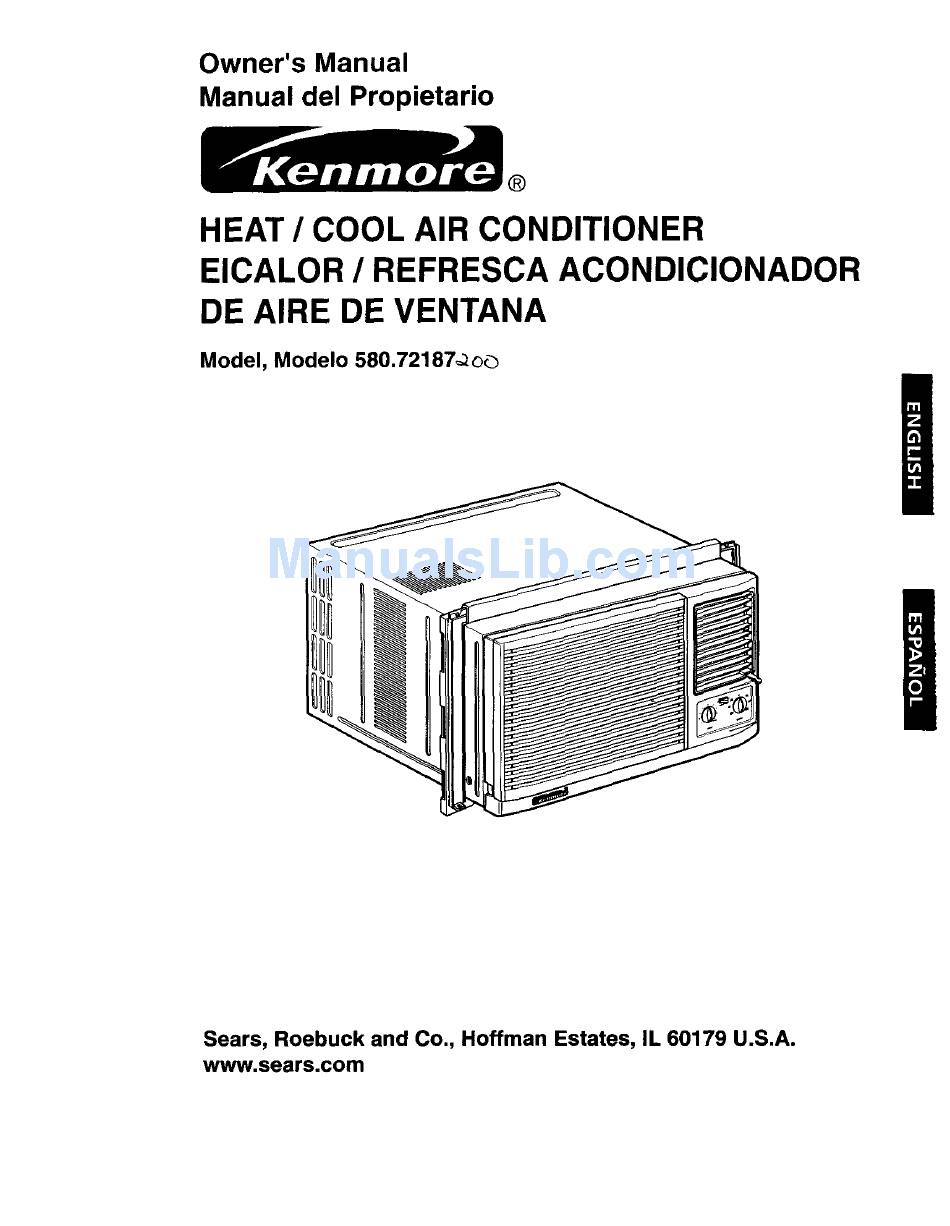

Owner's Manual
Manual del Propietario
®
HEAT / COOL AIR CONDITIONER
EICALOR / REFRESCA ACONDICIONADOR
DE AIRE DE VENTANA
Model, Modelo 580.72187_o_
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

Advertisement

Chapters

Table of Contents
loading

Related Manuals for Kenmore 580.72187200

Summary of Contents for Kenmore 580.72187200

  • Page 1 Owner's Manual Manual del Propietario ® HEAT / COOL AIR CONDITIONER EICALOR / REFRESCA ACONDICIONADOR DE AIRE DE VENTANA Model, Modelo 580.72187_o_ Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Features ................. Using the Air Conditioner ....... 10 WARRANTY ..........2 Display ........... SAFETY .............3 MAINTENANCE ........12 Important Safety Instructions ...... Air Filter Cleaning ........12 ELECTRICAL REQUIREMENTS ..4 Air Conditioner Cleaning ......12 INSTALLATION ........5 How to Replace the Front Grille ....

  • Page 3: Safety

    IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself or damage to your ROOM AIR CONDITIONER. FOR YOUR SAFETY Do not store or use gasoline or other flammable _void fire hazard or electric shock.

  • Page 4: Electrical Requirements

    OBSERVE ALL LOCAL CODES AND _WARNING ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVETHEPOWERSUPPLYCORD GROUND PRONG. ELECTRICAL GROUNDIS REQUIRED ON THIS APPLIANCE. A 250-volt 60 Hz, AC only, 20A fused and Electrical Shock Hazard properly grounded electrical supply is required. Plug into a grounded 3 prong outlet. A time delay fuse or time delay circuit breaker Do not remove ground prong.

  • Page 5: Installation

    INSTALLATION HARDWARE INSTALLATION REQUIREMENTS Your air conditioner will install into standard double hung windows with actual clear opening widths of 29 to 41 inches (737mm to 1041mm) (FIG. 1) Lower sash must open sufficiently to allow a clear vertical opening of 18 inches (457mm). Side louvers and the rear of the air conditioner must have clear air space to allow enough airflow through the condenser for heat removal.

  • Page 6: Installation

    INSTALLATION Insert the side curtain (ITEM A) intothe upper guide and lower guide of the air conditioner. Fasten the curtains Pick a location which will allow you to blow the cold air to the unit with screws (ITEM E). into the area you want. Windows used for installation must be strong enough to support the weight of the air Uppe conditioner.
  • Page 7 Pull the bottom window sash down behind the • Connect a drain elbow of 9/16" inside diameter to the drain pipe. upper guide until they meet. • Connect a drain hose of 9/16" inside diameter to the NOTE: drain elbow. (Drain hose is not supplied.) •...

  • Page 8: Removal From Window

    FRONT INSTALLATION Top of wood strip should be approximately 3/4" higher than the storm window frame to help Install the front grille (packed separately) onto the condensation to drain properly to the outside. cabinet as fellows: • Install a second wood strip (approximately 6" long by •...

  • Page 9: Operation

    HOW AND WHY Your room air conditioner provides the following You may hear air functions to make hot weather living more movement from the comfortable: fan. • Cools and circulates room air. Unit Vibration Compressor • Lowers humidity by removing excess moisture. The unit may vibrate The modern high •...

  • Page 10: Features

    FEATURES USING THE AIR CONDITIONER reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY instructions section before operating this appliance TO begin operating the air conditioner after installation, follow these steps: 1. Plug in the air conditioner. (To prevent electrical hazards, do not use an extension cord or an adapter plug.) 2.

  • Page 11: Display

    AIR CONDITIONER FEATURES The controls featured in this manualare representative of the many models available. Your model may lookslightly different. O. On Auto Swing ONLY ONLY Turn off Auto Swing When0peralion Switch isoff NEAT COOL I__H_I HEAT COOL COOLER TEMP MODE TEMP Auto Swing...

  • Page 12: Maintenance

    HOW TO REMOVE THE AIR FILTER CLEANING FRONT GRILLE The Air Filter wNI become dirty as it removes dust from the inside air. It should be washed at least • Open the inlet grille downward. every 2 weeks. If the Air Filter remains full of dust, the air flow will decrease and the cooling capacity •...

  • Page 13: Troubleshooting

    BEFORE CALLING FOR SERVICE Check the following list to be sure a service call is really necessary. A quick reference to this manual may help you avoid an unneeded service call. THE AIR CONDITIONER WILL NOT OPERATE Check if... Then... Wall plug disconnected.

  • Page 14: Repair Parts

    Room Air Conditioner To order Parts call Toll Free Model No. 580.72187200 1-800-4-MY-HOME®(1-800-469-4663) CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASSEMBLY 7-A_ 12/01 - 14 -...
  • Page 15 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASSEMBLY ILLUSTRATION NUMBER PART NUMBER DESCRIPTION 1 - A 3530AR1182A FRONT GRILLE 2 - A 3530AR1531A INLET GRILLE 3 - A 5230AR1327A...
  • Page 16 580,72187200 CAUTION: Use the Kenmore part number on all orders, no_._Jt the illustration number. CONTROL BOX ASSEMBLY 10-B 16-B 4-B - 3-B 13-B 11-t3 15-B 12/01 -16-...
  • Page 17 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CONTROL BOX ASSEMBLY ILLUSTRATION NUMBER PART NUMBER DESCRIPTION 1 - B 4994AR1587A CONTROL BOX 2 - B 2H01127B THERMOSTAT 3 - B 2H00598F ROTARY SWITCH 4 - B...
  • Page 18 580.72187200 CAUTIQN: Use the Kenmore part number on all orders, not the illustration number. AIR HANDLING & CYCLE PARTS 15-C 21-C 16-C 13-C 14-C 11-C 22-C 12/01 - 18 -...
  • Page 19 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. AIR HANDLING & CYCLE PARTS ILLUSTRATION NUMBER PART NUMBER DESCRIPTION 1 - C 3041A30002K BASE PAN WELD ASSEMBLY 2 - C 5238AR1584B AIR GUIDE 3 - C...
  • Page 20 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. COMPRESSOR PARTS 12-D 15-D © 11-D 12/01 - 20 -...
  • Page 21 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. COMPRESSOR PARTS ILLUSTRATION NUMBER PART NUMBER DESCRIPTION 1- D 4H00982C ANTI-VIBRATION BUSHING 2- D 5416A20003J COMPRESSOR ASSEMBLY 4H01811C BRACKET, WASHER 4- D 1NHA0801206 HEXAGON NUTS 5- D...
  • Page 22 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. INSTALLATION KIT ASSEMBLY 12/01 - 22 -...
  • Page 23 580.72187200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. INSTALLATION KIT ASSEMBLY ILLUSTRATION NUMBER PART NUMBER DESCRIPTION 1 - E 4H01785B L BRACKET 2 - E 4959AR3402E CURTAIN ASSEMBLY 3 - E 4959AR3402F CURTAIN ASSEMBLY...

  • Page 24: Espai_Iol

    Caracteristicas ........32 INDICE DE MATERIAS ......24 Uso del equipo de aire acondicionado -.32 GARANT[A ..........Despliegue ..........SEGURIDAD ..........MANTENIMIENTO ........34 Limpieza del filtro del aire ...... 34 Importantesinstrucciones de seguridad ..25 Limpiezadel equipode aire acondicionado..34 REQUERIMIENTOS ELI_CTRICOS ..

  • Page 25: Seguridad

    IMPORTANTES INSTRUCCIONES DE SEGURIDAD Las siguientes instrucciones de seguridad le indicar_n c6mo usar su equipo de sire acondicionado habitaci6n para evitar dafios para usted mismo y para su EQUIPO DE AIRE ACONDICIONADO. SU SEGURIDAD No almacene ni use gasolina u otros vapores y liquidos inflamables cerca de 6ste o cuaiquier otro Evitelos peligrosde incendiosy electrodomestico.
  • Page 26 RESPETE TODOS LOS C(_DIGOS Y ADVERTENCIA REGLAMENTOS. BAJO NINGUNA CIRCUNSTANCIA CORTE, QUITE O EVITE EL USO DE LA CONEXI(_N A TIERRA DE ESTA CLAVIJA. ESTE APARATO NECESITA SER CONECTADO A TIERRA. Se requiere una alimentaci6n electrica CA, adecuadamente conectada a tierra con un Peligrode choqueel_ctrico fusible de 20 A, de 60 Hz y de 250 V.

  • Page 27: Instalaci

    REQUERIMIENTOS PARA INSTALACI(_N PIEZAS DE MONTAJE INSTALACION Su equipo de aire acondicionado se instalara en ventanas estandar de doble panel con anchos de abertura libre de 737 mm a 1041 mm (29 a 41 pulgadas). (Figura 1) El marco inferior debe abrirse Io suficiente para permitir una abertura vertical libre de 457 mm (18 pulgadas).

  • Page 28: Installaci6N

    INSTALACION L_ Insede Ins panelesde guia (iTEMA) en la goia superior y las guias de marco del equipo de aire acondicionado. Sujete lascortinas en la unidad con Instomillos (iTEM E) Escola un lugar que le permitaIlevarel airefrio al area que desea.
  • Page 29 ILr_ Tire del marco inferior de la ventana hacia abajo • Conecte un code de tube de 9/16" de pulgada de diametro detras de la guia superior hasta que se encuentre la guia interne al tube de drenaje, conecte seguidamente una con el marco.

  • Page 30: La Eliminaci6N De La Ventana

    INSTALACI(_N FRONTAL La parte superior del listen de madera debe ser aproximadamente 3/4" mas alto que el marco de la Instale la rejilla frontal con el gabinete de la contraventana o el list6n de madera (fuera de lacasa) siguiente manera: pare que el vapor emanado de la unidad pueda drenar •...

  • Page 31: Operaci

    COMO YPOR En ocasiones, el uso de HIGH FAN para hacer circular el aire por la habitacibn hace que el ambiente sea m&s Su equipo de aire acondicionado de habitaci6n confortable aun cuando el equipo no est_ enfriando el brinda laa siguientes funciones para hacer que la aire.

  • Page 32: Caracteristicas

    CARACTER[STICAS USO DEL EQUIPO DE AIRE ACONDICIONADO _Para reducir el riesgo de incendio, descargas electrica o lesiones personales, lea las IMPORTANTES INSTRUCCIONES SEGURIDAD antes de operar este aparato. Para comenzar a utilizar el equipo de aire acondicionado, siga estos pasos: 1, Enchufe el equipo de aire acondicionado, (Para prevenir riesgos de descargas el_ctricas, no use un cable de extensi6n ni un enchufe adaptador.)

  • Page 33: Despliegue

    CARACTERiSTICAS DEL EQUIPO DE AIRE ACONDICIONADO Los controles que se explican en este manual son representativos de muchos modelos disponibles a la venta en el mercado. Su modelo puede tener un aspecto ligeramente diferente. Auto When I_pe(_tlOrl Switch L_Off bwmg FAN.FAN HEAT COOL...

  • Page 34: Mantenimiento

    COMO A REEMPLAZA LIMPIEZA DEL FILTRO DEL AIRE GRILLE ANTERIOR El filtro del aire se ira ensuciando a medida que va atrapando el polvo proveniente del aire interior. Es • Saque el tornillo que mantiene la reji!la frontal en preciso lavar el filtro del aire al menos cada dos posici6n.

  • Page 35: Correccion De Fallas

    ANTES DE LLAMAR PARA SERVIClO Cheque la siguiente lista para asegurarse si en realidad es necesario Ilamar para servicio. Una referencia rapida a este manual puede evitar una Ilamada para servicio innecesaria. EL EQUIPO DE AIRE ACONDICIONADO NO FUNCIONA. El enchufeno esfa¢onectade enla tomade comentede pared Conecte et enchufe firmemente en latoma decomenfe depared El fusibleesta quemadeo el inlerruptor deolrcur[oseha disparado Resmplace elfusibledafladecon unfusibledeacc_nretafdede o reajuste el...
  • Page 36 Get it fixed, at your home or ours! Your Home For repair- in your home--of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself.
