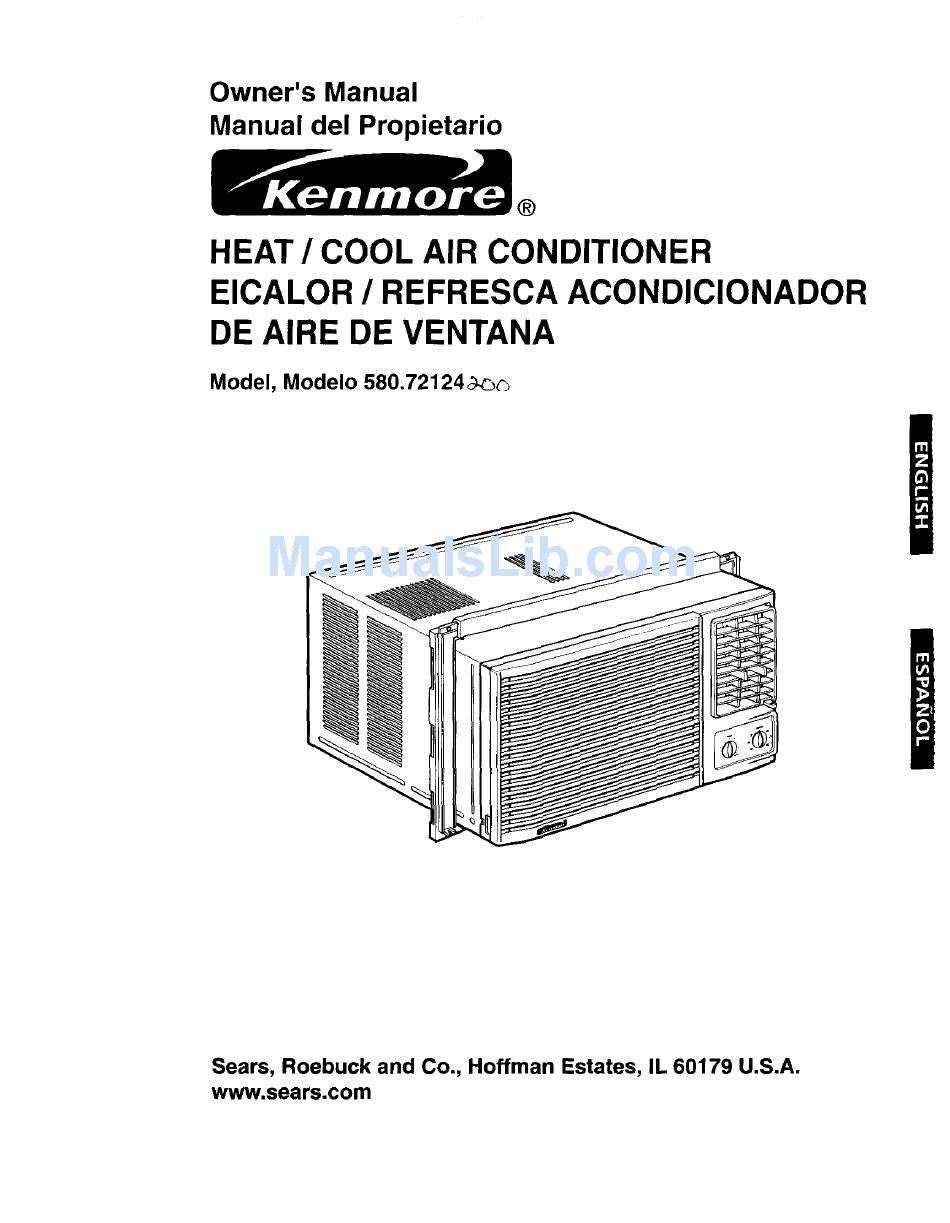

Owner's Manual
Manual del Propietario
®
HEAT / COOL AIR CONDITIONER
EICALOR / REFRESCA ACONDICIONADOR
DE AIRE DE VENTANA
Model, Modelo 580.72124_
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Kenmore Kenmore 580.72124

  • Page 1 Owner's Manual Manual del Propietario ® HEAT / COOL AIR CONDITIONER EICALOR / REFRESCA ACONDICIONADOR DE AIRE DE VENTANA Model, Modelo 580.72124_ Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com...
  • Page 2: Table Of Contents

    Sears will repair this air conditioner, free of charge, if defective in material or This warranty applies only while this product is in workmanship.
  • Page 3: Safety

    IMPORTANT SAFETY INSTRUCTIONS The safety instructions below will tell you how to use your room air conditioner to avoid harm to yourself or damage to your ROOM AIR CONDITIONER. FOR YOUR SAFETY Do not store or use gasoline or other flammable _void fire hazard or electric shock.
  • Page 4: Electrical Requirements

    OBSERVE ALL LOCAL CODES AND _WARNING ORDINANCES. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD GROUND PRONG. ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE. A 250-volt 60 Hz, AC only, 20A fused and Electrical Shock Hazard properly grounded electrical supply is required. Plug into a grounded 3 prong outlet.
  • Page 5: Installation

    INSTALLATION REQUIREMENTS INSTALLATION HARDWARE Your air conditioner will install into standard double hung windows with actual clear opening widths of 27 to 39 inches (686mm to 990mm) (FIG. t). Lower sash must open sufficiently to allow a clear vertical opening of 16 inches (406mm). Side louvers and the rear of the air conditioner must have clear air space to allow enough airflow through the condenser for heat removal, The rear of the unit...
  • Page 6: Installation

    INSTALLATION Insert the side curtain (ITEM A) into the upper guide and lower guide of the air conditioner. Fasten Pick a location which will allow you to blow the cold air the curtains to the unit with screws (ITEM E). into the area you want.
  • Page 7 Ir_ Select the position that wirl place the sill supports Attach the L bracket (ITEM J) with screw near the outermost point on sill (FIG. 10). Attach the (ITEM G) (FIG. 14). sill supports to the cabinet track hole closest to the selected position using screw (ITEM E).
  • Page 8: Removal From Window

    1_/2"wide and same thicknessas first strip) in the FRONT INSTALLATION center of the outer sill flush against Ihe back of the inner sill. Screw the L bracket (not supplied) into this Install the front grille (packed separately) onto the cabinet strip.
  • Page 9: Operation

    HOW AND WHY -Compressor Your room air conditioner provides the following The modern high efficiency functions to make hot weather living more compressor may have a high comfortable: pitched hum or pulsating • Cools and circulates room air. noise that cycles on and off. •...
  • Page 10: Features

    USING THE AIR CONDITIONER FEATURES To reduce the risk of fire, electric shock, or injury to persons, read the important SAFETY instructions section before operating this appliance. To begin operating the air conditioner after installation, follow these steps: 1. Plug in the air conditioner. (To prevent electrical hazards, do not use an extension cord or an adapter plug.) 2.
  • Page 11: Air Conditioner Features

    AIR CONDITIONER FEATURES HORIZONTAL AIR DIRECTION CONTROL The horizontal air direction is adjusted by moving The controls featured in this manual are the vertical louvers right and left with your fingertips. representative of the many models available, Your (FIG. 27) model may look slightly different.
  • Page 12: Maintenance

    AIR FILTER CLEANING HOW TO REMOVE THE FRONT GRILLE The Air Filter will become dirty as it removes dust from the inside air. It should be washed at least • Remove the TEMP knob and the MODE knob by every 2 weeks. If the Air Filter remains full of dust, pulling.
  • Page 13: Troubleshooting

    BEFORE CALLING FOR SERVICE Check the following list to be sure a service call is really necessary. A quick reference to this manual help you avoid an unneeded service call THE AIR CONDITIONER WILL NOT OPERATE Check if,., Then.,. Wall plug disconnected. Push plugfirmly into wall outlet oose fuse blown or circuri breaker tripped.
  • Page 14: Repair Parts

    Room Air Conditioner To order Parts call Toll Free Model No. 580.72124200 1-800-4-MY-HOME®(1-800-469-4663) CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASSEMBLY 01/02 - 14 -...
  • Page 15 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CABINET & FRONT GRILLE ASSEMBLY POS. NO PART NO DESCRIPTION 1 - A 3530AR1278A FRONT GRILLE 2 - A 3530AR1535A INLET GRILLE 3 - A 5231AR1152A AIR FILTER ASSEMBLY 4 - A 5990AR2974C...
  • Page 16 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CONTROL BOX ASSEMBLY 11-B IO-B 01/02 - 16 -...
  • Page 17 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. CONTROL BOX ASSEMBLY POS. NO PART NO DESCRIPTION 1 - B 4994AR1494A CONTROL BOX CAPACITOR 2 - B 6120AR2359D CAPACITOR CLAMP 3 - B 4H00442F POWER CORD ASSEMBLY 4 - B 2H00677U 5 - B...
  • Page 18 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. AIR HANDLING & CYCLE PARTS 14-C 12-C 13-C 10-C 10-C 19-C 15-C 17-C 16-C 01/02 - 18 -...
  • Page 19 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. AIR HANDLING & CYCLE PARTS POS. NO PART NO DESCRIPTION 1 - C 3041AR1524F BASE PAN WELD ASSEMBLY 2 - C 5238AR1499B AIR GUIDE 3 - C 3530AR2688D REAR WIRE GRILLE 4 - C...
  • Page 20 580.721242OO CAUTION: Use the Kenmore part number on all orders, not the illustration number. COMPRESSOR PARTS 15-D 12-D 10-D 5-° 11-D 01/02 - 20 -...
  • Page 21 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. COMPRESSOR PARTS POS. NO PART NO DESCRIPTION 1- D 4830AR4335A ISOLATOR, COMP 2- D 5416A20012D COMPRESSOR 3- D 4H01811C BRACKET, WASHER 4- D 1NHA0801206 HEXAGON NUTS 5- D 4986U-L001G GASKET...
  • Page 22 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number• INSTALLATION KIT ASSEMBLY 01/02 - 22 -...
  • Page 23 580.72124200 CAUTION: Use the Kenmore part number on all orders, not the illustration number. INSTALLATION KIT ASSEMBLY POS. NO PART NO DESCRIPTION 1 - E 4959AR3402C SIDE CURTAIN ASSEMBLY 2 - E 4959AR3402D SIDE CURTAIN ASSEMBLY 3 - E 4810AR3240A SILL SUPPORT BRACKET 4 - E 1BHD1004006...
  • Page 24: Indice Dematerias

    Sears reparard gratuitamente este equipo de aire Esta garantia s61otiene validez mientras el producto acondicionado, si tiene alg6n defecto en materiales se est_ usando en los Estados Unidos.
  • Page 25: Seguridad

    IMPORTANTES INSTRUCCIONES DE SEGURIDAD Las siguientes instrucciones de seguridad le indicar_m c6mo usar su equipo de aire acondicionado habitaci6n para evitar dafios para usted mismo y para su EQUIPO DE AIRE ACONDICIONADO. POR SU SEGURIDAD No almacene ni use gasolina u otros vapores y liquidos inflamables cerca de _ste o cualquier otro Evite los peligrosde incendiosy electrodom_stico.
  • Page 26: Requerimientos Electricos

    RESPETE TODOS LOS C(_DIGOS Y ADVERTENCIA REGLAMENTOS. BAJO NINGUNA CIRCUNSTANCIA CORTE, QUITE O EVITE EL USO DE LA CONEXION A TIERRA DE ESTA CLAVIJA. ESTE APARATO NECESITA SER CONECTADO A TIERRA. Se requiere una alimentaci6n electrica CA, adecuadamente conectada a tierra con un Peligro de choque el_ctrico fusible de 20 A, de 60 Hz y de 250 V.
  • Page 27: Instalaclon

    INSTALACI(_N PIEZAS DE MONTAJE REQUERIMI.ENTOS PARA INSTALACION Su equipo de aire acondicionado se inslalar_,en ventanas estandar de doble panel con anchos de abertura libre de 686 mm a 990 rnm (27 a 39 pulgadas). (Figura 1) Si su equipo de aire acondicienado es instalado per la pared, el tamano del agujero en la pared tiene que medir 15 23/_2' x 24 _/4(sin la guia superior).
  • Page 28: Installaci6N

    INSTALACI( N Inserte los paneles de guia (iTEM A) en la gufa Escoja un lugar que le permita llevar el aire frio al area que superior y las gufas de marco del equipo de aire desea. Las ventanasque se usenpara lafnstalaci6ndeben acondicionado.
  • Page 29 I_1 Seleccione la posici6n en la que colocara el soporte Corte la cinta de espuma para que tenga la Iongitud de antepecho cerca del punfo mas externo en el correcta e ins_rtela entre el marco superior de la ventana antepecho (Figura 10). Fije el soporte de antepecho al y el marco inferior de la ventana.
  • Page 30: C6Mo Sacar El Equipo De Aire Acondicionado De La Ventana

    La parle superior del list6n de madera debe ser INSTALACI(_N FRONTAL aproximadamente 3/4" m&s alto que el marco de la contraventana o el list6n de madera (fuera de la casa) Instale la rejilla frontal con el gabinete de la para que el vapor emanado de la unidad pueda drenar siguiente manera: adecuadamente hacia el exterior.
  • Page 31: Operaci

    COMO Y POR QUI Enosasiones,eluso de MEDFANparahacercircular el airepor lahabitacionhacequeel ambiente sea masconfortable aun Su equipo de aire acondicionado de habitacion cuandoel equipono este enfriande el awe Mientras mastiempo brinda las siguientes funciones para hacer que la y con mayorfrecuencia luncioneelequipodeaire vida en climas calidos sea mAs confortable: acondicionade, maselectricidad eansumiray mayoresseranlos costosde su uea.
  • Page 32: Caracterfsticas

    CARACTERISTICAS USO DEL EQUIPO DE AIRE ACONDICIONADO _Para reducir el riesgo de incendio, descargas electrica o lesiones personales, lea las IMPORTANTES INSTRUCCIONES SEGURIDAD antes de operar este aparato. Para comenzar a utilizar el equipo de aire acondicionado, siga estos paaos: 1.
  • Page 33: Caracteristicas Del Equipo De Aire Acondicionado

    CARACTERiSTICAS DEL EQUIPO CONTROL DE LA DIRECCIC)N HORIZONTAL DEL AIRE DE AIRE ACONDICIONADO La direcci6n horizontal del aire es ajuslada rotando Los controles que se explican en este manual son la palanca veilical hacia la derecha o hacia la representativos de muchos modelos disponibles a izquierda.
  • Page 34: Mantenimiento

    COMO SACAR LA REJILLA LIMPIEZA DEL FILTRO DEL AIRE FRONTAL Se debe revisar el filtro de aire al menos dos veces al rues para ver si es necesario limpiarlo. Las partieulas • Saque la perilla del TEMP y la perilla de MODE atrapadas en el filtro se iron acumulando hasta bloquear tirando de elias.
  • Page 35: Correccion De Fallas

    ANTES DE LLAMAR PARA SERVICIO Cheque la siguiente lista para asegurarse si en realidad es necesario Ilamar para servicio. Una referencia rapida a este manual puede evitar una Ilamada para servicio innecesaria. EL EQUlPO DE AIRE ACONDICIONADO NO FUNClONA. El enchuleno estaconectadoen latomadecordentede pared. Conecte eler_holefirmemente e n latoma decomente de pared.
  • Page 36: Para Pedir Servicio

    ® Registered Trademark / _MTrademark / s_ Sen4ce Mark of Sears, Roebuck and Co. ® Marca Regist rada / TMMarca de F_lbrica / SMMarca de Servieio de Sears, Roebuck and Co. MCMarque de commerce / MD Marque depos_e de Sears. Roebuck and Co.
