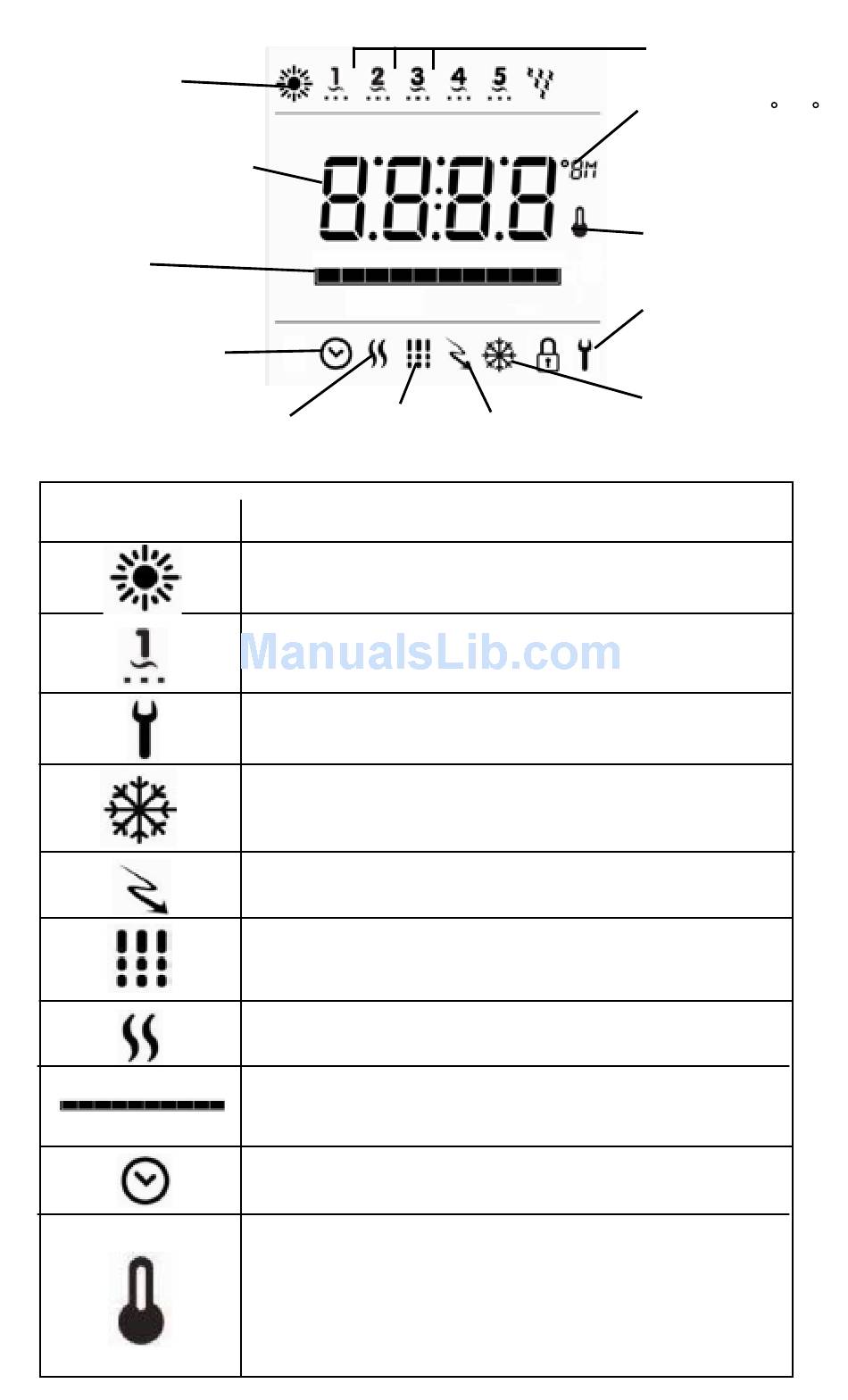

Icon Introduction

Light Icon
Time, temperature
& message digits
Progress
bar icon
Program Icon
Icon
22
Heating
Filtering
Icon
Icon
Description
Light icon: The "Light" icon lights up when the light
is on.
Pump icons: The "Pump" indicator numbers light up
and their icons become animated when pumps are
on.
Service Icon: A problem has been detected. Do not
enter the water! Spa service is required.
Smart winter mode icon: The "SWM" icon auto-
matically turns on when freeze protection is active.
It flashes while system purges the spa plumbing.
Economy mode icon: The "Economy" icon llghts up
when filter cycle is on.
Filter Cycle icon: The "Filter cycle" icon lights up
when filter cycle is on. It flashes when filtering is
suspended.
Heater icon: The "heater" icon lights up when the
heater is on. .
Progress Bar: A visual indication of the time re-
maining before equipment is turned off or before
the end of the standby mode.
Program icon: The "program" icon lights up when
Programming.
Set Point icon: The "Set Point" icon automatically
turns on when set point setting menu is activated.
(SP message on display) ...It flashes when
1) there is a call for heat and heater has not started
yet ...2) heater has just turned off and element is
cooling down....3) if system is performing a flow
check.
Economy
Mode Icon
Pump Icons
AM/FM (F /C )
Set Point Icon
Service Icon
Smart Winter
Mode Icon
