CTEK MULTI XS 25000 User Manual
For lead-acid batteries
Hide thumbs
Also See for MULTI XS 25000:
- User manual (8 pages) ,
- User manual (8 pages) ,
- Troubleshooting manual (24 pages)
Related Manuals for CTEK MULTI XS 25000
Summary of Contents for CTEK MULTI XS 25000
-
Page 1: Battery Charger

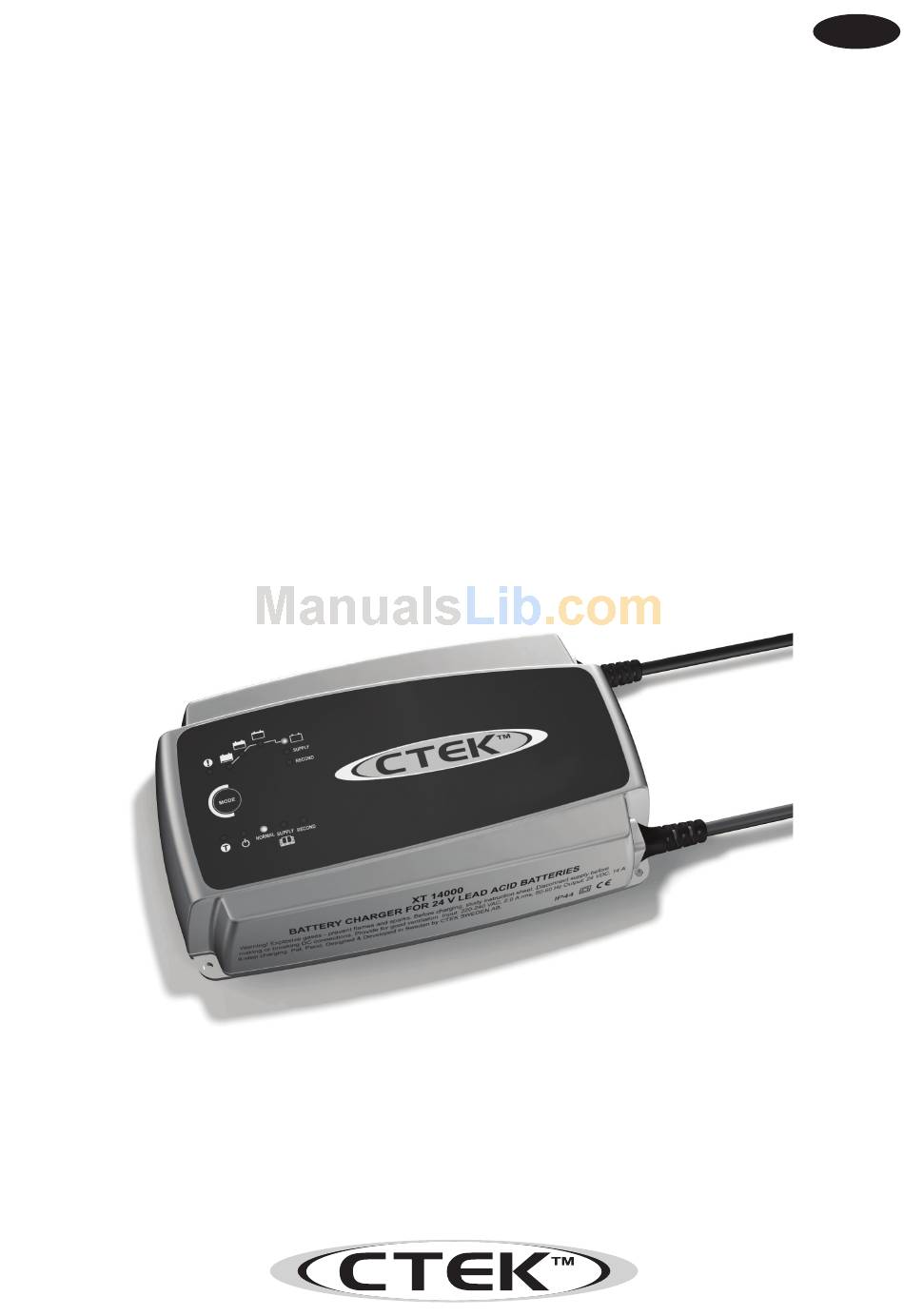

Switch mode BATTERY CHARGER User Manual and Guide to professional charging of For lead-acid batteries MULTI XS 25000 XS 25000 MULTI XT 14000 XT 14000 starter and deep cycle batteries. - Page 2 1. Connect the charger´s AC cord to an AC Power Supply. The charger will indicate POWER, yellow indication lamp (B). 2. The lamp for completely discharged battery (1) will illuminate if the battery’s voltage is less than 12 V for MULTI XS 25000 and XS 25000 or 24 V for MULTI XT 14000 or XT 14000.
- Page 3 MULTI XS 25000, XS 25000, MULTI XT 14000 och XT 14000 charges and analyses in eight fully automatic steps. MULTI XS 25000 and MULTI XT 14000 have three different operating modes, see Battery Types and Settings.
- Page 4 Recond (Lamp 5) (only on MULTI XS 25000 and MULTI XT 14000) This mode is used to recover deeply discharged flooded batteries. Recondition of deep discharged batteries. The voltage increases with reduced current for a limited time period. The higher voltage starts some gassing and mixing of the acid, which is beneficial for both battery capacity and expected life.
- Page 5 MULTI XS 25000, XS 25000, MULTI XT 14000 and XT 14000 have a sensor cable placed together with the battery cables. The units will automatically adjust the charging voltage if the temperature deviates from +25 C. A high temperature lowers the voltage and freezing conditions is handled by higher voltage.
- Page 6 PROGRAM DESCRIPTION Desulphation Recovers a sulphated battery MULTI XS 25000 MODE Desulphation NORMAL RECOND SUPPLY XS 25000 MODE Desulphation PRESET MULTI XT 14000 MODE Desulphation NORMAL RECOND SUPPLY XT 14000 MODE Desulphation PRESET Soft Start Bulk Tests the battery Bulk charge...
- Page 7 Analysis Recond Tests whether the Reconditioning of battery retains a drained battery the energy Analysis Recond Warning indication if Max 15.9 V and 5 A voltage drops to 12.6 V for 4 h for deeply in 2 minutes. discharged batteries. Otherwise for 30 min- utes (only in Recond mode).
- Page 8 DECLARATION OF CONFORMITY CTEK SWEDEN AB hereby declares under sole responsibility that the MULTI XS 25000, XS 25000, MULTI XT 14000 and XT 14000 battery chargers, to which this declaration relates, conforms with the following standards: EN60335-1, EN60335-2-29 following the provisions of directive 73/23/EEC amended by 93/68/EEC and EN55022, EN 61000-3-3, EN 61000-3-2, EN55014-2 following the provisions of directive 89/336/EEC amended by 92/31/EEC and 93/68/EEC.
