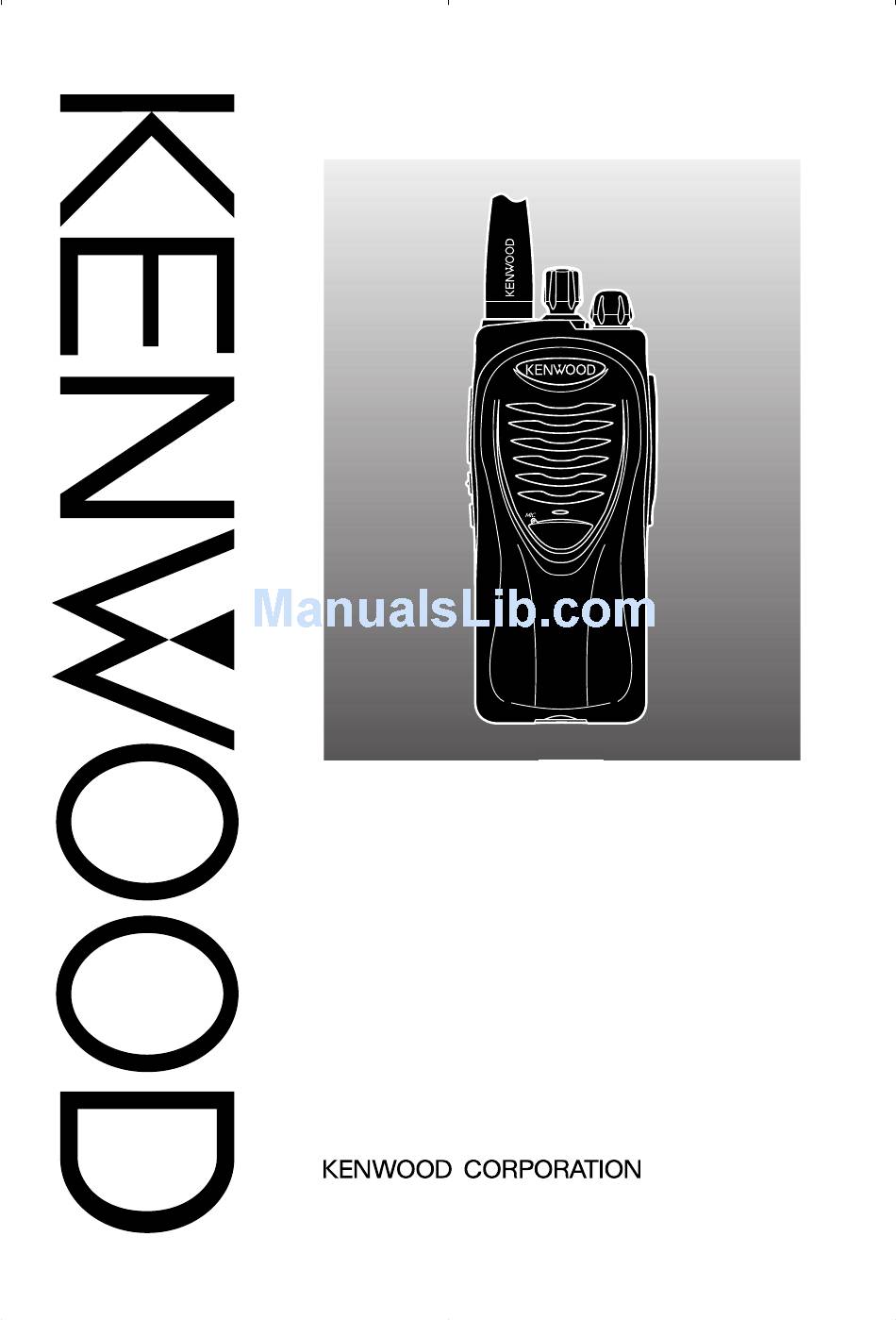

Page 1: Instruction Manual
INSTRUCTION MANUAL PacTronics, Inc. 800-607-2243 www.pactronics.com VHF FM TRANSCEIVER TK-2200 UHF FM TRANSCEIVER TK-3200 © B62-1791-10 (K, K2) 09 08 07 06 05 04 03 02 01... - Page 2 HANK We are grateful for your purchase of this KENWOOD product and welcome you to the Business Radio Service (BRS). Your KENWOOD 2-way Business Radio is called a “transceiver”, meaning “transmitter & receiver”. We believe this easy-to-use transceiver will provide you with dependable and reliable communications.
-
Page 3: Operating Conditions
PERATING ONDITIONS e l i l a i e l i d l i d l i Note: The listed ranges are based on field testing and may vary with your operating conditions and individual transceiver. - Page 4 FCC L ICENSE NFORMATION Your KENWOOD transceiver operates on communications frequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCC Rules require that all operators using Private Land Mobile radio frequencies obtain a radio license before operating their equipment.
- Page 5 If an abnormal odor or smoke is detected coming from the transceiver, immediately switch OFF the power and remove the battery pack from the transceiver. Contact your KENWOOD dealer. OTICES TO THE ◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under government control.
- Page 6 One or more of the following statements may be applicable: FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
- Page 7 For information on Ni-MH battery recycling in your area, call (toll free) 1-800-8-BATTERY (1-800-822-8837). KENWOOD’s involvement in this program is part of our commitment to preserve our environment and conserve our natural resources.
-
Page 8: Table Of Contents
CONTENTS UNPACKING AND CHECKING EQUIPMENT ........1 ............1 UPPLIED CCESSORIES ORIENTATION ..............3 PREPARATION ..............4 Ni-MH B .......... 4 HARGING THE ATTERY ........6 NSTALLING EMOVING THE ATTERY ..........7 NSTALLING THE PTIONAL NTENNA ............7 NSTALLING THE .... -
Page 9: Unpacking And Checking Equipment
UNPACKING AND CHECKING EQUIPMENT Carefully unpack the transceiver. We recommend you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. - Page 10 Rapid battery charger AC adaptor Ni-MH battery pack Speaker/ microphone (KNB-29N) jack cover Speaker/ microphone Belt clip locking bracket Screw set...
-
Page 11: Orientation
ORIENTATION Channel selector Antenna Rotate to change the (optional) operating channel from 1 ~ 2 or 1 ~ 8. LED indicator Indicates the transceiver Power switch/ status. Lights red while Volume control transmitting, green while Turn clockwise to receiving, and flashes switch the power ON red while the battery and counterclockwise... -
Page 12: Preparation
PREPARATION Ni-MH B HARGING THE ATTERY The initial charging of the battery pack after purchase or extended storage (greater than 2 months) will not bring the battery pack to its normal operating capacity. After repeating the charge/discharge cycle 2 or 3 times, the operating capacity should increase to normal. - Page 13 Plug the AC adaptor cable into the adaptor jack located at the rear of the charger. Plug the AC adaptor into an AC outlet. Slide the Ni-MH battery pack or transceiver with a Ni-MH battery pack into the charger. Make sure the battery pack terminals are in contact with the charger terminals by aligning the grooves of the battery pack with the tabs of the...
-
Page 14: Nstalling The
NSTALLING EMOVING THE ATTERY The battery pack is not charged at the factory; charge it before use {pages 5 and 6}. Average battery pack life (calculated using 5% transmit time, 5% receive time, and 90% standby time) is 18 hours when using the dealer set Battery Save function, and 14 hours when not using the Battery Save function. -
Page 15: Optional Antenna
NSTALLING THE PTIONAL NTENNA Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Note: The antenna is neither a handle, a key ring retainer, nor a speaker/ microphone attachment point. -
Page 16: Installing The Cover Over The Speaker / Microphone Jacks
NSTALLING THE OVER OVER THE PEAKER ICROPHONE ACKS If you are not using a speaker/ microphone, install the cover over the speaker/ microphone jacks using the supplied 3 x 6 mm screw. Note: To keep the transceiver water resistant, you must cover the speaker/ microphone jacks with the supplied cover. -
Page 17: Getting Started
GETTING STARTED Turn the Power switch/ Volume control clockwise to switch the transceiver power ON. A beep sounds. Rotate the Channel selector to select your desired channel. When you receive an appropriate signal, you will hear audio from the speaker. Adjust the volume as necessary. -
Page 18: Voice Operated Transmission (Vox)
VOICE OPERATED TRANSMISSION (VOX) Using the VOX feature, you can operate the transceiver hands-free. In order to use this feature, however, you must use an optional headset; VOX will not function with the built-in microphone. For best operating conditions, we recommend you use an optional headset with both an ear piece and a microphone on a boom that rests in front of your mouth. - Page 19 Press the Lock key to increase the VOX Gain level and the Scan key to decrease the level. The VOX Gain can be adjusted from level 1 to level 10 and OFF. The transceiver announces the VOX Gain level as you adjust it. If OFF is selected, the transceiver announces “Off”.
-
Page 20: Vox Operation
VOX O PERATION Set up a VOX Gain level from 1 to 10 {page 10}. To transmit, simply speak into the headset microphone. You do not need to press the PTT switch; the transceiver automatically detects your voice and begins transmitting. To stop transmitting, stop speaking. -
Page 21: Key Functions
KEY FUNCTIONS The default function of the Lock key is Super Lock. Super Lock is designed to prevent accidental function changes on your transceiver, during operation. Press and hold the Lock key for 4 seconds to lock the transceiver keys. The following keys/ functions can still be used when Super Lock is active: Calling Alert, Monitor, Monitor Momentary, PTT, Squelch Off, Squelch Off Momentary, and Volume. - Page 22 To start scanning, press the Scan key. • The LED indicator flashes green and scanning starts from the current channel and ascends through the channel numbers. • When a signal is detected on a channel and the QT/ DQT matches, scan pauses at that channel and the LED indicator lights green.
-
Page 23: Background Operations
BACKGROUND OPERATIONS (TOT) IMER The purpose of the Time-out Timer is to prevent you from using a channel for an extended period of time. This function is useful, for example, when you accidentally keep the PTT switch pressed. Additionally, by limiting the amount of time you can continuously transmit, this feature helps you save on battery power consumption. -
Page 24: Quiet Talk (Qt)/ Digital Quiet Talk (Dqt)
(QT)/ D (DQT) UIET IGITAL UIET Quiet Talk (QT) and Digital Quiet Talk (DQT) are functions that reject signals from undesired parties that are using the same channel as you. You will hear audio from the speaker only when you receive a signal that contains a QT tone or a DQT code that matches the one set up on the channel you are using. -
Page 25: Channel Setup Mode
CHANNEL SETUP MODE This transceiver allows you to reprogram each of the channels with different frequencies and Quiet Talk/ Digital Quiet Talk settings. The table below lists the default channel frequencies. All channels are set with a 67.0 Hz QT tone by default. -
Page 26: Channel Operating Frequencies
HANNEL PERATING REQUENCIES To change the operating frequency of a channel: With the transceiver power OFF, press and hold the PTT switch and Lock key while turning the transceiver power ON. Continue to hold the PTT switch and Lock key until the LED lights orange and the transceiver announces “Self”. - Page 27 Press the PTT switch within 5 seconds to save the setting, otherwise the operation will cancel. A beep will sound. Repeat steps 3 to 5 to set up another channel. Turn the transceiver power OFF and then ON again to activate the new settings.
-
Page 29: Quiet Alk
(QT)/ D (DQT) S UIET IGITAL UIET ETTINGS To change the QT/ DQT settings of a channel: With the transceiver power OFF, press and hold the PTT switch and Lock key while turning the transceiver power ON. Continue to hold the PTT switch and Lock key until the LED lights orange and the transceiver announces “Self”. - Page 30 Press the Lock key to increment the Tone number or the Scan key to decrement the number, to select the new tone or code. Tone numbers and their corresponding tones/ codes are provided in the table on pages 23 and 24. Press and hold the Lock or Scan key to increment/ decrement the QT or DQT number by 5 at a time.
- Page 31 QT Channel Settings:...
- Page 32 DQT Channel Settings:...
-
Page 33: Key Assignment Mode
KEY ASSIGNMENT MODE This transceiver allows you to reprogram the Lock and Scan keys with any of the functions listed in the table below. Explanations on the use of each function are provided on the following pages. i t c n i l ) t l ) t l... - Page 34 To change the functions of the Call and Monitor keys: With the transceiver power OFF, press and hold the Lock and Scan keys while turning the transceiver power ON. Continue to hold the Lock and Scan keys until the LED lights orange and the transceiver announces “Setup”.
- Page 35 Press the PTT switch within 5 seconds to save the setting, otherwise the operation will cancel. A beep will sound and the transceiver will announce the new Table number. Turn the transceiver power OFF and then ON again to activate the new settings.
-
Page 36: Calling Alert
ALLING LERT Calling alert tones are used to identify yourself to your party members and inform them that you are about to make a call. Your dealer can set up your transceiver with 1 of several different calling alert tones. If each party member uses a different calling alert tone, it is easy to know who is making the call To make a call using the calling alert tone, press and hold the... -
Page 37: Monitor / Squelch Off
ONITOR QUELCH You can use the key programmed as Monitor or Squelch Off to listen to weak signals that you cannot hear during normal operation, to deactivate channel signaling, and to adjust the volume when no signals are present on your selected channel. •... -
Page 38: Scrambler
■ Temporary Delete You can temporarily remove specific channels from the scanning sequence during Scan. When Scan pauses at a channel, you can remove that channel from the scanning sequence by pressing and holding the key programmed as Temporary Delete for 1 second or Scan + Temporary Delete for 3 seconds. -
Page 39: All Reset Mode
ALL RESET MODE At some point in time, you may desire to reset the transceiver settings to their default values. This function will reset all channels to their default frequencies and QT/ DQT, the VOX function to its default status, and all keys to their default functions. -
Page 40: Optional Accessories
OPTIONAL ACCESSORIES KMC-17 (Speaker/ microphone) KMC-21 (Speaker/ microphone) KHS-1 (Headset) KHS-22 (Headset) KWR-1 (Water resistant bag) -
Page 41: Troubleshooting Guide
TROUBLESHOOTING GUIDE • • e l l . y l l l a • y l t • • s ’ • • l l a ) ’...
