Summary of Contents for Panasonic TV-43W80AEY

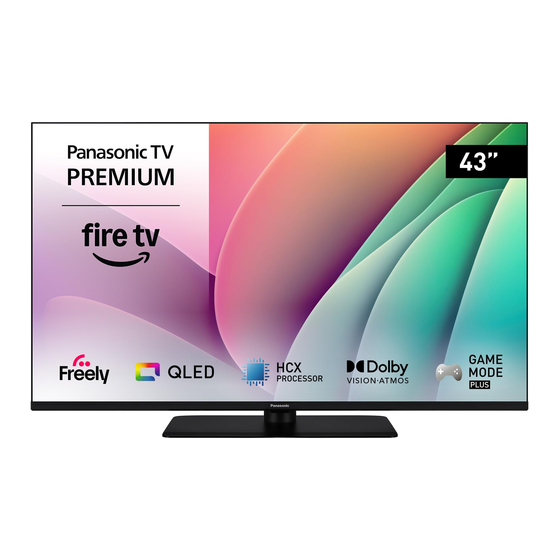

- Page 1 OPERATING INSTRUCTIONS TV-43W80AEY TV-50W80AEY TV-55W80AEY TV-65W80AEY LED TV...
- Page 2 Table of Contents Safety Information ..........2 Maintenance ............4 Assembling / Removing the pedestal ....4 When using the wall-hanging bracket....5 Introduction ............6 Accessories Included..........6 Features ..............6 Antenna Connection ..........6 Other Connections..........7 Turning On/Off the TV ...........8 TV Control & Operation .........8 Remote Control .............10 Initial Setup Wizard..........11 Main Screen ............12...
- Page 3 such as vases, cups, etc. on or over the TV (e.g. on Safety Information shelves above the unit). • Do not expose the TV to direct sunlight or do not CAUTION place open flames such as lit candles on the top of or near the TV.
- Page 4 WARNING Apparatus connected to the protective earthing of the building installation through the MAINS connection or • Do not ingest the battery, Chemical Burn Hazard. through other apparatus with a connection to protective earthing – and to a television distribution system using •...
- Page 5 • Do not allow the cabinet and pedestal to make • Panasonic accepts no responsibility for loss, etc., of contact with a rubber or PVC substance for a long data caused by disasters. time. This may degrade surface quality.
- Page 6 Place the stand(s) on the stand mounting When using the wall- pattern(s) on the rear side of the TV. hanging bracket Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket. Holes for wall-hanging bracket installation; Rear of the TV Insert the screws (M4 x 12 mm) provided and tighten them gently until the stand is properly fitted.
- Page 7 colour gamut imaging technologies. By increasing the Introduction brightness of the original signal and using a higher dy- namic colour and contrast range, Dolby Vision presents Thank you for choosing our product. You’ll soon be amazing true-to-life images with stunning detail that enjoying your new TV.
- Page 8 Other Connections If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them. When using the wall mounting kit Connector Type...
- Page 9 Turning On/Off the TV TV Control & Operation Connect power IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
- Page 10 or return to the Home screen of your Fire TV. Use the directional buttons to move the focus, proceed, adjust some settings and press Select to make selections in order to make changes, set your preferences, enter a sub-menu, launch an application etc. Press Return/ Back to return to the previous menu screen.
- Page 11 Remote Control Standby: Standby / On Picture: Opens the viewing mode menu Prime Video: Opens Prime Video screen Apps: Displays your apps & games My App (*) Directional button: Helps navigate menus, content, etc. and displays the subpages in TXT mode when pressed Up or Down Select: Confirms selections, enters sub-menus Back/Return: Returns to previous menu screen,...
- Page 12 established in the previous step. If you don’t already Initial Setup Wizard have an Amazon account you can set up an account by choosing New to Amazon? Create a free account Note: Follow the on-screen instructions to complete the initial option.
- Page 13 You can review or change the parental control settings source. Highlight Yes and press select to confirm later using the Parental Controls option in the and proceed. Settings > Preferences menu. When the initial setup is completed the results will be 38.
- Page 14 your remote has a built-in microphone) and ask Alexa Viewing Mode: Set the viewing mode to suit your to find what you’re looking for or you can type a word preference or requirements. Viewing mode can be set to start a search. Library will show any content that to one of these options: Dynamic, Normal, Cinema, you have added to your Watchlist.
- Page 15 Colour Gamut: Highlight Colour Gamut and Screen Settings: You can configure the aspect ratio press Select. Auto, DCI-P3, Rec709 and Rec2020 and 16:9 Overscan settings of your TV. options will be available. Highlight your desired HDMI Input Mode (HDMI input only): HDMI Input option then press Select.
- Page 16 Speaker Virtualiser: Off, Surround Virtualiser and In the Inputs menu highlight Media Player and press Dolby Atmos options will be available. Select. If this is the first time you have used the Media Player, you may be asked whether you want Volume Leveller: Allows you to balance the sound to allow gallery to access photos, media and files on levels.
- Page 17 Then highlight Deregister and press Select to Clearing Notifications deregister your account. This will take a few seconds. You can clear individual notifications or clear all of Important: Deregistering an account will NOT remove them. To clear an individual notification highlight all personal data.
- Page 18 Highlight Enable Network and press Select to Checking Network Status enable or disable the network connection. Refer to Highlight Network in the Settings menu and press Connecting to the Internet section if you need more Select. information. The Network menu will display the strongest 3 wireless Basic Wi-Fi Troubleshooting Tips networks your TV can find, your network is the one with Here you can view tips like these and restart your Fire...
- Page 19 Highlight Audio Output and press Select. Slide Style - Change the way the pictures transition. Choose from Pan & Zoom or Dissolve. TV Speakers: In the TV Speakers menu you can Slide Speed - Adjust the time taken to change pictures. switch your TV’s built-in speakers on or off.
- Page 20 device on or off. Follow the link shown on the screen Amazon Photos to manage for all devices. Here you can change the Amazon photo app settings, Notifications: Set to ON to display notifications you can allow others to cast photos from their Amazon relating to Appstore.
- Page 21 Make sure your soundbar is switched on and the changed back to factory defaults. This option will be volume is up then press Select. available if you change the default settings. Press Standby on your TV remote control, wait 10 Advanced Settings seconds then press the Standby button again.
- Page 22 When you are finished, press the Play/Pause button. Options button to view the Sort Options menu. The TV will start to search available broadcasts. You can sort the channels using the options of this menu. You can also import or export the customised You will be asked at some point whether you want to channel list using the relevant options in the Sort clear existing channels, if you have installed channels...
- Page 23 Change PIN: Change the Prime Video PIN. First enter Other Bluetooth Device your current PIN, then enter your new PIN. You can connect other bluetooth devices such as a If you have forgotten your PIN follow the link shown mouse or a keyboard, which can be handy when using on the screen to reset your PIN.
- Page 24 Set Data Alert: Set a data limit and receive on-screen to your Amazon account. If you have forgotten your PIN follow the link shown on the screen to reset your PIN. alerts when consumption reaches 90% and 100% of the limit. This is just an alert and will not block data Refer to Parental Controls section under the Live TV consumption.
- Page 25 while watching TV knowing it will automatically switch HbbTV off. You can set a countdown from 5 - 240 minutes. Enables Hybrid Broadcast Broadband TV on your TV. Highlight Sleep Timer and press Select. Highlight HbbTV and press Select to switch on or off. Highlight the amount of time you want until your TV Sync Recent Content switches off and then press Select.
- Page 26 Highlight Format to Internal Storage then press Alexa Subtitles Select. Displays subtitles for Alexa responses when available. When formatting is complete select OK. Press Select to switch subtitles on and see more Manage Installed Applications options. Select this option to manage installed applications from VoiceView both Amazon and other sources.
- Page 27 Help Channel Guide If you are struggling to understand how your TV work By means of channel guide function of your TV you can and you need a little help then you should take a look browse the event schedule of the currently installed at this menu.
- Page 28 In the All tab highlight a channel in the list and press the You might be able to connect your TV to a network Select button to add it to favourites. Favourite channels wall socket depending on your network’s configuration. will be listed in the Favourites tab.
- Page 29 A network with hidden SSID can not be detected by other devices. If you want to connect to a network with hidden SSID, highlight the Join Other Network option under the Network menu and press Select. Add the network by entering its name, security type and password manually.
- Page 30 Display 16/9 43” 16/9 50” 16/9 55” 16/9 65” Operation temperature and 0ºC up to 40ºC, 85% humidity max operation humidity For more product information, please visit EPREL: https://eprel.ec.europa.eu. EPREL registration number is available on https://eprel.panasonic.eu/product. English - 29 -...
- Page 31 Security discontinued at any time. WEP 64/128, WPA, WPA2, TKIP, AES, WAPI Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services. • Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers;...
- Page 32 Content owners may require you to upgrade PlayReady to access their content. If you Hereby, Panasonic Marketing Europe GmbH, declares decline an upgrade, you will not be able to access that this TV is in compliance with the essential require- content that requires the upgrade.
- Page 33 Panasonic Marketing Europe GmbH, Wiesbaden, Germany Importer for UK: Panasonic UK, a branch of Panasonic Marketing Europe GmbH Maxis 2, Western Road, Bracknell, Berkshire, RG12 Sales and Support Information Customer Communication Centre • For customers within the UK: 0344 844 3899 •...
- Page 34 Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : Green&Yellow (Earth) (if there is earth cable) Blue (Neutral) Brown (Live) Fuse...
