NAD C375BEE Datasheet

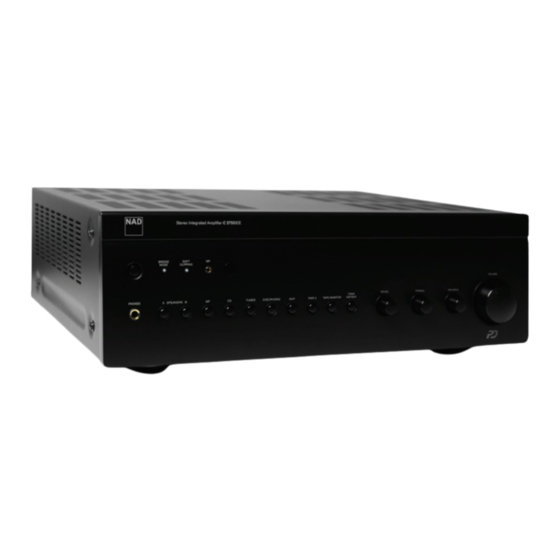

C 375BEE Integrated Amplifier
> P O S I T I O N I N G
The C 375BEE is far more than a bigger
C 355BEE — in fact, it is much closer in
spec to the M3 Integrated Amplifier from
NAD's high end Masters Series.
incorporates an updated version of NAD's
"Building Block" concept to make the
addition of the PP375 phono module and
other affordable future upgrades possible.
Attention to the most minute detail is
evident everywhere, from the heavy gauge
steel chassis to the sophisticated power
supplies and copper buss bars channeling
almost absurd amounts of current to the
custom gold plated speaker binding posts.
The C 375BEE boasts many upgrades and
refinements taken directly from the highly
acclaimed NAD Masters Series M3 Amplifier.
These include application of Bjorn Erik
Edvardsen's innovative and
Distortion Canceling Circuit in the output
stage and BEE Clamp in the power supply.
An improved tone control circuit and
revised PCB layout has reduced distortion
and noise to unprecedented levels. Taken
together, these improvements mark a sharp
upturn in performance that simply must be
heard, to be fully appreciated!
> F E A T U R E S
• 150W x 2 Continuous Power into
4 ohms and 8 ohms
• 250W, 410W, 600W IHF Dynamic
power into 8, 4 and 2 ohms, respectively
• PowerDrive TM circuit
• NAD SR-8 Full System Remote Control
• Headphone socket
• Front panel Media Player (MP) input for
attaching portable MP3 Player
• Relay Input Switching
• Holmgren Toroidal Power transformer
• 7 Line inputs, including two tape in/outs
• All discrete circuitry
It also
patented
• Class A Voltage Stages
(Preamp and Power Amp)
• Distortion Canceling Circuit
• BEE Anti-saturation Clamp
• Short signal path from input to output
• All sockets Gold plated
• Tone controls defeat switch
• Main-amp input & 2 pre-amp outputs
• Speaker A + B outputs and switching
• Soft Clipping
• IR Input/Output
• 12V trigger out
TM
• RS-232 serial port
• Detachable IEC Power Cable
• Optional PP375 MC/MM Phono Module
• <1W Standby Power Consumption
• Free of lead and other environmentally
dangerous substances
