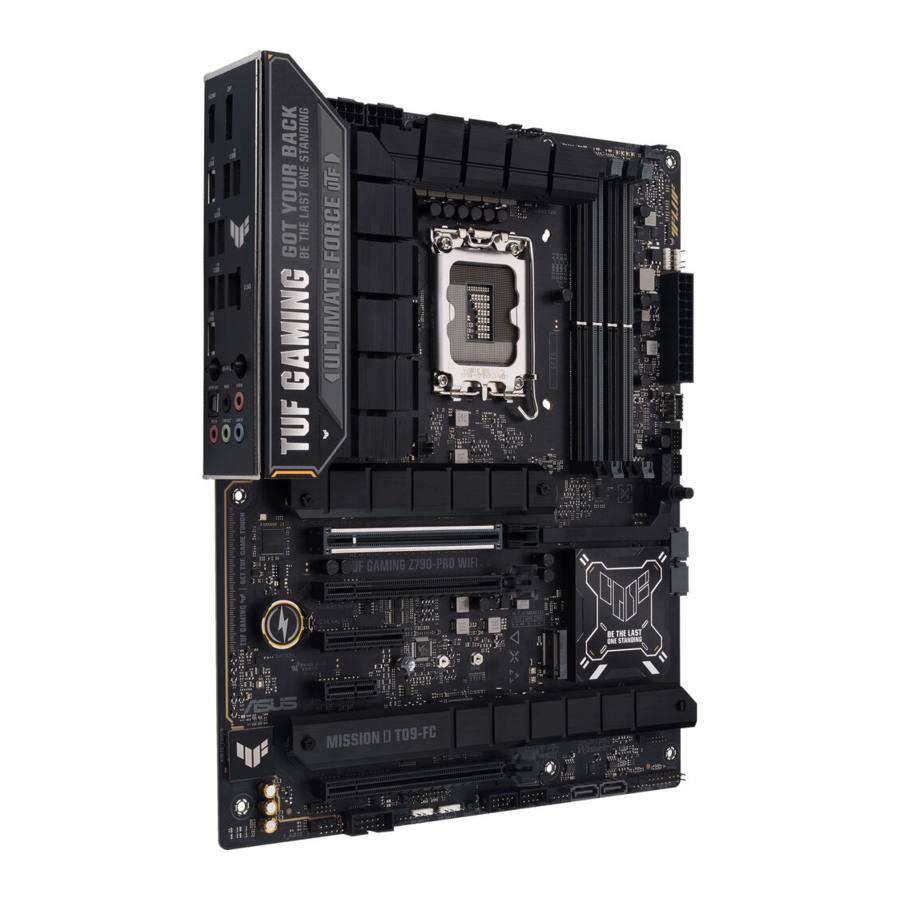

Asus TUF GAMING Z790-PRO WIFI Manual

Introduction

The items labeled below correspond to the installation steps, for steps and more information on the steps, please refer to the rest of the guide.

Prepare the components

NOTE: The components listed above are recommendations, please prepare components according to your needs.

Install key components

Install the CPU

NOTE: Do not remove the PnP cap before the CPU is properly installed. Please refer to the manual(s) for more information: Motherboard

CPU installation

Install the Memory

NOTE: Please refer to the manual(s) for more information: Motherboard

Install the M.2 SSD

NOTE: Please refer to the manual(s) for more information: Motherboard

Install the cooling system

Air Cooler

AIO Cooler

NOTE: Please refer to these manual(s) for more information: Cooler, Chassis

Install the motherboard into the chassis

NOTE: Please refer to the manual(s) for more information: Motherboard, Chassis

Connect to chassis fan and ARGB/RGB headers

Connect cables from Chassis

NOTE: Please refer to the manual(s) for more information: Motherboard, Chassis, Fan

Install and connect the power supply unit (PSU)

NOTE: Please refer to the manual(s) for more information: Chassis, PSU

Connect the power cables to the motherboard

Connect cables from PSU

NOTE: Please refer to the manual(s) for more information: Motherboard, PSU

Connect everything to the motherboard

• Front panel header
  Connect cables from Chassis

• F_AUDIO

• USB connector/header

  NOTE: Please refer to the manual(s) for more information: Motherboard, Chassis

• SATA
  Connect cables from PSU

  NOTE: Please refer to the manual(s) for more information: Motherboard

Install the graphics card

Connect cables from PSU

NOTE: Please note that power connection is required for selected models.
Please refer to the manual(s) for more information: Motherboard, Chassis, Graphics Card

Connect to the Internet via Ethernet/Wi-Fi antenna

NOTE: Please refer to the manual(s) for more information: Motherboard

Connect peripherals (monitor, keyboard, mouse, etc.)

Turn on the PSU and your PC

NOTE: Please check the Q-LEDs or Q-LED core on selected motherboards when powering on your PC for system status. If an error occurs, check if your CPU Fan header is properly connected; you can also scan the code or refer to the manual(s) for more information: Motherboard

Install the operating system and drivers

Driver and Utilities installation

Safety Precautions

Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures between 10°C and 35°C.

Button/Coin Batteries Safety Information

1. Remove and immediately recycle or dispose of used batteries according to local regulations and keep out of reach of children. Do not incinerate or dispose of batteries in household trash.
2. If ingested or inserted inside any part of the body, call a local poison control center for treatment information. Even used batteries may cause serious injury or death.
3. This product uses CR2032 type batteries with a nominal voltage of 3V.
4. Do not attempt to recharge non-rechargeable batteries.
5. Do not forcibly discharge, recharge, disassemble, heat above the battery manufacturer's specified temperature rating, or incinerate. Doing so may result in injury or chemical burns caused by venting, leakage, or explosion.
6. This product contains non-replaceable batteries.

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Warranty

ASUS Guarantee Information
For all the guarantee information, please visit https://www.asus.com/support.
