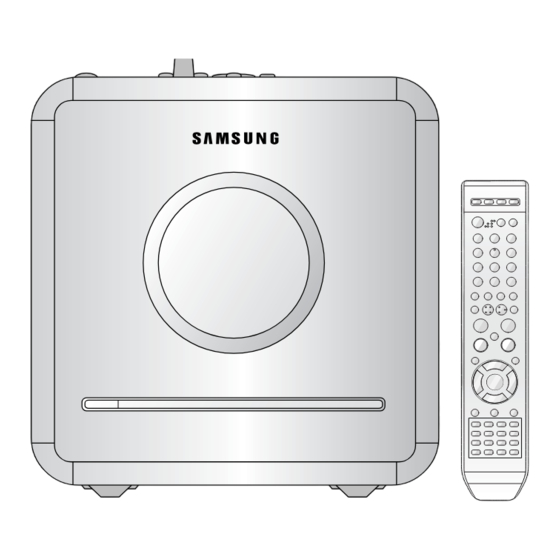

- Page 1 DVD KARAOKE MICRO COMPONENT SYSTEM MM-KX7 THIS APPLIANCE IS MANUFACTURED BY: Instruction Manual COMPACT DIGITAL AUDIO V I D E O AH68-01847G...
-
Page 2: Safety Warnings
Safety Warnings Precautions Use of controls, adjustments or performance of procedures other CLASS 1 LASER PRODUCT than those specified herein may result in hazardous radiation KLASSE 1 LASER PRODUKT exposure. LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 CAUTION-INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. -
Page 3: Table Of Contents
Repeat Playback.................................23 Power Saving Function Selecting Audio/Subtitle Language .............................25 Moving Directly to a Scene/Song............................26 The MM-KX7 automatically shuts itself off after 20 minutes in the stop . Using Disc Menu.................................27 Using the Title Menu ................................28 SETUP Customized TV Screen Display Setting the Language................................29... -
Page 4: Description
Description —Rear Panel— —Top Panel— COMPONENT VIDEO OUTPUT jacks Connect a TV with component video inputs to these jacks. FM Antenna Connector Video Output Connector Connect the TV's video input jacks AM Antenna Connector (VIDEO IN) to the VIDEO OUT connector. -
Page 5: Remote Control
Description —Remote Control— Insert Remote Batteries TUNER(BAND) button AUX button DVD button USB button EJECT button Remove the battery Insert two 1.5V AAA Replace the battery POWER button DEMO/COLOR button cover on the back of batteries, paying cover. the remote by attention to the correct pressing down and polarities (+ and –). -
Page 6: Connecting The Speakers
Connecting the Speakers Connecting to a TV Please be sure to turn off the power and unplug the power cord before moving or installing this unit. Before moving or installing the product, be sure to turn off the power and disconnect the power cord. Please choose one of two video connection methods. -
Page 7: Connecting To External Components
Connecting to External Connecting the FM and Components AM(MW) Antennas Connecting to an External Analog Component If FM reception is poor, Example: Analog signal components such as a VCR, Camcorder, and TV. connect an outdoor FM antenna (not supplied). Antenna (supplied) AM Loop Antenna (supplied) -
Page 8: P.scan (Progressive Scan) Function
Setting the Clock P.SCAN Function (Progressive Scan) For each step, you have a few seconds to set the required options. Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire If you exceed this time, you must start again. picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines. -
Page 9: Disc Playback
Disc Playback MP3/WMA-CD Playback Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played. Load the MP3/WMA In Stop mode, use disc. to select the album, and then Load a disc. press the ENTER • Insert a disc that the disc’s label facing up. button. -
Page 10: Divx Playback
5 Minute Skip function DivX Playback During playback, press the button. • Go to the screen about 5 minutes after whenever you press button. • Go to the screen about 5 minutes earlier whenever you press button. Audio Display Skip Forward/Back During playback, press the button. -
Page 11: Displaying Disc Information
Displaying Disc Information Fast/Slow Playback You can view playback information on the disc on the TV screen. Fast Playback Press button. Press INFO button. • Each time the button is pressed during playback, • Each time the button is pressed, the display changes as follows: the playback speed changes as follows: DivX JPEG... -
Page 12: Skipping Scenes/Songs
Skipping Scenes/Songs Angle Function This function allows you to view the same scene in different angles. Press Cursor Briefly press button . Press INFO button. button to move to • Each time the button is pressed briefly during playback, the previous or next chapter, ANGLE display. -
Page 13: Repeat Playback
Repeat Playback Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file). To Select a Repeat Playback Mode in the Disc Information Screen JPEG Press Cursor button Press REPEAT button. Press INFO button to move to REPEAT twice. -
Page 14: Selecting Audio/Subtitle Language
Selecting Audio/Subtitle Language Moving Directly to a Scene/Song Audio Language Selection Function Moving to a Title/Track Moving to a Chapter Press Cursor , buttons Press Cursor Press Cursor , Press INFO button buttons or numeric or numeric buttons to select Press INFO button. -
Page 15: Using Disc Menu
Using Disc Menu Using the Title Menu You can use the menus for the audio language, subtitle language, profile, etc. For DVDs containing multiple titles, you can view the title of each movie. DVD menu contents differ from disc to disc. Depending on the disc, this function may either not work at all or may work differently. -
Page 16: Setting The Language
Setting the Language Language Code List Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” OSD language is set to English by default. and/or “Disc Menu” (See page 29). Press Cursor Press ENTER Press MENU button button to move to Code Language... -
Page 17: Setting Tv Screen Type
Setting TV Screen type Adjusting the TV Aspect Ratio (Screen Size) Press Cursor Press MENU button to move to The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of wide screen and high button in the stop ‘Setup’... -
Page 18: Setting Parental Controls (Rating Level)
Setting Parental Controls (Rating Level) Setting the Password Use this to restrict playback of adult or violent DVDs you do not want children to view. You can set the password for the Parental (rating level) setting. Press Cursor Press Cursor Press Cursor button to Press Cursor... -
Page 19: Setting The Wallpaper
Press RETURN button to return to the previous level. Press MENU or EXIT button to exit the setup screen. Select this to set the Select this to set the desired Samsung Logo image as image as your wallpaper. your wallpaper. -
Page 20: Setting The Drc (Dynamic Range Compression)
Setting the DRC AV SYNC Setup (Dynamic Range Compression) You can use this function to enjoy Dolby Digital sound when watching movies at Video may look slower than the audio if it is connected with digital TV. low volume at night. In this case, adjust the delay time of audio to optimal status to fit the video. -
Page 21: Playing Dvd-Ok Discs
Playing DVD-OK Discs Connecting Microphone/ You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing Headphones along the lyrics displayed on the TV screen against the accompaniment. You can connect a set of headphones to your micro component system so that you can listen to music or radio programmers without disturbing other people in the room. -
Page 22: Reserving Accompaniment Music
Reserving Accompaniment Priority Playing Accompaniment Music Music Even if there is a song already reserved, you can have the song you want to sing to be played While the accompaniment is playing, you can reserve the next song you want to sing. first. -
Page 23: Favorite Song Function
Favorite Song Function You can save 50 songs you like or sing often each in FAVORITE1, 2, 3, a total of 150 songs to easily find and sing your favorite song. Saving FAVORITE SONG Singing FAVORITE SONG Press button Press button During the stop During the stop... -
Page 24: Search Song Function
Search Song Function You can easily do song search on screen without viewing the song list book. Search by Language Press button to During the stop mode, Press button to press the SEARCH SONG move to the detailed move to alphabet Structure of Song Search button and then press items and then press... -
Page 25: Searching By Genre
Search Song Function (Con’t) Searching DUET SONG Searching by Genre During the stop mode, During the stop mode, Press button to Press button press the SEARCH press the SEARCH move to the detailed to move to the song SONG button and then SONG button and then items and then press list on the bottom. -
Page 26: Key Control / Tempo Control
Search Song Function Key Control / Tempo Control (Con’t) You can easily do song search on screen without viewing the song list book. Searching by HITS SONGS Key Control Press button to During the stop mode, press the SEARCH move to the detailed During the playback, press the SONG button and then items and then press... -
Page 27: Male-Female Key Control
Male-Female Key Control Setting the Chorus You can set the chorus toON or OFF. Male-Female Key Control During the playback, press the Load a DVD-OK Press MENU FEMALE button. discs. button. • Each time the button is pressed, this selection alternates between Male and Female. -
Page 28: Setting The Fanfare
Setting the Fanfare Setting the Average Score You can set Fanfare to come out after singing a song. You can set the grade of scores displayed in the screen in advance. Load a DVD-OK Press MENU Load a DVD-OK Press MENU discs. -
Page 29: Setting The Shadow
Setting the Shadow Playing USB You can set the lyrics to be displayed in the black strips. You can play MP3 files by connecting to various external USB storage devices such as USB flash memory or HDD. Connect the external USB Select USB function by storage device to your using the USB button. -
Page 30: Selecting A Track From Usb Device
To use high speed search Selecting a Track from USB Device Before you begin! Connect the external USB storage device to your player. Select USB function by using the USB button. You can search the part you want quickly during the play You can select a desired directory and an MP3 file during the play or when it stopped. -
Page 31: Listening To Radio
Listening to Radio Presetting Stations You can listen to the chosen band (FM, AM broadcast stations) by using either You can store up to: the automatic or manual tuning operation. • FM Frequency Modulation 15 FM stations • AM(MW) Medium Wave 15 AM stations Remote Control Unit Example: Presetting FM 89.1 in the memory... -
Page 32: Timer Function
Timer Function Cancelling the Timer • The timer enables you to switch the system on or off at specific times. After having set the timer, it will start automatically as shown by the TIMER indication on the display. • If you no longer want the system to be switched on or off automatically, you must cancel the timer. If you no longer wish to use the timer, you must cancel it. -
Page 33: Eq/Sound Mode/Treble/Bass Function
Sleep Timer Function / Mute Function EQ/Sound Mode/Treble/Bass Function Your micro component system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to. The function of Power Sound amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound. -
Page 34: Demo / Color Function
Cautions on Handling and Storing Discs DEMO / COLOR Function Small scratches on the disc may reduce sound and picture quality or cause breaks in playback. Be especially careful not to scratch discs when handling them. DEMO Function Handling discs You can view the various functions available on Do not touch the playback side of the disc. -
Page 35: Before Calling For Service
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. Symptom... -
Page 36: Notes On Discs
Notes on Terminology Notes on Discs Disc Recording Format Recorded onto some DVD discs are scenes which have been simultaneously shot ANGLE from a number of different angles (the same scene is shot from the front, from the CD-R Discs •... -
Page 37: Specifications
Digital Camera Iriver H320 Iriver 20G HDD MP3 Player VIDEO Y : 1.0Vp-p(75Ω load) Coolpix 5200 Nikon Digital Camera YH-920 Samsung 20G HDD MP3 Player OUTPUT Stylus 410 digital Olympus Digital Camera YP-T7 Samsung MP3 Player Component Video Pr : 0.7Vp-p(75Ω load) - Page 38 Contact SAMSUNG WORLD WIDE f you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
