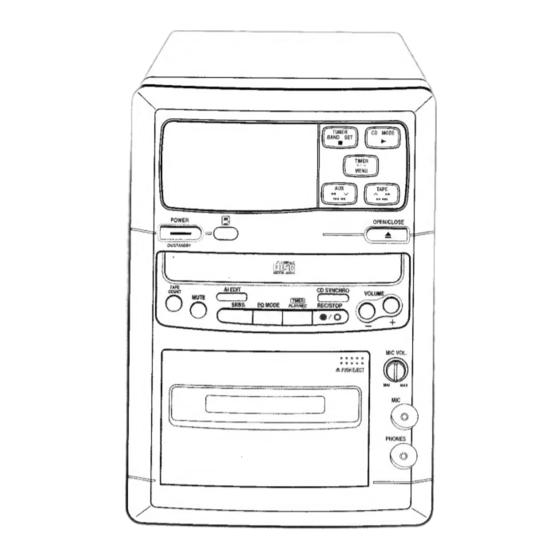

Samsung MM-77 Service Manual

MM-77
MICRO COMPONENT SYSTEM
APF CCAUT ON -csateistans doce Sale dtaaaroeeeacsanrs 1~9
2; SDOCITICATION a:iinescetcctevecdav unten 10
3. Location of controls ........ccee 11~13
4. Disassembly instruction............ 14~15
5. Basic circuit operation............... 16~17
6. TroubleSHOOTING ......ecceseeeeeeeees 18~26
FAQUUSUMIENT siasrmiccihddiariereds 27~32
8. Block diagram........ccessseseseees 33~34
10.Schematic diagram... 42~44
11.PCB Pattern and Marking
HAGMAN asia ste senetuetrsannslncensadagenas 45~48
12. Wiring diagram .....cccccccseseeeeeeeeens 49
13.IC & TR internal diagram .......... 50~57
14. Electrical parts list... eee 58~67
15. List of Abbreviation ..........cccceeeees 68
