Installer Guide
Universal Programmable Smart Wi-Fi Thermostats
7300 Single Stage Heat / Cool
7305 Up to 3 Heat / 2 Cool Heat Pump
See Wi-Fi Setup Guide for Wi-Fi Setup Instructions
1 Specifications
Warning
For installation by experienced service technicians only.
Caution
• Possible electric shock or damage to equipment can occur.
• Disconnect power before beginning installation.
This thermostat requires 24 Volt AC Power or 2 properly installed "AA" Alkaline
batteries for proper operation. If connecting this thermostat to a Wi-Fi network,
a 24 VAC common (C wire) is required.
For use only as described in this manual. Any other use will void warranty.
1 Specifications
This thermostat is compatible with:
• Single stage heat / cool conventional and heat pump systems
• Conventional systems up to 2 stages of heating and 2 stages of cooling (7305 only)
• Heat pump systems up to 3 stages of heating and 2 stages of cooling (7305 only)
• 2 or 3 wire hydronic zone systems
Electrical and control specifications:
• Electrical Rating: 24 Volt AC
• 1 amp maximum load per terminal
• AC Power: 18 – 30 Volts AC
• DC Power: 3.0 Volt DC (2 "AA" Alkaline Batteries Included)
• Control Range: 45° – 90° F (7° – 32° C)
• Temperature Accuracy: +/- 1° F (+/- .5° C)
• Outdoor Temperature Display Range: -40° - 120° F (-40° - 49° C)
Terminations
• 7300: Rc, Rh, W1, C, Y1, K, O/B/V3, G, S2, S1
• 7305: Rc, Rh, W2, W1/E/W3, A, C, L, Y2, Y1, K, O/B/V3, G, S2, S1
Conventional or Heat Pump
Up to 2 Heat / 2 Cool Conventional
Model number is located on back of thermostat.
2 Installation and Wiring
4 Installer Settings
®
3 Quick Reference
5 System Testing
®
"C" Common
Wire Required
for Wi-Fi
7300-100-02
Advertisement
Related Manuals for Braeburn 730S
Summary of Contents for Braeburn 730S

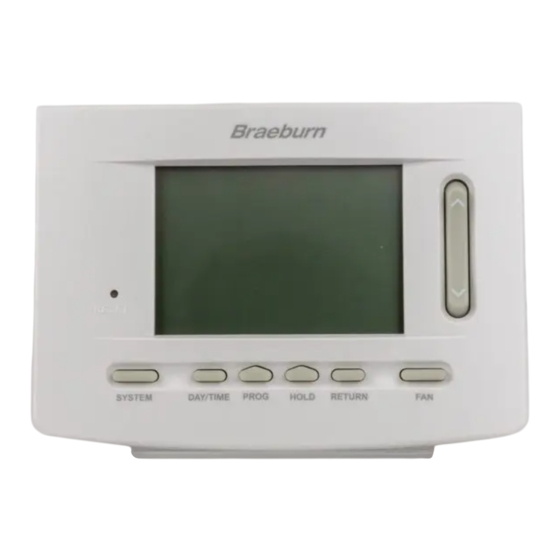

- Page 1 ® Installer Guide ® Universal Programmable Smart Wi-Fi Thermostats 7300 Single Stage Heat / Cool “C” Common Conventional or Heat Pump Wire Required for Wi-Fi 7305 Up to 3 Heat / 2 Cool Heat Pump Up to 2 Heat / 2 Cool Conventional Model number is located on back of thermostat.
-
Page 2: Installation And Wiring
2 Installation and Wiring Warning Disconnect power before beginning installation. Thermostat Location Install the thermostat approximately 5 feet (1.5m) above the floor in an area that has a good amount of air circulation and maintains an average room temperature. Avoid installation in locations where the thermostat can be affected by drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed pipes, chimneys and outside walls. Install your new Braeburn thermostat in 4 basic steps: 1 Install the Sub-Base 2 Provide Power 3 Connect Your Wires 4 Attach Thermostat to Sub-Base Install the Sub-Base: • Remove the sub-base from the body of the thermostat. • Mount the sub-base as shown below: Drill 3/16” pilot holes in your desired location. -
Page 3: Connect Your Wires
Provide Power 24VAC Power Terminal (C) Batteries Installed as Shown • For 24 Volt AC power, you must connect the common side of the transformer to the C terminal on the thermostat sub-base. In dual transformer installations, the transformer common must come from the cooling transformer. • For battery power, insert the 2 supplied “AA” type alkaline batteries into the battery compartment located in the rear housing of the thermostat. Make sure to position the Positive (+) and Negative (-) sides of the batteries correctly with the +/- symbols in the battery compartment. • If connecting this thermostat to a Wi-Fi network, a 24 VAC common (C wire) is required. Connect Your Wires Wiring Terminations for model 7300 Terminal Function Description... -
Page 4: Function Description
Connecting Your Wires (continued) Wiring Terminations for model 7305 Terminal Function Description Rc Input 24 Volt AC Cooling Transformer (Dual Transformer Systems Only) Rh Input Power Connection (24 Volt AC Heating Transformer) Output Fan Control W1 / E / W3 Output (W1) 1st Stage Conventional Heat, (E) Emergency Heat, (W3) 3rd Stage Auxiliary Heat W2 Output 2nd Stage Conventional Heat O / B / V3 Output (O) Cool Active Reversing Valve (B) Heat Active Reversing Valve (V3) Zone Valve Power Close Y1 Output 1st Stage Compressor Y2... -
Page 5: Conventional Systems
Conventional Systems Typical Wiring Configurations NOTE: The “System Type” option will be configured in the Installer Settings section. The 7300 is a single stage thermostat and not intended for multi stage equipment. Heat Only Hydronic Heat Only Set System Type to 11CONV Set System Type to 1HD 24 Volt AC Power (heating transformer) [note 2] Rh Power Connection... -
Page 6: Heat Pump Systems
Fan Relay 24 Volt AC Transformer Common [note 1] Optional System Fault Monitor [note 4] Additional Wiring Options - All System Types NOTE: Additional options are configured in the NOTES - Additional Wiring Options Installer Settings section. [1] These terminals can be used to connect a Braeburn indoor or outdoor remote sensor. ® [2] Can be used to share a wire on existing installations Indoor or Outdoor Remote Sensor [note 1] where a common connection (C wire) is required. Economizer, Fresh Air or Output Control Module [note 2] Share-a-Wire... -
Page 7: Attach Thermostat To Sub-Base
Attach Thermostat to Sub-Base W1/E W1/E INSTRUCTIONS /AUX1 /AUX /AUX /AUX /AUX1 AUX2 DAY/TIME 1) Line up the thermostat body with the sub-base. 3) Insert Quick Reference Card into slot 2) Carefully push the thermostat body against the on top of thermostat. sub-base until it snaps in place. NOTE: This thermostat ships configured as a 1H/1C conventional thermostat. Confirm installer settings. See page 10. Installer Guide... -
Page 8: Quick Reference
3 Quick Reference BACK NEXT Thermostat Display Room Temperature ...... Displays the current room temperature Set Temperature ...... D isplays the current set point temperature Outdoor Temperature Indicator . .. D isplays along with the outdoor temperature reading** BACK Indicator* ......BACK button is active NEXT Indicator*......NEXT button is active Service Indicators ...... D isplays various service/maintenance information Fan Indicator ........ Indicates when the system fan is running Wi-Fi Indicator ...... - Page 9 RETURN Button ...... R eturns to normal mode from program or setting modes FAN Button ........ S elects the system fan mode Quick Reference Instructions .. S tored in slot located at top of thermostat SpeedBar ........ I ncreases or decreases settings (time, temperature, etc.) ® Outdoor Temperature .... I f a Braeburn outdoor sensor was connected you can view the outdoor ® temperature by pressing the PROG and HOLD buttons at the same time. Battery Compartment .... L ocated in the back of thermostat * BACK and NEXT are secondary functions of the PROG and HOLD buttons. When in programming or configuration modes, BACK and NEXT appear in the display, indicating that the PROG and HOLD buttons now function as BACK and NEXT.
-
Page 10: Installer Settings
4 Installer Settings The Installer Settings must be properly configured in order for this thermostat to operate correctly. The Installer Settings are menu driven. The portion of these settings that do not apply to your setup will be skipped. These INSTRUCTIONS settings are indicated below with comments. More detail on each setting follows this table. Press and hold down the RETURN and INSTRUCTIONS buttons for 3 seconds. 2. Release both buttons and the first installer setting will be displayed. 3. Change settings as required using the or portion of the SpeedBar ® 4. Press NEXT (HOLD) or BACK (PROG) to move to the next or previous setting, press RETURN to exit. BACK NEXT DAY/TIME DAY/TIME NOTE: Shaded areas below do not apply to the 7300. No. Installer Setting Factory Setting Comments... - Page 11 CLR0 CLR0 28 Installer Clear Clear Off - No changes made to settings CLR2 Clears all thermostat settings (factory defaults) *When a Braeburn outdoor sensor is connected, the thermostat automatically recognizes it. Press PROG and HOLD at the same ® time to display outdoor temperature. NOTE: Additional options such as Service Monitors, setting the lock code, etc. are located in the User Settings – See User manual for information on setting these options. Installer Guide...
- Page 12 NOTES - Installer Settings 1 Only available if Residential profile was selected in option 1. 2 Only available if a 2 or 3 stage system type was selected in option 6. 3 Only available if a Conventional system was selected in option 6. 4 Only available if a 2 or 3 stage Heat Pump system was selected in option 6. 5 Only available if a Heat Pump system was selected in option 6. 6 Only available if the 24 Volt AC common wire is connected to the C terminal. 7 Not available if a heat only hydronic system is selected in option 6. 8 Only available if a programmable profile was selected in option 2. 9 Only available if a Braeburn indoor remote sensor was connected. ® 10 Only available if auto changeover was enabled in option 5. 11 Only available if a Braeburn outdoor sensor was connected. 12 Only available if a Commercial profile was selected in option 1. Detailed Explanation of Installer Settings (also see NOTES above): Profile – Selects a residential (RES) or commercial (COMM) profile. If residential is selected, 4 programming events per day are available. If commercial is selected, 2 event, 7 day programming is available.
- Page 13 20 Indoor Remote Sensor Control [note 9] – If a Braeburn indoor remote sensor is connected during ® installation, the thermostat will automatically detect the sensor. When an indoor sensor is detected, you may select between thermostat only (I SENS), remote sensor only (E SENS) or combining the thermostat and the remote sensor (A SENS). NOTE: This option does not apply to a Braeburn outdoor sensor. When an outdoor sensor is connected the thermostat automatically recognizes it and no further configuration is necessary. 21 Lockout Security Level – Selects the level of keypad lockout when the thermostat is locked. Level 2 locks the entire thermostat (including the front reset button). Level 1 locks everything except the SpeedBar ®...
- Page 14 25 Economizer, Fresh Air or Output Control [note 12] – Selects control options. Select between disabled (NONE), economizer mode (ECON) and time of day (TOD) mode. Time Step / Override Cooling Call External Air or Output Control (A) Economizer Time of Disabled Mode Day Mode Occupied YES or NO Unoccupied Override YES or NO Time Step / Override Heating Call External Air Output (A) Economizer...
-
Page 15: System Testing
5 System Testing Warning Read Before Testing • Do not short (or jumper) across terminals on the gas valve or at the heating or cooling system control board to test the thermostat installation. This could damage the thermostat and void the warranty. • Do not select the COOL mode of operation if the outside temperature is below 50º F (10º C). This could possibly damage the controlled cooling system and may cause personal injury. • This thermostat includes an automatic compressor protection feature to avoid potential damage to the compressor from short cycling. When testing the system, make sure to take this delay into account. NOTE: The compressor delay can be bypassed by pressing the reset button on the front of the thermostat. All user settings will be returned to factory default, however all Installer settings will remain as originally programmed in section 4. -
Page 16: Limited Warranty
® Limited Warranty When installed by a professional contractor, this product is backed by a 5 year limited YEAR warranty. Limitations apply. For limitations, terms and conditions, you may obtain a full copy of this warranty: LIMITED WARRANT Y · Visit us online: www.braeburnonline.com/warranty · Phone us: 866.268.5599 · Write us: Braeburn Systems LLC 2215 Cornell Avenue Montgomery, IL 60538 Store this manual for futur e reference. For additional information visit: www.braeburnonline.com For online access visit: www.bluelinksmartconnect.com ® Braeburn Systems LLC 2215 Cornell Avenue • Montgomery, IL 60538 Technical Assistance: www.braeburnonline.com Call us toll-free: 866-268-5599 (U.S.) 630-844-1968 (Outside the U.S.) 7300-100-02 ©2016 Braeburn Systems LLC • All Rights Reserved • Made in China.
