REACT V-SR GMBa
Instructions for Use
Key to symbols
Symbols on the machine
This product complies with applicable EU
directives
Symbols in this user manual
Warning/Caution!
Risk of crushing
Application area

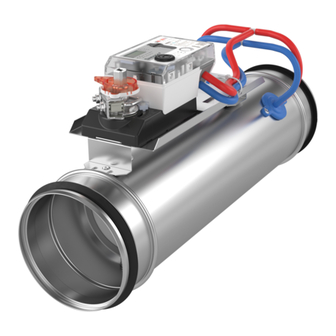

The product is a variable flow damper or constant flow damper
designed for comfort ventilation indoors. The product is used to
regulate the supply air or extract air flow in ventilation ducts.
The product may not be used for anything other than its
intended use.
General
Read through the entire instructions for use before you
install/use the product and save the instructions for
future reference. It's not permissible to make changes
or modify this product other than those specified in this
document.
The packaging contains
1 x REACT V-SR GMB
1 x Instructions for use
Protective equipment
Always use appropriate personal protective equipment
for the work in question, in the form of gloves,
respirators and protective glasses during handling,
installation, cleaning and service/maintenance.
Electrical safety
Permitted voltage, see "Electrical data". It is not
permissible to insert foreign objects into the product's
connectors or the electronics' ventilation openings; risk
of short circuiting.
24 V isolation transformer to be connected should comply with
the provisions of IEC 61558-1.
Cable sizing must be carried out for cabling between the
product and the power supply source.
Disconnect the power supply when working on the product and
it is not required to be running.
Always follow the local/national rules for who shall be
permitted to carry out this type of electrical installation.
The document was originally written in Swedish
Other risk
When the product is voltage fed, the damper will either
open or close. This can entail a certain risk of pinch
injuries, for example, to the fingers if these are placed
between the damper blade and ventilation duct when
the damper blade rotates.
The product is equipped with a spring return actuator and has no
release button, manual control is performed using the supplied
hex key where the damper blade is cranked to the required position
and then locked. Do not forget to disable the lock after working
on it.
Handling
• Always use appropriate transport and lifting devices when the
product is to be handled to reduce ergonomic loads.
• The product must be handled with care.
• It is not permissible to carry the product by the measuring tubes.
Installation
• Moist, cold and aggressive environments must be avoided.
• Avoid installing the product near a heat source.
• Assemble the product according to applicable industry
regulations.
• Install the product so that it is not accessible by unauthorized
persons, for example above a suspended ceiling.
• Install the product for easy access during service/maintenance.
• Supplement the duct system with a cleaning hatch in the
vicinity of the product to facilitate cleaning.
• If the product is mounted above a fixed ceiling, the inspection
hatch must be located so that the product is accessible for
inspection.
• If the product is mounted so that it is possible to gain access
to the inside of the product, it must be supplemented with
appropriate protection, for example, a ventilation unit.
• If the product is mounted in cold areas, the whole product
must be insulated on the outside against condensation.
• For installation, the accessory FSR is recommended.
• The product can be installed position-independent.
• It is recommended to mount the product so that the product's
display is visible.
• The product must be laid down prior to installation so that it
cannot fall over.
• Check to make sure that the product doesn't have any visible
defects.
• Check that the product is properly secured after it has been
installed.
• Use the product's eyes to secure the cables with cable ties.
• Check that all cables are properly secured in place after
installation.
• Check that the actuator/controller is properly mounted.
09/02/2024
Article 1546172
