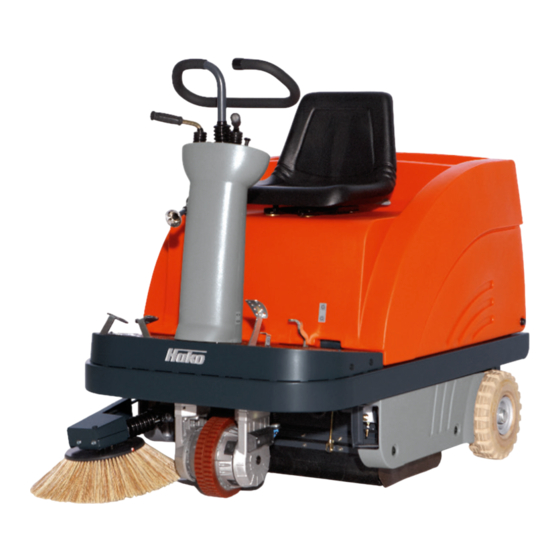

Summary of Contents for HAKO Sweepmaster P 900 R
- Page 1 Page 1 IR/KUD/102023...
- Page 2 Page 2 IR/KUD/102023...
- Page 3 Page 3 IR/KUD/102023...
- Page 4 Vehicle dimensions and weights Jonas 900 E/EH Jonas 900 V/VH Lenghst with side broom 1520 1520 Width with 1 side broom 1120 1120 Height above driver's seat 1340 1340 Weight – without batteries Weight – ready to use Driving and sweeping performance Speed forward / revers km/h 6,0 / 4,0...
- Page 5 Side broom Jonas 900 E/EH Jonas 900 V/VH Diameter Revolution speed /min ca. 90 ca. 90 Bristle material Dirt container Capacity Liter 2 x 30 / 70 2 x 30 / 70 Dust extraction / Filter system Filter surface m² Filtersystem –...
- Page 6 Geräuschemissionswert Jonas 900 E/EH Jonas 900 V/VH Sound power level measured according to DIN EN dB (A) ISO 3744 under normal operating conditions and maximum volume flow Motor Jonas 900 V Jonas 900V from …2507 J 900 V 6502.15 Manufacturer, Type Briggs&Stratton Intek Briggs&Stratton Vanguard Briggs&Stratton Vanguard...
- Page 7 Page 7 IR/KUD/102023...
- Page 8 Page 8 IR/KUD/102023...
- Page 9 Page 9 IR/KUD/102023...
- Page 10 Adjustment dimension between broom and throwing plate 16 +2mm Page 10 IR/KUD/102023...
- Page 11 Adjustment hight Adjustment inclination Screw should be aligned with the outer edge Adjust the swing angle by moving it in the slot of the chassis Page 11 IR/KUD/102023...
- Page 12 Page 12 IR/KUD/102023...
- Page 13 Page 13 IR/KUD/102023...
- Page 14 Page 14 IR/KUD/102023...
- Page 15 Page 15 IR/KUD/102023...
- Page 16 Page 16 IR/KUD/102023...
- Page 17 Page 17 IR/KUD/102023...
- Page 18 Page 18 IR/KUD/102023...
- Page 19 Till S/N 650210525062 from S/N 650210525073 Page 19 IR/KUD/102023...
- Page 20 Page 20 IR/KUD/102023...
- Page 21 Page 21 IR/KUD/102023...
- Page 22 Page 22 IR/KUD/102023...
- Page 23 Page 23 IR/KUD/102023...
- Page 24 Page 24 IR/KUD/102023...
- Page 25 Always disconnect the battery (negative pole) when working on the engine and the electrical system Notes for the three-phase alternator Only run the engine with the battery connected Do not use a charger to jump start Disconnect the battery from the device when recharging or performing electric welding Page 25 IR/KUD/102023...
- Page 26 Page 26 IR/KUD/102023...
- Page 27 Page 27 IR/KUD/102023...
- Page 28 Page 28 IR/KUD/102023...
- Page 29 Page 29 IR/KUD/102023...
- Page 30 Page 30 IR/KUD/102023...
- Page 31 Alarm Code Alarm description Description Wiring Troubleshooting A1.X1PIN14 to X1PIN14 to X3PIN4 at S3PIN1 Controller has detected the forward Switch.fct. S3 PIN1 to 2 (OPEN); Check the forward switch 1x flash Forward switch closed at power-ON switch ON while the key-switch is PIN1 to 4 (CLOSED) Check the wiring of the forward switch switched ON...
- Page 32 Alarm Code Alarm description Description Wiring Troubleshooting Check the motor's wires Controller has protected itself, cause of A1.M(PIN1) at M1.PIN(A2) and 7x flash Overcurrent (short circuit) Check internal motor resistance an external short circuit A1.M2(PIN2) at M1.PIN(A1) If ok and the controller repeats this alarm, change it G1.PIN(P) to X0PIN(P) to F1.PIN1/PIN2 Controller detects a failure on the Power fuse or on-board contactor...
- Page 33 Page 33 IR/KUD/102023...
- Page 34 Page 34 IR/KUD/102023...
- Page 35 Page 35 IR/KUD/102023...
- Page 36 If parameters have been changed unintentionally, the parameter “F0” = “2” can be used to reset the control to the delivery status. The driving potentiometer needs to be read in again. Page 36 IR/KUD/102023...
- Page 37 Page 37 IR/KUD/102023...
- Page 38 Page 38 IR/KUD/102023...
- Page 39 Page 39 IR/KUD/102023...
- Page 40 Page 40 IR/KUD/102023...
- Page 41 once after every add. every add. every Work step once after 5h 100h 200h 500h 100h Change engine oil Check engine for oil leakage Check engine rpm Clean air filter element Change air filter element Check v-belt tension Check v-belt for wear and tension Change fuel filter Check spark plug Change spark plug...
- Page 42 add. every add. every Work step every 100h once after 5h once after 100h 200h 500h n.a. Clean machine n.a. Check LDS adjustment n.a. Check charger adjustment n.a. Check battery charging status n.a. Clean and grease battery terminals Check the carbon brushes of the electric motors for ease of n.a.
