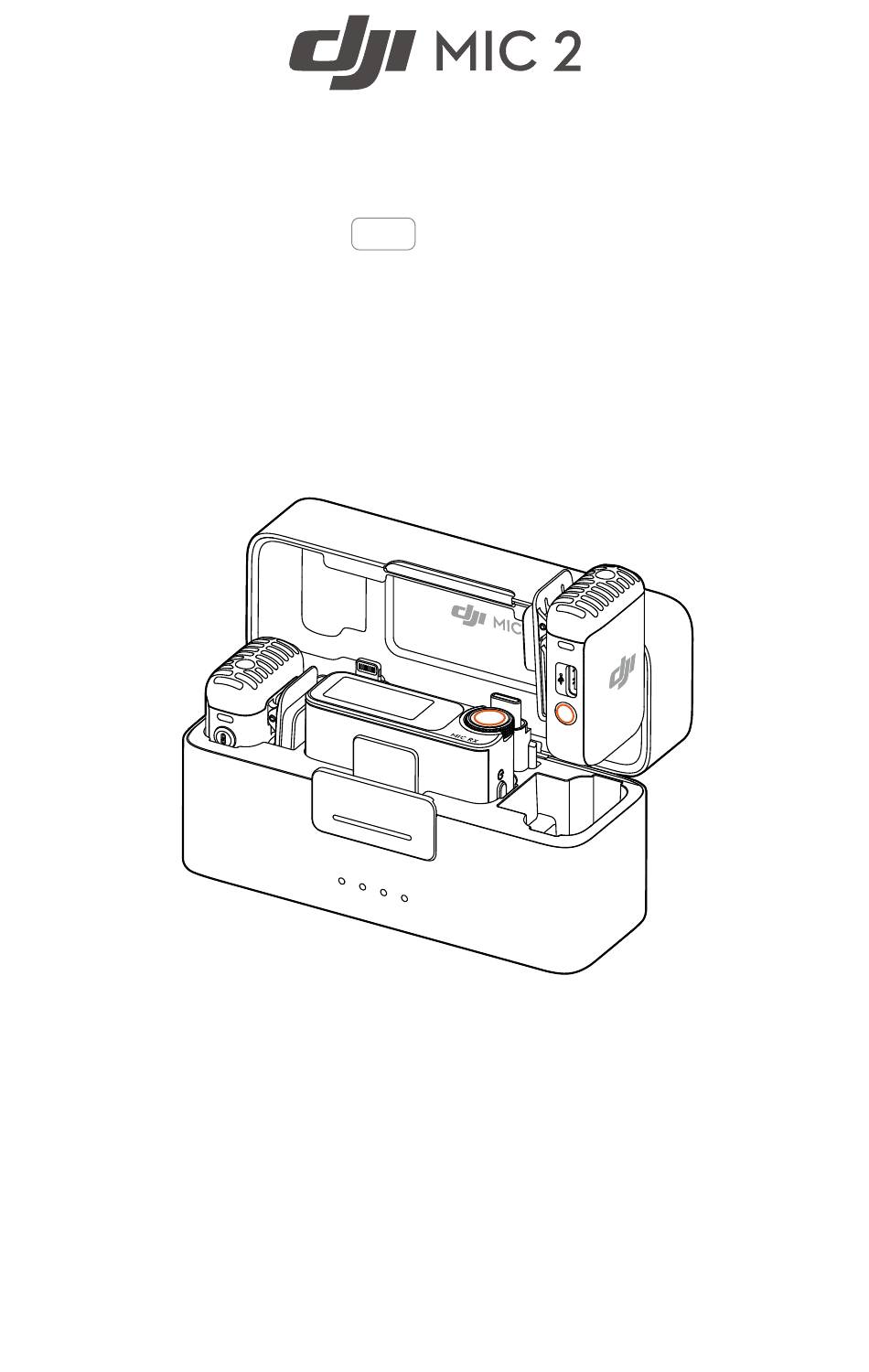

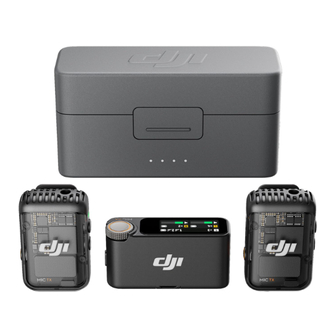

  • Page 1 User Manual v1.0 2024.01...
  • Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring, or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI products.

  • Page 3: Using This Manual

    Legends Important Hints and Tips Read Before Use Read the following documents before using DJI™ Mic 2. 1. Safety Guidelines 2. Quick Start Guide 3. User Manual It is recommended to watch all tutorial videos and read the safety guidelines before using for the first time.

  • Page 4: Table Of Contents

    Swipe Up-Control the Transmitters Connecting a Transmitter to a Bluetooth Device Standalone Recording for Transmitters Maintenance Charging the Battery Charging with the DJI Mic 2 Charging Case Charging the Transmitters and Receiver Storing DJI Mic 2 Updating Firmware Accessories (Not Included)

  • Page 5: Introduction

    3. Record Button Press once to start or stop recording in standalone recording mode. Press and hold the button for three seconds to switch between DJI Mic 2 receiver or Bluetooth. 4. 3.5 mm TRS Input For connecting an external microphone. DO NOT connect a microphone with a power supply of 24 V or 48 V.

  • Page 6: Led Information

    Pulses red The transmitter has been muted. The transmitter is not recording independently. System Status LED Blinking Pattern Descriptions Linking Status with DJI Mic 2 Receiver — Solid green Linked with the receiver Blinks green slowly Not linked with the receiver...
  • Page 7 Noise reduction is enabled when the transmitter is linked to the DJI Mic 2 receiver or other Bluetooth devices. Blinks yellow Noise reduction is enabled when the transmitter is not linked to the DJI Mic 2 receiver or other Bluetooth devices. Battery Level Descriptions — Solid red...

  • Page 8: Dji Mic 2 Receiver

    The receiver can be connected to a camera by plugging it into the expansion port via a hot shoe adapter. 9. Charging Pad Charging will begin when the charging pad of the receiver connects to the charging pins of the DJI Mic 2 Charging Case.   © 2024 DJI All Rights Reserved.

  • Page 9: Dji Mic 2 Charging Case

    DJI Mic 2 User Manual DJI Mic 2 Charging Case 1. Charging Port (USB-C) For connecting to a USB-C changer. 2. Battery Level LEDs Indicates the battery level of the charging case. See the chart below for more details. Indicates the battery level of the charging case.

  • Page 10: Operation

    DJI Mic 2 User Manual Operation Placing a Transmitter A transmitter can be attached to clothing using the magnet, or set upright on a stable surface. The clip can also be used to attach a transmitter to clothes. It is recommended to use the windscreen when using a transmitter outdoors or in a windy environment.

  • Page 11: Linking The Transmitter And Receiver

    Linking the Transmitter and Receiver In the DJI Mic 2 (2 TX + 1 RX + Charging Case) combo and DJI Mic 2 (1 TX + 1 RX) combo, the transmitters and the receiver are linked by default. Follow the steps below to link the transmitters and receiver if they become unlinked.
  • Page 12 DJI Mic 2 User Manual Method 2: Link manually 1. When the system status LED on a transmitter blinks green slowly, press the linking button of the transmitter for two seconds, after which the transmitter will start to search for nearby receivers.

  • Page 13: Using With A Camera

    DJI Mic 2 User Manual Using with a Camera To record and transmit audio to a camera, attach the receiver to a camera using the cold shoe on the receiver, then connect the receiver to the microphone port of the camera using the camera cable provided, as shown below.

  • Page 14: Using With A Mobile Device

    DJI Mic 2 User Manual Using with a Mobile Device Record and transmit audio to a mobile device by attaching the receiver to a mobile device using the mobile device adapter. 00:00:00   © 2024 DJI All Rights Reserved.

  • Page 15: Using With A Computer

    Connect the receiver to a computer via the USB-C port in order to use the transmitter as a microphone. • Use a standard charging cable or the DJI Mic 2 Mobile Phone Adapter (Type-C) to connect DJI Mic 2 with a computer, and then enter the audio input settings for related settings.

  • Page 16: Receiver Touchscreen Operation

    DJI Mic 2 User Manual Receiver Touchscreen Operation The touchscreen displays information such as the real-time volume levels, battery levels of the receiver and transmitters, charging status, wireless signal strength, gain, and recording modes. The touchscreen display may vary when linked to different devices. This display is for reference only.
  • Page 17 DJI Mic 2 User Manual The middle of the screen indicates the status of the transmitters. Indicates the sound channel. Indicates the transmitter gain. Indicates that noise reduction is enabled. Indicates that the transmitter is recording independently. Indicates the battery level of transmitter.

  • Page 18: Swipe Down-Control Menu

    DJI Mic 2 User Manual Swipe Down-Control Menu Receiver Settings Transmitter Settings Settings Receiver Settings Recommended Power On/Off Camera Mono Receiver Gain Volume Receiver Auto Off Link Device Camera Settings Simultaneously Recording Mode Mono: Indicates that the left and right channel outputs of the receiver are identical.
  • Page 19 DJI Mic 2 User Manual Transmitter Settings Transmitter 32-Bit Float Vibration Low Cut REC Stop Lock Auto Record Storage LED Indicator Gain Recording Notification eMMC Low Cut When enabled, the transmitter will automatically filter low-frequency (100 Hz and below) sounds, thus reducing low-frequency noise and making for cleaner recordings.
  • Page 20 DJI Mic 2 User Manual Settings Brightness Language Time/Date Reset Version Certificate Brightness Tap and move the slider to adjust the brightness. Language Tap to set the language. Date/Time Set the date and time for the recording file. Factory Reset Tap to reset to default settings.

  • Page 21: Swipe Up-Control The Transmitters

    DJI Mic 2 User Manual Swipe Up-Control the Transmitters Swipe up on the home screen to view and control the recording status, mute status and enable noise canceling. Swipe up on the left side of the home screen to control Transmitter 1, and swipe up on the right side of the home screen to control Transmitter 2.

  • Page 22: Connecting A Transmitter To A Bluetooth Device

    DJI Mic 2 User Manual Connecting a Transmitter to a Bluetooth Device The transmitter can be connected to DJI Osmo Pocket 3, mobile phones and other devices via Bluetooth. Taking the transmitter connecting to a mobile phone as an example, the operation steps are as follows: 1.

  • Page 23: Standalone Recording For Transmitters

    DJI Mic 2 User Manual Standalone Recording for Transmitters The transmitter supports standalone recording and comes with 8GB of storage, allowing for up to 14 hours of 48 kHz 24-bit uncompressed audio. When the transmitter is powered on, press record button to start standalone recording, and press again to stop recording.

  • Page 24: Maintenance

    Charging the Transmitters and Receiver It is recommended to use a charging brick with 5 V/1 A specifications to charge the transmitters and receiver via the DJI Mic USB-C Splitter Charging Cable. It takes about 70 minutes to fully charge the transmitters and receiver.

  • Page 25: Updating Firmware

    How to update firmware: 1. Download the firmware on the product page at www.dji.com/mic-2/downloads. 2. Connect a transmitter or the receiver to the computer using the USB-C cable provided. When connecting to a computer, the receiver needs to be in the off state, and the transmitter can be either in the on or off state.

  • Page 26: Accessories (Not Included)

    The DJI Mic 2 transmitter features a 3.5mm TRS input for use with DJI Lavalier Mics. Insert the 3.5mm plug of the DJI Lavalier Mic into the 3.5mm input port when in use. The built- in microphone of the transmitter will be unavailable and the DJI Lavalier Mic will be used as the audio input.

  • Page 27: Specifications

    DJI Mic 2 User Manual Specifications DJI MIC 2 Transmitter Model DMT02 Dimensions 46.06×30.96×21.83 mm (L×W×H) Weight 28 g Wireless Mode GFSK 1 Mbps and 2 Mbps Equivalent Isotropic Radiated Power <20 dBm (EIRP) Wireless Mode Operating Frequency 2.4000-2.4835 GHz...
  • Page 28 DJI Mic 2 User Manual DJI MIC 2 Charging Case Model DMC02 Dimensions 116×41.5×59.72 mm (L×W×H) Weight 200 g Battery Type 18650 Li-ion Battery Capacity 3250 mAh Battery Energy 11.7 Wh Battery Voltage 3.6 V Charging Specification 5 V, 1.5-3 A Charging Temperature 5°...
  • Page 29 This content is subject to change without prior notice. https://www.dji.com/mic-2/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2024 DJI All Rights Reserved.  ...
