Summary of Contents for Elegoo Saturn 4 Ultra
- Page 1 Saturn 4 Ultra 3D Printer User Manual...
- Page 2 After receiving the product, please confirm whether the equipment is intact and the accessories are complete. If there is any damage or missing, please timely contact us at 3dp@elegoo.com.(To ensure the performance of each product, each product will undergo strict printing tests before leaving the factory.
- Page 3 Please use 95% (or higher) ethyl alcohol or isopropyl alcohol to wash your model unless you are using water washable resin. If you have any problems with the printer, please contact us at 3dp@elegoo.com. Please do not disassemble or modify ELEGOO 3D printers by yourself, otherwise, the warranty will expire, and...
-
Page 4: Packing List
Packing List Wifi Antenna Build Platform Resin Tank AI Camera Resin Tray USB Flash Disk Saturn 4 Ultra 3D Printer Mask Gloves Funnel Backup Screws User Manual Adapter Tool Kit Scraper... -
Page 5: Printer Introduction
Printer Introduction Z Axis Handle Build Plate LCD Display Screen Resin Tank AI Camera Screw Knob Touch Screen... - Page 6 Printer Introduction Anti-UV Cover Wifi Antenna USB Interface DC Socket Extension Port Switch...
- Page 7 3D Printer Tech Specs System: EL3D-4.0 Operation: 4.0-inch Capacitive Touch Screen Printing Parameter Slicer Software: Chitu Box Connectivity: USB Interface & WiFi Technology: MSLA Stereolithography Light Source: COB Light Source + Fresnel Collimating Lens (wavelength 405nm) XY Resolution: 19*24um (11520*5120) Printing Specification Z-axis Accuracy: 0.02mm Layer Thickness: 0.01-0.2mm...
-
Page 8: Test Printing
After printing is completed, wait until the resin on the build plate stops dripping, then lift the handle to take out the build plate, and use a scraper to remove the model. You can use ELEGOO's cleaning and curing machine to post-process the model. -
Page 9: Software Installation And Setup
3. Chitu Box Setting 3.1 Machine Configuration Parameters Click "Parameter Settings" and select ELEGOO Saturn 4 Ultra as your default printer. (See Picture 1) (Picture 1) (Picture 2) 3.2 Build Volume... - Page 10 Software Installation and Setup (Picture 3) 3.4 Parameters (See Picture 3) Layer Height: The thickness of each printed layer, the recommended height is 0.05mm, but you can set it from 0.01-0.2mm. The higher the thickness you set, the longer the exposure time will be required for each layer.
- Page 11 Network Management Center 1. After the printer is connected to WiFi, open the slicing software and click in the upper right corner to enter "Network Management Center" (You need to download and install Chitu Manager for first time use.) (See Picture 4) (Picture 4)
- Page 12 Network Management Center 2. After entering the network management center, click "Add Device" to associate the printer (make sure the computer and printer are in the same LAN), and the associated device can be remotely controlled through the computer. (See Picture 5) (Picture 5)
- Page 13 Network Management Center 3. In the printer management interface, you can turn on the camera to observe the printing situation in real time, and you can also control the time-lapse photography function to turn on or off. (See Picture 6) (Picture 6)
-
Page 14: Machine Maintenance
Machine Maintenance Please do not use sharp or pointy tools to scrape the resin tank to avoid damaging the release liner film. Please clean up the resin tank before changing the resin to another color. Before and after printing, clean the build plate with paper towels or alcohol to ensure that there are no bumps or burrs on the build plate. - Page 15 Email Support Discussion Forums Help Articles...
-
Page 16: Fcc Warning
FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Need help?
Do you have a question about the Saturn 4 Ultra and is the answer not in the manual?
Questions and answers

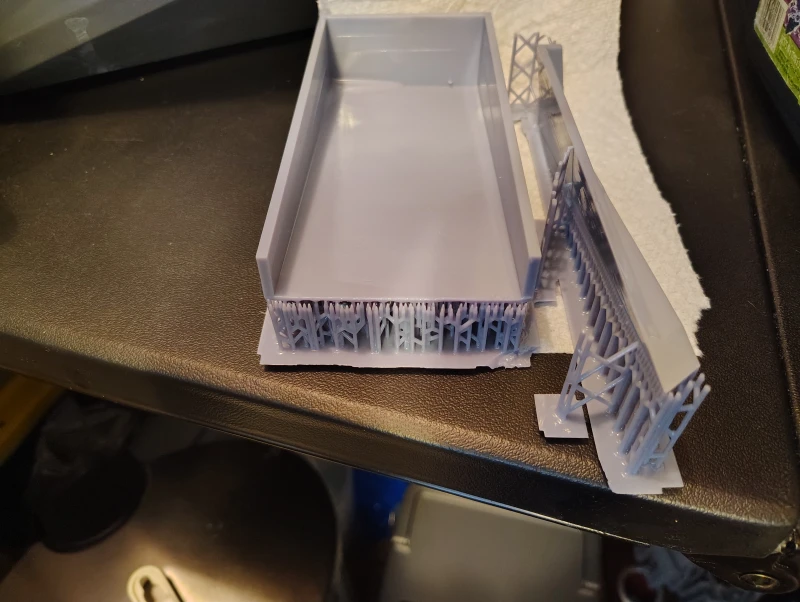

Why do my prints come out with portions of my project being omitted from printing? It won't print all of the walls for my box I'm trying to print.
