Sealey VS0205.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear Protective
instruction Gloves
manual
1. SAFETY
Keep this product in good working order and condition, take immediate action to repair or replace damaged parts.
9
Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
9
Keep children and unauthorised persons away from the work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Ensure the work area has adequate lighting.
9
DO NOT use the kit to perform a task for which it is not designed.
8
DO NOT allow untrained persons to use the kit.
8
DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
8
After use, clean equipment and store in a cool, dry, childproof area.
9
Dispose of waste liquids in accordance with local authority regulations.
9
Always read and comply with the warnings on the brake fluid container.
9
Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with plenty of water and seek medical advice.
9
If swallowed seek medical advice immediately.
9
WARNING! Only use new Brake Fluid, used Brake Fluid or other fluids will contaminate the system and possible brake system failure
‰
may result.
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids.
WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
‰
WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
‰
2. INTRODUCTION

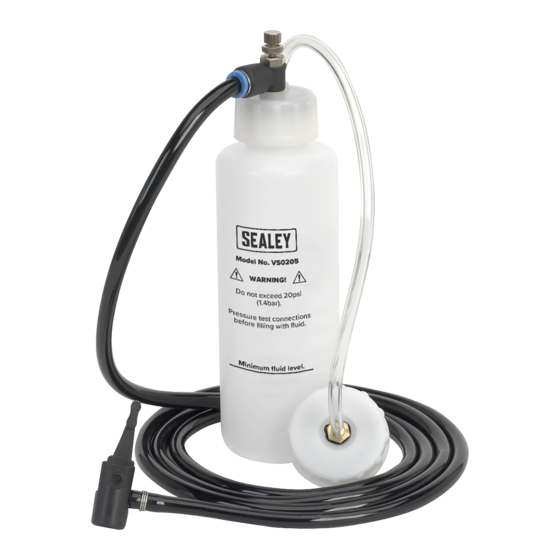

Fast and easy bleeding of brakes including ABS systems and clutch using air from the tyre. Innovative design incorporates valve
for control of air pressure, extra-long air hose for use with larger vehicles and magnetic reservoir base to prevent accidental spillage.
Adaptors included; Ø25mm Cap and Seal for Lockheed Systems, Ø27mm Cap and
Seal for VAG, Ø44/45mm Cap and 2 Seals (Ø44mm thin/Ø45mm Thick) for Metal
Girling and ATE Systems, Ø46mm Cap and Seal for some Girling Systems. Capacity
500ml.
3. SPECIFICATION
Model no: ........................................................ VS0205.V2
Maximum Pressure: .............................................. 20 psi
Accessories:
Ø25mm Cap & Seal for Lockheed Systems, Ø27mm Cap & Seal for VAG, Ø44/45mm
Cap & 2 Seals (Thin for Ø44mm, Thick for Ø45mm) for Metal Girling & ATE Systems,
Ø46mm Cap & Seal for some Girling Systems
4. OPERATION
4.1. BRAKE BLEEDING PROCEDURE
Refer to the vehicle manufacturer's instructions for brake bleeding and wheel
sequence before proceeding. If no specific instructions from the vehicle manufacturer
exist, follow the instructions detailed below.
WARNING! Familiarise yourself with hazards of brake fluid - read manufacturer's
‰
instructions on the container.
NOTE: Ensure that the brakes are adjusted before proceeding with bleeding the brakes.
4.1.1. For vehicles fitted with servo assisted brakes, pump the brake pedal two or three times with the engine switched off to evacuate the air
from the servo.
4.1.2. Remove the reservoir cap from the vehicle's brake master cylinder, select and fit, see fig.1, the appropriate adaptor cap to the automatic
brake bleeder and connect to the master cylinder.
4.1.3. Adjust the tyre pressure of one of the vehicles tyres or use a spare wheel to a maximum of 20 psi and connect the automatic brake
bleeder.
4.1.4. Pressure test the bottle with no brake fluid to ensure that the bottle has no leaks and then release the pressure, disconnect from the tyre
and fill the pressure bottle with new clean brake fluid.
© Jack Sealey Limited
AUTOMATIC BRAKE & CLUTCH BLEEDER
MODEL NO:
Wear Eye
Protection
Original Language Version
VS0205.V2
Pressure Regulator
Air Line
Tyre
Adaptor
connector
cap (See
fig.2)
VS0205.V2 Issue 1 01/03/23
