Sealey VS0205 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear Protective
instruction Gloves
manual
1. SAFETY
Keep this product in good working order and condition, take immediate action to repair or replace damaged parts.
9
Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
9
Keep children and unauthorised persons away from the work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Ensure the work area has adequate lighting.
9
DO NOT use the kit to perform a task for which it is not designed.
8
DO NOT allow untrained persons to use the kit.
8
DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
8
After use, clean equipment and store in a cool, dry, childproof area.
9
Dispose of waste liquids in accordance with local authority regulations.
9
Always read and comply with the warnings on the brake fluid container.
9
Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with plenty of water and seek medical advice.
9
If swallowed seek medical advice immediately.
9
WARNING! Only use new Brake Fluid, used Brake Fluid or other fluids will contaminate the system and possible brake system failure
‰
may result.
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids.
WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
‰
WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
‰
2. INTRODUCTION

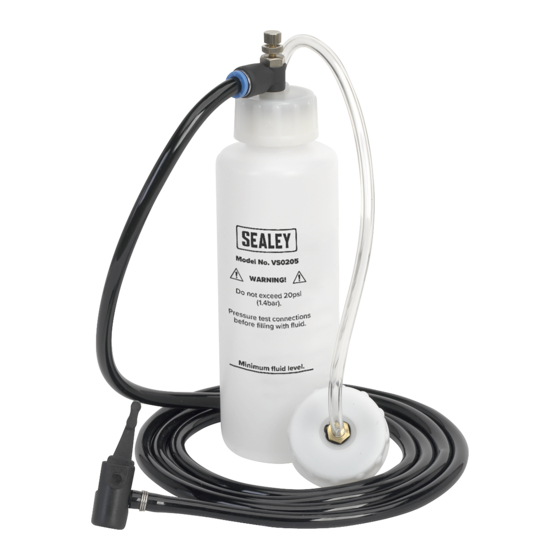

Fast, easy and effective bleeding of brakes and clutch using air from tyre. Innovative design incorporates valve for control of air pressure, extra-long
air hose for use with larger vehicles and magnetic reservoir base to prevent accidental spillage. Suitable for use with ABS systems. Supplied with
range of common adaptors.
3. SPECIFICATION
Model no: ......................................................................VS0205
Maximum Air Supply: ..................................................... 20 psi
Accessories
1 x 25mm Cap and Seal for Lockheed Systems.
1 x 27mm Cap and Seal for VAG.
1 x 44/45mm Cap with 2 Seals (1 x thin for 44mm Cap and 1 x thick for 45mm Cap)
for metal Girling and ATE Systems
1 x 46mm Cap and Seal for some Girling Systems
2 x Bleed Pipes
4. OPERATION
4.1. BRAKE BLEEDING PROCEDURE
Refer to the vehicle manufacturer's instructions for brake bleeding and wheel
sequence before proceeding. If no specific instructions from the vehicle manufacturer
exist, follow the instructions detailed below.
WARNING! Familiarise yourself with hazards of brake fluid - read manufacturer's
‰
instructions on the container.
NOTE: Ensure that the brakes are adjusted before proceeding with bleeding the brakes.
4.1.1. For vehicles fitted with servo assisted brakes, pump the brake pedal two or three times with the engine switched off to evacuate the air
from the servo.
4.1.2. Remove the reservoir cap from the vehicles brake master cylinder, select and fit, see fig.1, the appropriate adaptor cap to the automatic
brake bleeder and connect to the master cylinder.
4.1.3. Adjust the tyre pressure of one of the vehicles tyres or use a spare wheel to a maximum of 20 psi and connect the automatic brake
bleeder.
4.1.4. Pressure test the bottle with no brake fluid to ensure that the bottle has no leaks and then release the pressure, disconnect from the tyre
and fill the pressure bottle with new clean brake fluid.
© Jack Sealey Limited
AUTOMATIC BRAKE AND CLUTCH BLEEDER
MODEL NO:
Wear Eye
Protection
Original Language Version
VS0205
VS0205 Issue 4 (3, 4) 10/08/18
