Sealey VS0204T Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
IMPORTANT! These instructions are provided as a guide only. Always refer to the vehicle manufacturer's service instructions.
WARNING! Disconnect the 12V power before bleeding the brake system.
‰
It is recommended to perform a leak test to ensure if the adaptor is tightly and securely connected on the reservoir.
9
Keep this product in good working order and condition, take immediate action to repair or replace damaged parts.
9
Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
9
Keep children and unauthorised persons away from the work area.
9
Keep work area clean and tidy and free from unrelated materials.
9
Ensure the work area has adequate lighting.
9
DO NOT use the kit to perform a task for which it is not designed.
8
DO NOT allow untrained persons to use the kit.
8
DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
8
After use, clean equipment and store in a cool, dry, childproof area.
9
Dispose of waste liquids in accordance with local authority regulations.
9
Always read and comply with the warnings on the brake fluid container.
9
Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with plenty of water and seek medical
9
advice. If swallowed seek medical advice immediately.
WARNING! Only use new Brake Fluid, used Brake Fluid or other fluids will contaminate the system and possible brake system
‰
failure may result.
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids.
‰
WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
‰
WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
‰
2. INTRODUCTION
Brake reservoir bleed caps specially designed for use on Tesla vehicles. Aluminium made adaptor suitable for pressure bleeding works that require
up to 2.5 bar / 36 psi pressure. Heavy duty adaptor set for Tesla Model S & X and 3 & Y. Compatible with Sealey brake bleeders VS0204, VS0204A,
VS0207, VS0204A, VS820 & VS821.
3. CONTENTS
Make Model Year
Tesla Model S 2012 - 2021
Tesla Model 3 2017 - 2021
Tesla Model X 2015 - 2021
Tesla Model Y 2020 - 2021
© Jack Sealey Limited
TESLA - BRAKE PRESSURE BLEEDER CAP SET
MODEL NO:
Wear
protective
gloves

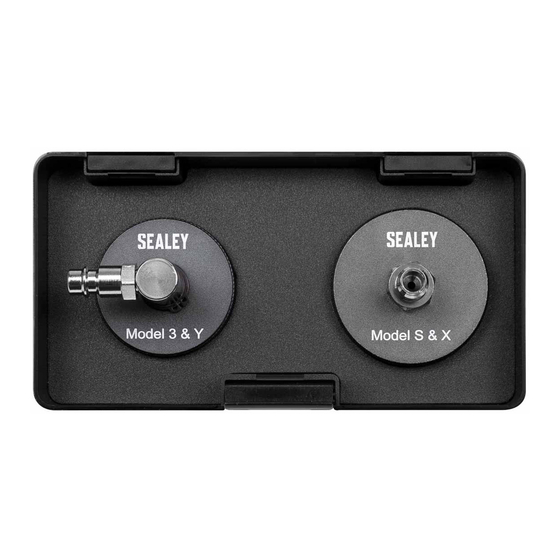

Adaptor
Adaptor Model S & X
Adaptor Model 3 & Y
Adaptor Model S & X
Adaptor Model 3 & Y
Original Language Version
VS0204T
VS0204T Issue 1 01/09/22
