- Page 1 BTS3900C WCDMA V200R013 Installation Guide Issue: 02 Date: 2011-04-10 HUAWEI TECHNOLOGIES Co., Ltd.
-
Page 2: Table Of Contents
Obtaining the ESN …………………………………… Installing the BTS3900C Cabinet…………………… Installing the RRU …………………………………… Checking the DIP Switches…………………………… Installing the BTS3900C Cables …………………… ………… Checklist for the BTS3900C Installation Appendix ……………………………………………… Change History …………………………………… Copyright © Huawei Technologies Co., Ltd. 2011. All rights reserved. -
Page 3: Prepare For The Installation
Prepare for the Installation Installation Procedure Start Information about the installation Assemble the BTS3900C cabinet Install the BTS3900C Install the BTS3900C Install the BTS3900C cabinet on a wall cabinet on a metal pole cabinet on a stand Install the RRU... - Page 4 Prepare for the Installation Installation Tools Hex key(8mm) Crosshead screwdriver Straight screwdriver Adjustable wrench Torque wrench Socket wrench Power cable crimping pliers RJ-45 crimping pliers Wire cutter Rubber hammer Electric soldering iron Cable peeler Percussion drill Heat gun Level bar Multimeter Long measuring tape Vacuum cleaner...
- Page 5 Prepare for the Installation Installation Scenarios On a wall On a metal pole On a stand...
-
Page 6: Structure And Clearance

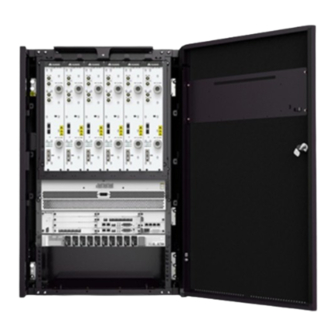

Structure and Clearance Structure of the BTS3900C Structure of the BTS3900C AC cabinet 1、 1. RRUs in this document consist of the RRU3804, RRU3801E, RRU3806, and RRU3801C. 2. The exterior and procedure for installing the RRU3804, RRU3801E, or RRU3806 are the same. This document uses the RRU3804 as an example. -
Page 7: Obtaining The Esn
Structure and Clearance Clearance for the BTS3900C Maximum clearance for the BTS3900C Dimensions of the BTS3900C cabinet cabinet Unit: mm Unit: mm Obtaining the ESN 1. Record the ESN on the BBU. If there is not a label on the FAN unit of the BBU, you must record the ESN and site information that is printed on a mounting ear of the BBU. -
Page 8: Installing The Bts3900C Cabinet
Installing the BTS3900C Cabinet Assembling the BTS3900C Cabinet 1. Use four bolts to combine the OMB 2. Remove the attachment plates subrack and the RRU subrack. on the side of the OMB subrack. 3. Install the removed attachment plates onto the back of the cabinet, use retention screws to fix the attachment plates, and then tighten the four bolts to fasten the two subracks. - Page 9 Installing the BTS3900C Cabinet Installing the BTS3900C Cabinet on a Wall 1. Mark off four fixing points 2. Use a percussion drill to drill holes at according to the holes on the the fixing points, and then install backplane. expansion bolt assemblies.
- Page 10 Installing the BTS3900C Cabinet 4. Fit the tabs on the upper attachment plate of the BTS3900C cabinet to the slots on the backplane, and then use anti-theft screws to fasten the lower attachment plate at the bottom of the cabinet to the backplane.
- Page 11 Installing the BTS3900C Cabinet Installing the BTS3900C Cabinet on a metal pole 1. Install the upper brackets on the metal pole, and then use a level bar to measure the level of the brackets. Spring Flat washer Bolt M10x110 washer 2.
- Page 12 Installing the BTS3900C Cabinet 4. Fit the tabs on the upper attachment plate of the BTS3900C cabinet to the slots on the backplane, and then use two anti-theft screws to fasten the lower attachment plate at the bottom of the cabinet to the backplane.
- Page 13 Installing the BTS3900C Cabinet Installing the BTS3900C Cabinet on a Stand 1. Mark off four fixing points 2. Use a percussion drill to drill holes at according to the holes on the stand. the fixing points, and then install expansion bolt assemblies.
- Page 14 Installing the BTS3900C Cabinet 4. Install the backplane of the cabinet. Install the backplane of the cabinet in the specified position. Installation position M10x60 5. Install the cabinet onto the backplane. The procedure for installing the RRU on a stand is the same as that for installing the RRU on a wall or on a metal pole.
-
Page 15: Installing The Rru
Installing the RRU Installing the RRU3801C The procedures for installing the RRU on a wall, metal pole, and stand are the same. 1. Remove the fixing piece at the bottom of the RRU3801C. Fixing piece on the RRU3801C 2. Take out the new fixing pieces from the accessory package delivered with the RRU subrack, and then replace the fixing piece at the top of the RRU3801C. - Page 16 Installing the RRU 3. Slide the RRU3801C into the RRU subrack. 4. Fix the fixing pieces on the RRU3801C to the RRU subrack.
- Page 17 Installing the RRU • 安装RRU3804 Installing the RRU3804 1. Replace the fixing piece at the top of the RRU3804. Fixing piece on New fixing the RRU3804 piece 2. Slide the RRU3804 into the RRU subrack.
- Page 18 Installing the RRU 3. Fix the fixing pieces on the RRU3804 to the RRU subrack. 2-hole fixing piece on the top right of the RRU3804 1-hole fixing piece on the bottom left of the RRU3804 The procedures for installing the RRU on a wall, metal pole, and stand are the same.
-
Page 19: Checking The Dip Switches
Checking the DIP Switches Wear the ESD wrist strap or gloves before removing or installing a board. Socket for the ESD wrist strap on the OMB Check the DIP switch on the WMPT. T1 mode 120-ohm E1 Mode 75-ohm E1 Mode Check the DIP switch on the UELP. -
Page 20: Installing The Bts3900C Cables
Installing the BTS3900C Cables Installing the Cables through the cable hole 1. Remove the outer screw 3. Lead the cable to be installed from the from the waterproof unit. bottom of the cable trough to the corresponding cable hole in the waterproof unit. - Page 21 Installing the BTS3900C Cables Installing the PGND Cables The procedures for installing the PGND cables in the BTS3900C DC cabinet and in the BTS3900C AC cabinet are the same. The procedure is as follows: Install the PGND cable of the BTS3900C.
- Page 22 Installing the BTS3900C Cables Install the RRU3804 PGND cable. Wiring terminal at Cable hole for the the bottom of the RRU3804 PGND cable RRU3804 Install the RRU3801C PGND cable. Cable hole for the Wiring terminal at RRU3801C PGND the bottom of the...
- Page 23 Installing the BTS3900C Cables Installing the Power Cables Install the input power cable of the BTS3900C AC cabinet. Cable hole for the input power cable of the BTS3900C AC cabinet Install the RRU3804 power cable of the BTS3900C AC cabinet.
- Page 24 Installing the BTS3900C Cables Install the RRU3801C power cable of the BTS3900C AC cabinet Cable hole for the RRU3801C power cable of the BTS3900C AC cabinet...
- Page 25 Installing the BTS3900C Cables Install the input power cable of the BTS3900C DC cabinet. Cable hole for the input power cable of the BTS3900C DC cabinet Install the RRU3804 power cable of the BTS3900C DC cabinet. Cable hole for the...
- Page 26 Installing the BTS3900C Cables Install the RRU3801C power cable of the BTS3900C DC cabinet. Elbow OT terminal Round waterproof connector Cable hole for the RRU3801C power cable of the BTS3900C DC cabinet...
- Page 27 Installing the BTS3900C Cables Installing the Transmission Cables The procedures for installing the E1 cables in the BTS3900C DC cabinet and in the BTS3900C AC cabinet are the same. The procedure is as follows: Install the E1 cable. E1 surge protection...
- Page 28 Installing the BTS3900C Cables Install the CPRI optical cable (in the BTS3900C configured with the RRU3804). The CPRI optical cable connections in the BTS3900C configured with WBBPd are the same as that of WBBPb. The following takes the WBBPb as an example.
- Page 29 Install the CPRI optical cable (in the BTS3900C configured with the RRU3801C). Cable hole for the CPRI optical cable The procedures for installing the CPRI optical cables in the BTS3900C DC cabinet configured with the RRU3801C and in the BTS3900C AC cabinet configured with the RRU3801C are the same.
- Page 30 RET/PWR_SRXU port at the bottom of the RRU to the RET port. The procedures for installing the AISG multi-wire cables in the BTS3900C DC cabinet configured with the RRU3804 and in the BTS3900C AC cabinet configured with the RRU3804 are the same.
- Page 31 The port is located at the bottom of the RRU3801C. The procedures for installing the AISG multi-wire cables in the BTS3900C DC cabinet configured with the RRU3801C and in the BTS3900C AC cabinet configured with the RRU3801C are the same.
- Page 32 The procedures for installing the RF jumpers in the BTS3900C DC cabinet configured with the RRU3804 and in the BTS3900C AC cabinet configured with the RRU3804 are the same. The procedures for installing the RF jumpers in the BTS3900C cabinet configured with the RRU3801C and in...
-
Page 33: Checklist For The Bts3900C Installation
When the BTS3900C cabinet is installed on a stand, the holes on the stand is well aligned with those for expansion bolt assemblies, and the stand is installed securely. - Page 34 Checklist for the BTS3900C Installation Checklist for Installing the Power Cable and PGND Cable Item All self-made PGND cables must be copper-based with proper wire diameters. No switch, fuse, or short circuit is allowed on the cable. All cables are bound neatly with cable ties that are arranged at even intervals, to proper tightness, and in the same direction.
- Page 35 Checklist for the BTS3900C Installation Checklist for Installing Signal Cables and Transmission Cables Item All self-made PGND cables must be copper-based with proper wire diameters. No switch, fuse, or short circuit is allowed on the cable. If the RET antenna is installed, the RET signal cables are correctly connected.
-
Page 36: Appendix
Appendix Pin Assignment E1 Cable Pin assignment for the wires of the 75-ohm E1 cable Pin on the DB26 Wire Type Multi-Wire SN Label Connector X1.1 X1.2 Ring X1.3 X1.4 Ring X1.5 X1.6 Ring X1.7 X1.8 Ring X1.19 X1.20 Ring X1.21 X1.22 Ring... - Page 37 Appendix Pin assignment for the wires of the 120-ohm E1 surge protection transfer cable Pin on the DB26 Wire Color Wire Type Label Connector Blue Twisted pair White Orange Twisted pair White Green Twisted pair White Brown Twisted pair White X.19 Green Twisted pair...
- Page 38 Right AC IN cabinet or BTS3900C DC cabinet PGND cable of the BTS3900C AC cabinet Right PGND1 or BTS3900C DC cabinet RRU cable of the BTS3900C AC cabinet or Right DC OUT BTS3900C DC cabinet FE cable Right E1/FE E1 cable...
-
Page 39: Change History
Change History This describes changes in the BTS3900C WCDMA Installation Guide. 02(2011-04-10) This is the 02. Compared 01 with 02, this issue updates the front cover and back cover. 01(2011-03-30) This is the 01. Compared Draft A with 01, add some pictures in the chapter of “Installing the BTS3900C Cables ”.
