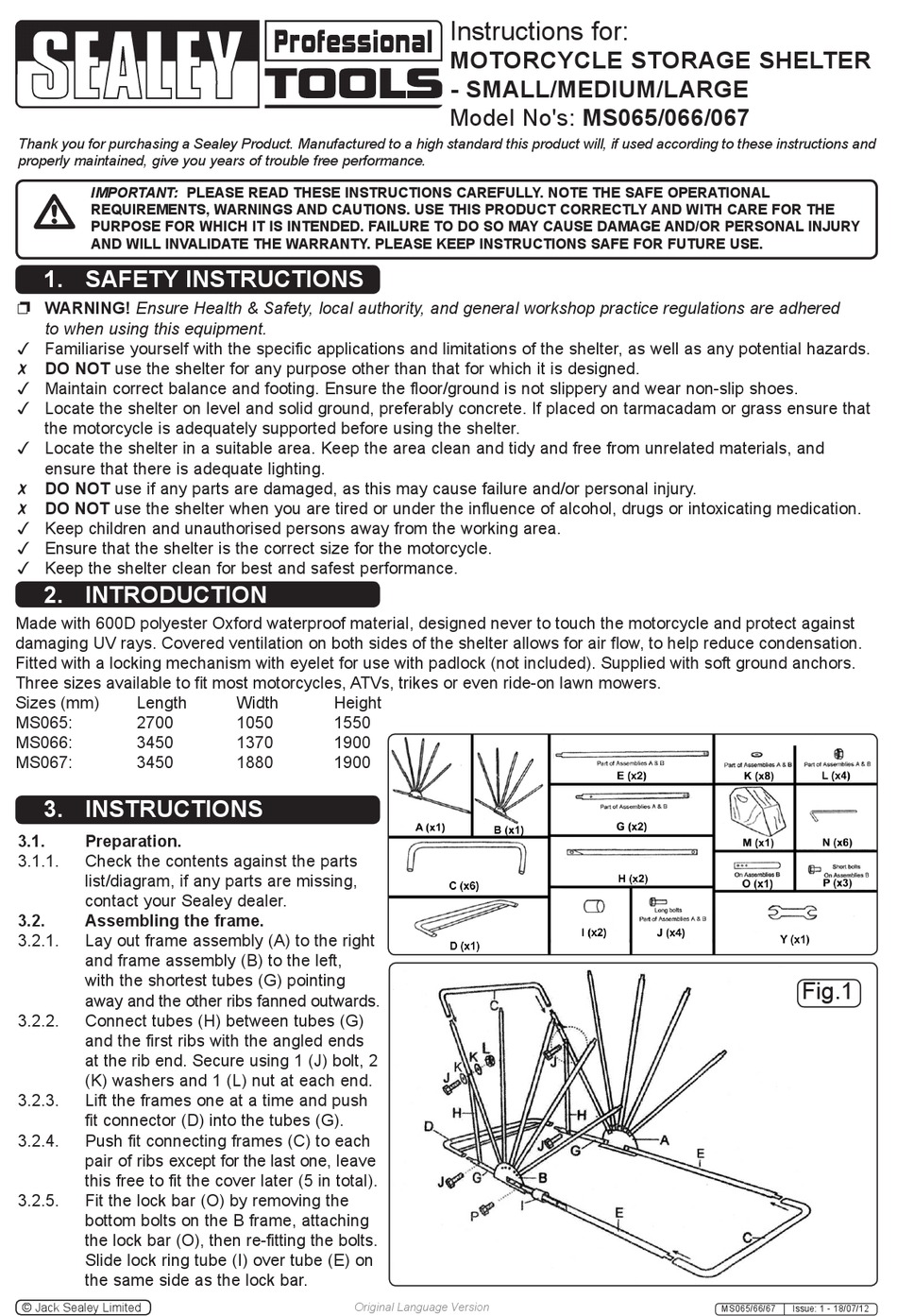

Sealey MS065 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY
AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered
to when using this equipment.
 Familiarise yourself with the specific applications and limitations of the shelter, as well as any potential hazards.
 DO NOT use the shelter for any purpose other than that for which it is designed.
 Maintain correct balance and footing. Ensure the floor/ground is not slippery and wear non-slip shoes.
 Locate the shelter on level and solid ground, preferably concrete. If placed on tarmacadam or grass ensure that
the motorcycle is adequately supported before using the shelter.
 Locate the shelter in a suitable area. Keep the area clean and tidy and free from unrelated materials, and
ensure that there is adequate lighting.
 DO NOT use if any parts are damaged, as this may cause failure and/or personal injury.
 DO NOT use the shelter when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 Keep children and unauthorised persons away from the working area.
 Ensure that the shelter is the correct size for the motorcycle.
 Keep the shelter clean for best and safest performance.
2. INTRODUCTION

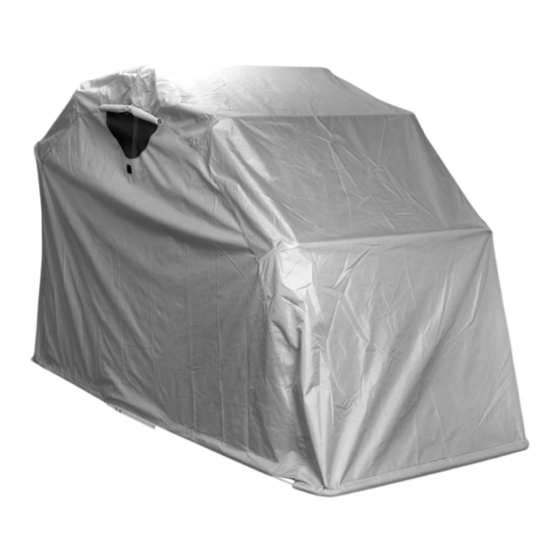

Made with 600D polyester Oxford waterproof material, designed never to touch the motorcycle and protect against
damaging UV rays. Covered ventilation on both sides of the shelter allows for air flow, to help reduce condensation.
Fitted with a locking mechanism with eyelet for use with padlock (not included). Supplied with soft ground anchors.
Three sizes available to fit most motorcycles, ATVs, trikes or even ride-on lawn mowers.
Sizes (mm) Length
MS065: 2700
MS066: 3450
MS067: 3450
3. INSTRUCTIONS
3.1. Preparation.
3.1.1. Check the contents against the parts
list/diagram, if any parts are missing,
contact your Sealey dealer.
3.2. Assembling the frame.
3.2.1. Lay out frame assembly (A) to the right
and frame assembly (B) to the left,
with the shortest tubes (G) pointing
away and the other ribs fanned outwards.
3.2.2. Connect tubes (H) between tubes (G)
and the first ribs with the angled ends
at the rib end. Secure using 1 (J) bolt, 2
(K) washers and 1 (L) nut at each end.
3.2.3. Lift the frames one at a time and push
fit connector (D) into the tubes (G).
3.2.4. Push fit connecting frames (C) to each
pair of ribs except for the last one, leave
this free to fit the cover later (5 in total).
3.2.5. Fit the lock bar (O) by removing the
bottom bolts on the B frame, attaching
the lock bar (O), then re-fitting the bolts.
Slide lock ring tube (I) over tube (E) on
the same side as the lock bar.
© Jack Sealey Limited
Width Height
1050 1550
1370 1900
1880 1900
Original Language Version
Instructions for:
MOTORCYCLE STORAGE SHELTER
- SMALL/MEDIUM/LARGE
Model No's: MS065/066/067
Fig.1
MS065/66/67 Issue: 1 - 18/07/12
